Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

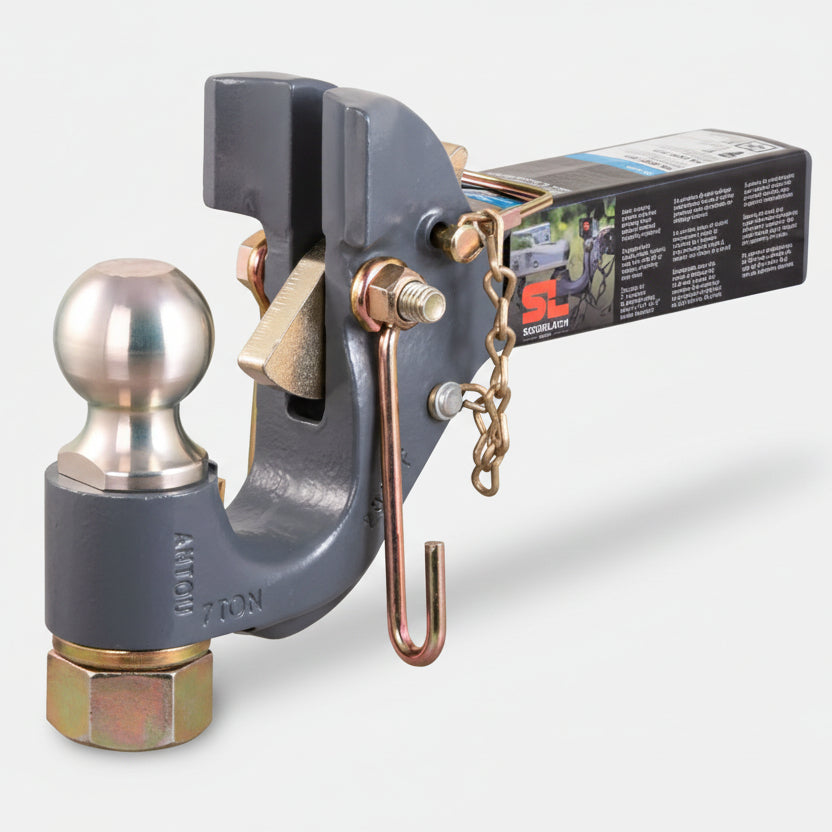

An integrated pintle-and-ball towing solution designed for fast coupling, automatic primary latch engagement, and quieter heavy-duty towing with lunette rings or standard 2" couplers.
The SecureLatch pintle ball and hook combination revolutionizes heavy-duty towing by making coupling as simple as "Strike, Drop, Auto-lock!" This integrated system features an automatic locking mechanism that secures the primary latch the moment the lunette ring or coupler is lowered into place. Designed for any industry-standard 2-inch receiver, it serves as a versatile, high-capacity connection point for both standard 2-inch ball couplers and heavy-duty lunette rings.
This component is typically replaced due to wear, environmental exposure, or repeated load stress over time—not sudden failure.
Compatibility: Couples to standard 2" ball couplers or lunette rings with a 2-1/2" or 3" inside diameter.
Vehicle / System Fit: Fits all standard 2" x 2" trailer hitch receiver tube openings.
Installation Notes: The secondary safety pin must be manually installed after the auto-lock engages before towing begins.
Performance Insight: The unique cupped hook design reduces "chucking" by holding the lunette ring tighter than traditional flat-style pintle hooks.

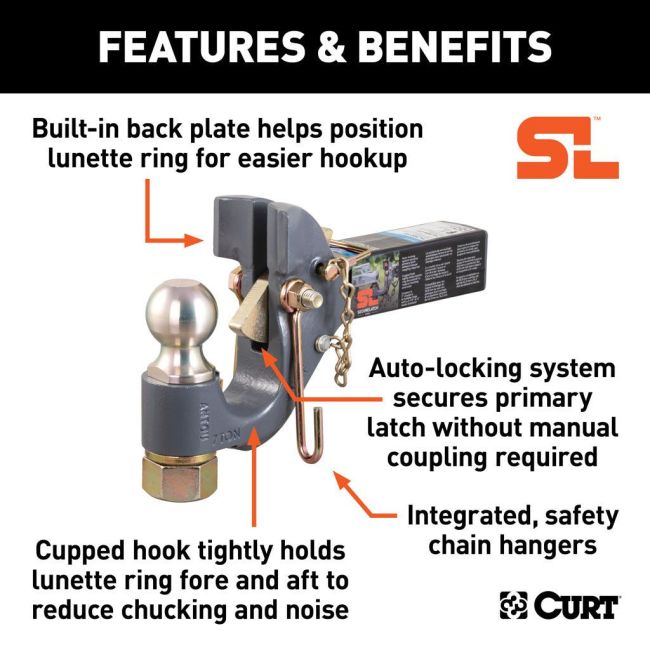

Secures the primary latch automatically without manual coupling required.
Built-in back plate helps center and stop the lunette ring for easier one-person hookups.
Cupped hook design holds the ring tighter to reduce noise and vibration during travel.
Austempered cast iron build with a durable Battleship Grey finish and integrated safety chain hangers.

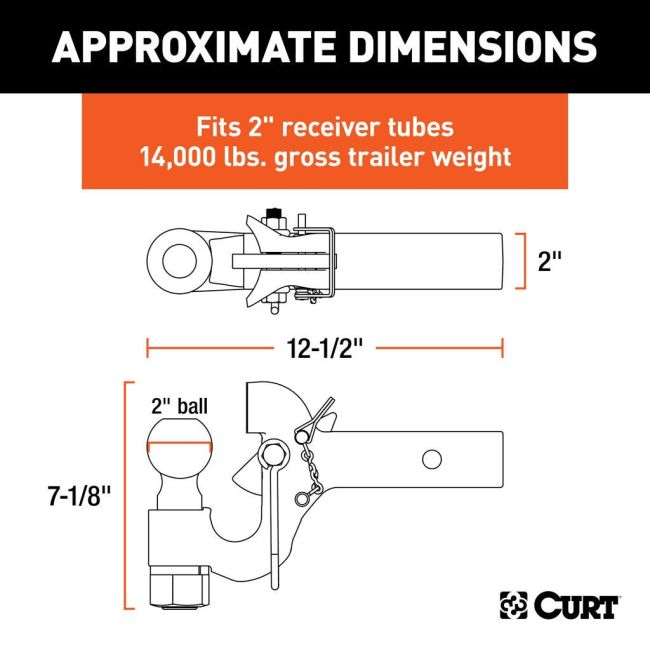

| Specification | Detail |
|---|---|
| Type | Pintle Hook / Ball Combination |
| Application | Heavy-Duty Towing / Equipment Trailers |
| Receiver Fitment | 2" x 2" Receiver Tube |
| Material / Finish | Austempered Cast Iron / Battleship Grey |
| Gross Trailer Weight | 14,000 lbs. (Pintle) / 10,000 lbs. (Ball) |
| Part Number | 48407 |
| Category | Details |
|---|---|
| Vehicle / System | Universal 2" Class IV/V Hitch Receivers |
| Axle / Capacity | Max 14K GTW / Max 1,400 lbs TW |
| Notes | Compatible with 2-1/2" or 3" ID Lunette Rings and 2" Couplers |
| Quantity | Item |
|---|---|
| 1 | SecureLatch Pintle / Ball Combo Unit |
| 1 | Secondary Safety Pin with Lanyard |
Selected from R&P customer feedback for Trailer Axle / Running Gear products and related trailer service.
“Got me the axle I needed right away with custom spring perch setting.”
“Had a trailer made to my needs.ken was able to get it done and at a price that was very acceptable.i have bought parts there for 2 other trailers and always in stock”
“Quality work. Staff is polite. Great job welding a project for me. Didn't even want to charge me, so I bought them a case of Corona. They were ecstatic. I ever need a welding or like that R&P Carriages is #1 !!!!!”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
