Match the part number, measurements and connection points that apply to your trailer.
| Size | Match the complete size designation. |
|---|---|
| Bolt Pattern | Verify the complete lug pattern. |
| Load Rating | Meet or exceed the required rating. |

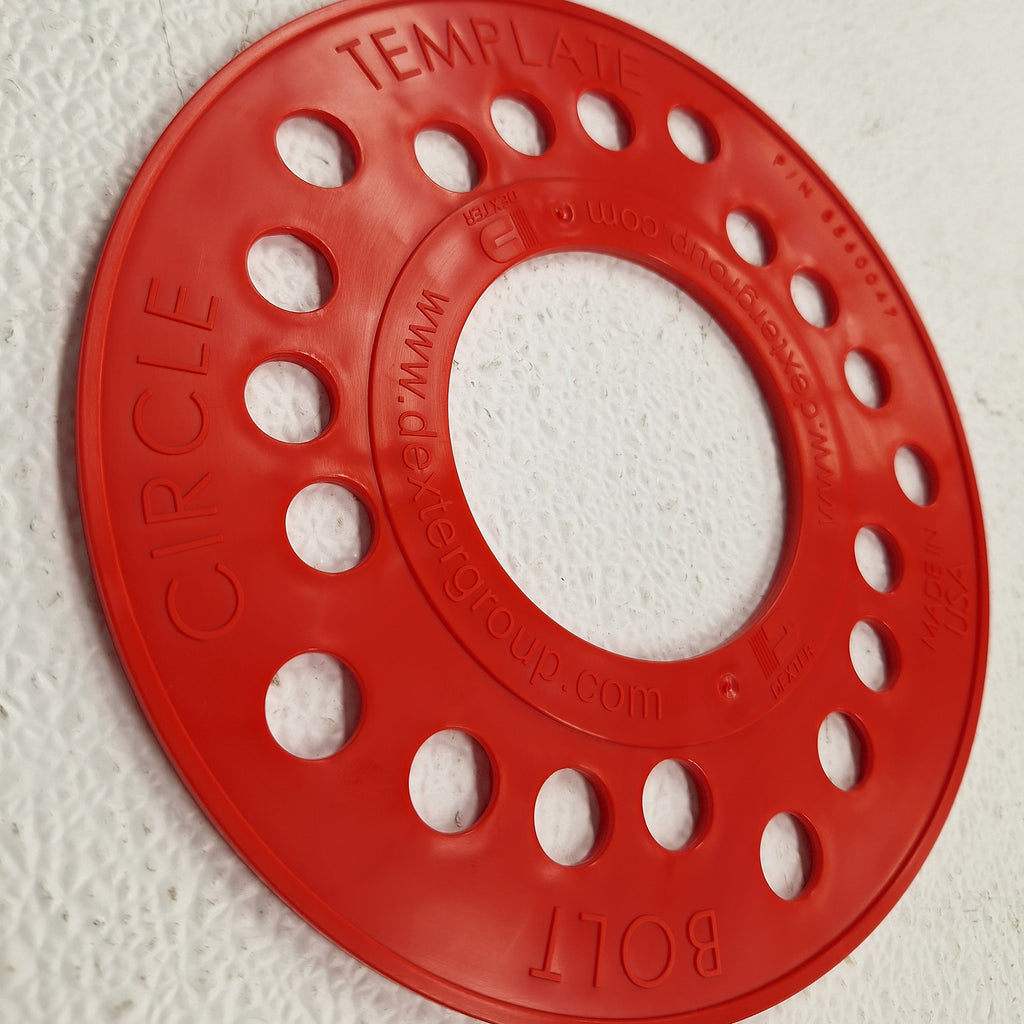

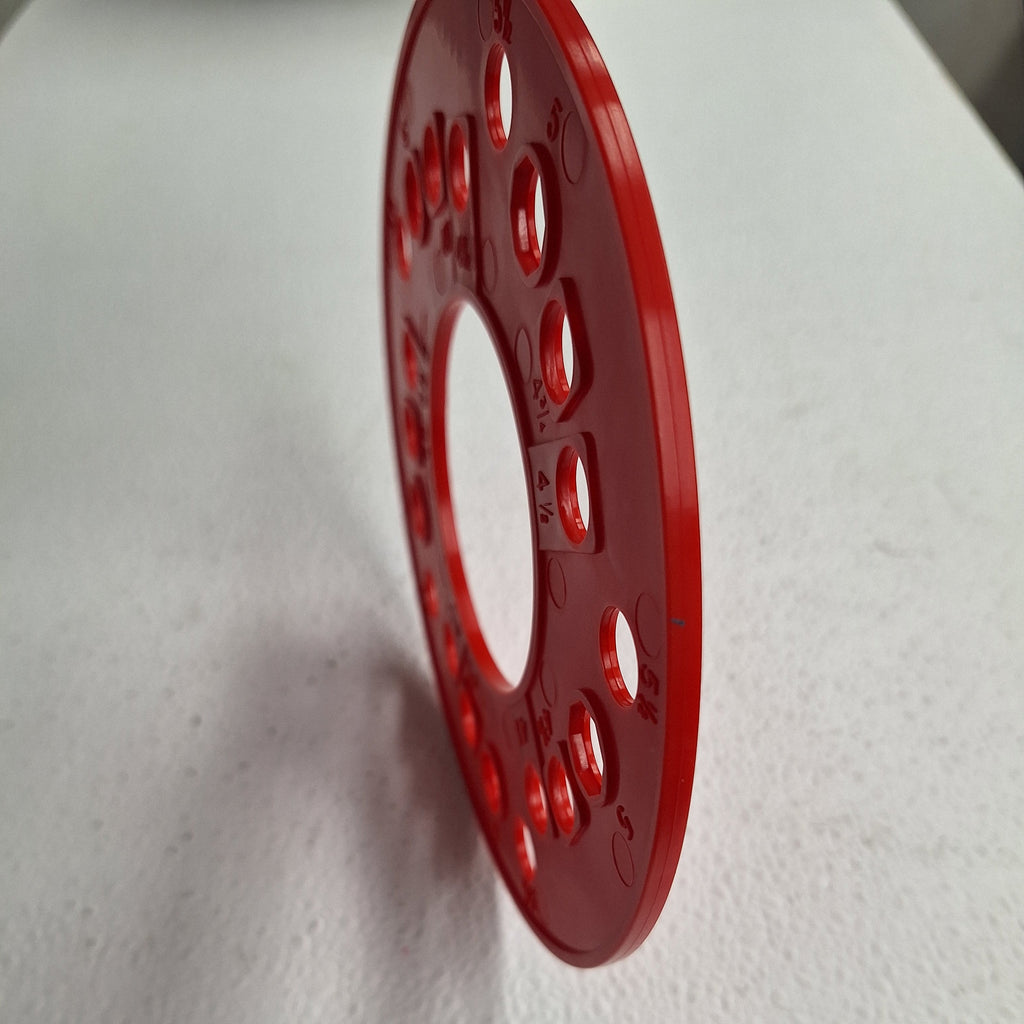

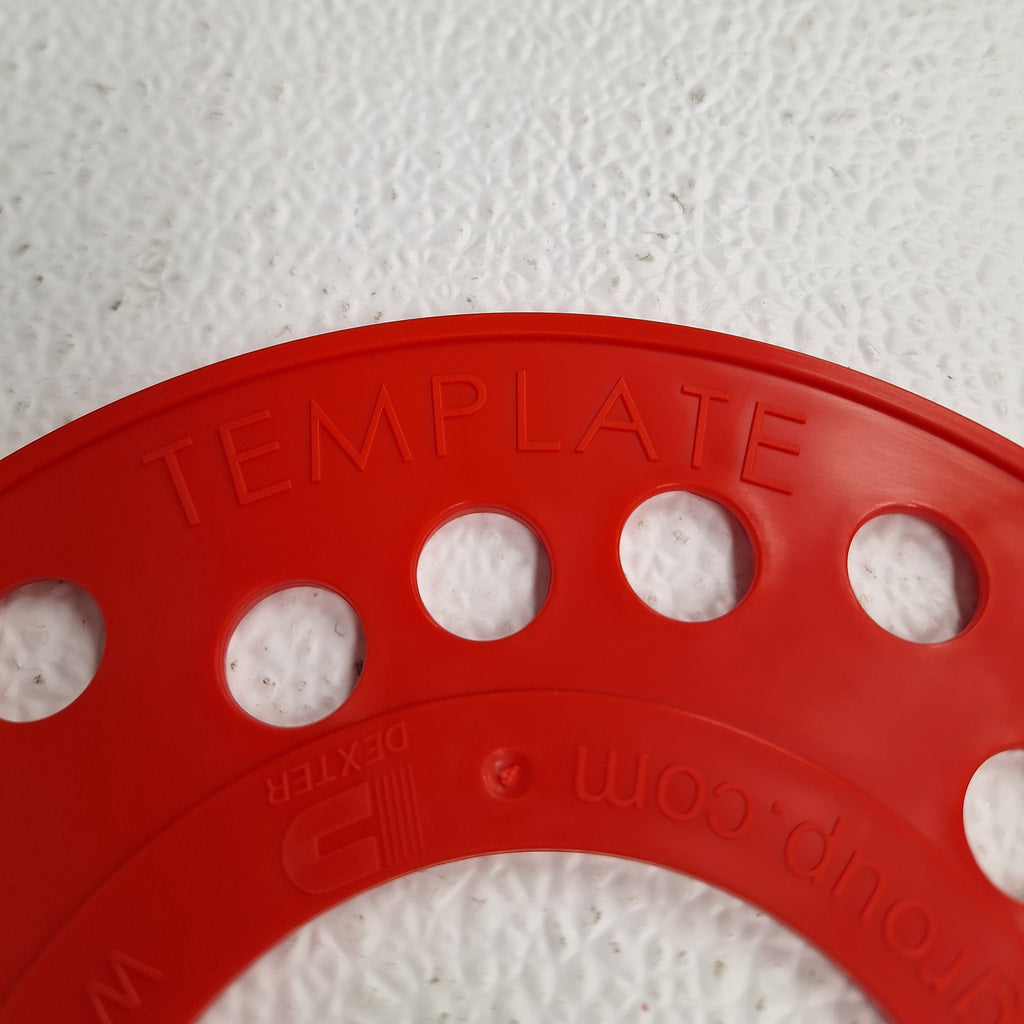

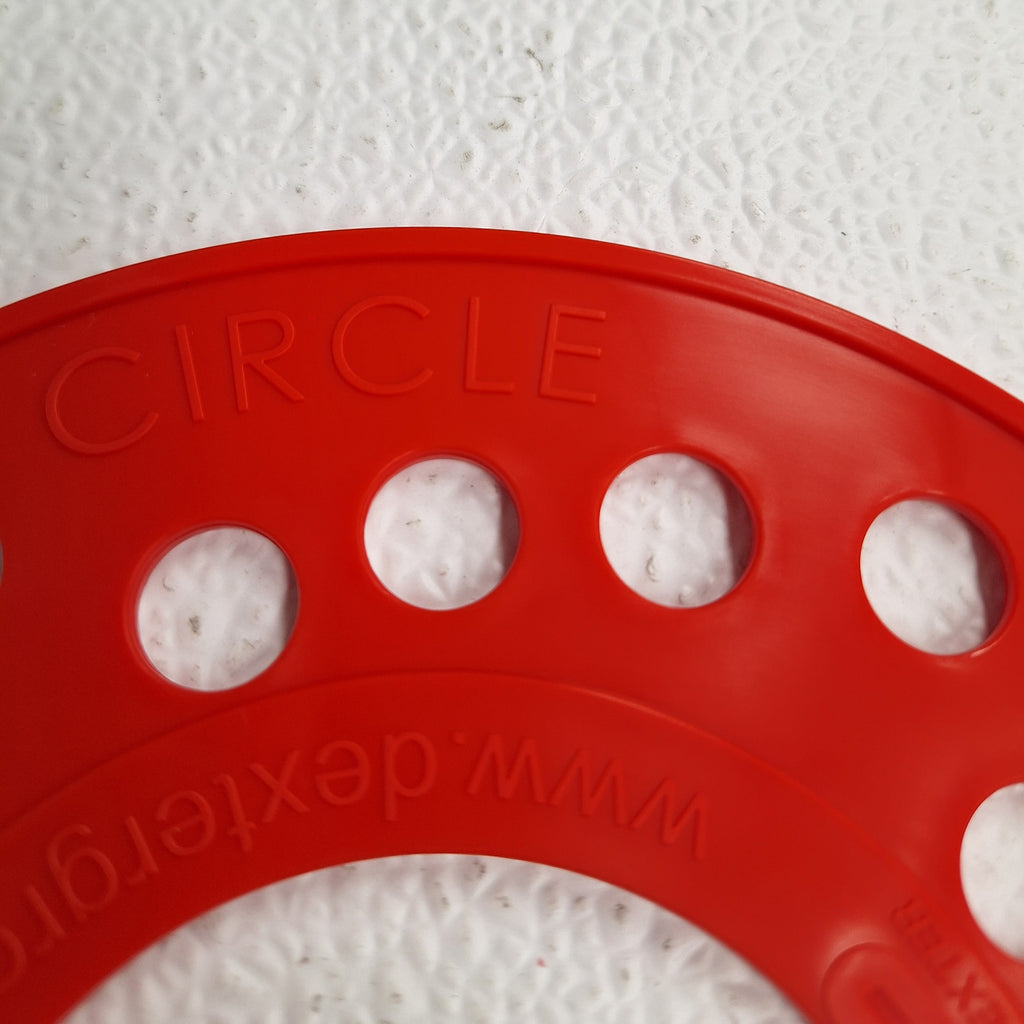

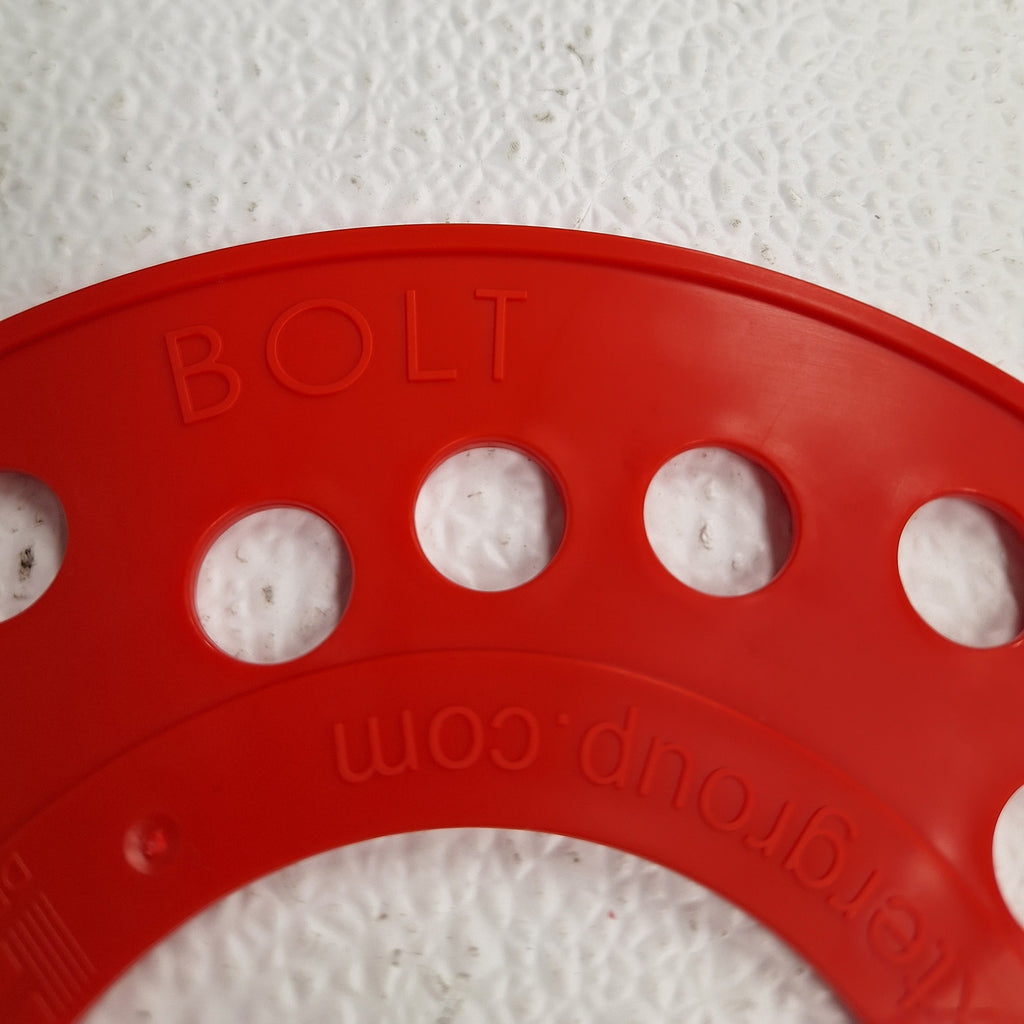

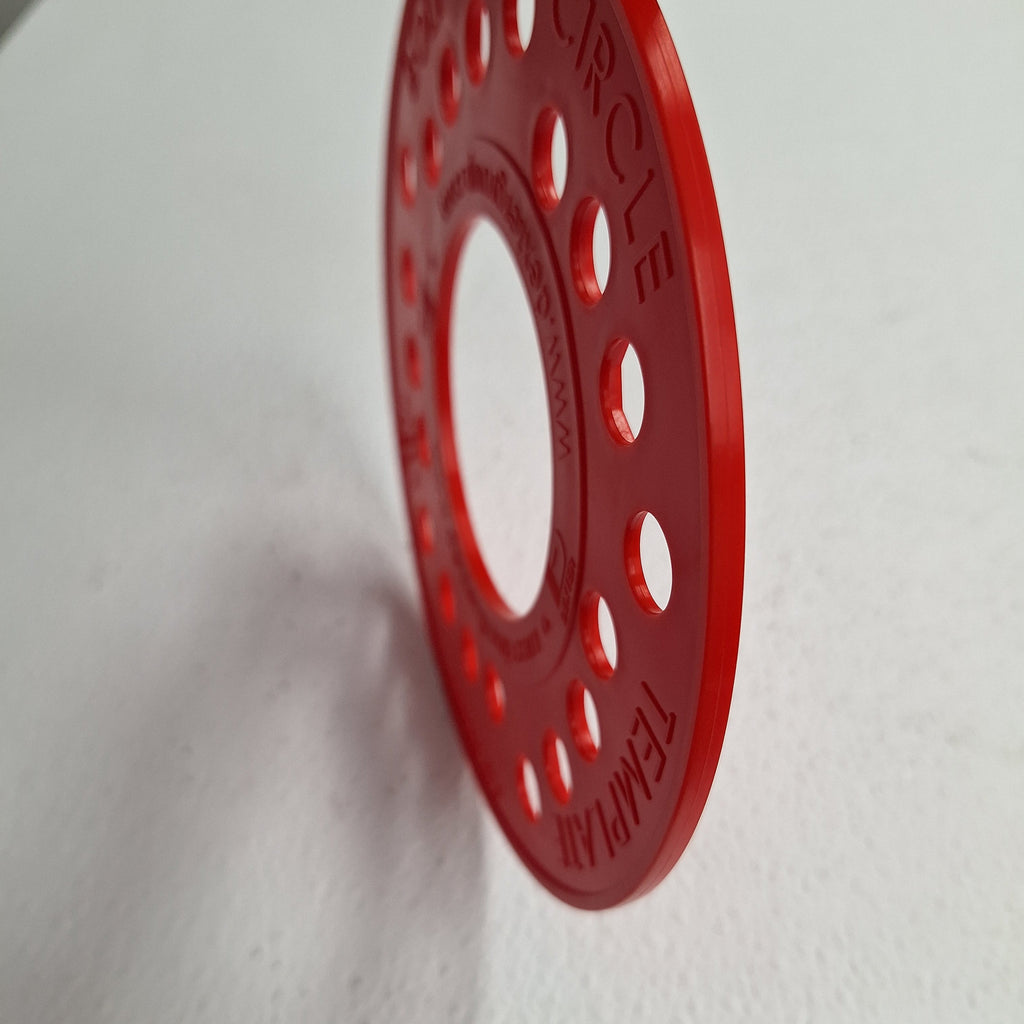

Durable plastic bolt circle template designed to take the guesswork out of identifying the bolt pattern on a 5-lug wheel or hub.
| Specification | Detail |
|---|---|

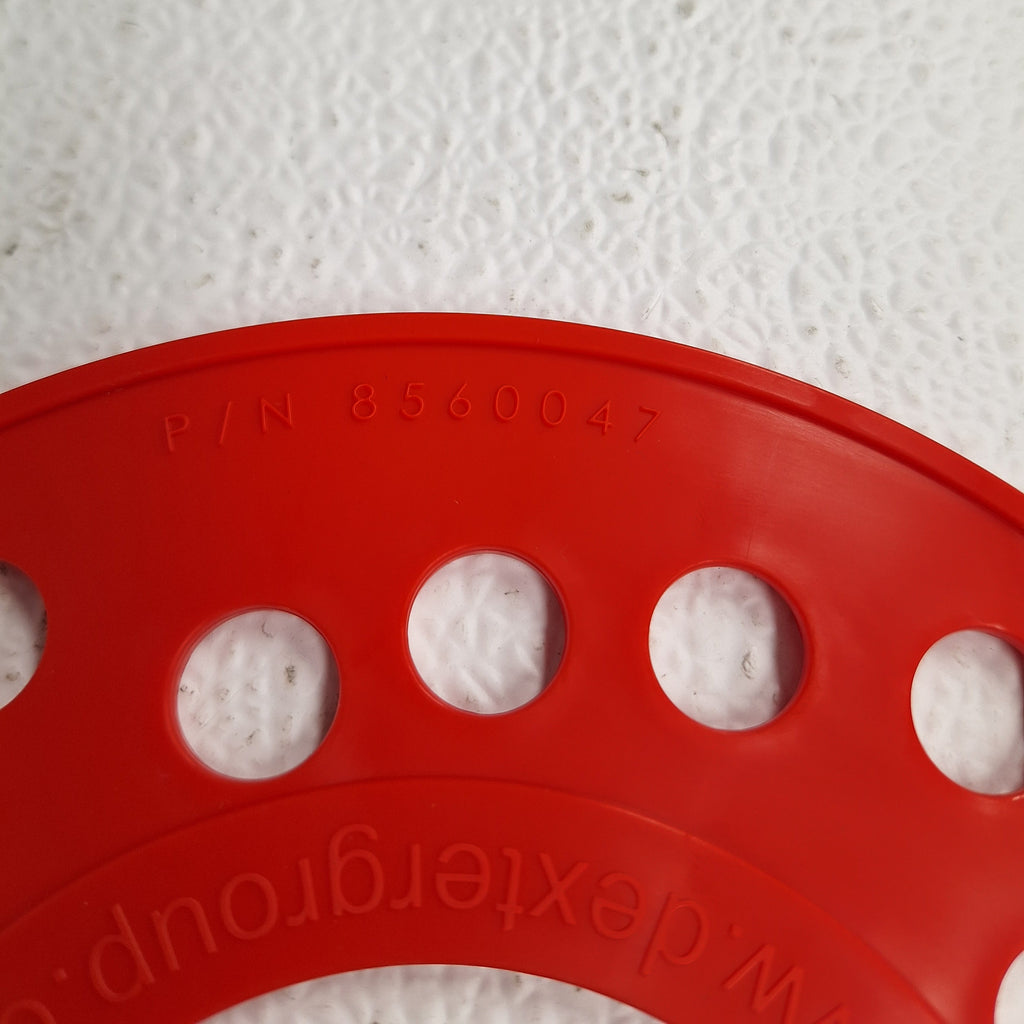

| Part Number / SKU | 8560047 |
| Product Type | 5-lug bolt circle template |
| Material | Durable plastic |
| Pattern Quantity | 4 bolt patterns |
| Hole Markings | Each hole is clearly marked |
| Quantity Included | 1 bolt circle template |
| Category | Details |
|---|---|
| Application | 5-lug wheels and hubs |
| 5 x 4-1/2" | Included marked bolt pattern |
| 5 x 4-3/4" | Included marked bolt pattern |
| 5 x 5" | Included marked bolt pattern |
| 5 x 5-1/2" | Included marked bolt pattern |
| Identification Method | Set the template over the lug bolts and compare the clearly marked holes |
| Feature | Buyer Benefit |
|---|---|
| Four Bolt Patterns | Identifies four common 5-lug bolt circle patterns with one template |
| Clearly Marked Holes | Makes each supported bolt pattern easy to distinguish |
| Durable Plastic | Provides a durable template for bolt pattern identification |
| Simple Placement | Sets directly over the lug bolts to help remove guesswork |

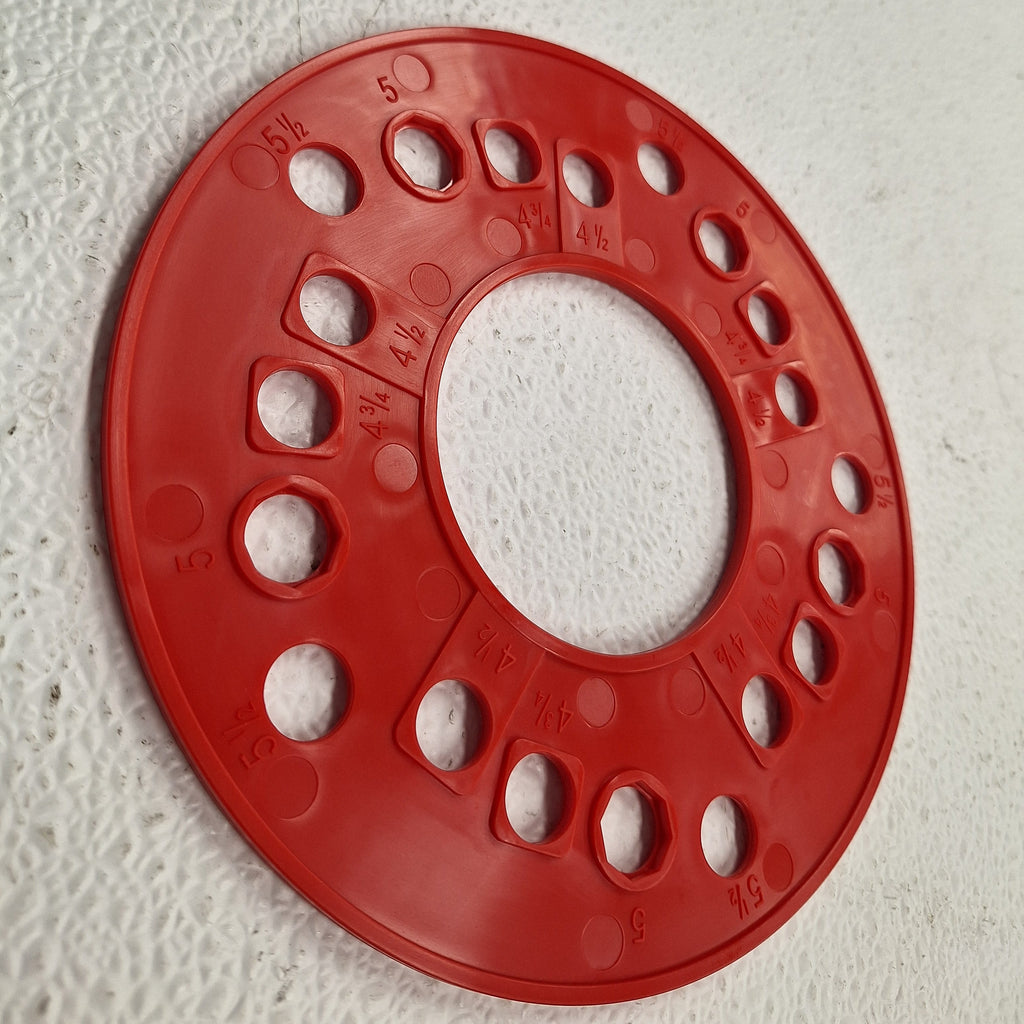

This durable plastic bolt circle template provides a simple way to identify the bolt pattern on a 5-lug wheel or hub. It includes clearly marked holes for 5 x 4-1/2", 5 x 4-3/4", 5 x 5", and 5 x 5-1/2" bolt patterns.
The template is designed to help determine a 5-lug bolt pattern without relying on guesswork.
Compatibility: Designed for identifying supported 5-lug wheel and hub bolt patterns.
Supported Patterns: 5 x 4-1/2", 5 x 4-3/4", 5 x 5", and 5 x 5-1/2".
Use: Set the template over the lug bolts and locate the clearly marked holes that match.
Identification Benefit: The marked template takes the guesswork out of determining which supported 5-lug bolt pattern is present.
Selling Brand: Not specified.
Application: This template is intended for checking 5-lug wheels and hubs against the four marked bolt patterns.
What This Means: This listing is for one plastic bolt circle template.
Before Ordering: Confirm that the bolt pattern you need to identify is one of the four patterns included on the template.
Correct bolt pattern identification helps determine which of the supported 5-lug patterns matches the wheel or hub being checked.
Includes marked holes for 5 x 4-1/2", 5 x 4-3/4", 5 x 5", and 5 x 5-1/2" patterns.

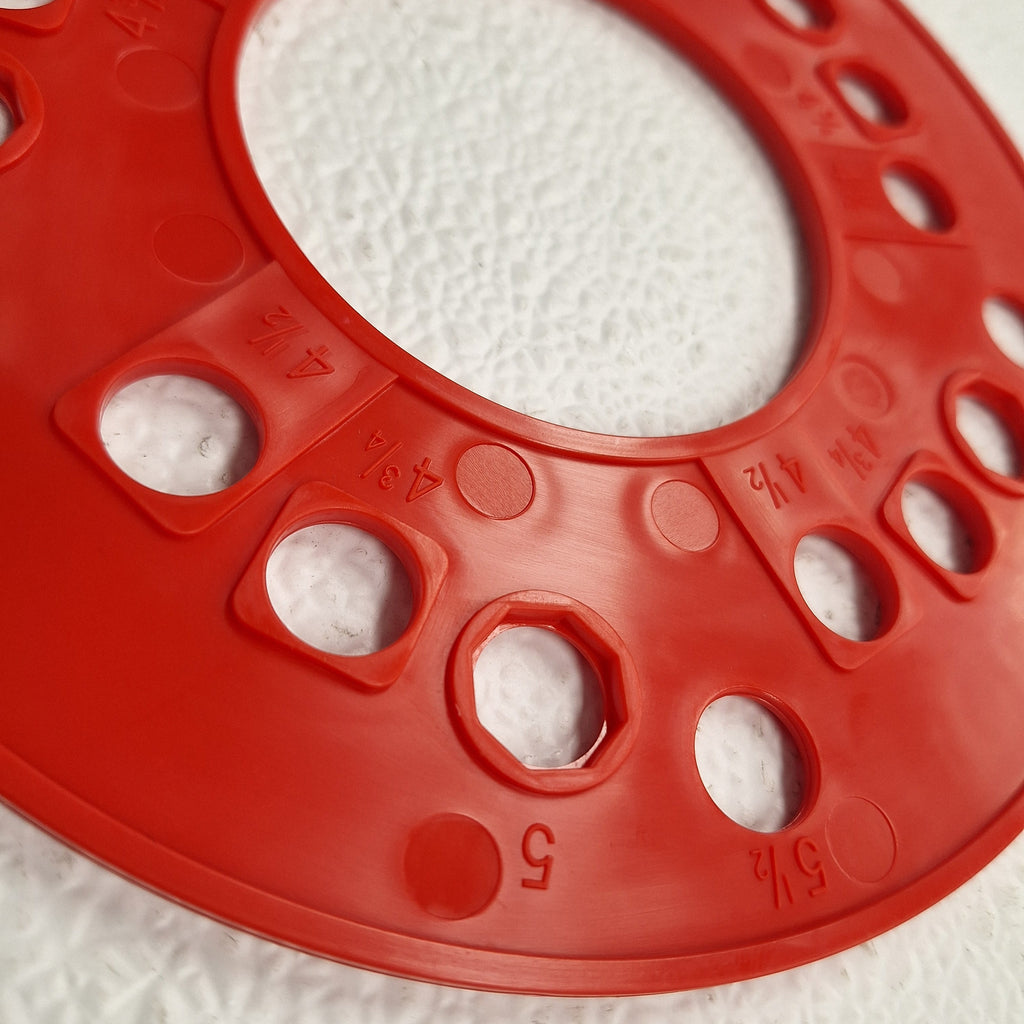

Each hole is clearly marked to make the supported patterns easier to identify.
The template is made from durable plastic.
Simply set the template over the lug bolts to determine which marked pattern matches.
| Quantity | Item |
|---|---|
| 1 | 5-lug bolt circle template |
