At a Glance
- SKU: LGP6-100-10
PRODUCT INFORMATION
Product Details

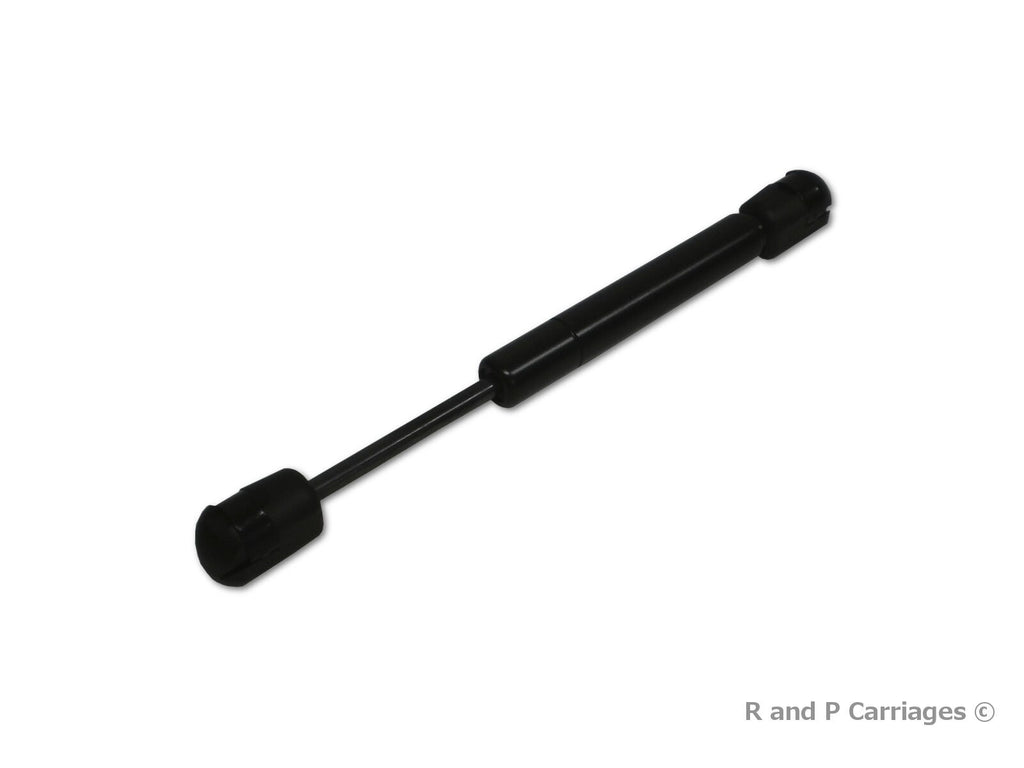

Gas Spring Strut Rod / RV Hatch Support / Black Nitride Shaft

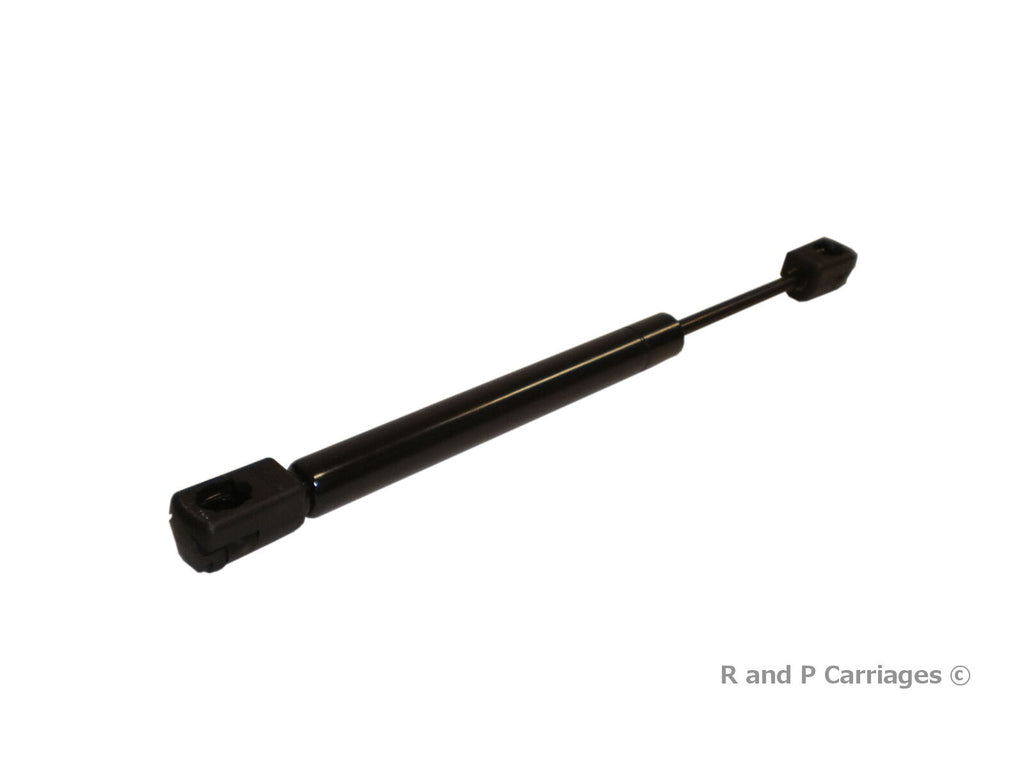

Gas Spring SPD-GSNI-5000-10 or LGP6-100-10 Strut Prop Rod RV Camper Hatch Door
Replacement gas spring strut rod for compatible hatch, cover, RV, camper, compartment door, and lift-support applications requiring a 10" extended length, 3" stroke, 10 lb force, and standard 10mm ends.
Part Number: GSNI-5000-10 / LGP6-100-10 10" Extended / 3" Stroke 10 lb Force / 10mm Ends
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | GSNI-5000-10 / LGP6-100-10 |
| Brand | R&P Carriages replacement listing; SPD and LGP numbers used as application references |
| Product Type | Gas spring strut rod / lift support |
| Extended Length | 10" |
| Stroke | 3" |
| Force Rating | 10 lb |
| End Style | Standard 10mm ends |
| Material / Finish | Black nitride shaft; steel gas spring body |
| Quantity Included | 1 gas spring strut rod |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / Trailer / System | Hatches, covers, RVs, campers, compartment doors, lift-up panels, and compatible support applications |
| Primary Fit | Fits applications requiring a 10" extended gas spring with 3" stroke, 10 lb force, and standard 10mm ends |
| Replacement Reference | SPD GSNI-5000-10 and LGP6-100-10 application reference |
| Fitment Method | Match the extended length, stroke, force rating, end size, and mounting ball/stud style before ordering |
| Important Note | Do not select by appearance alone. Gas springs must match length, stroke, end connection, and force rating for safe function. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 10" Extended Length | Matches common short hatch, cover, and compartment-door gas spring applications |
| 3" Stroke | Provides the travel needed for compatible short-lift support installations |
| 10 lb Force Rating | Designed for lighter panels where a low-force support is required |
| Black Nitride Shaft | Provides a clean black appearance with added corrosion resistance at the shaft |
| Standard 10mm Ends | Works with compatible 10mm ball-stud mounting points |
Overview
This listing is for one black nitride shaft gas spring strut rod used as a replacement lift support for compatible hatches, covers, RVs, campers, and compartment applications. It is commonly referenced by SPD GSNI-5000-10 and LGP6-100-10 and should be selected by matching the original gas spring’s extended length, stroke, force rating, and 10mm end connection.
R&P Service Insight
Gas springs are measurement-sensitive parts. A gas spring that is close in appearance can still be incorrect if the force rating, stroke, or end connection does not match the original installation.
- Measure Extended Length: Measure the original gas spring fully extended from center of end fitting to center of end fitting.
- Match Force: Replace a 10 lb gas spring with the same force rating unless the application has been re-engineered.
- Check Ends: Confirm the mounting points use compatible standard 10mm ball ends before ordering.
R&P Knowledge Hub
Compatibility: Designed for applications that match SPD GSNI-5000-10 or LGP6-100-10 dimensions and force requirements.
Vehicle / System Fit: Used on compatible RV, camper, hatch, cover, compartment door, and lift-support systems.
Installation Notes: Support the hatch, cover, or door before removing the old strut. Gas springs can no longer safely support a panel once disconnected or worn out.
Performance Insight: The 10 lb force rating is intended for lighter lift-support applications. Too much force can make the panel difficult to close; too little force may not hold it open.
Brand & Fitment Note
Selling Brand: R&P Carriages replacement gas spring listing.
Application Reference: SPD GSNI-5000-10 and LGP6-100-10 are used as replacement and compatibility reference numbers.
What This Means: This listing is for one compatible gas spring strut rod, not a guaranteed OEM-branded item unless specifically stated on the product packaging.
Before Ordering: Verify extended length, stroke, force rating, end style, mounting ball size, and quantity needed before installation.
R&P Repair Insight
Weak or failed gas springs are commonly replaced when a hatch, cover, camper door, or compartment panel will not stay open. Always compare the markings on the old gas spring and measure the part before ordering.
- Length Check: Confirm the original unit is 10" extended length.
- Stroke Check: Confirm the original stroke is 3".
- Force Check: Confirm the original force rating is 10 lb or 45N equivalent before replacing.
Features
Black Nitride Shaft
Provides a black appearance and added corrosion resistance at the shaft for compatible exposed applications.
10" Extended Length
Matches short gas spring applications where the existing strut measures 10" fully extended.
3" Stroke
Provides the travel required for compatible hatch, cover, door, and compartment lift-support applications.
Standard 10mm Ends
Designed for applications using compatible 10mm ball-stud mounting points.
Included Components
| Quantity | Item |
|---|---|
| 1 | Black nitride shaft gas spring strut rod |
| Not Included | Mounting brackets, ball studs, screws, and additional hardware unless specifically shown or selected separately |
Important Fitment Note: Verify the original gas spring part number, 10" extended length, 3" stroke, 10 lb force rating, standard 10mm ends, mounting ball size, and quantity required before installation. SPD and LGP numbers are used as compatibility references only.
Black nitride shaft gas spring strut rod SPD GSNI-5000-10 LGP6-100-10 10 inch extended 3 inch stroke 10 lb force 10mm ends RV camper hatch door cover compartment lift support replacement gas spring prop rod
