Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

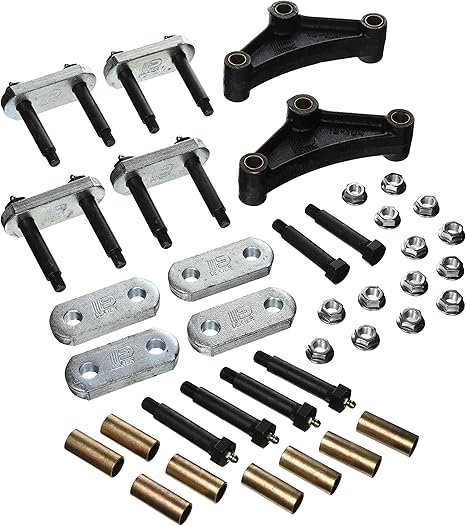

Kit Includes:
8 X (007-236-05) Equalizer Bolts 0.56" x 3.4"
8 X (018-024-01) Shackle Straps 2.25" Hole Center 3.69" x 1.50" x .50" Reamed
2 X (13-104) Equalizers 5.75" x 2" 0.56 Holes (Short Equalizer)
14 X (BU1-1566B) Bronze Bushing Bushings 0.57" x 0.69" x 1.75"
14 X (FA-6-92Z) Flanged Nuts 7/16"
6 X (FA-7-187) Wet Bolts 0.56" x 3" 7/16" Step Down End
Direct Replacement for Dexter K71-359-00
Selected from R&P customer feedback for Trailer Axle / Running Gear products and related trailer service.
“Got me the axle I needed right away with custom spring perch setting.”
“Had a trailer made to my needs.ken was able to get it done and at a price that was very acceptable.i have bought parts there for 2 other trailers and always in stock”
“Quality work. Staff is polite. Great job welding a project for me. Didn't even want to charge me, so I bought them a case of Corona. They were ecstatic. I ever need a welding or like that R&P Carriages is #1 !!!!!”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
