Triple Axle Suspension Hardware Kit
Triple Axle Equalizer & Shackle Suspension Trailer Kit with Wet Bolts, Bushings, Nuts & Straps
R&P Carriages assembled suspension kit built from the listed equalizers, shackle straps, nylon bushings, flange nuts, and greaseable shackle bolts. Verify measurements and application before ordering.
SKU : EQ-SL-FA-126B2LN-KIT 82 Total Pieces Triple Axle Suspension Hardware
Key Measurements & Specs
| Specification |
Detail |
| Selling Brand |
R&P Carriages |
| Product Type |
Assembled equalizer and shackle suspension kit |
| Equalizers Included |
EQ-E1 Equalizer, 7-3/4" and EQ-126 Equalizer-LONG Triple Axle Rear Equalizer |
| Shackle Strap Size |
2.562" hole center, 3.75" x 1.25" x .23" |
| Bushing Size |
0.57" x 0.69" x 1.75" |
| Bolt Size |
9/16"-18 x 3" |
| Quantity Included |
82 total pieces |
Fitment / Application
| Category |
Details |
| System |
Triple axle suspension applications using matching equalizers, shackle straps, bushings, nuts, and wet bolts |
| Primary Fit |
Verify before ordering |
| Fitment Method |
Match equalizer style, shackle strap hole center, bolt size, bushing size, and suspension layout |
| Important Note |
This kit should be matched by measurements and existing suspension configuration before installation. |
Top Features
| Feature |
Buyer Benefit |
| Complete Hardware Mix |
Includes equalizers, shackle straps, nylon bushings, flange nuts, and greaseable bolts. |
| Greaseable Wet Bolts |
Includes shackle bolts with zerk pressed in. |
| Matched Kit Quantity |
Built as one R&P Carriages assembled kit with listed quantities included. |
| Measurement-Based Ordering |
Buyer can compare the listed equalizer, strap, bushing, and bolt measurements before ordering. |
Overview
This R&P Carriages assembled triple axle suspension hardware kit includes EQ-E1 7-3/4" equalizers, EQ-126 Equalizer-LONG triple axle rear equalizers, shackle straps, spring eye / equalizer nylon bushings, 7/16" flange nuts, and 9/16"-18 x 3" shackle bolts with zerk pressed in. It is intended for applications where the listed parts, quantities, and measurements match the suspension being serviced.
R&P Service Insight
Suspension kits should be checked by measurement before ordering. Equalizer length, shackle strap hole center, bushing dimensions, bolt size, and nut size all need to match the trailer suspension layout.
-

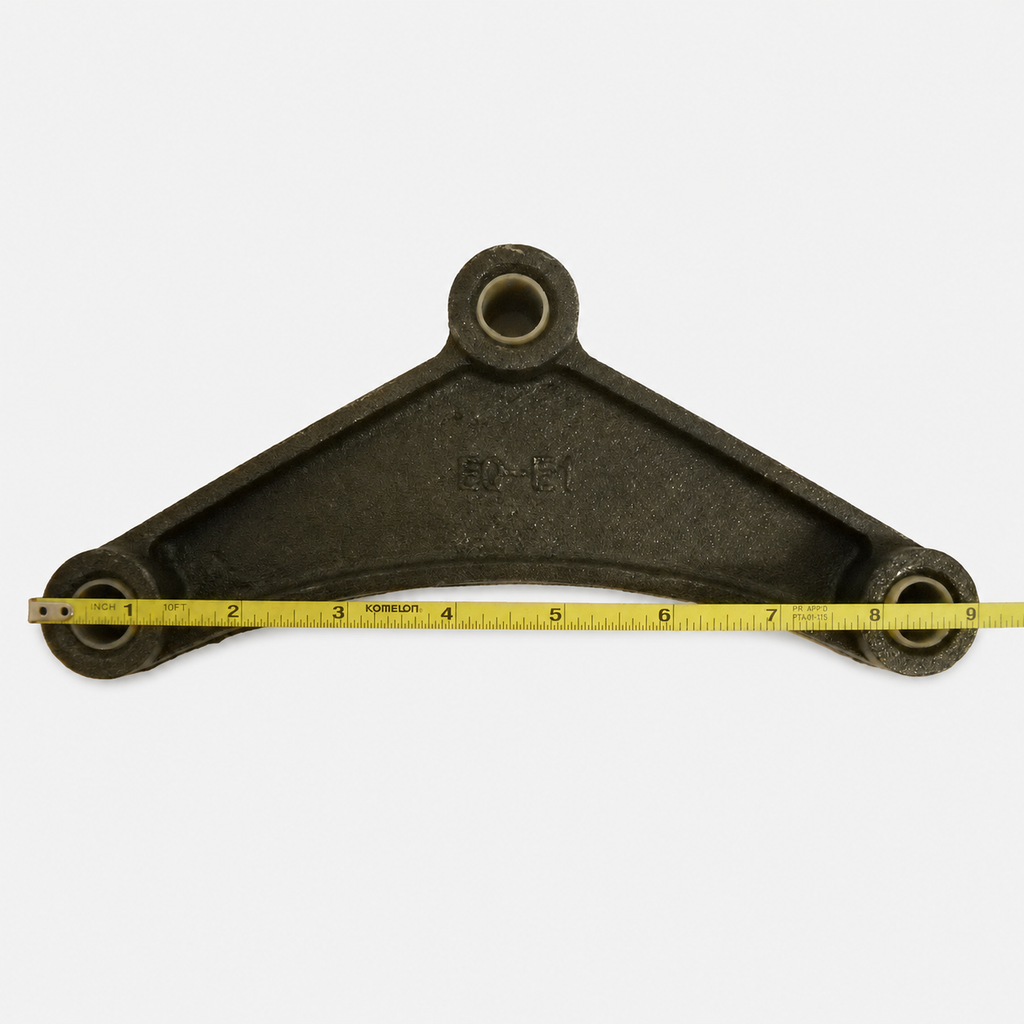

Measure First: Confirm the 7-3/4" equalizer requirement and the 2.562" shackle strap hole center.
-
Check Hardware: Match 9/16"-18 x 3" shackle bolts and 7/16" flange nuts to the application.
-
Confirm Bushings: Verify 0.57" x 0.69" x 1.75" nylon bushings are correct for the spring eye / equalizer locations.
R&P Knowledge Hub
Compatibility: Verify before ordering. This kit should be matched by equalizer style, shackle strap size, bushing dimensions, bolt size, and existing suspension configuration.
Vehicle / System Fit: Triple axle suspension applications using matching EQ-E1, EQ-126, SL-2.562, 8137, FA-6-92Z, and 126B2LN components.
Installation Notes: Compare all removed parts to the listed measurements before installation. Do not rely on axle count alone for fitment.
Performance Insight: A matched suspension hardware kit helps keep the equalizers, shackles, bushings, bolts, and nuts organized for one service job.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Triple axle suspension references are application-based only and must be verified by measurements.
What This Means: This listing is for an R&P Carriages assembled suspension hardware kit using the listed components and quantities.
Before Ordering: Verify equalizer style, equalizer length, shackle strap hole center, bushing size, bolt size, nut size, and suspension layout before installation.
R&P Repair Insight
When replacing trailer suspension hardware, matching the original suspension geometry is critical. This kit includes multiple equalizer styles and a full count of straps, bushings, nuts, and greaseable bolts, but the application still needs to be confirmed before ordering.
-

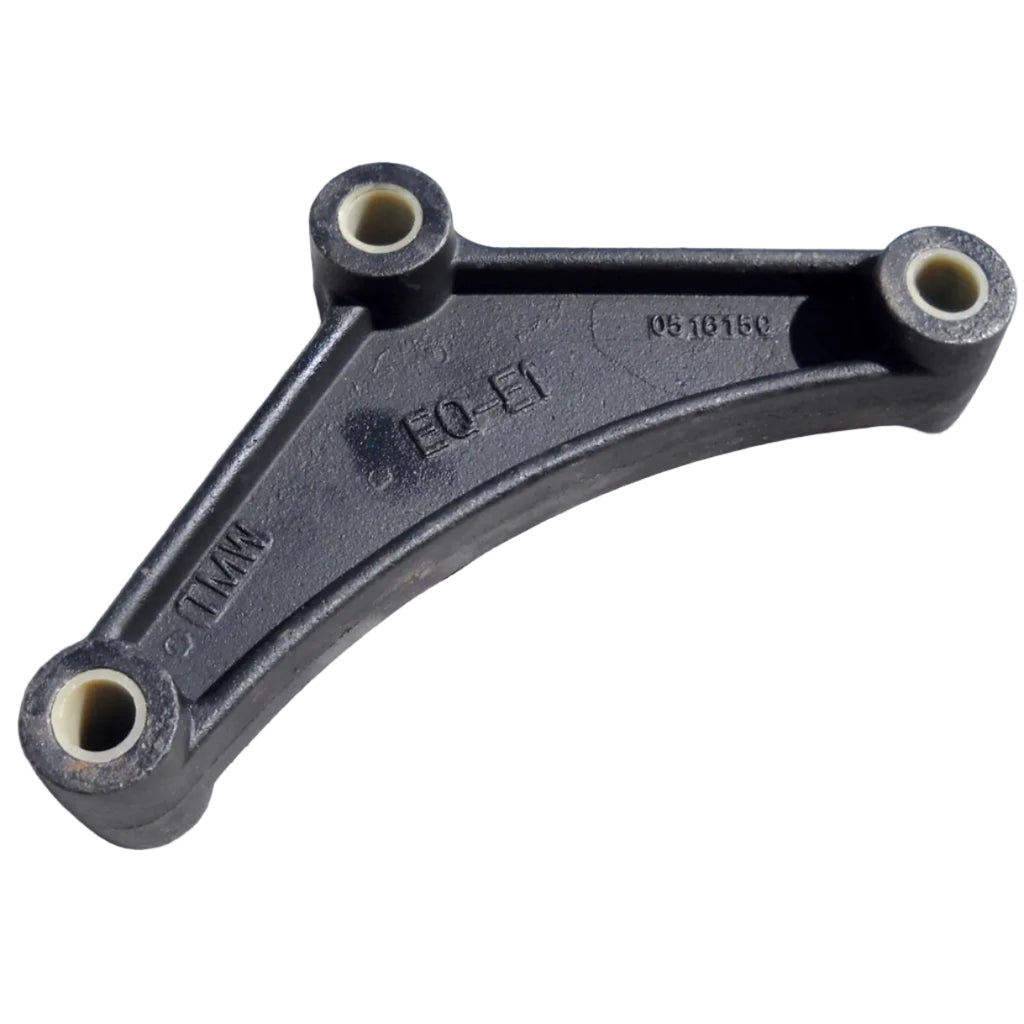

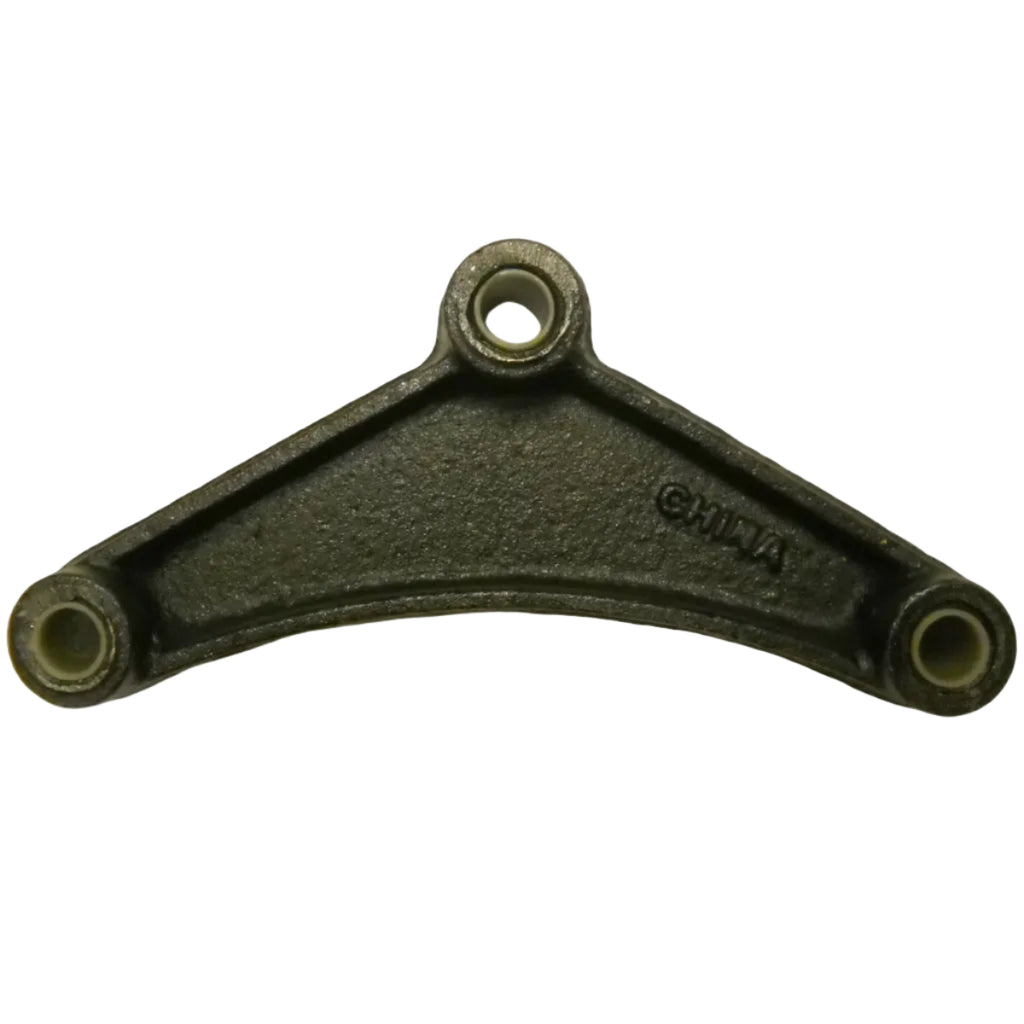

Equalizer Check: Confirm both EQ-E1 7-3/4" equalizers and EQ-126 long triple axle rear equalizers match the suspension layout.
-
Strap Check: Confirm the SL-2.562 shackle strap measurement of 2.562" hole center.
-
Hardware Check: Confirm 8137 nylon bushings, FA-6-92Z flange nuts, and 126B2LN shackle bolts are the correct size for the service.
Features
R&P Carriages Assembled Kit
Built as one organized suspension hardware kit with the listed equalizers, straps, bushings, nuts, and bolts included.
Includes Greaseable Shackle Bolts
Includes 126B2LN shackle bolts with zerk pressed in, 9/16"-18 x 3".
Includes Nylon Bushings

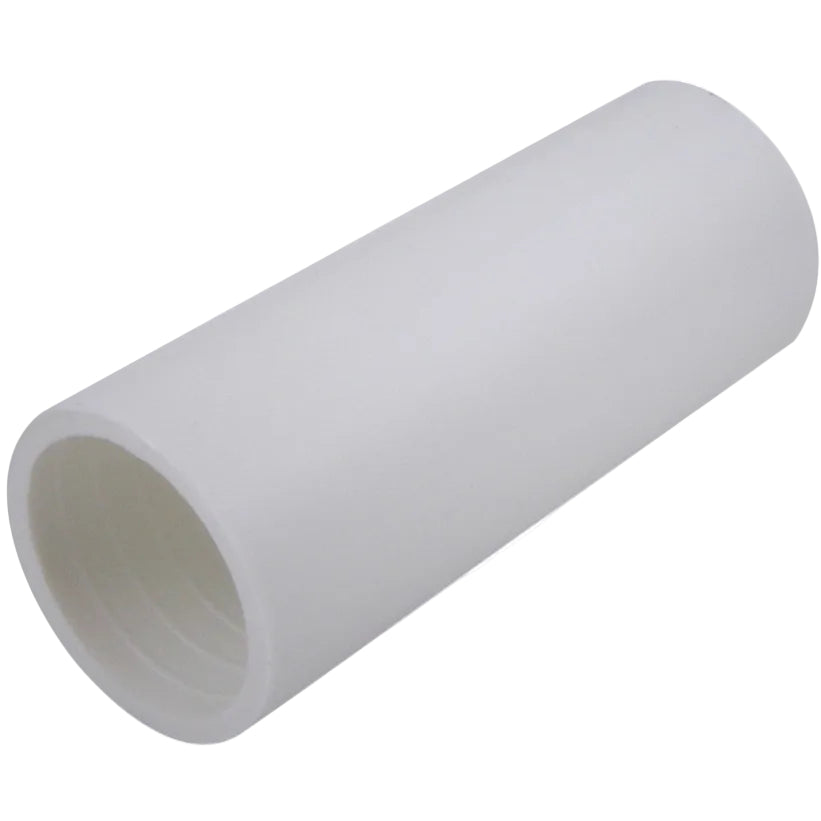

Includes 8137 spring eye / equalizer nylon bushings measuring 0.57" x 0.69" x 1.75".
Includes Measured Shackle Straps
Includes SL-2.562 shackle straps with 2.562" hole center and 3.75" x 1.25" x .23" dimensions.
Included Components
| Quantity |
Item |
| 2 |
EQ-E1: Equalizer, 7-3/4" |
| 2 |
EQ-126: Equalizer-LONG Triple Axle Rear Equalizer |
| 12 |
SL-2.562: Shackle Strap, 2.562" Hole Center, 3.75" x 1.25" x .23" |
| 22 |
8137: Bushing, Spring Eye / Equalizer, Nylon, 0.57" x 0.69" x 1.75" |
| 22 |
FA-6-92Z: 7/16" Flange Nut for Shackle Bolts Greaseable Wet Bolt |
| 22 |
126B2LN: Shackle Bolt, with Zerk PRESSED in, 9/16"-18 x 3" |
Important Fitment Note: Verify all measurements, equalizer style, shackle strap hole center, bushing dimensions, bolt size, nut size, and suspension layout before ordering or installation. This kit is assembled by R&P Carriages and should be matched to the existing suspension parts by measurement.
