Tekonsha 3030 Brake Controller Harness | Sprinter 2012-2021 Plug & Play
Plug-and-play Tekonsha brake controller harness designed for select Sprinter tow-package vehicles. Connects compatible Tekonsha controllers without cutting or splicing.
Overview
This Tekonsha vehicle-specific harness is built to connect a compatible Tekonsha brake controller to the factory brake-control port in select Sprinter applications. It is a clean solution for buyers who want a factory-style connection instead of hardwiring. For the right vehicle, this harness helps speed up installation, reduces wiring guesswork, and keeps the brake-controller setup neat and serviceable.
R&P Service Insight
Brake controller harnesses save time only when the vehicle-side plug is confirmed first. On Sprinter-based rigs, chassis details matter more than the RV brand name.
- Buy by Chassis: Confirm the actual tow vehicle chassis and model year before ordering.
- Buy by Connector: This harness depends on the OEM factory connector being present.
- Buy by Controller Port: Best for compatible Tekonsha Plug & Play controllers such as Prodigy models.
R&P Knowledge Hub
Compatibility: Fits select Freightliner Sprinter 1500 and Mercedes-Benz Sprinter applications as listed below.
Vehicle / System Fit: Brake controller to OEM tow-package port connection for Sprinter-based towing.

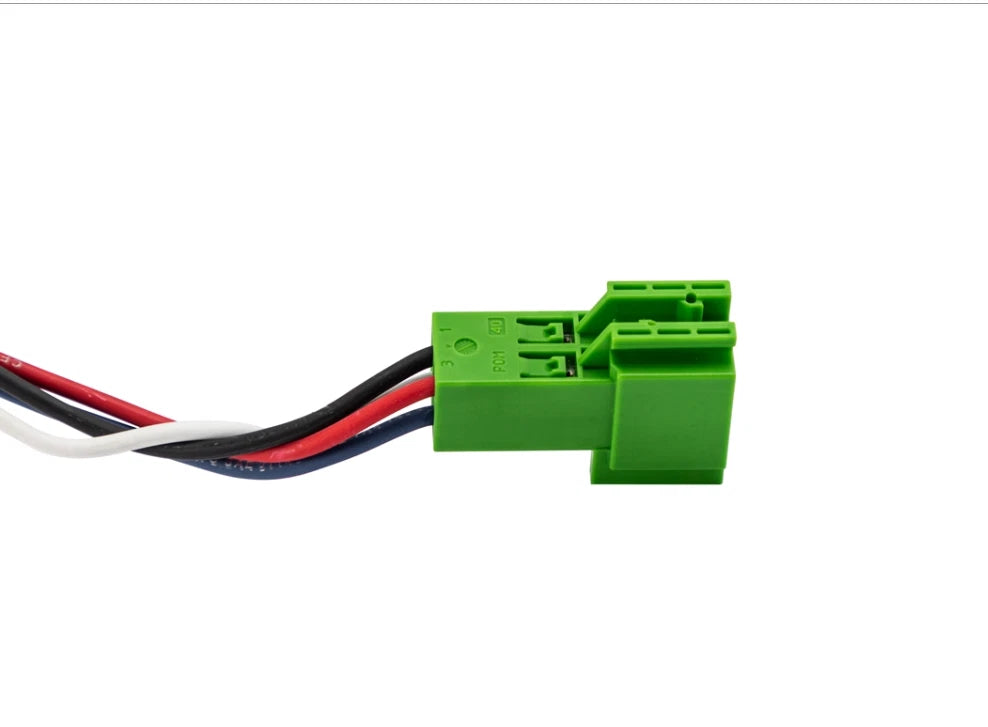

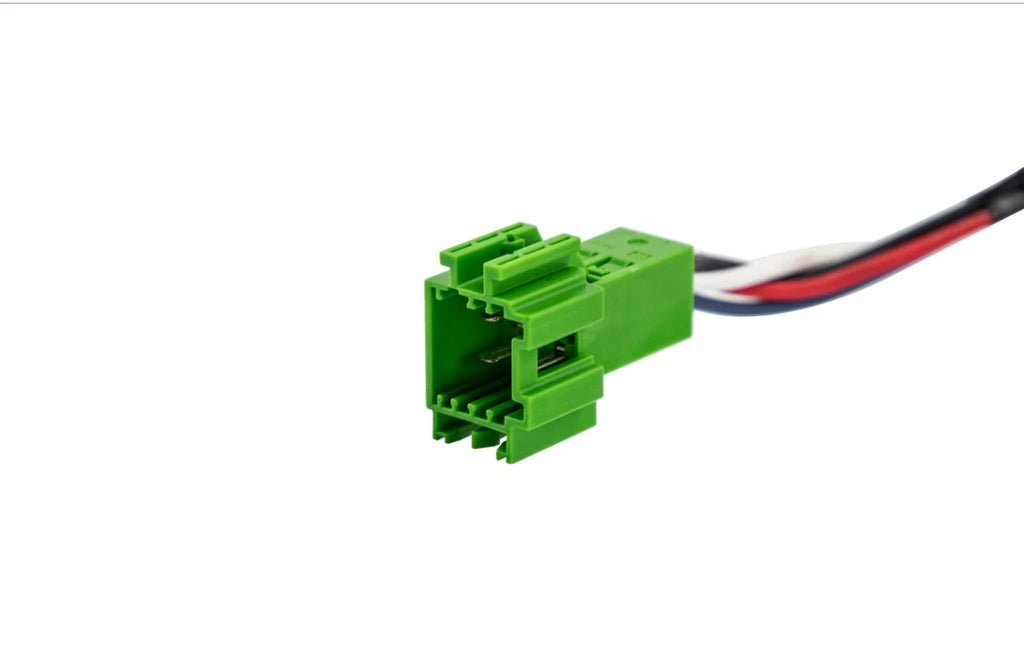

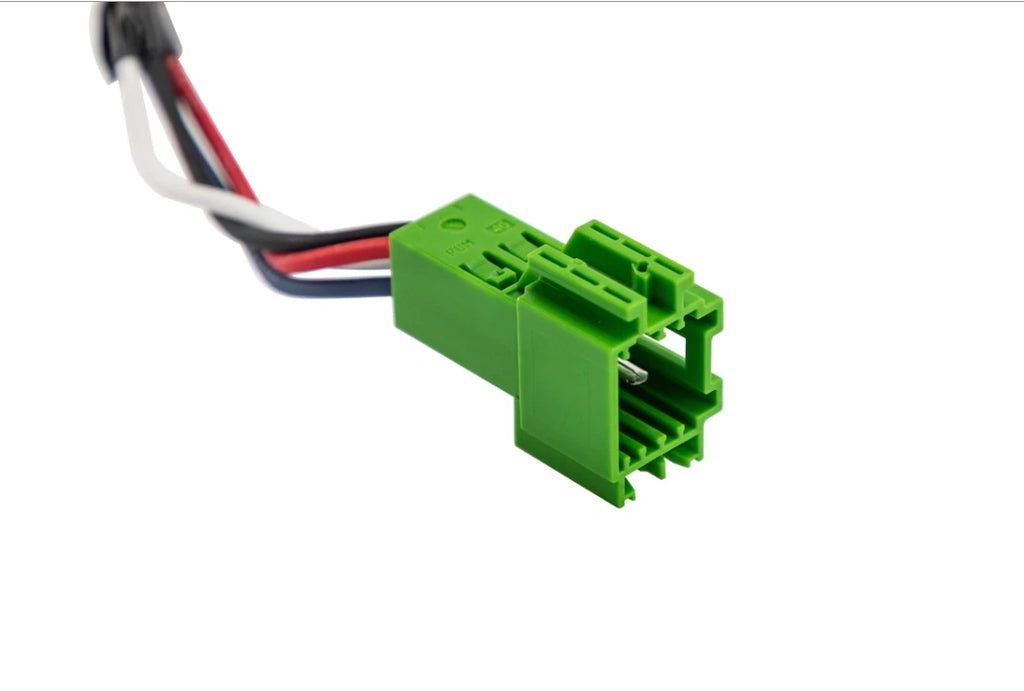

Installation Notes: Verify vehicle has the OEM tow package and the green 4-pin connector under the driver-side seat before ordering.
Performance Insight: A vehicle-specific harness keeps installation cleaner and avoids unnecessary cutting and splicing of factory wiring.
Brand & Fitment Note
Selling Brand: Tekonsha
Application Reference: Mercedes-Benz, Freightliner, and Sprinter names describe compatibility and application style only.
What This Means: This listing is for a genuine Tekonsha harness designed for the listed vehicle chassis platforms equipped with the required factory towing ports.
Before Ordering: Verify the presence of the green 4-pin factory connector and confirm your chassis year against the fitment table.
R&P Repair Insight
The fastest way to miss on this harness is shopping by coach brand alone. Many motorhome brands use multiple chassis platforms, so physical verification is required.

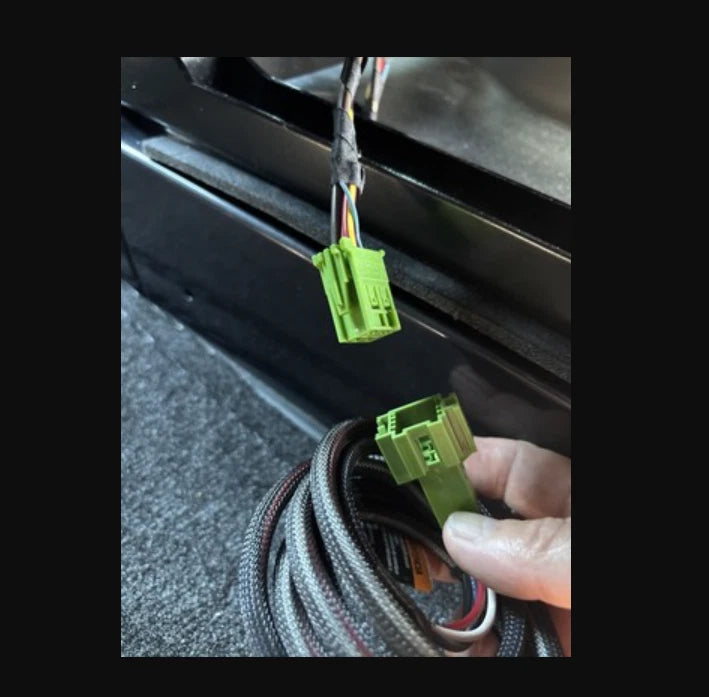

- Connector Check: Look for the green 4-pin connector under the driver-side seat.
- Tow Package Check: Vehicles without the OEM tow package will not have the matching plug.
- Fitment Check: Confirm your exact Sprinter model and year against the fitment table below.
Features
Vehicle-Specific Design
Built to connect a compatible Tekonsha controller to the factory vehicle plug without cutting or splicing.
Tekonsha Compatibility

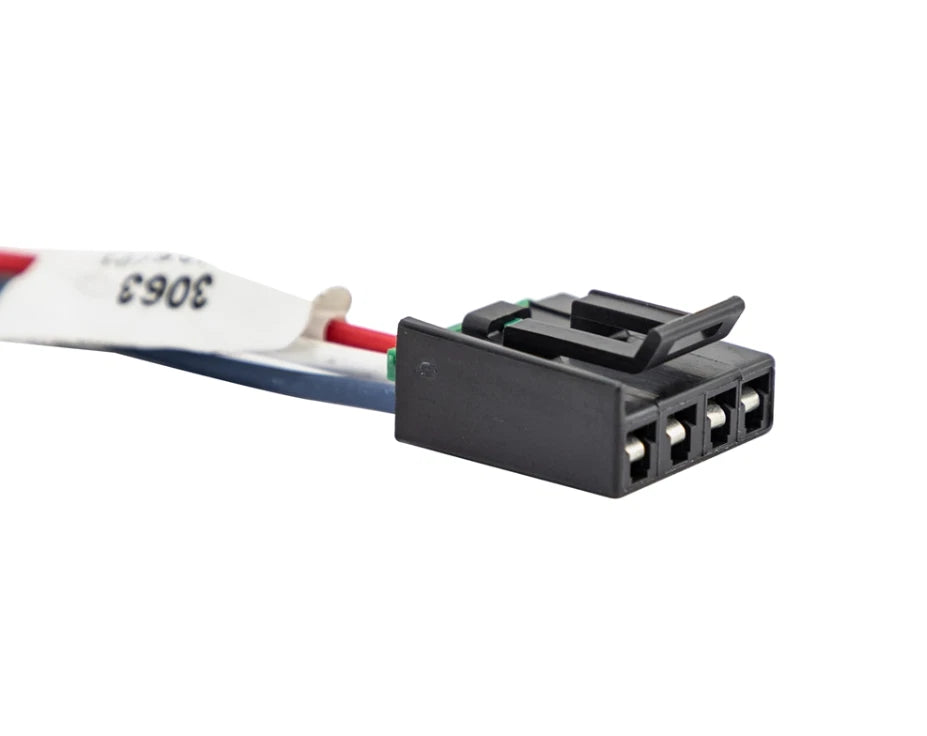

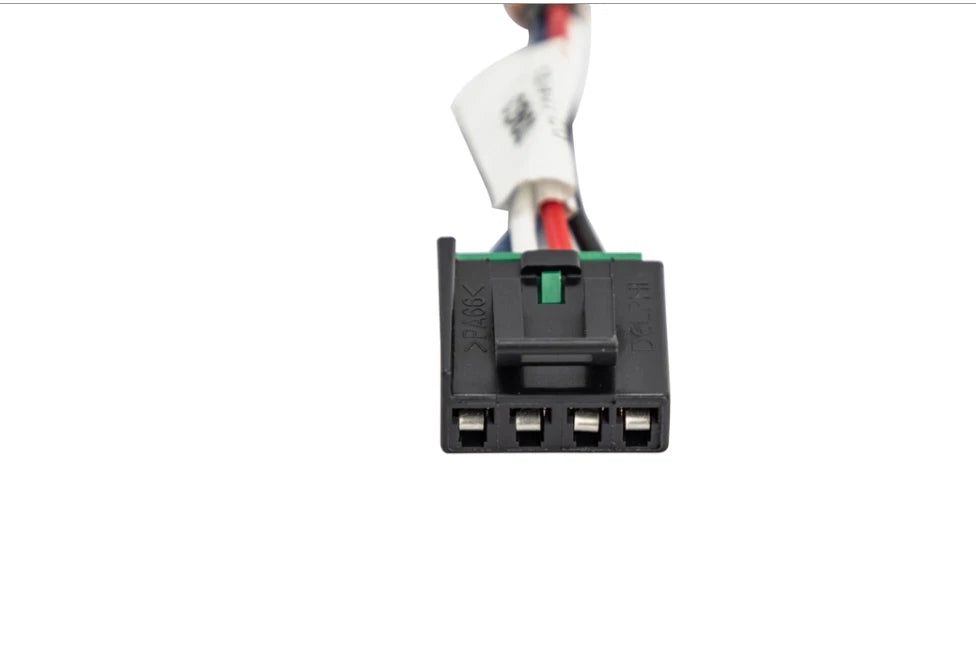

Designed for Tekonsha brake controllers that use the Plug & Play rear port, including Prodigy models.
Protected Construction
Four copper wires with braided outer covering protect against nicks, punctures, and elevated temperatures.
Clean Serviceable Install
A direct-fit harness helps keep the install tidy and makes future troubleshooting or removal easier.
Specifications
| Specification | Detail |
|---|---|
| Part Number | 3030 |
| Brand | Tekonsha |
| Product Type | Trailer brake controller vehicle harness |
| Application | OEM tow-package brake controller adapter |
| Material / Finish | Copper wires with braided protective covering |
| Voltage / Amps | 12V / 30A |
| Terminals | 4-Pin |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / System | Brake controller to OEM tow-package connector |
| Primary Fit | 2019–2020 Freightliner Sprinter 1500 |
| Secondary Fit | 2012–2021 Mercedes-Benz Sprinter (Excl. 2500/3500); 2019–2021 Sprinter 1500 |
| Notes | Requires OEM tow package and green 4-pin connector. Do not assume fit by RV brand. |
Included Components
| Quantity | Item |
|---|---|
| 1 | Tekonsha 3030 Brake Controller Harness |
| 1 | Protective Braided Loom (Pre-installed) |
