Titan Model 20 Brake Actuator Replacement Shock T0778400
Replacement shock for Titan Model 20 brake actuators. Helps restore controlled actuator travel when the original damper is worn, damaged, leaking, seized, or no longer operating correctly.
Specifications
| Specification | Detail |
|---|---|
| Part Number | T0778400 |
| Listing SKU | T0778400 |
| Brand / Reference | Titan Model 20 application |
| Product Type | Brake actuator replacement shock |
| Quantity Included | 1 replacement shock |
| Application | Titan Model 20 brake actuator |

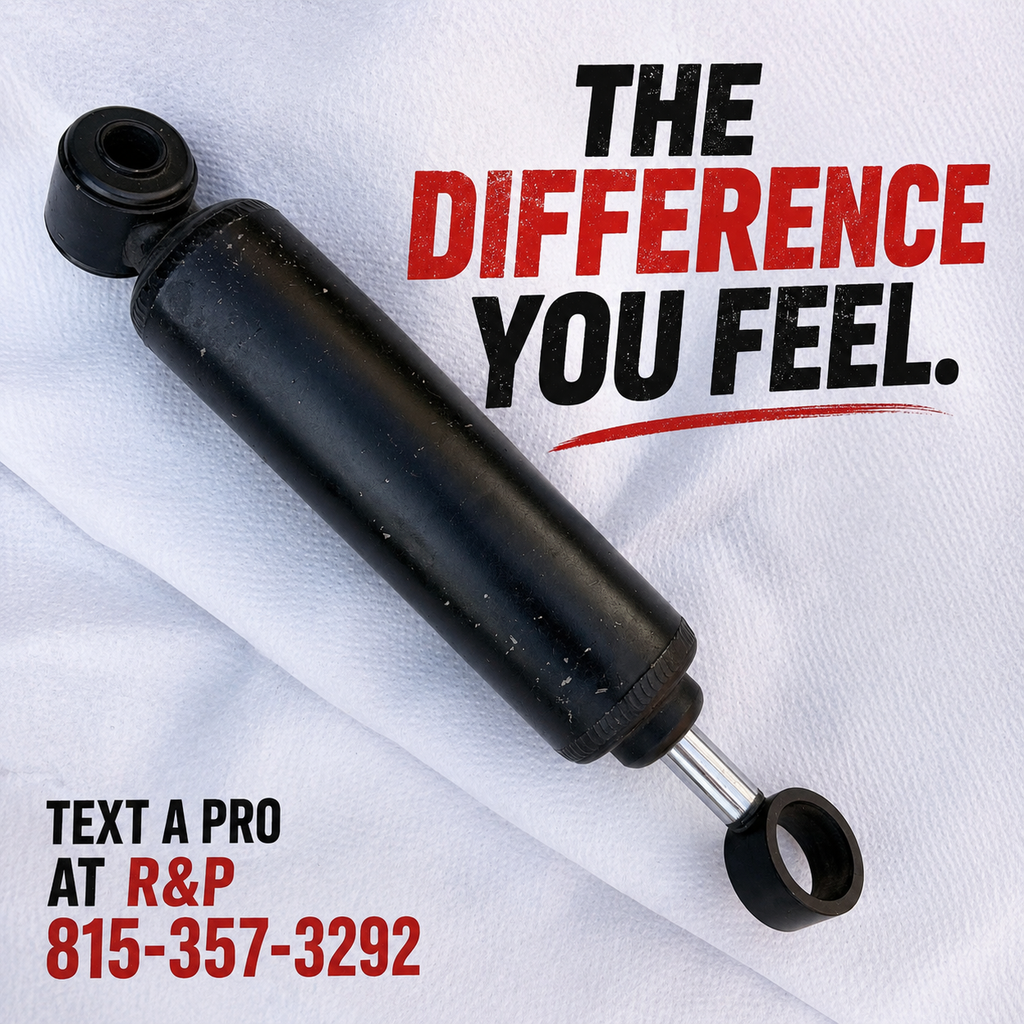

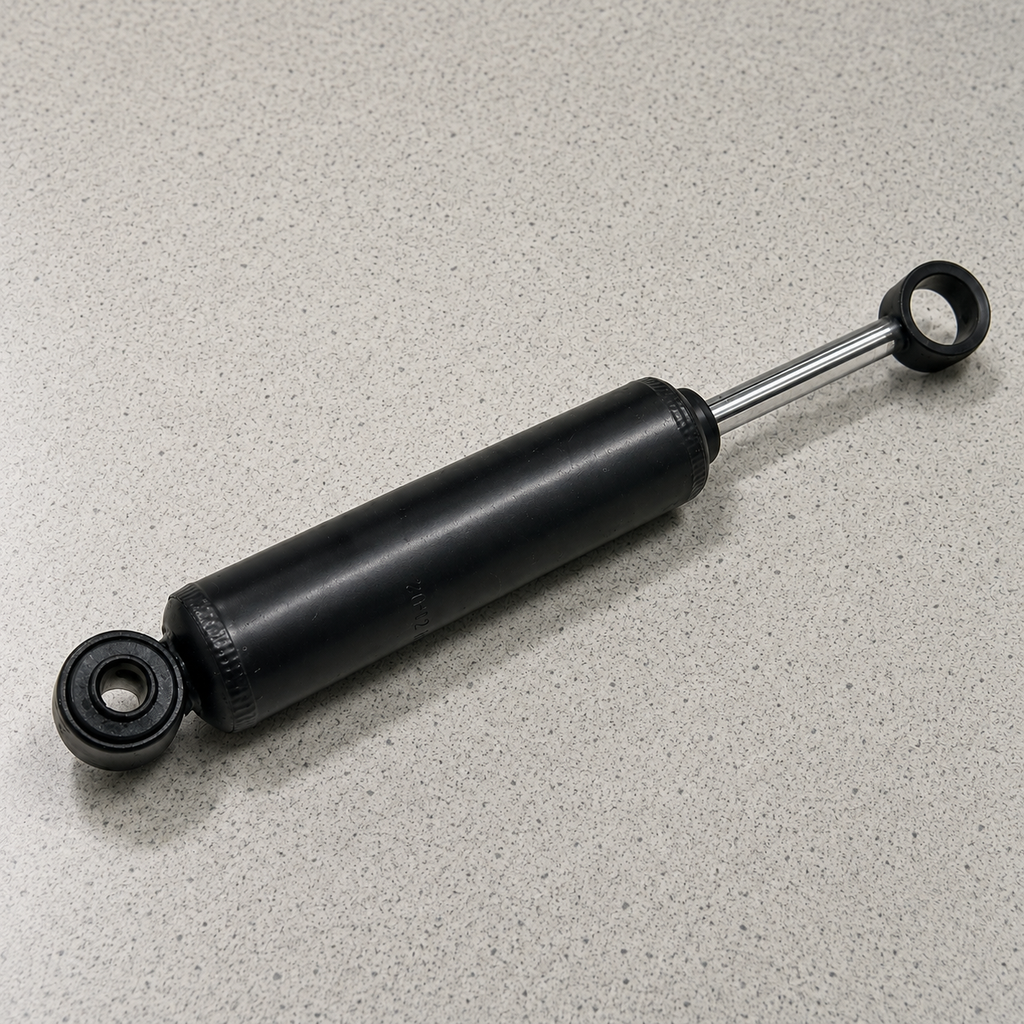

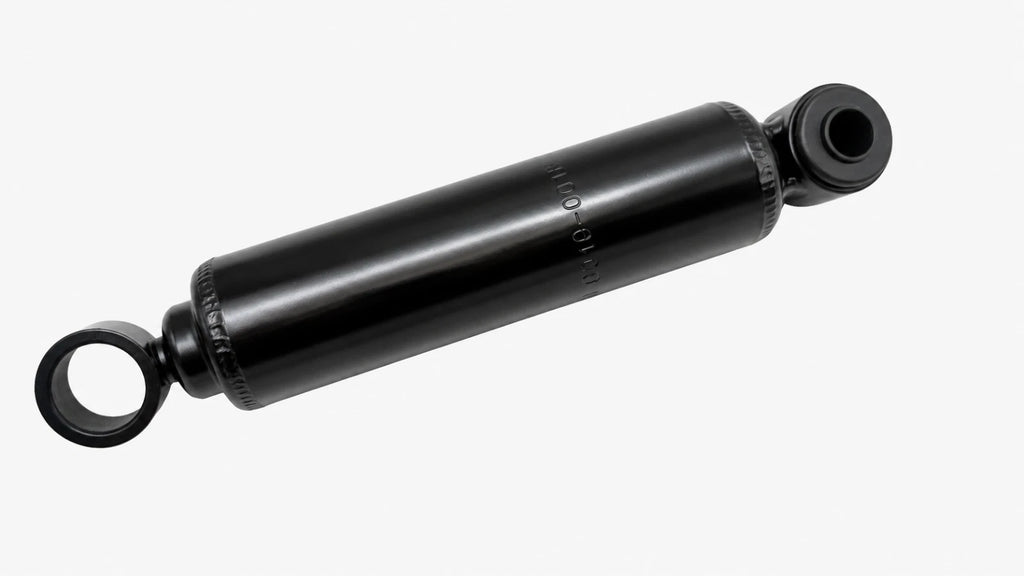

| Finish / Appearance | Black shock body with eyelet-style mounting ends |

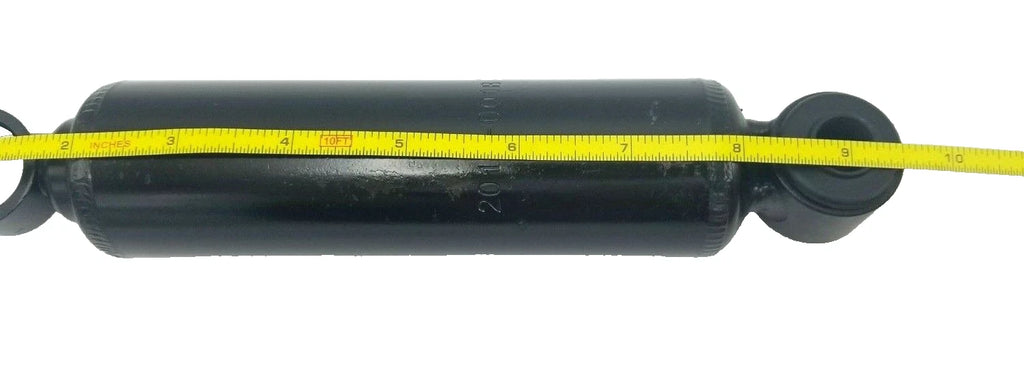

| Overall Length | 9.5" |
| Tube Diameter | 1-3/4" |
| Small Mounting Hole I.D. | 1/2" |

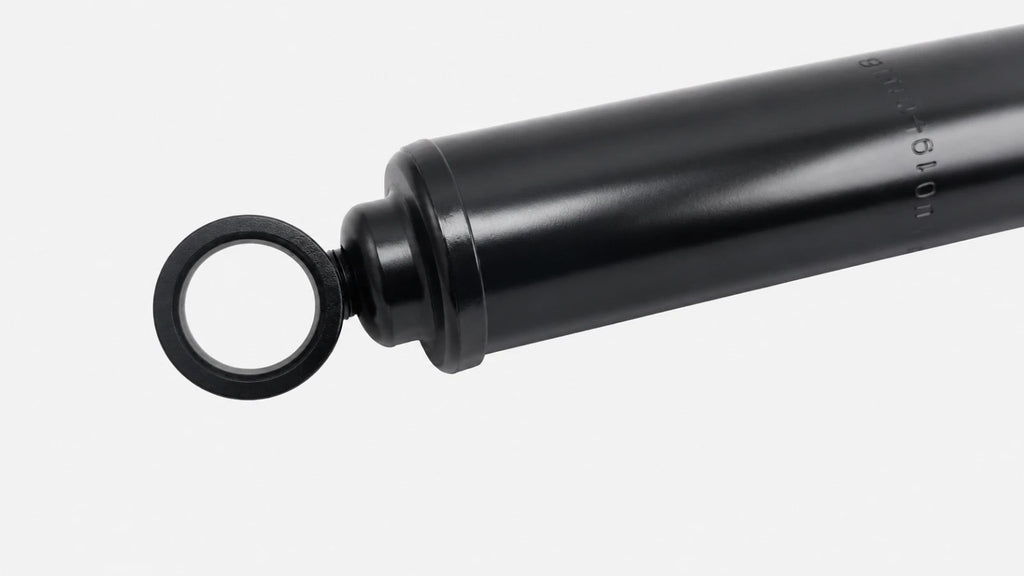

| Large Mounting Hole I.D. | 7/8" |
Fitment / Application
| Category | Details |
|---|---|
| System | Surge brake actuator |
| Primary Fit | Titan Model 20 brake actuator |
| Common Use | Replacement for worn or failed actuator shock / damper |
| Quantity Note | This listing includes one replacement shock. Some actuator applications may use two shocks per actuator; verify your installed setup before ordering. |
| Fitment Note | Verify actuator model, mounting hole sizes, tube diameter, and overall length before ordering. |
Overview
This listing is for one replacement shock used with Titan Model 20 brake actuators. The actuator shock helps control the movement of the surge brake actuator as the trailer compresses and releases during braking. If the original shock is leaking, loose, bent, seized, or no longer controlling actuator motion properly, replacing it with the correct part can help restore smoother braking response.
R&P Service Insight
Surge brake actuator parts should be matched carefully. Before ordering, compare the actuator model and the shock measurements against the part currently installed.
- Model Fit: Designed for Titan Model 20 brake actuators.
- Hole Sizes: Small mounting hole is 1/2" I.D.; large mounting hole is 7/8" I.D.
- Overall Length: Listed overall length is 9.5".
R&P Knowledge Hub
Compatibility: Fits Model 20 Titan brake actuators.
Vehicle / System Fit: Used in surge brake actuator assemblies on trailers equipped with compatible Titan Model 20 actuator hardware.
Installation Notes: Verify the actuator model, mounting hole sizes, tube diameter, and overall shock length before installation.
Performance Insight: A worn actuator shock can allow harsh coupler movement, inconsistent actuator travel, or rough braking feel.
Brand & Fitment Note
Selling Brand: R&P Carriages listing for a Titan Model 20 application replacement shock.
Application Reference: Titan Model 20 is used as an application and fitment reference for the compatible brake actuator style.
What This Listing Includes: One replacement shock only.
Before Ordering: Compare your existing shock, actuator model, mounting hole dimensions, tube diameter, and overall length to confirm fitment.
R&P Repair Insight
When replacing an actuator shock, inspect the surrounding actuator hardware at the same time. A new shock may not correct the issue if the actuator has worn pins, damaged linkage, excessive play, or other mechanical problems.
- Check Movement: The actuator should move smoothly without binding or excessive slop.
- Check Mounting Points: Inspect mounting holes, pins, and bushings for wear before reinstalling.
- Check Brake System: If braking remains inconsistent, inspect the actuator, master cylinder, brake lines, and brake assemblies.
Features
Model 20 Actuator Fit
Designed for use with Titan Model 20 brake actuators.
Correct Mounting Hole Sizes
Includes a 1/2" inner diameter small mounting hole and a 7/8" inner diameter large mounting hole.
Replacement Damper Function
Helps control actuator movement during surge brake operation.
Single Shock Included
Listing includes one replacement actuator shock.
Included Components
| Quantity | Item |
|---|---|
| 1 | Replacement shock for Titan Model 20 brake actuator |
| Not Included | Brake actuator assembly, master cylinder, brake lines, mounting hardware, and other components unless specifically shown or listed. |
