Surface Mount Flat 6" Oval LED Stop / Tail / Turn Light
Clear Lens – Red 6 Diode – Red Reflective
Part Number: J-656-FRCX
6" oval surface mount LED Stop / Tail / Turn light featuring a clear lens with red LED output and integrated red reflex reflector. Designed for trailer applications requiring a low-profile, sealed light with minimal mounting requirements. Ideal for utility trailers, flatbeds, equipment trailers, and cargo trailers.
Features
- Flat 6" oval surface mount design
- Clear lens with red LED illumination
- 6 diode configuration
- Integrated red Class A reflex reflector
- Sealed polycarbonate lens with black base
- Low-profile design – approximately 1/2" thick
- Requires only 1/2" diameter hole for wiring
- No large body cutout required

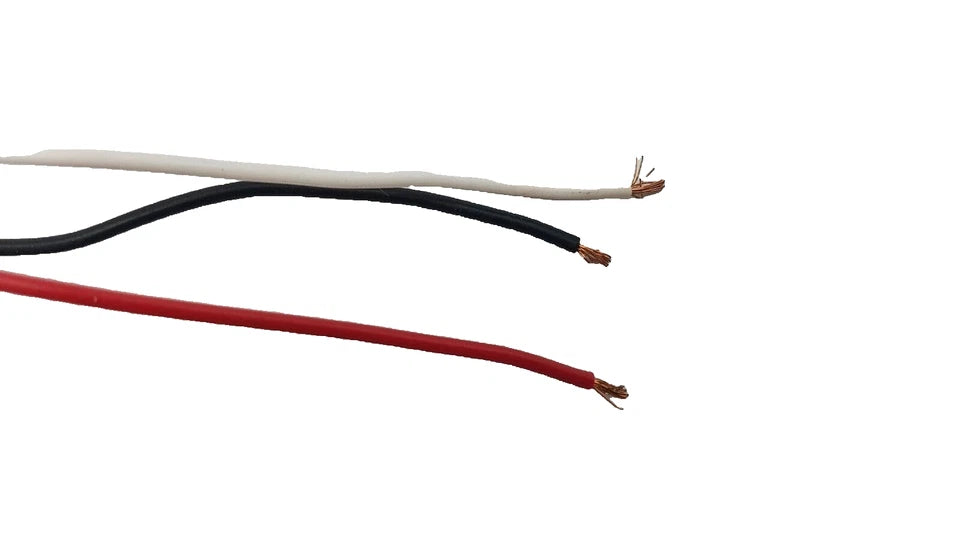

- 9" wire leads
Specifications
| Light Type | Stop / Tail / Turn (S/T/T) |
| Lens Color | Clear |
| LED Color | Red |
| Diode Count | 6 LEDs |

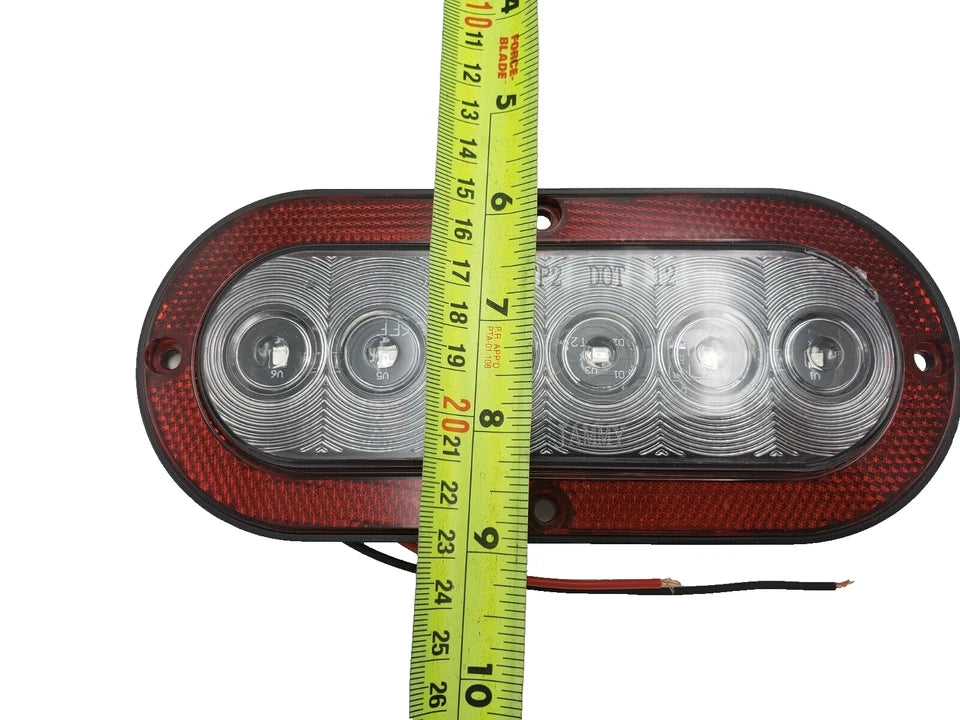

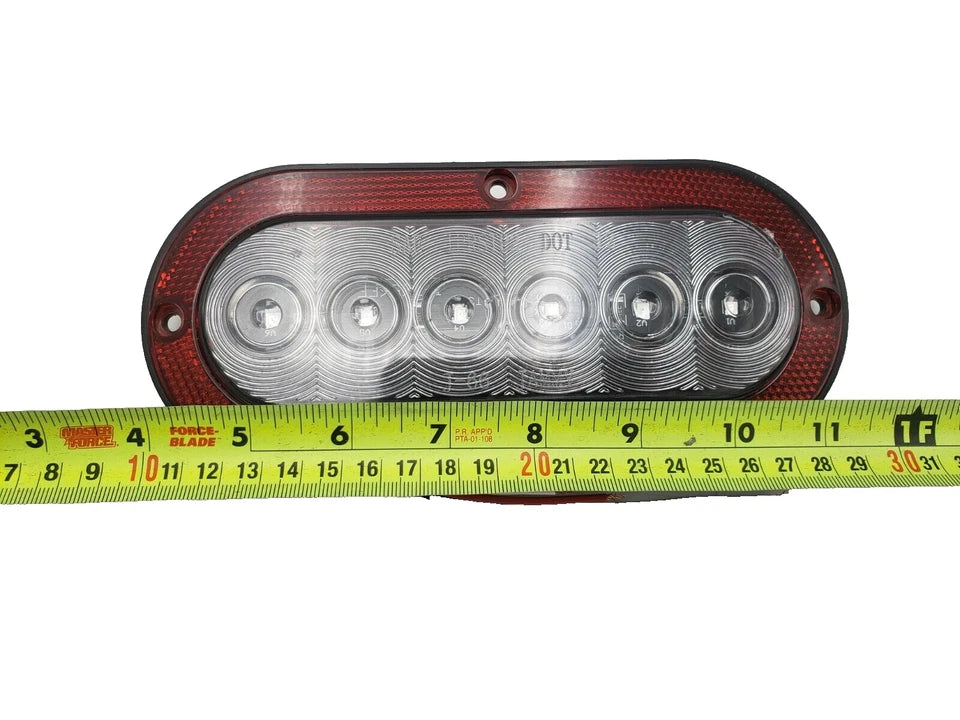

| Overall Dimensions | 7.56" x 3.31" x 0.53" |
| Mounting Centers | 7" x 2.75" |
| Wiring | 9" Leads |
| Mounting Style | Surface Mount |
| Quantity | 1 Light |
Confirm mounting hole spacing, overall dimensions, and wiring configuration before installation.
