Prodigy P2 Brake Controller with Universal Plug & Play Harness

Part Number – 90885

The Tekonsha Prodigy P2 is one of the most reliable proportional brake controllers available. This kit includes the controller and a universal plug-and-play harness, giving you fast installation, flexible mounting, and smooth braking performance for trailers up to four axles (8 brakes).

Features

• Applies braking power in direct proportion to the vehicle’s deceleration
• No leveling required — automatically adjusts to terrain
• Works proportionally in reverse, ideal for backing trailers into tight spaces
• Blue LED digital display shows voltage delivery to trailer
• Continuous diagnostics monitor proper trailer connection and detect shorted magnets
• “Boost” function adds stronger initial braking for heavier trailers
• Power-saving mode reduces battery drain when idle
• Unique pocket mount allows quick removal and transfer between vehicles
• Quick disconnect feature for easy storage when not in use
• Rotary manual brake lever
• Compatible with electric-over-hydraulic braking systems
• Limited 1-year manufacturer warranty

Specifications

• Dimensions: 3-1/8" W × 5-1/8" L × 1-3/16" H
• Rated for up to 4-axle / 8-brake trailers
• Mounting: full 360° vertical rotation
• Three boost levels: 0%, 13%, 25%
• Sleep mode draw: 3.6 mA

How the Prodigy P2 Differs from the Original Prodigy

• Wider mounting flexibility with full 360° vertical rotation
• Improved protection with reverse battery safeguards
• Works with electric-over-hydraulic systems
• Updated blue LED digital display

Requirements

For vehicles without factory brake control adapters:

• 20-amp circuit breaker (9506P) for 2–4 brakes
• 30-amp circuit breaker (38630) for 6–8 brakes

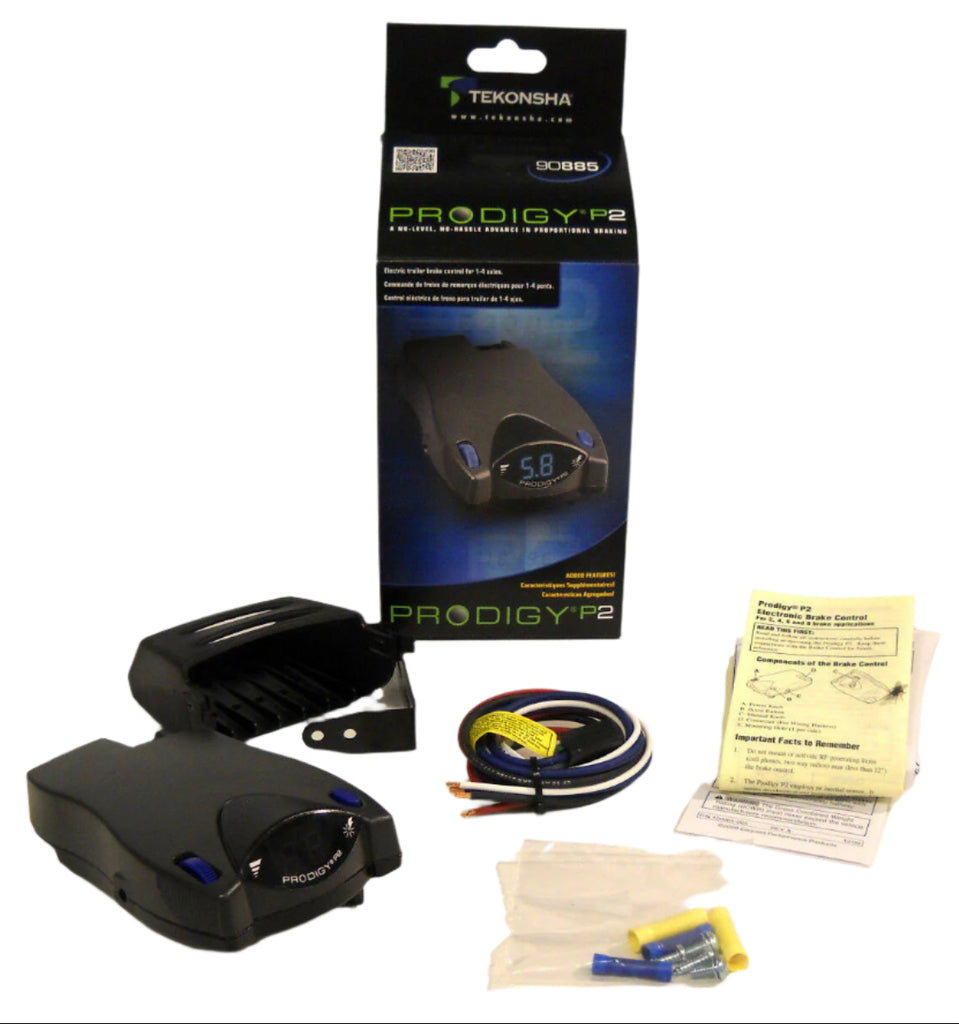

Kit includes the P2 controller and 3 ft universal plug & play connector compatible with Tekonsha Pilot, Prodigy P3, P2, and Primus controllers. For other brake controllers, simply remove the Tekonsha end connector.

Note: Some vehicles do not include the factory tow package. If unsure, please contact us before ordering.
