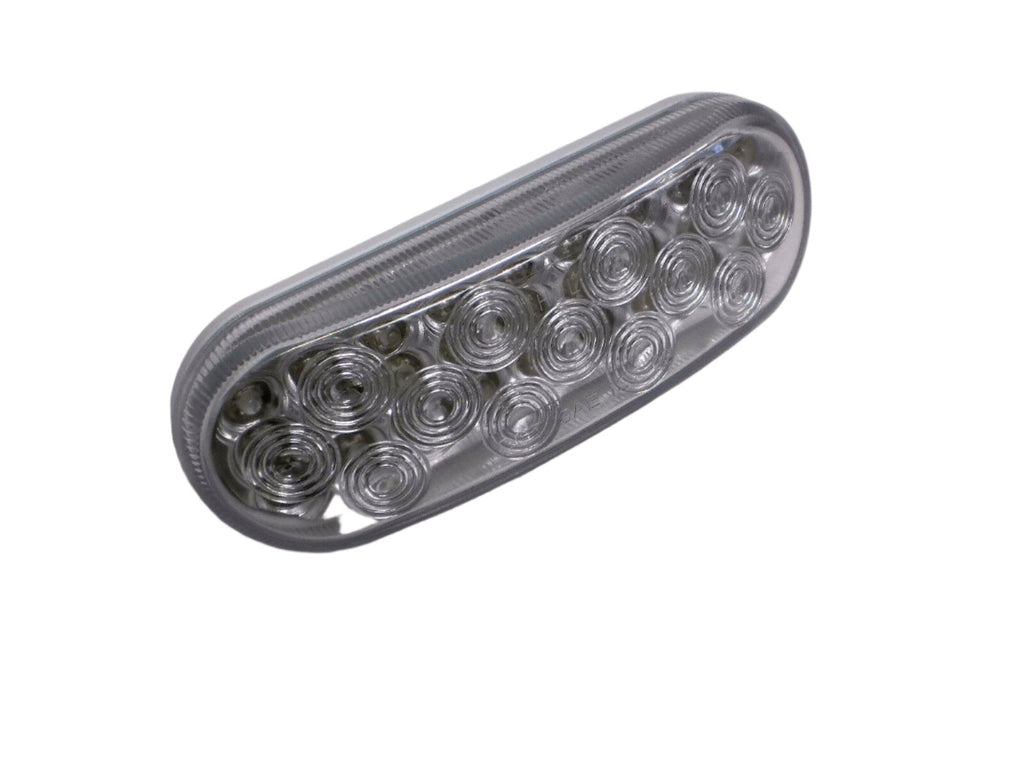

TWO – 6" Oval Amber/Clear Reflective Stop / Turn / Tail Light – 27 LED
Part Number: [INSERT SKU]
Lot of two 6-inch oval amber LED stop, turn, and tail lights with clear reflective lens. Constructed with sealed polycarbonate lens and housing for durability in trailer and utility vehicle applications.
R&P Knowledge Hub

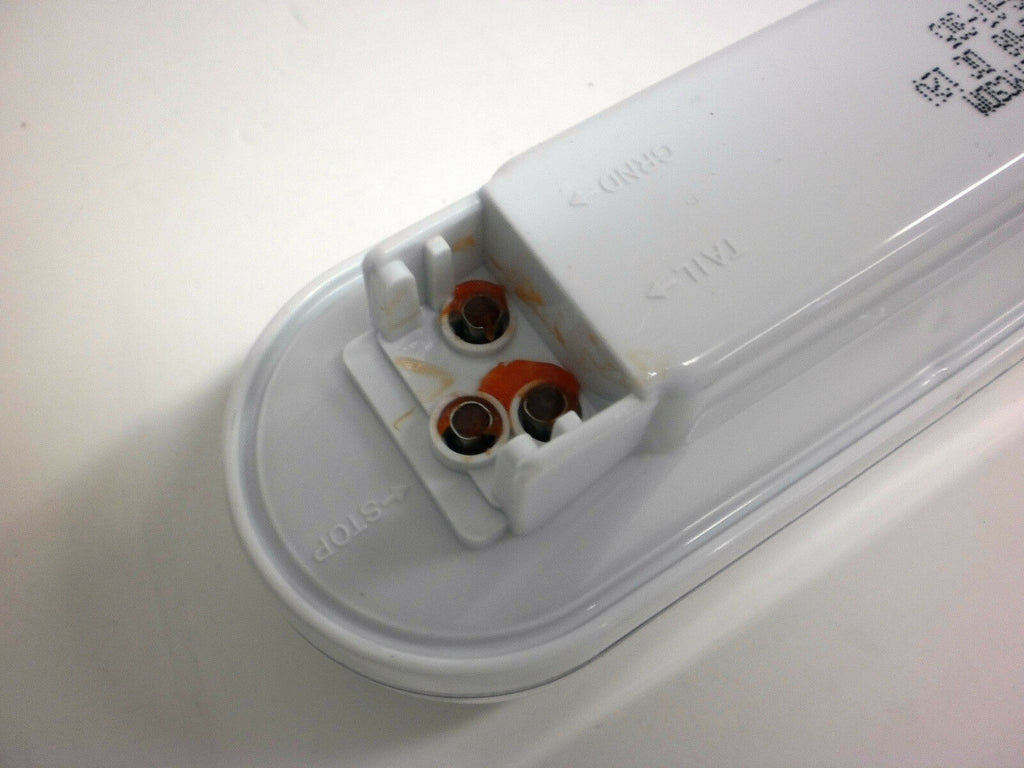

6" oval lights are industry standard for many trailer stop/turn/tail configurations. These units use a 3-pin connector, allowing quick retrofit or replacement in compatible grommet-mounted systems.
LED lighting offers lower amperage draw compared to incandescent alternatives, reducing load on trailer wiring and charging systems.
Features
- Lot of 2 lights
- 6-inch oval stop/turn/tail configuration
- Amber LED with clear reflective lens
- Sealed polycarbonate lens and housing
- Industry standard 3-pin connector
- Low amperage draw
Specifications
| Specification | Detail |
| Length | 6.5" |
| Width | 2.28" |
| Depth | 2.2" |
| LED Count | 27 Amber LEDs |
| Voltage Range | 7.5 – 14 VDC |
| Stop / Turn Amperage | 180 mA |
| Tail Light Amperage | 10 mA |
| Rated Lifetime | Up to 100,000 Hours |
| Connector Type | Standard 3-Pin |
Verify specifications before installation.
