Universal 4 & 5 bolt Heavy Duty Spare tire Mount
This is the spare tire mount I install on many of my trailers. VERY sturdy piece. I have these custom made, you can not buy one this heavy anywhere else!
Tire mount is slotted to accept ALL 4 and 5 bolt wheel patterns (from 4x4, and 5 bolt x 4.5", 4.75", 5.0", and 5x5.5" circle)
Includes 1/2" bolts (3/4" nut) to bolt tire to mount. A truly universal mount!

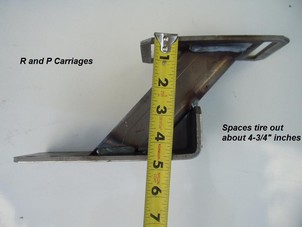

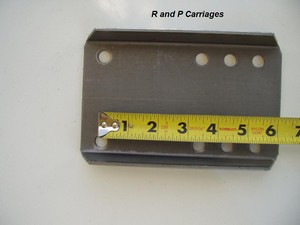

Welds or Bolts to frame with bolts using the supplies mounting plate. Has several different bolt spacings to allow it to fit many size trailer frames. Pre-punched holes at 3.5" 4.5" and 5.5" spacing for 3", 4" and 5" frame rails. Spaces tire up and out about 4.75" from frame.
It has been brought to my attention that if you run the DEEP DISH 5 lug wheels they will not work with this mount. if you have more than 4 3/4" back space, it will not work!

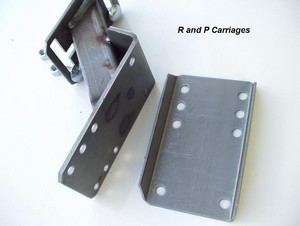

It comes with 1/2" bolts to secure the tire, and a clamp plate (see pictures)
It DOES NOT come with Bolts to bolt to your trailer, camper, or vehicle (Takes common 3/8" bolts).
( applications vary SO much, it would be impossible to supply enough bolts of the right length for all installation applications)

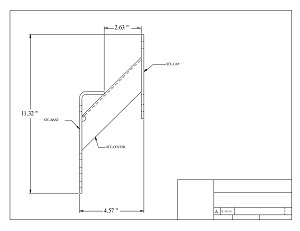

Click on the Specs Below for a Bigger Image
Note: A Safety Chain must be used with Spare tire Carrier (not included).
Normally ships within one Business day.
WE COMBINE SHIPPING!
We also offer this mount in 6 & 8 Lug version, and other styles, Click here to see them!
Volume discounts available! Just ask!
REAL 7GA USA STEEL!
NOT A CHEAP IMPORT!
(This mount is raw steel, it is not painted)

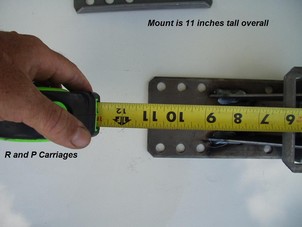

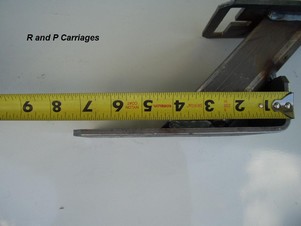

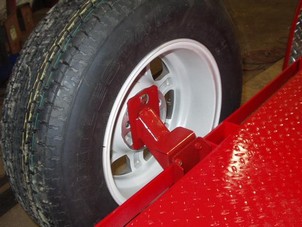

Click on any image below to See a Larger Image:
