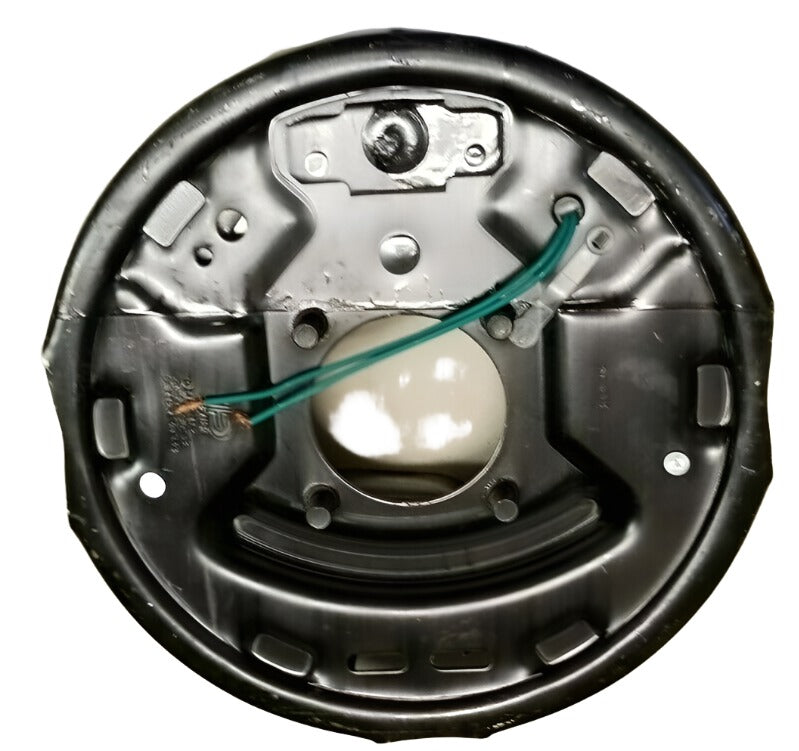

10" x 1.5" USA Made Dexter Trailer Axle Electric Brake Assy Right Hand 3K 23-473 (023-473-00)

$136.97

Most items ship free — select items ship for $6.39

Only 3 left

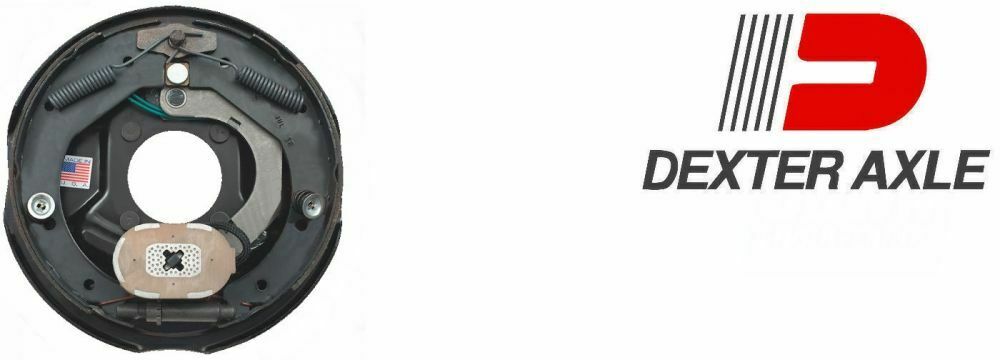

Dexter 10" x 1.5" Electric Brake Assembly – 3,000 lb D30 Axle – 4 Bolt – Right Hand

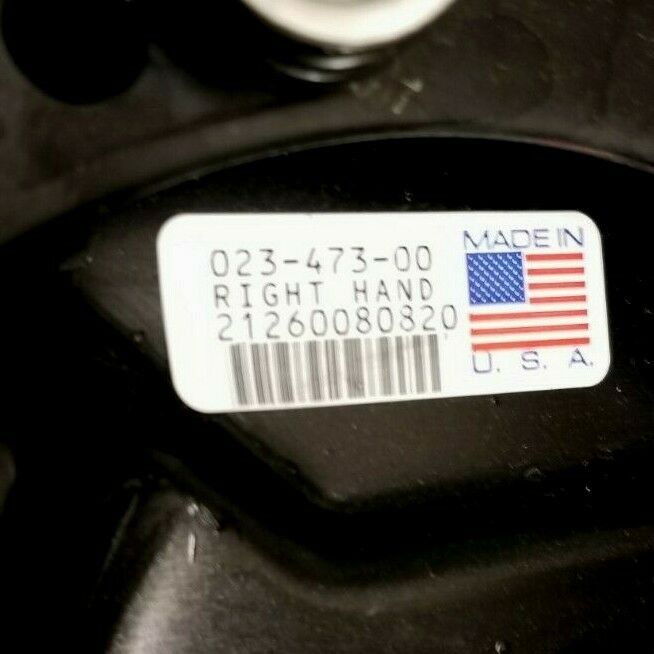

Part Number: 023-473-00 – Passenger Side

Genuine USA Made Dexter 10" x 1-1/2" electric trailer brake assembly engineered specifically for 3,000 lb Dexter D30 axle applications.

This is the Right Hand (Passenger Side) configuration. Designed to mount to a standard 4-bolt brake flange and pair with 10" x 1-1/2" brake drums.

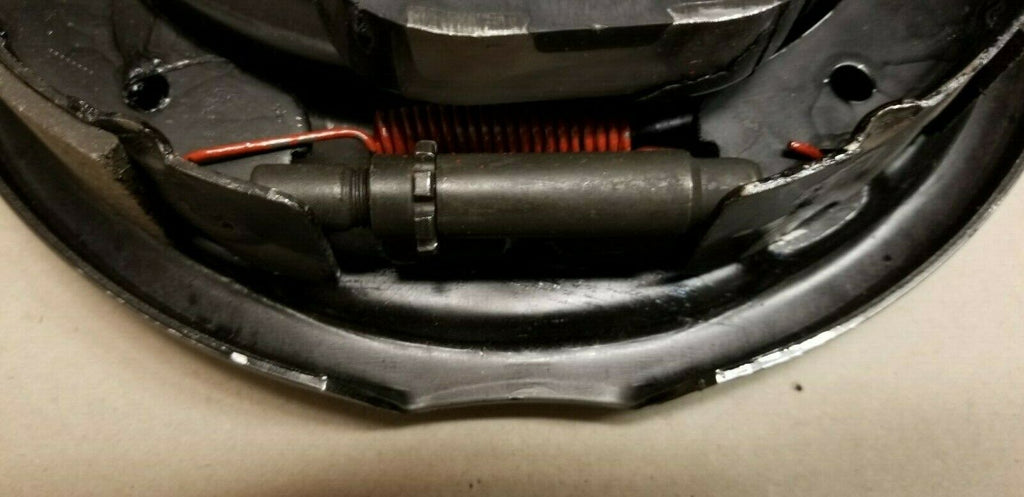

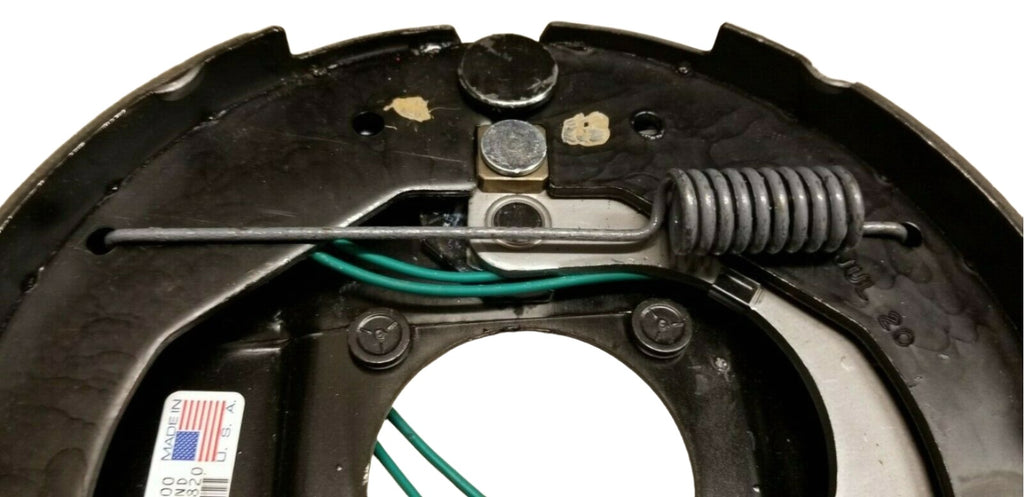

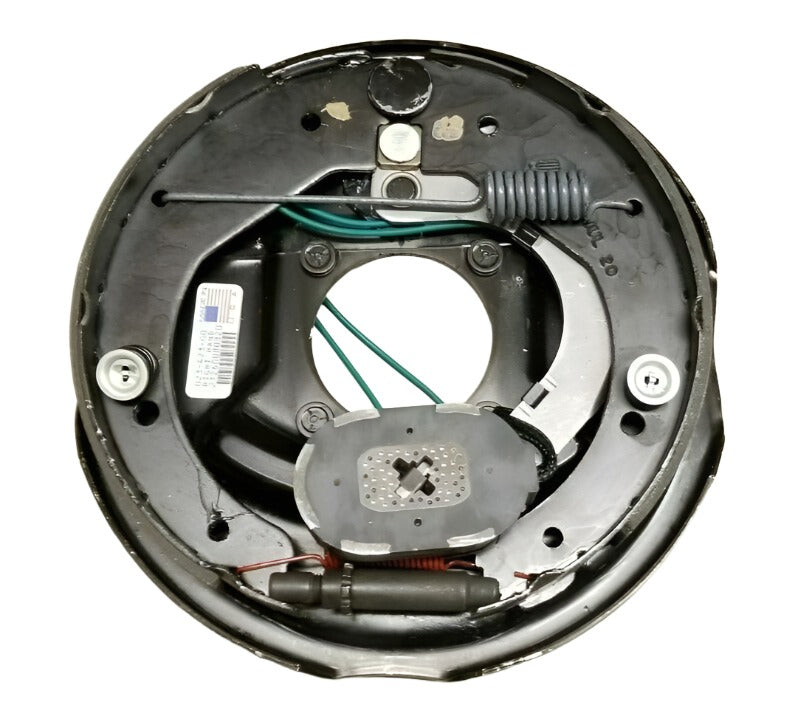

Assembly includes brake shoes, magnet, springs, adjuster, and backing plate — fully pre-assembled for direct replacement.

This listing is for ONE complete brake assembly (one wheel).

Technical Specifications

Brake Type	Electric Drum Brake

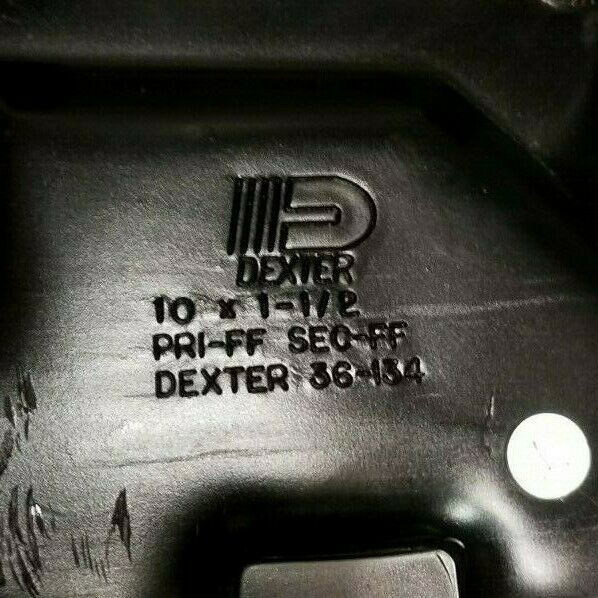

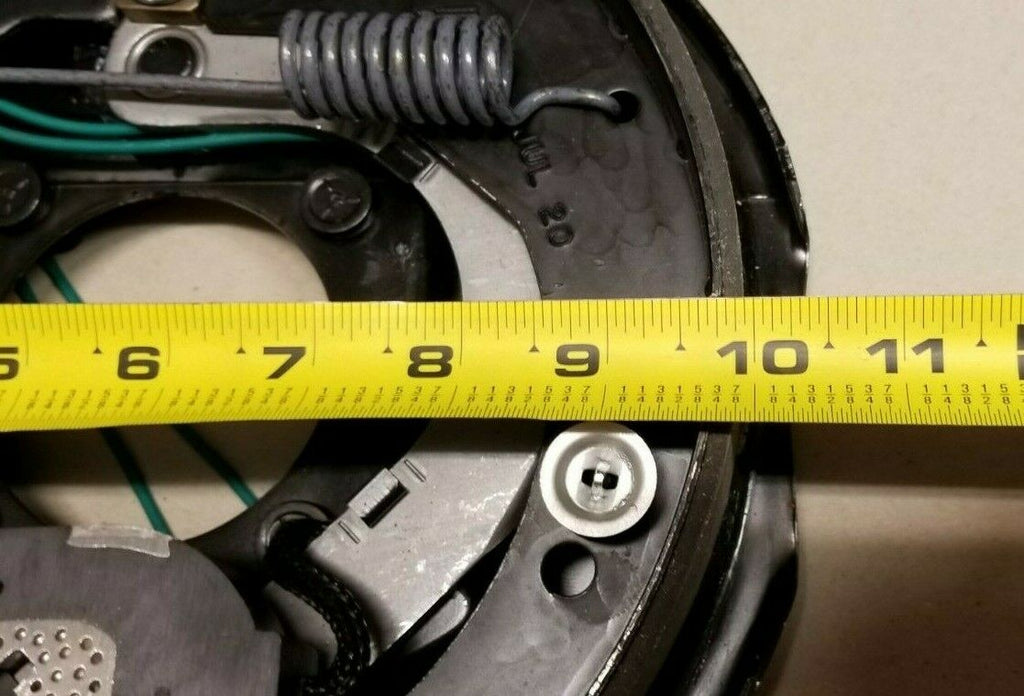

Brake Diameter	10 Inches

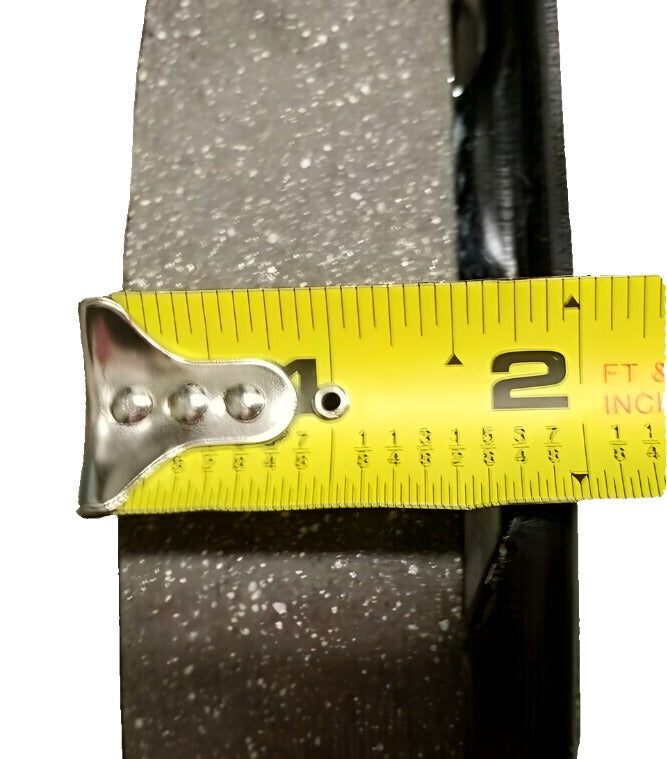

Brake Width	1-1/2 Inches
Axle Rating	3,000 lbs (Dexter D30)

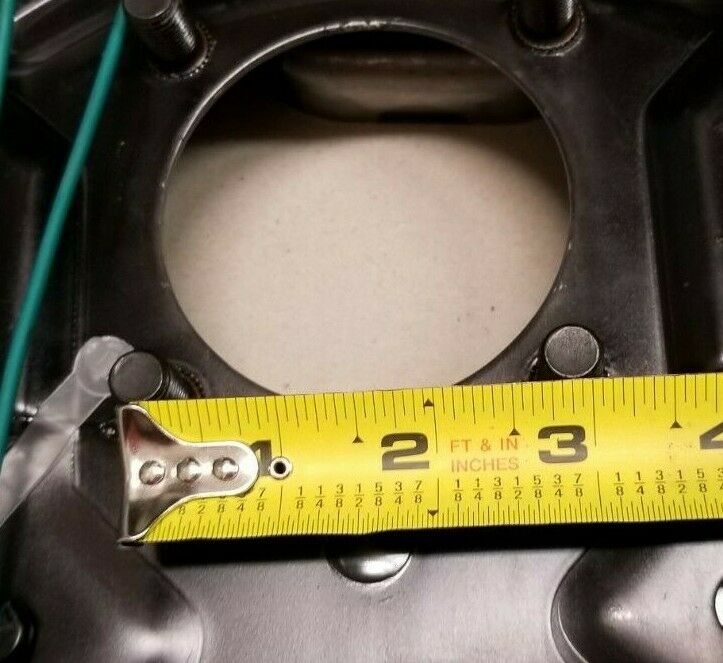

Mounting Flange	4 Bolt Pattern
Orientation	Right Hand (Passenger Side)
Compatible Drum	Dexter 8-418
Country of Origin	USA

Fitment & Compatibility

Designed specifically for Dexter D30 3,000 lb axles using 10" x 1-1/2" brake drums.

Compatible with:

Dexter 8-418 drum
Standard 4-bolt brake mounting flange
Electric brake controller-equipped tow vehicles

Important: This is a 10" x 1-1/2" brake assembly. It is not interchangeable with 10" x 2-1/4" brakes used on 3,500 lb axles.

Typical Applications

Light-duty utility trailers
Boat trailers with electric brake systems
Small tandem axle trailers
Landscape and contractor trailers
Custom builds using Dexter D30 axle assemblies

Installation Overview

Remove wheel and brake drum.
Disconnect existing brake wiring.
Remove four backing plate mounting bolts.
Install new brake assembly and torque hardware properly.
Reconnect wiring (electric brake magnets are not polarity sensitive).
Reinstall drum and wheel.
Adjust brake controller and perform proper break-in procedure.

R&P Knowledge Hub

Electric brake assemblies function when the trailer brake controller sends current to the internal electromagnet. The magnet contacts the rotating drum face, activating the lever arm and expanding the brake shoes outward.

Proper brake sizing is critical. A 10" x 1-1/2" assembly must be paired with the correct 10" x 1-1/2" drum. Installing on a 10" x 2-1/4" drum will result in improper contact and reduced braking efficiency.

When replacing one side, always inspect the opposite side for even wear.
