6,000 lb Build Your Own Axle Kit with 12" Electric Brakes, 6-Lug Drums, EZ-Lube Spindles
Part Number: BYOAK-42-HD655-RF-225
This Build Your Own Axle Kit is intended for 6,000 lb trailer axle applications. It includes electric brake components, hub/drums, EZ-Lube round spindles, bearing kits, spring perches, and required installation hardware.
Axle tube is not included. Commonly used for custom axle fabrication or axle replacement projects.
Features
- Designed for 6,000 lb trailer axle applications
- 12" electric brake assemblies (left and right)
- 6 on 5.5" bolt pattern hub/drums
- EZ-Lube round spindles with grease fitting
- Bearing kits include bearings, seals, and dust caps
- For custom axle builds or axle replacement use

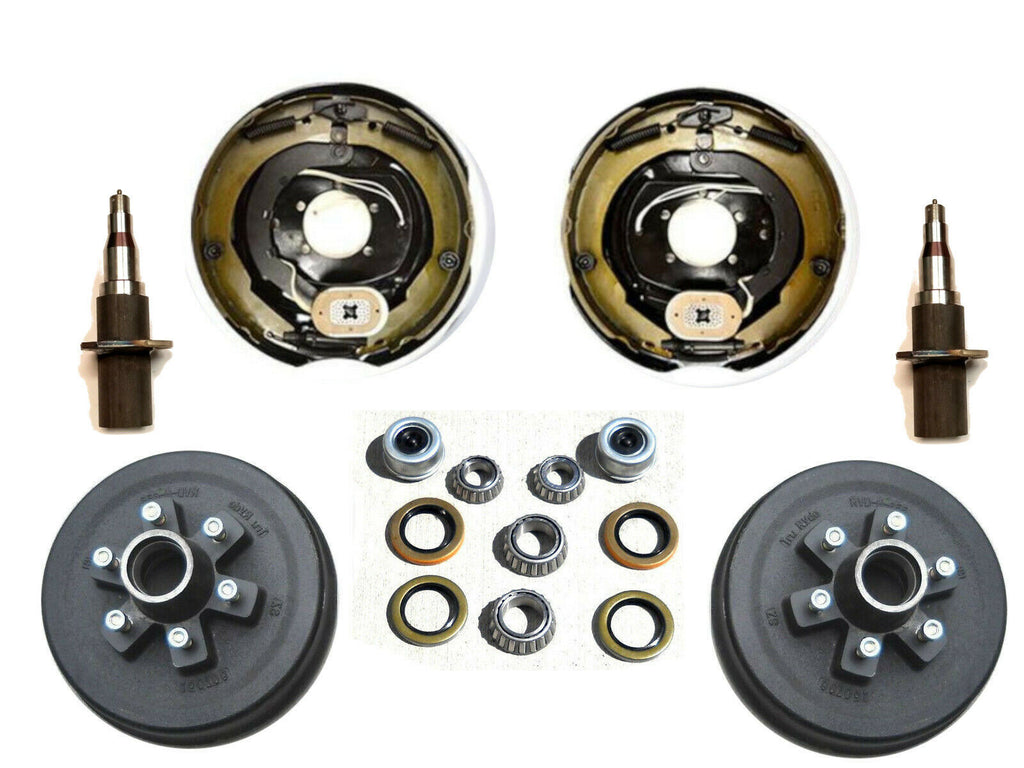

What’s Included

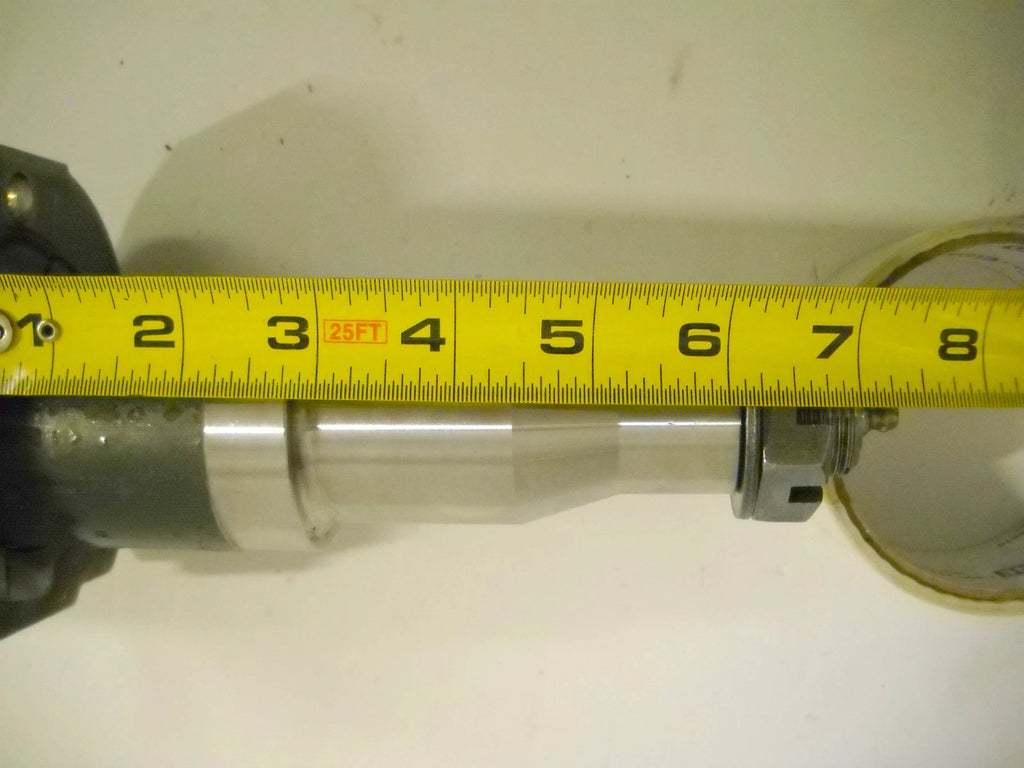

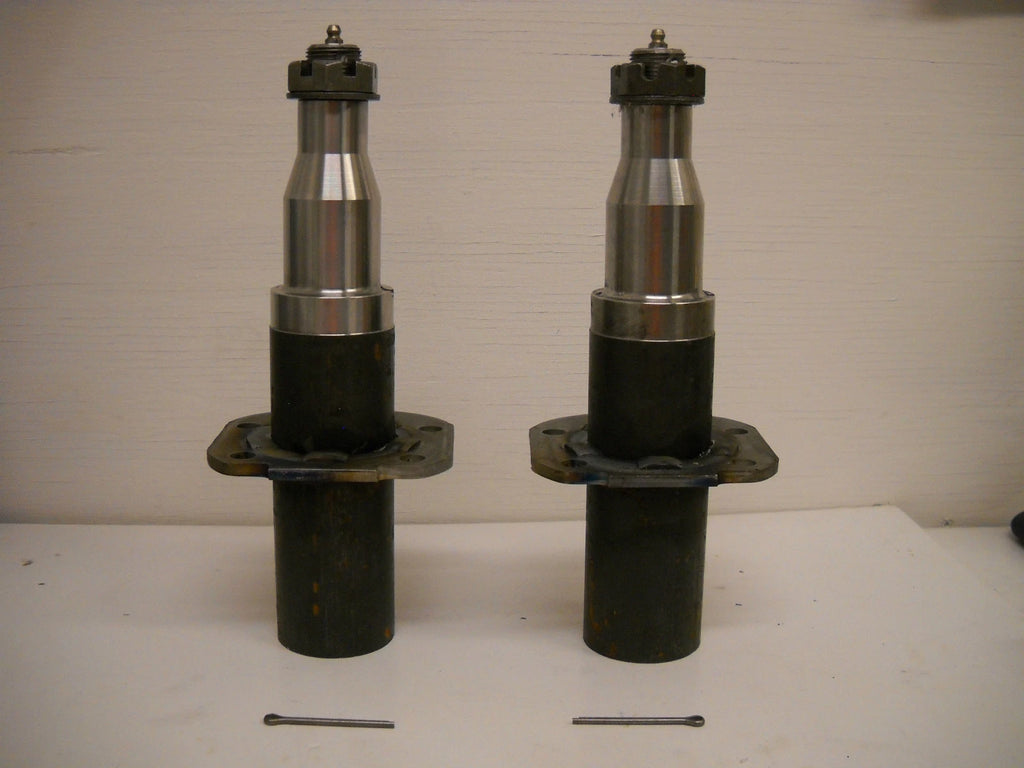

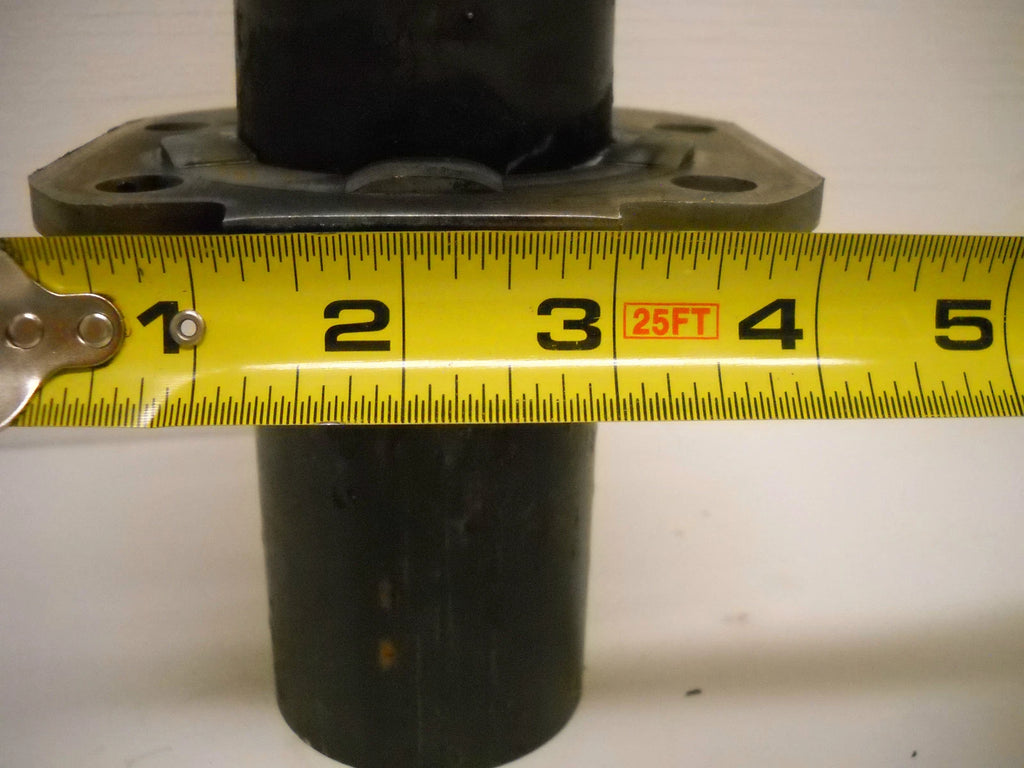

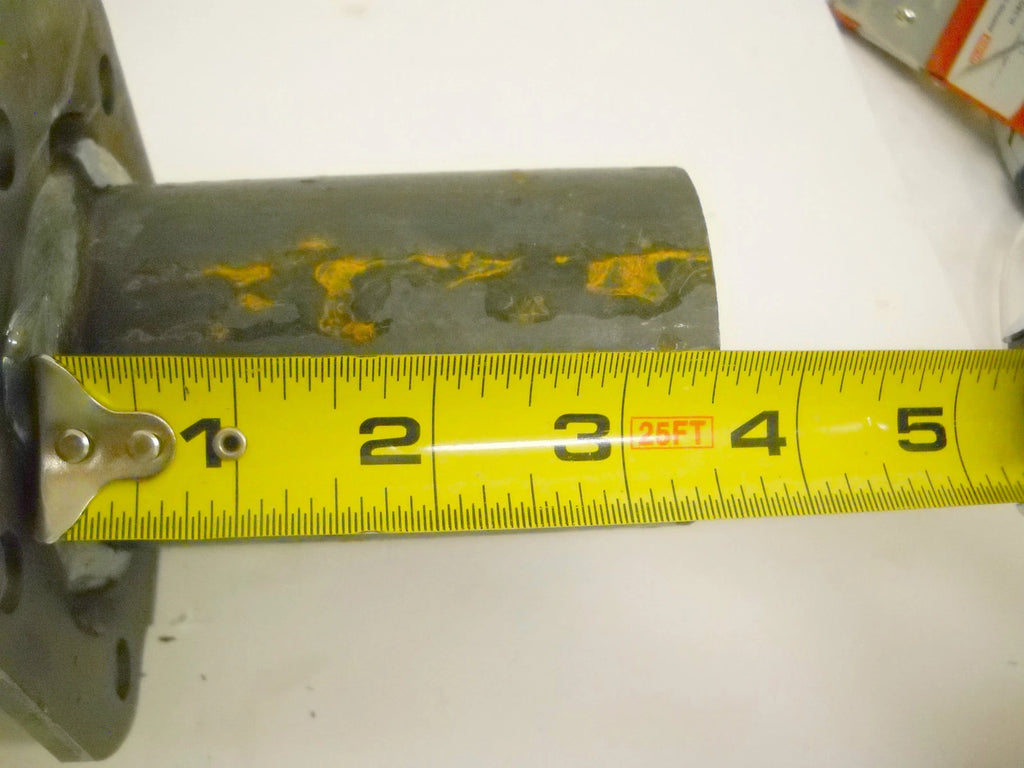

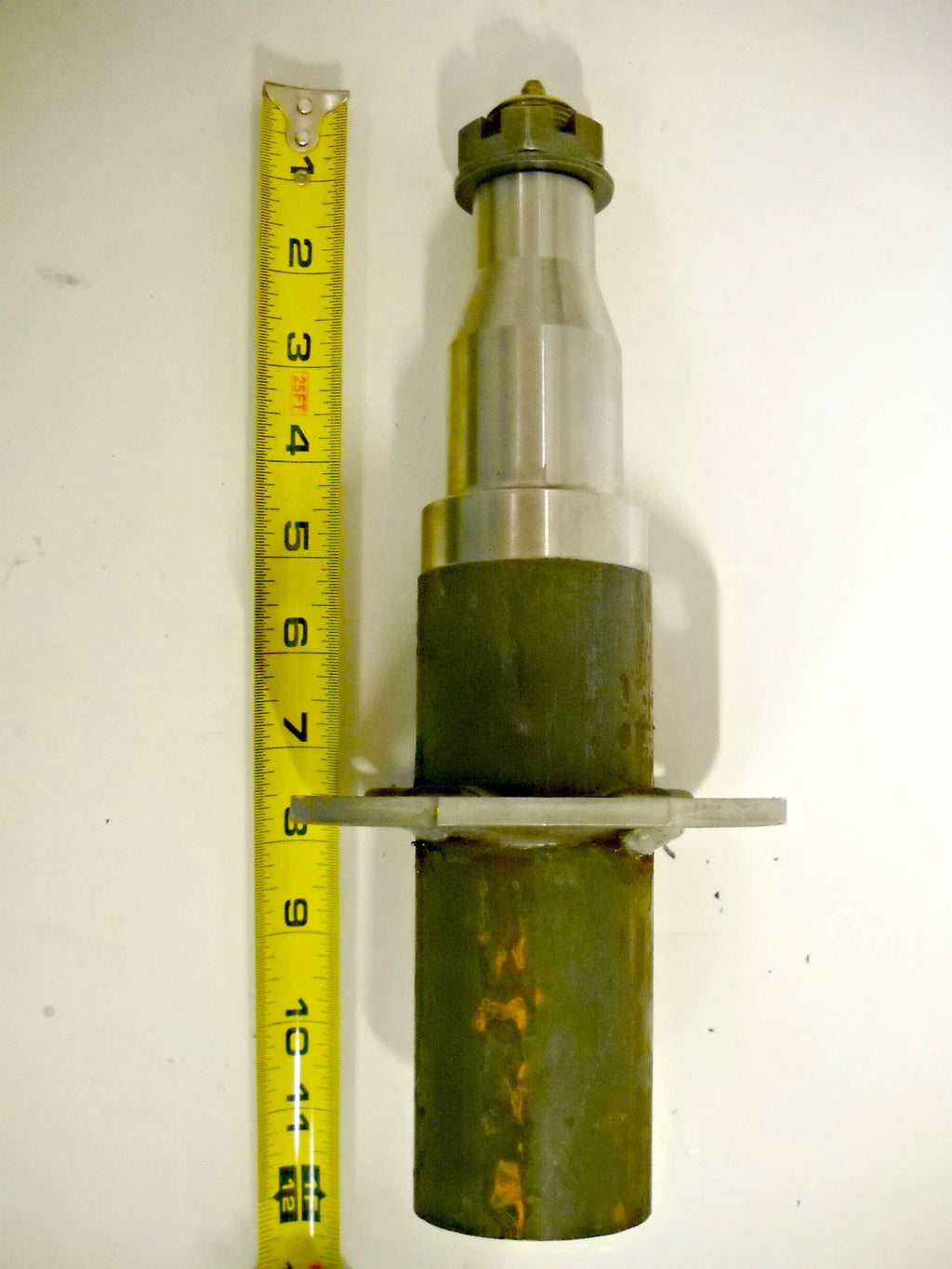

Spindles & Hardware- (2) EZ-Lube round spindles — SP-25042FZ-225

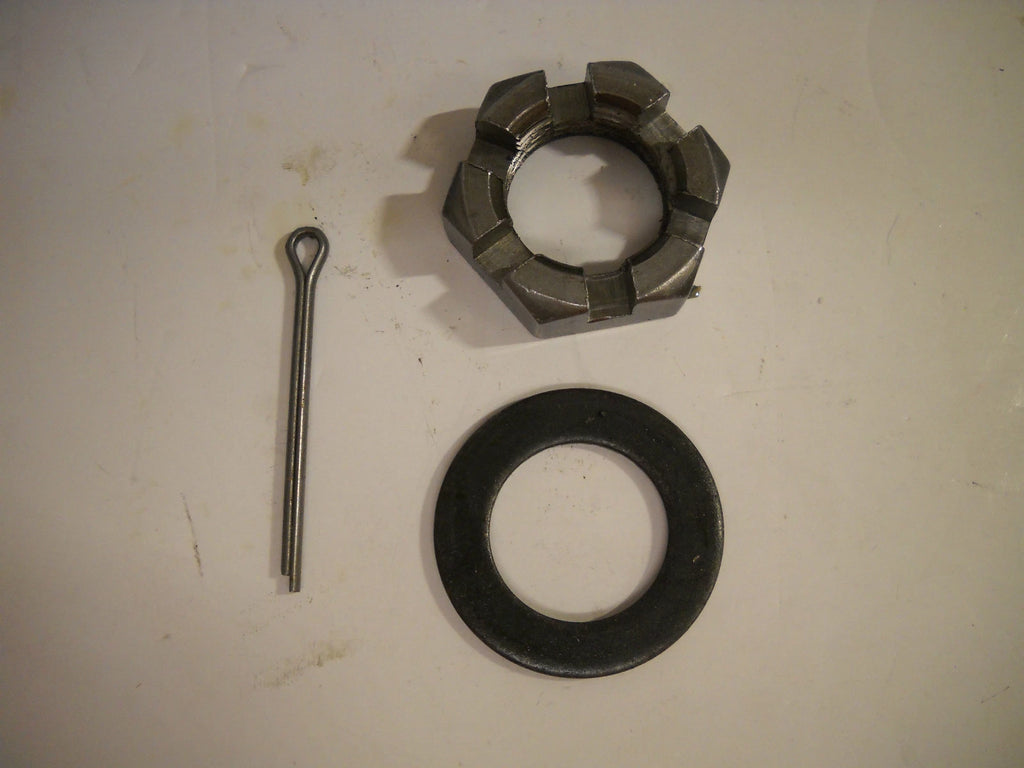

- (2) Spindle washers — SW1000
- (2) Spindle castle nuts — FA-SN100
- (2) Cotter pins — 165649
- (2) Hub/drums — 92655-1 (6 on 5.5" bolt pattern)
- (12) Lug nuts — X1023R (1/2"-20, 60° cone)

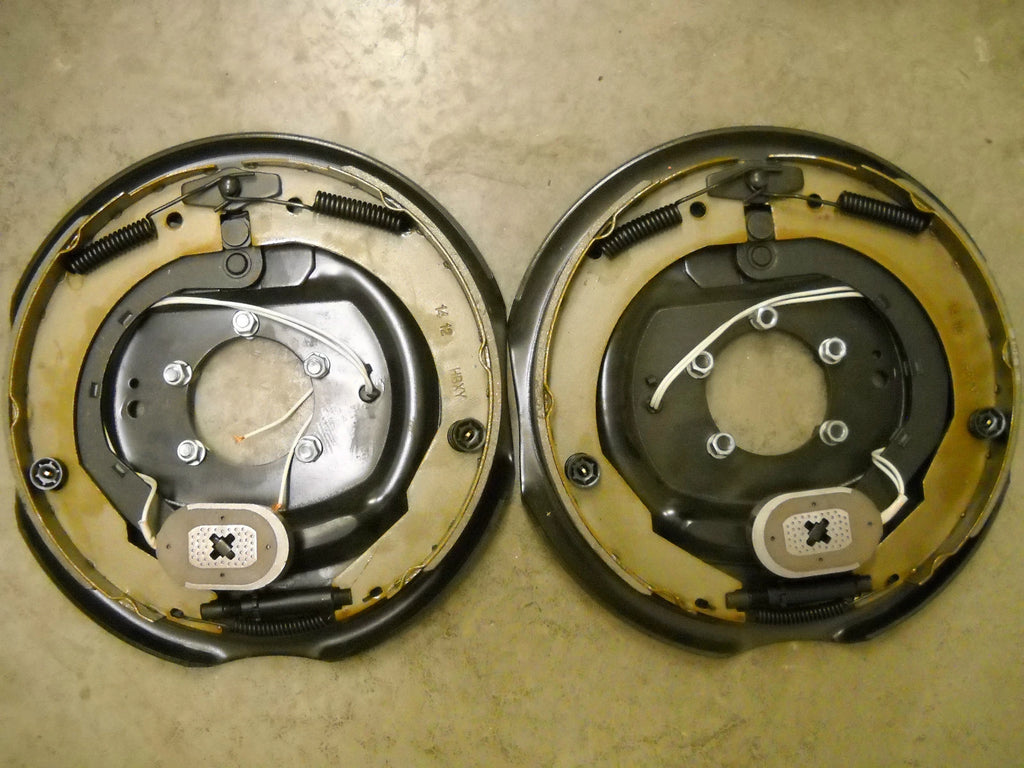

- (1) Left 12" electric brake assembly — 12RVEBLH
- (1) Right 12" electric brake assembly — 12RVEBRH
- (10) Bolts, nuts, and washers for brake backing plates

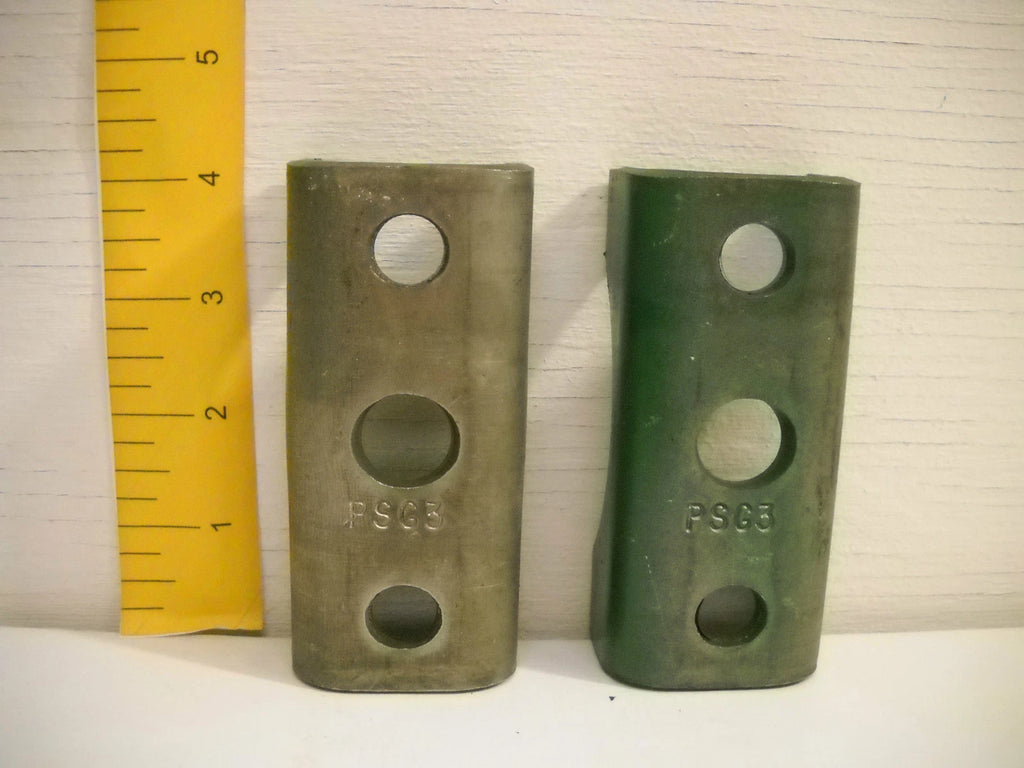

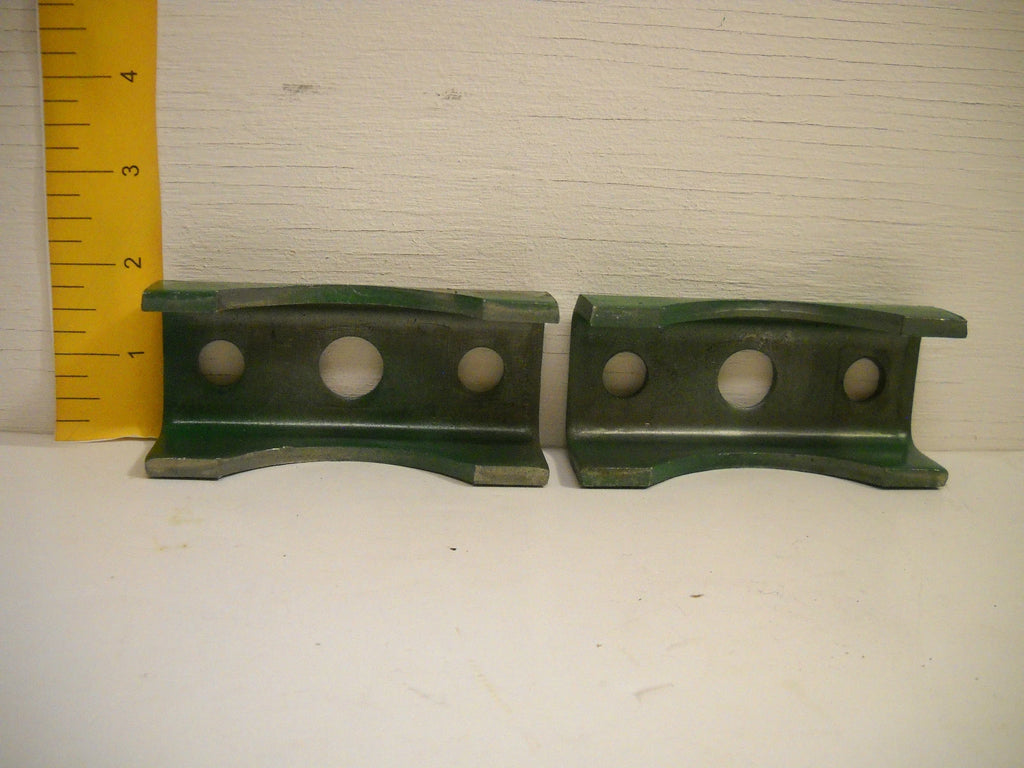

- (2) Spring perches — SP-3
- (2) Hub/drum bearing kits — HD-6000-KIT
Each HD-6000-KIT includes:
- (1) Dust cap — 021-043-02 (2.71" OD)
- (1) Outer bearing — 15123 (1.25" ID)
- (1) Inner bearing — 25580 (1.75" ID)
- (1) Outer seal — 10-10 (2.125")
- (1) Inner seal — 10-36 (2.25")
Specifications
| Specification | Detail |
|---|---|
| Axle Rating | 6,000 lb |
| Brake Size | 12" Electric |
| Bolt Pattern | 6 on 5.5" |
| Spindle Style | Round EZ-Lube |
| Axle Tube Included | No |
Typically used on 6,000 lb trailer axles. Always verify spindle dimensions, brake size, bolt pattern, and bearing compatibility before purchase. Refer to manufacturer documentation for exact dimensions.
