Left Brake with a
5 x 5 Bolt Pattern with
a Left Backing Plate
Part#: 94550-B-IMP-L
New brake drum and backing plate for you trailer, fits AL-KO, Dexter, Lippert, Axis, Quaility and others.
Standard 10 inch trailer brake drum.
Bearing races are already pressed in!
Use to replace that one that failed, or change your bolt pattern to a standard size

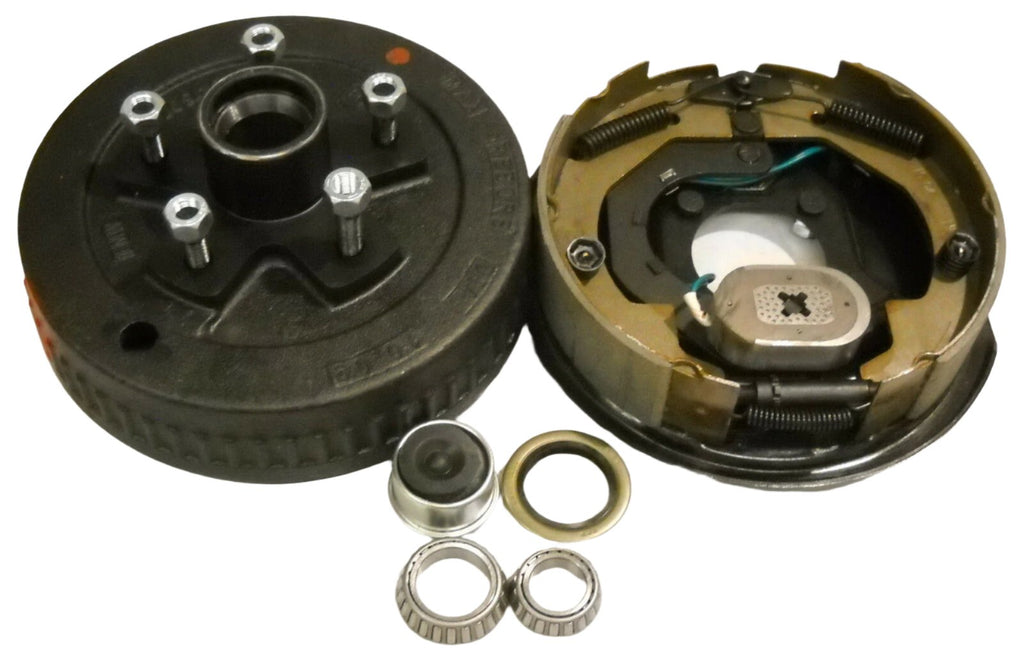

Kit Includes

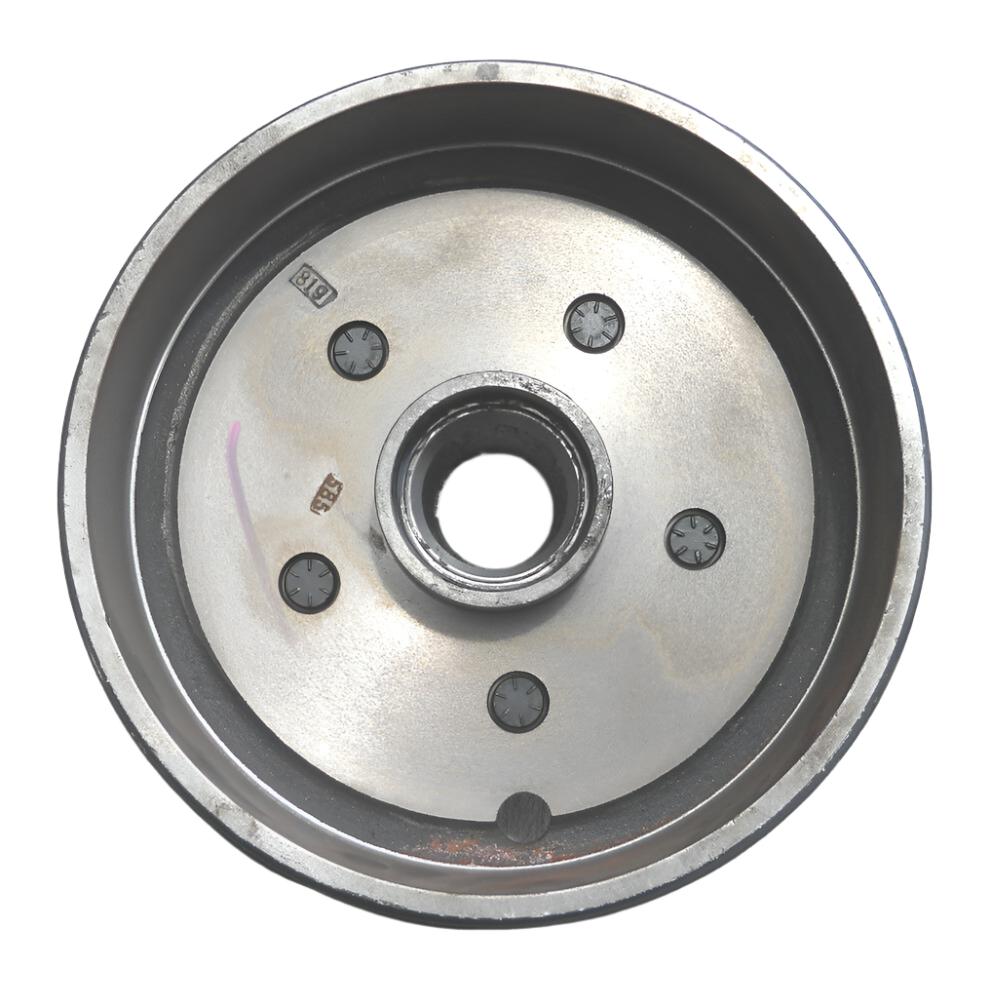

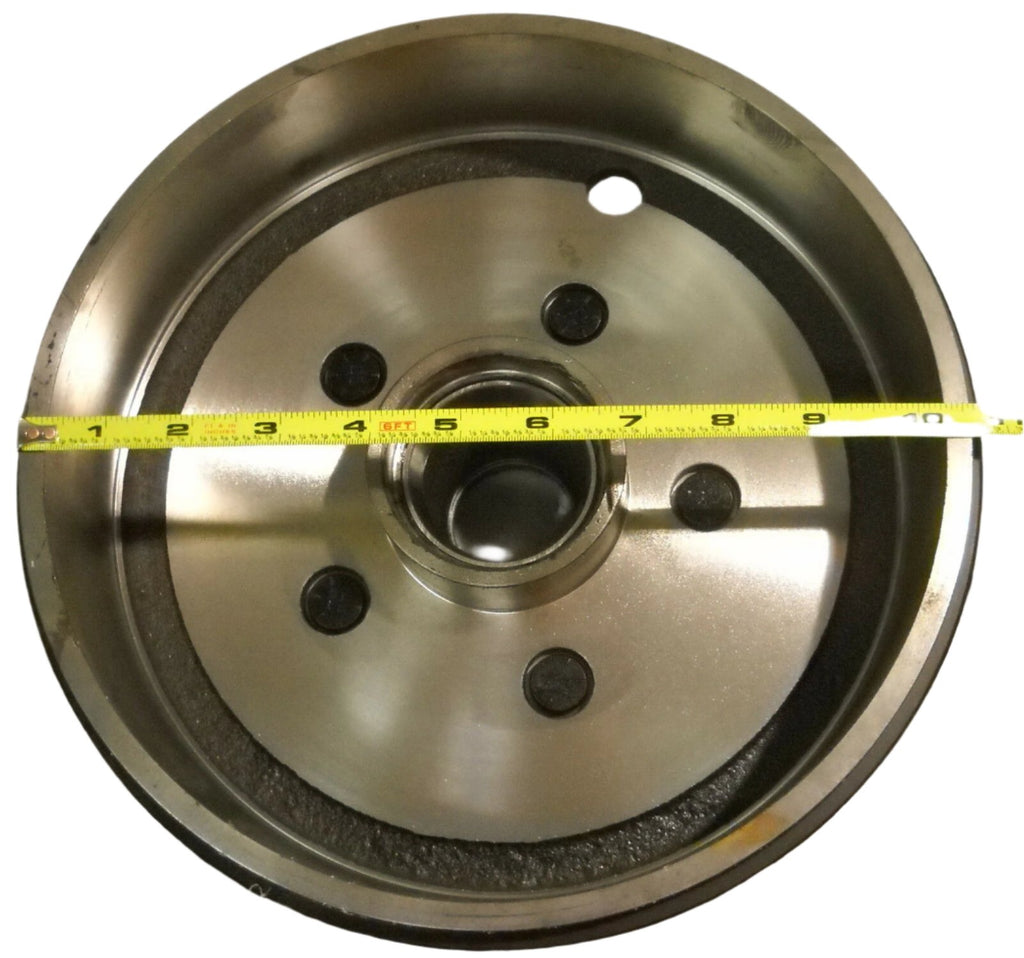

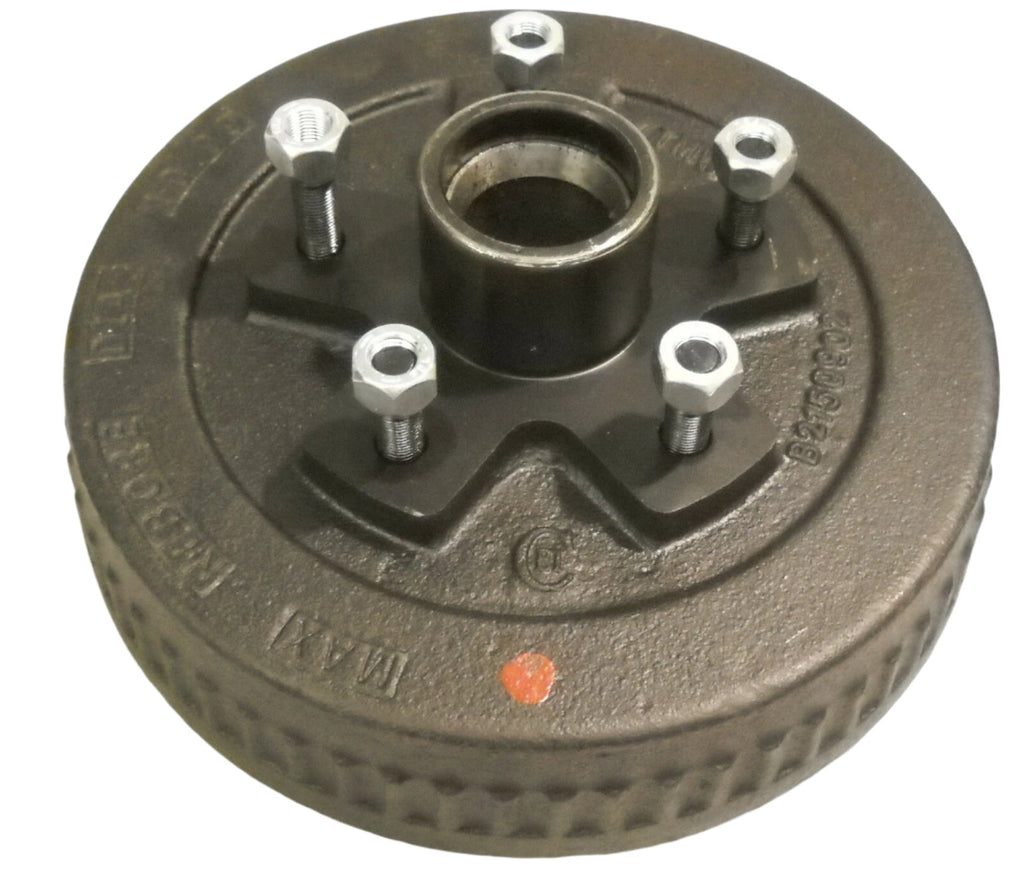

1- New brake drum 5 x 5.0 ", with Bearing race cups pressed in

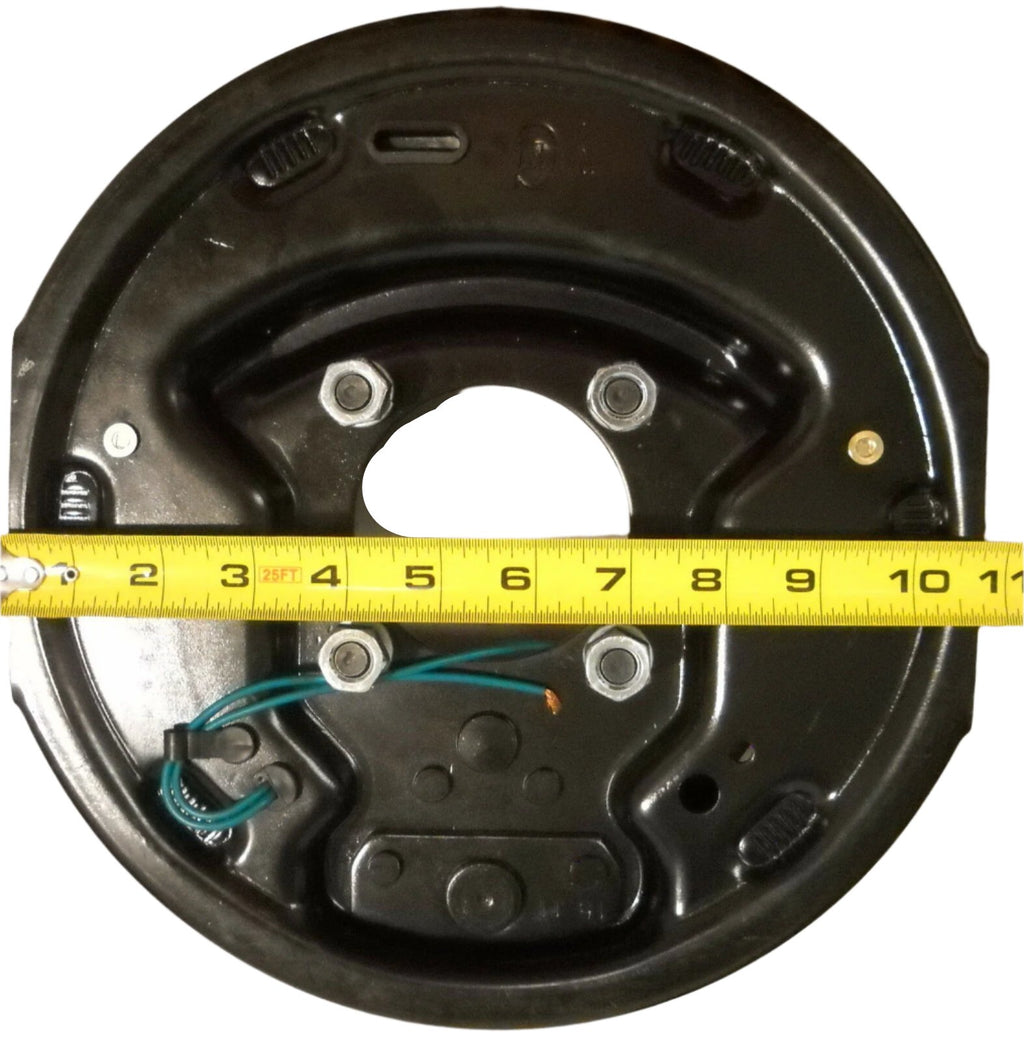

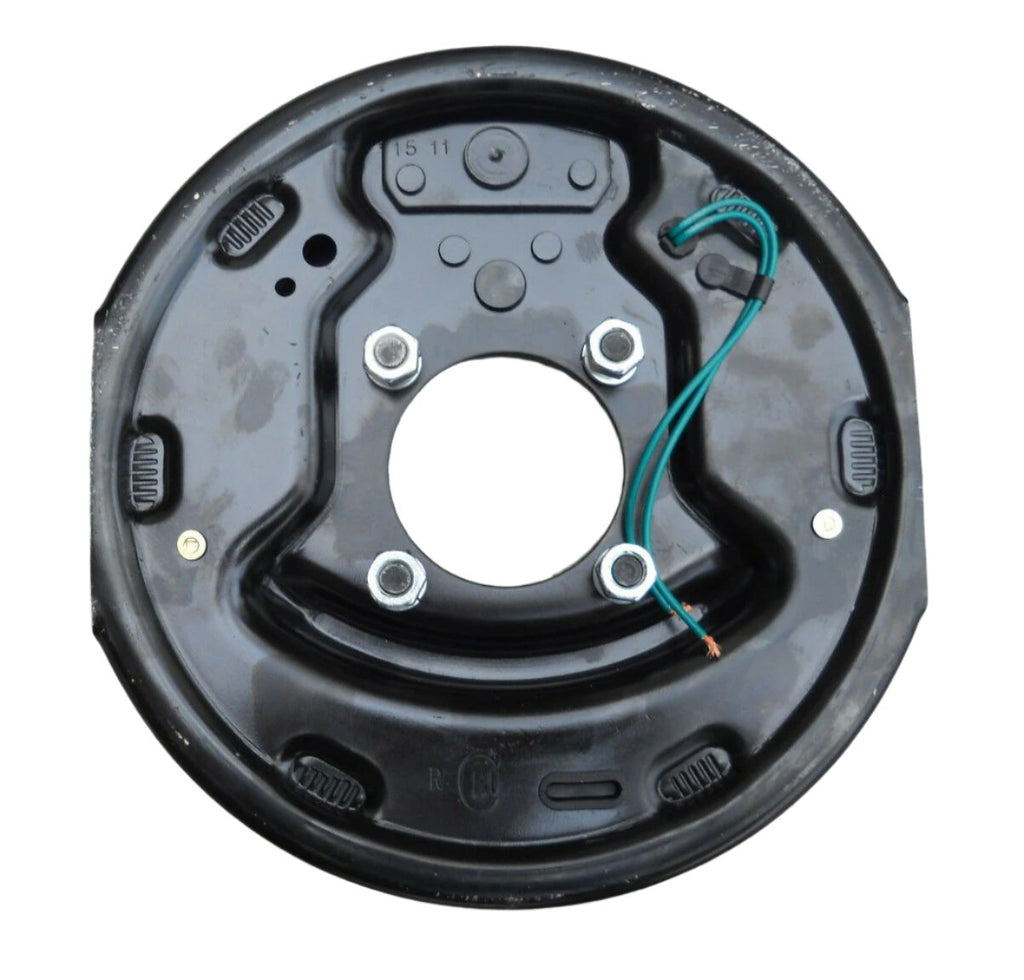

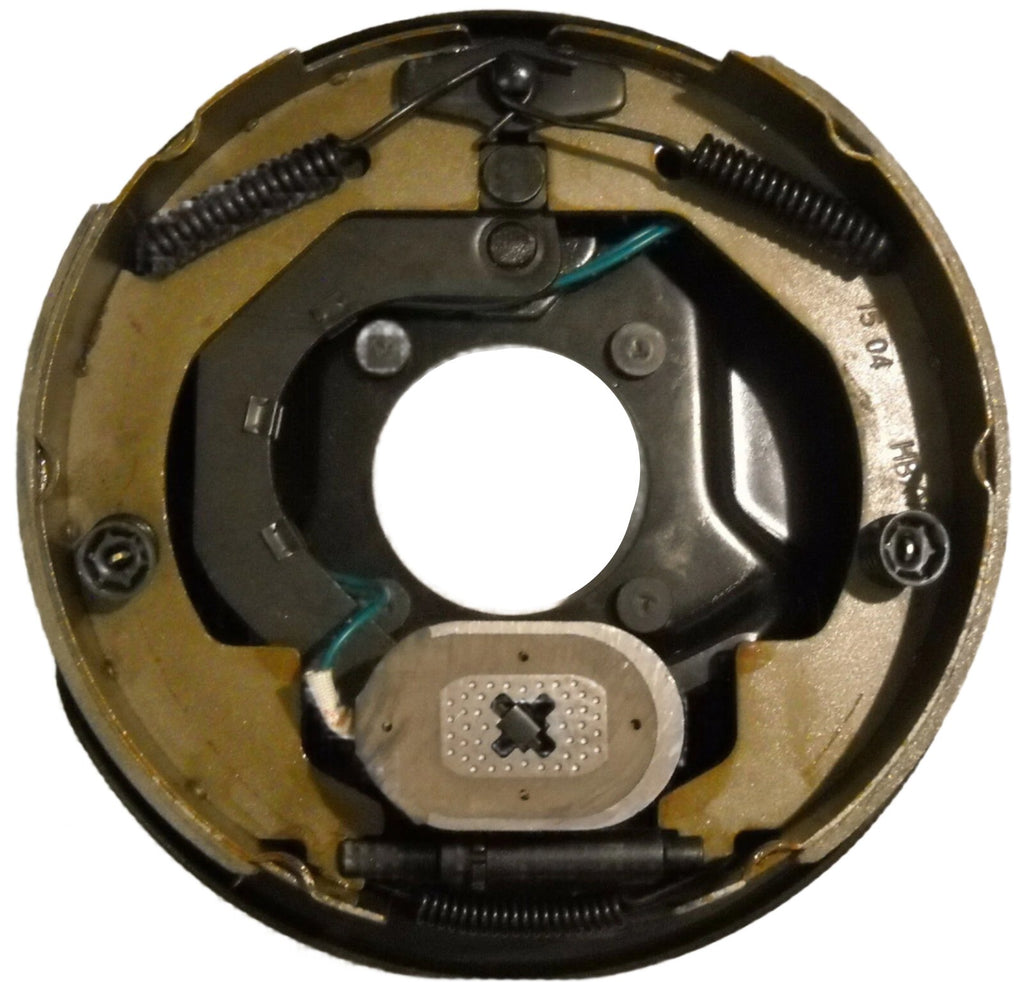

1- New 10" Electric Backing Plate Left Hand Side

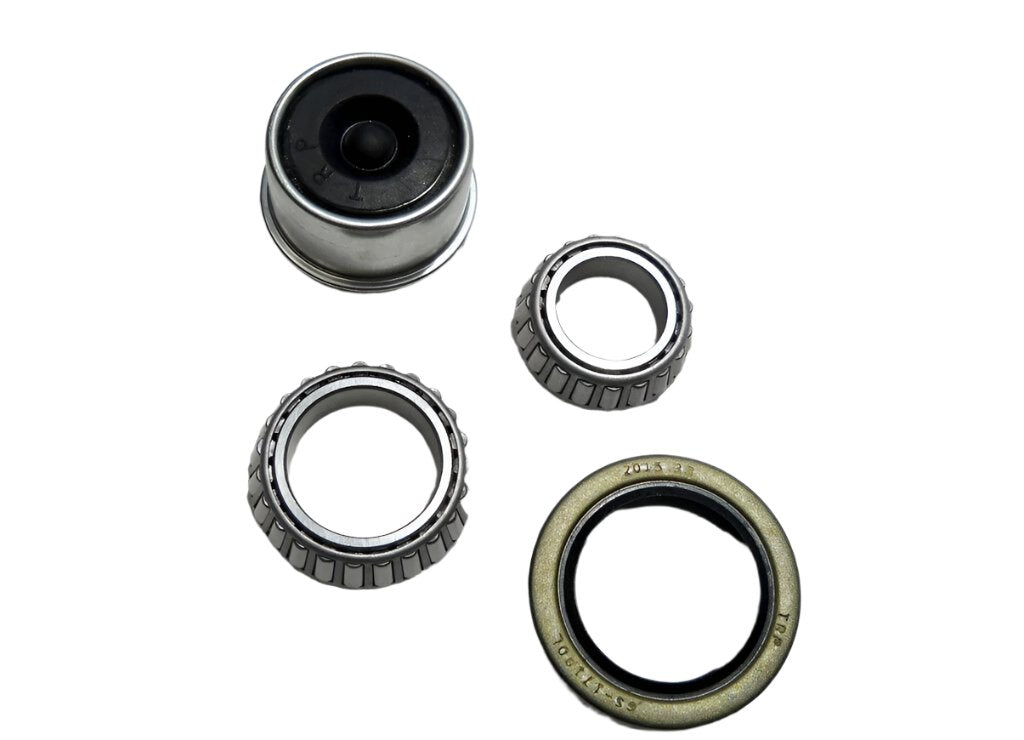

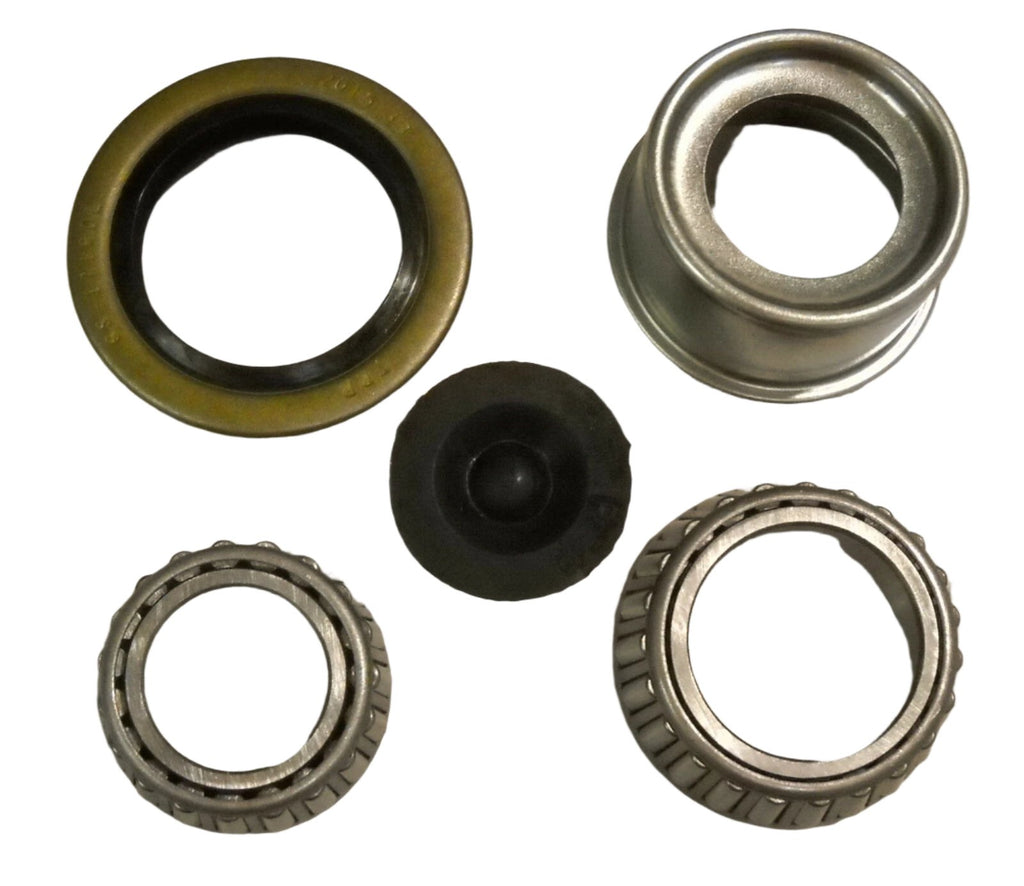

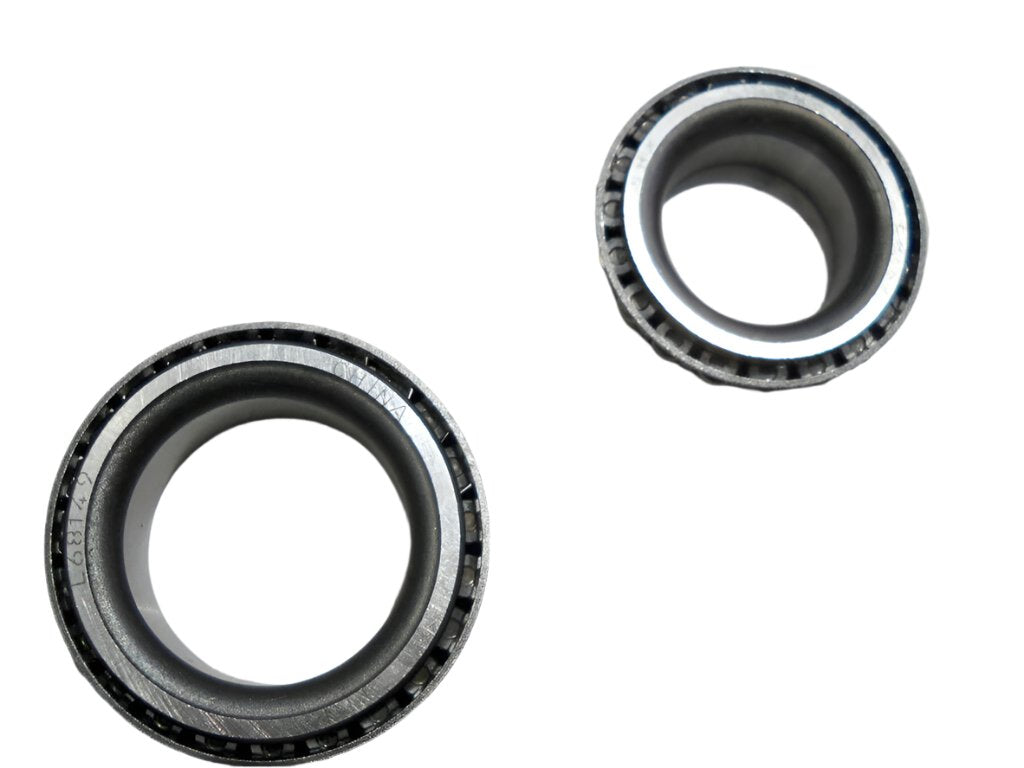

1- Inner bearing L68149 (1 3/8" ID)
1- Outer Bearing L44649 (1 1/16" ID)

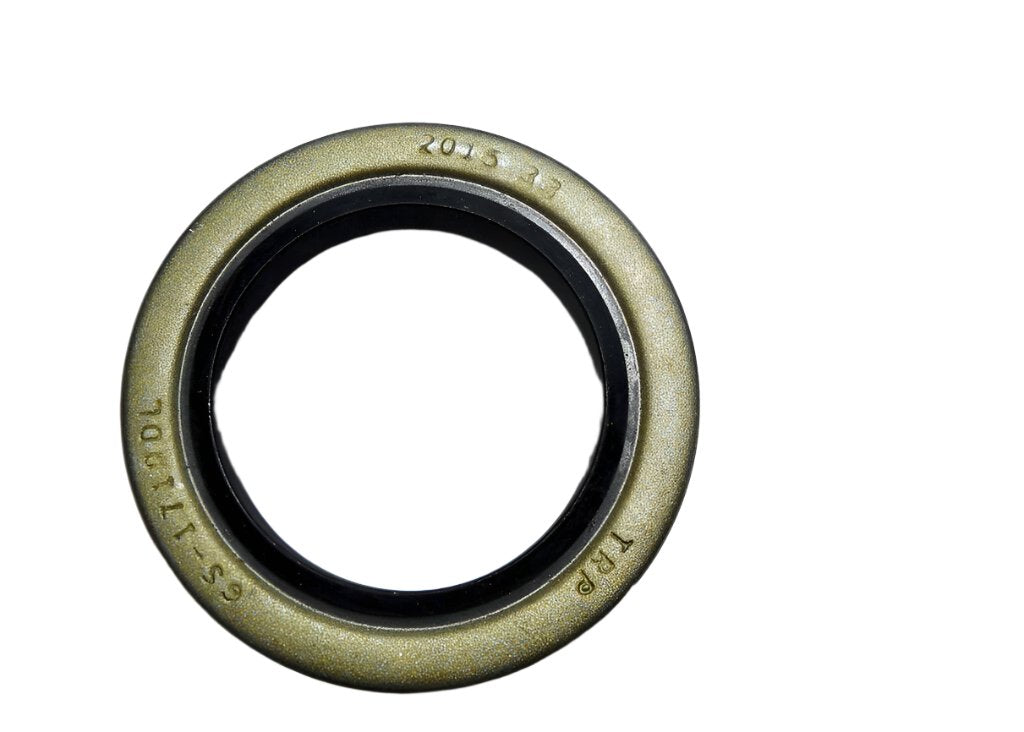

1- Grease Seal 10-19 (1 3/4" ID)
1- New Dust Cap (not shown)
5- new lug nuts
Fits standard #84 spindle (3500# Axle)

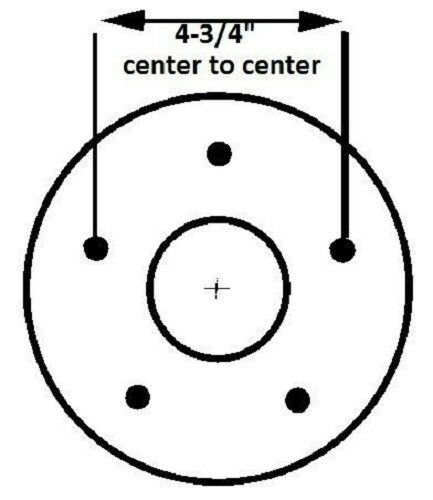

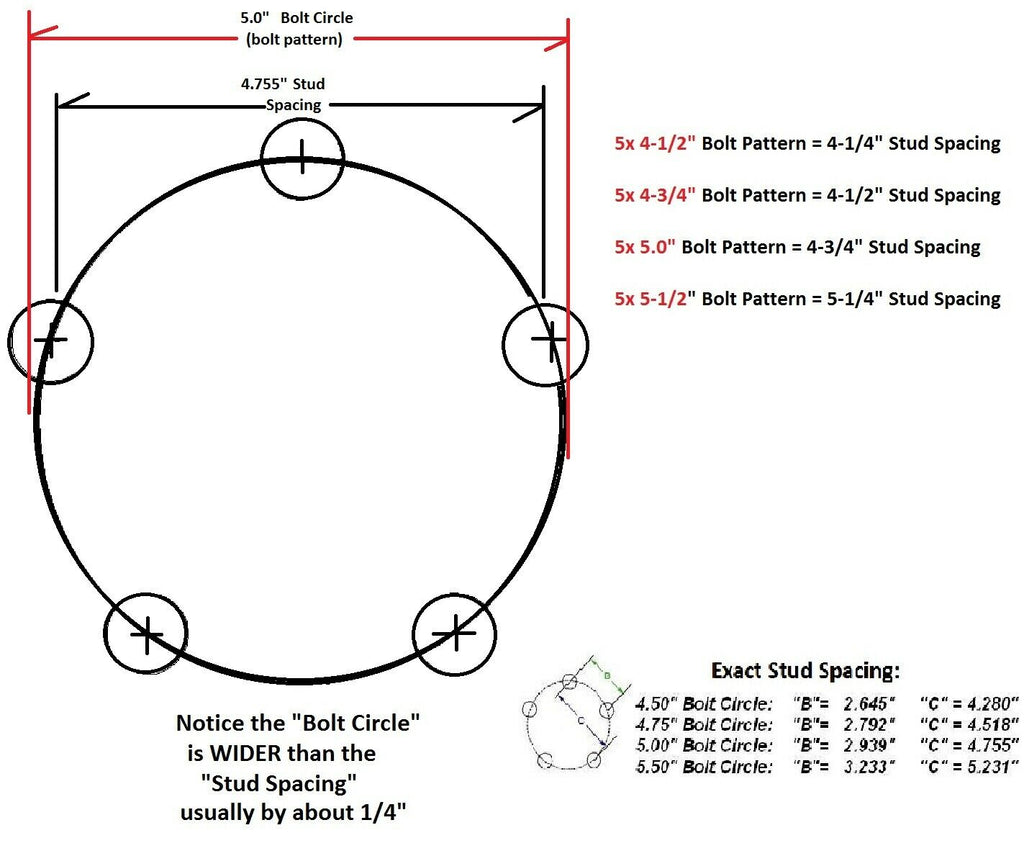

How to measure your bolt pattern for 5 lug wheels:
In addition, you should see a small square plate welded to the axle tube, with 4 holes, (to bolt the brake plate to) and your axle tube will be about 2 1/4" OD.
If you have a 2.75" axle tube, it is the larger 5200, 6000, or 7000# axle
If you have the smaller 1-5/8" axle tube, it has the smaller 2000/2200# axle
