Genuine Dexter 8-247 Brake Drum – 10" x 2-1/4" – 5 on 4.5 Bolt Pattern

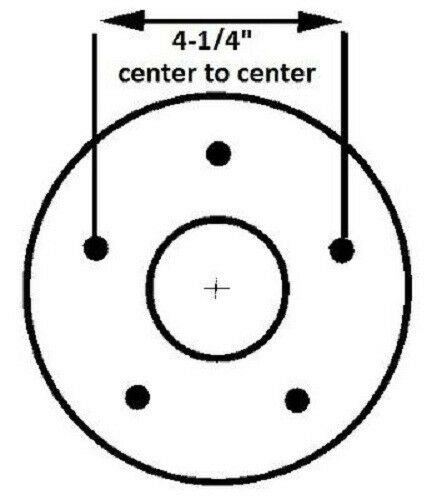

4-1/4" Stud Spacing

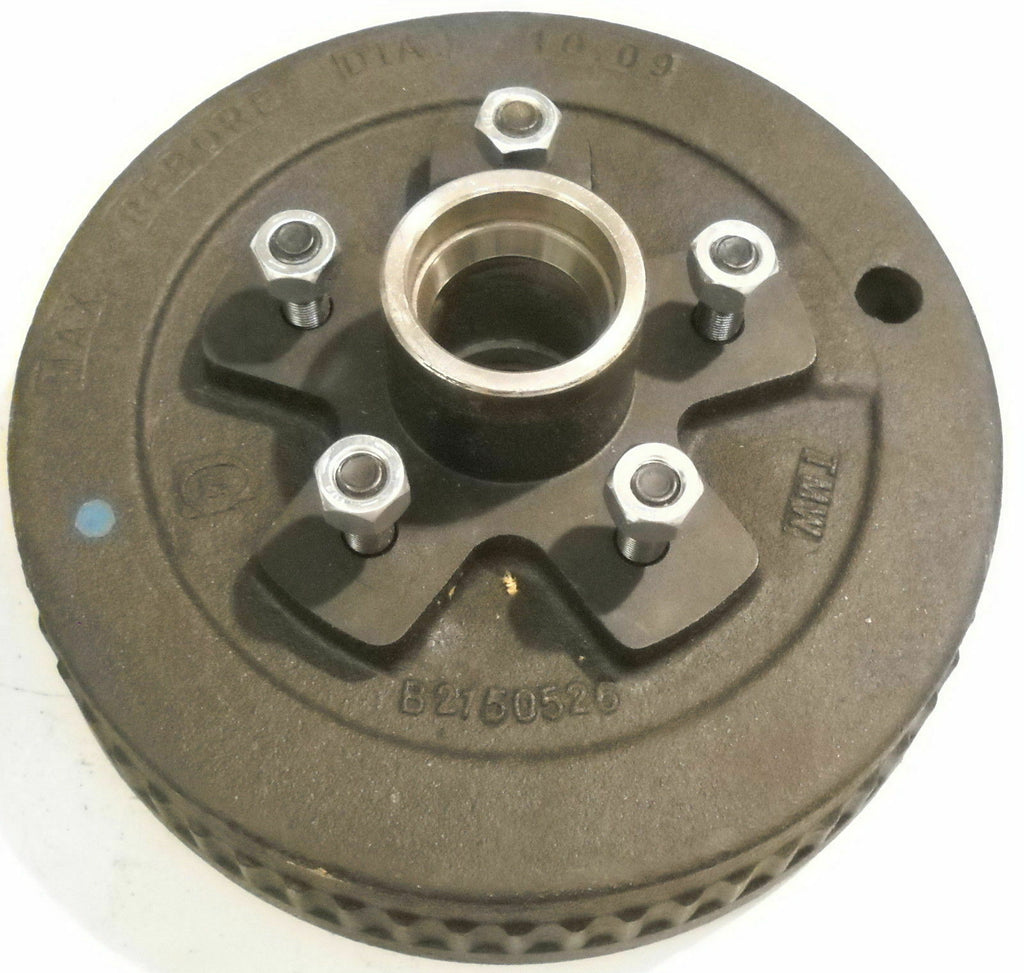

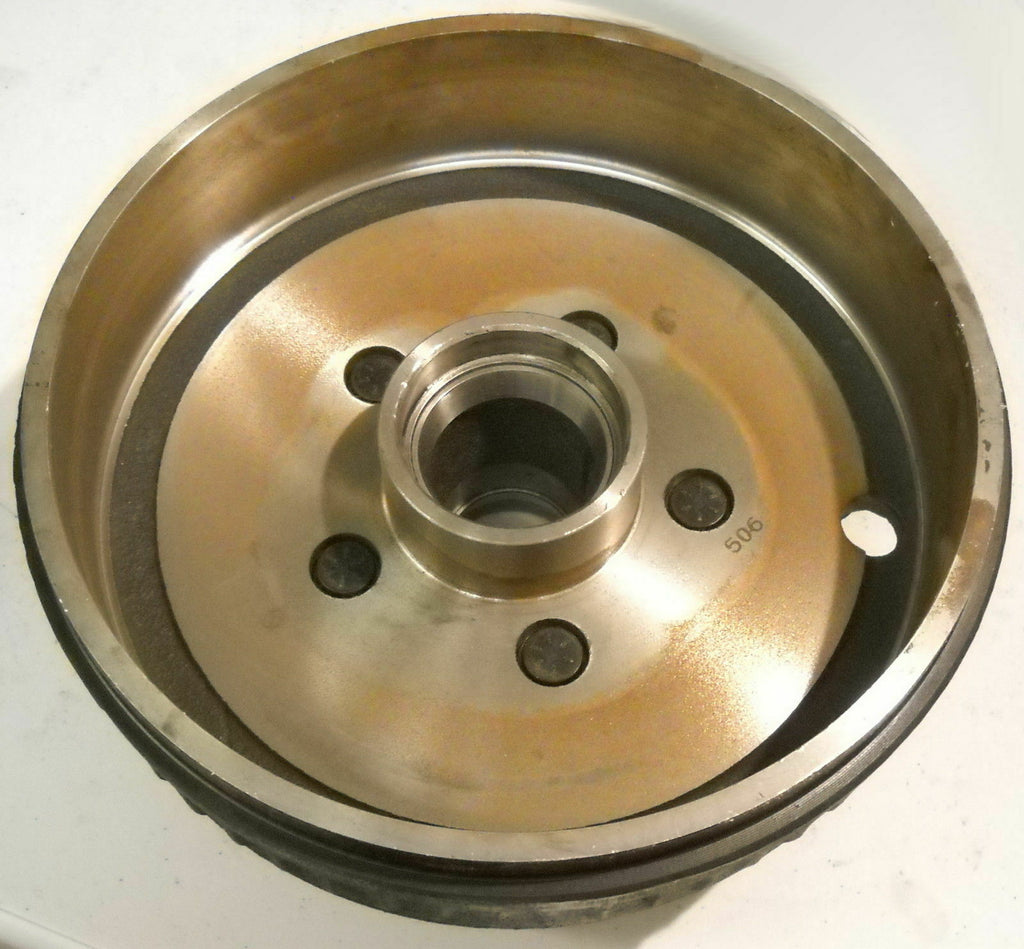

Genuine USA made Dexter 8-247 replacement brake drum for 3,500 lb trailer axles. Standard 10" x 2-1/4" drum with 5 on 4.5" bolt circle. Bearing races are pre-installed for convenient installation.
Fits many popular axle brands including Dexter, AL-KO, Lippert, Axis, Quality and others using a standard #84 spindle.
Specifications
| Specification | Details |
|---|---|
| Brake Size | 10" x 2-1/4" |
| Bolt Pattern | 5 on 4.5" |
| Stud Spacing | 4-1/4" |
| Spindle Compatibility | #84 Spindle (3,500 lb Axle) |

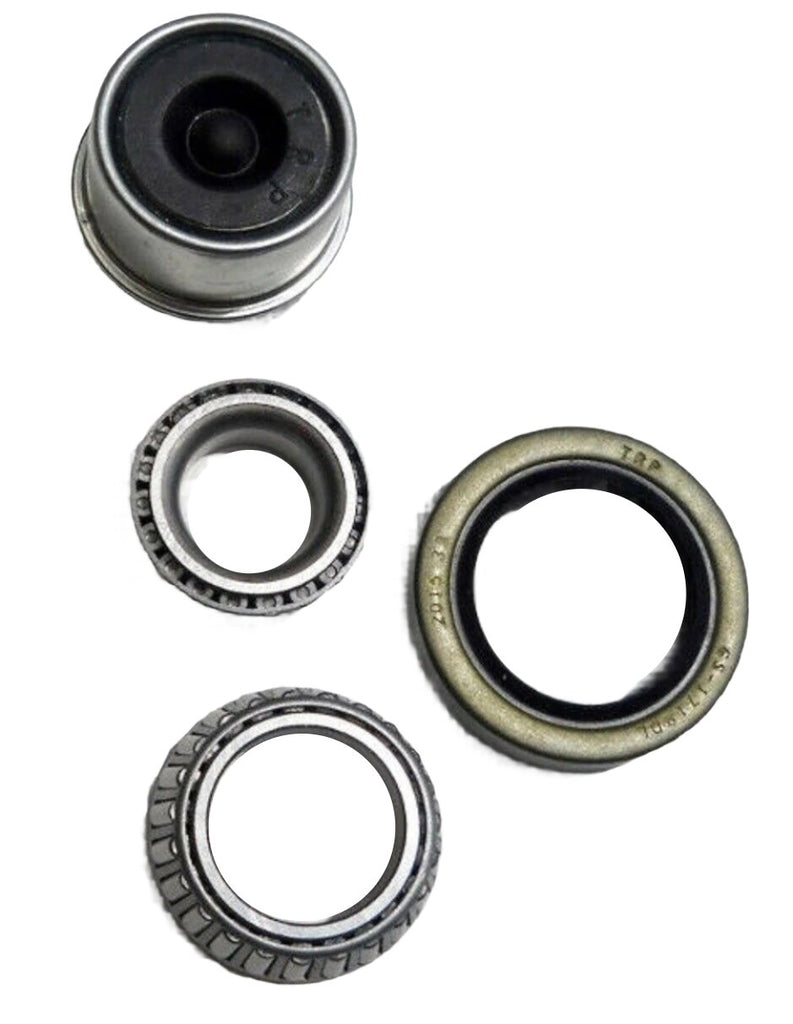

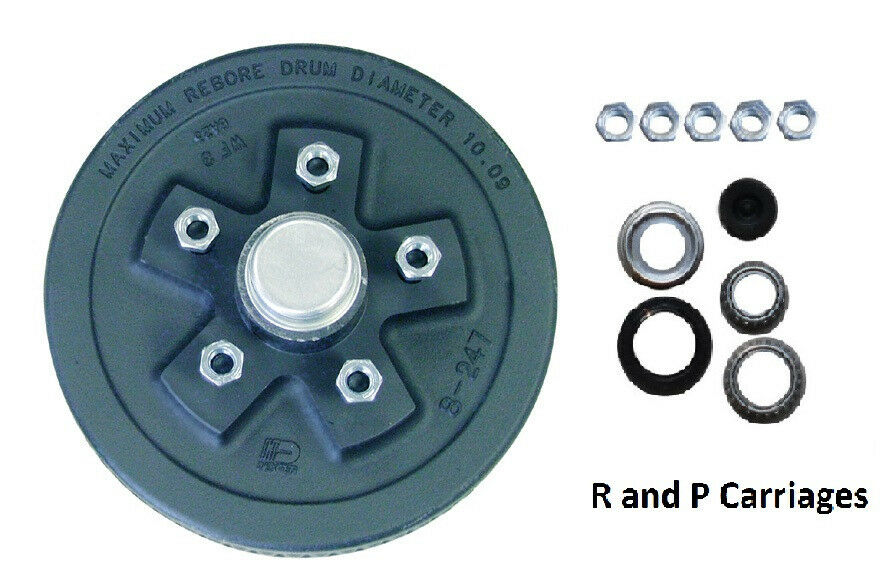

Includes
| Quantity | Component |
|---|---|
| 1 | 10" x 2-1/4" Brake Drum (Races Installed) |
| 1 | L68149 Inner Bearing (1-3/8" I.D.) |
| 1 | L44649 Outer Bearing (1-1/16" I.D.) |
| 1 | 10-19 Grease Seal |
| 1 | Dust Cap |
| 5 | Lug Nuts |
Important: Always verify bolt pattern, spindle type, and bearing numbers before ordering.
 |
 |
