3,500 lb Dexter Electric Brake & Hub/Drum Kit – 10" Never-Adjust, 5×4.5 (LEFT & RIGHT)
Part Number: 94545-B-FSA-DEX
COMPLETE SINGLE-AXLE KIT – BOTH SIDES INCLUDED

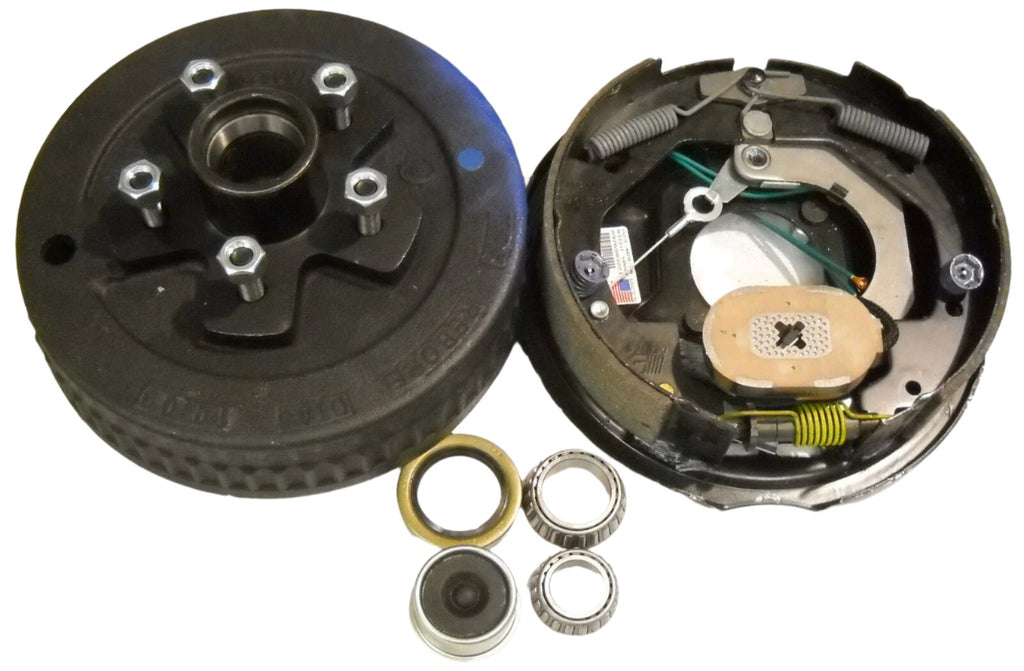

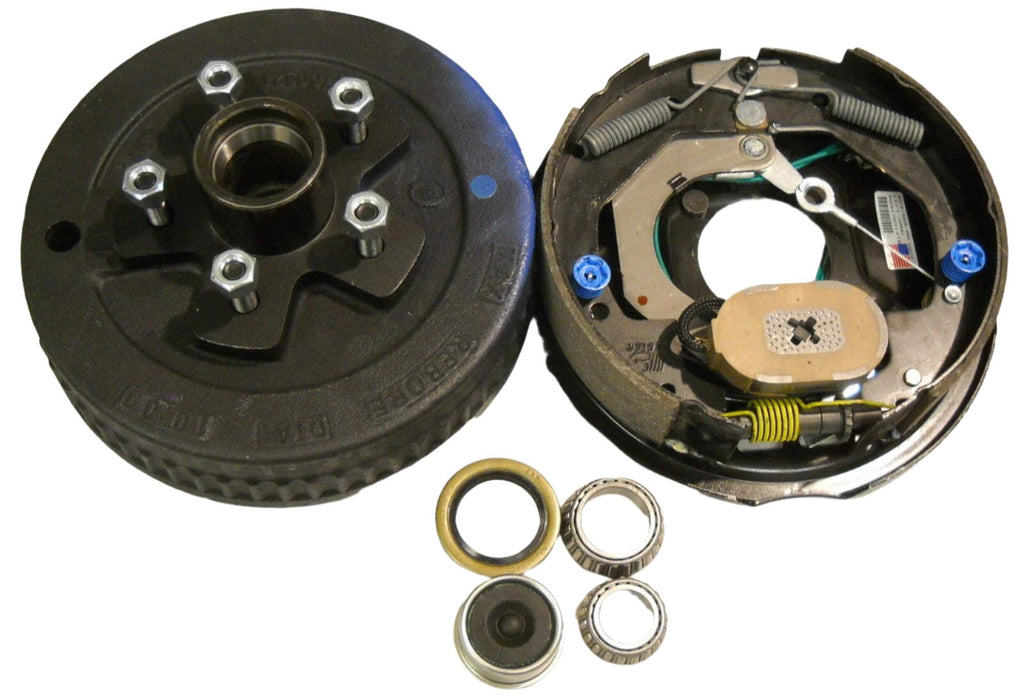

Complete Dexter 3,500 lb electric brake and hub/drum kit for one trailer axle. This kit includes left and right 10" × 2.25" Dexter Never-Adjust brake assemblies, paired with Dexter 5×4.5 hub/drums, pre-matched bearings, seals, lug nuts, and mounting hardware.
Designed for replacing worn brake components or adding brakes to an already-braked axle where brake flanges and wiring are already present.
Dexter Never-Adjust Brake Benefits
- Automatically maintains proper shoe-to-drum clearance
- No periodic manual brake adjustments required
- Consistent braking performance over time
- Improved stopping power versus manual-adjust brakes
- Reduced wear on the tow vehicle’s braking system

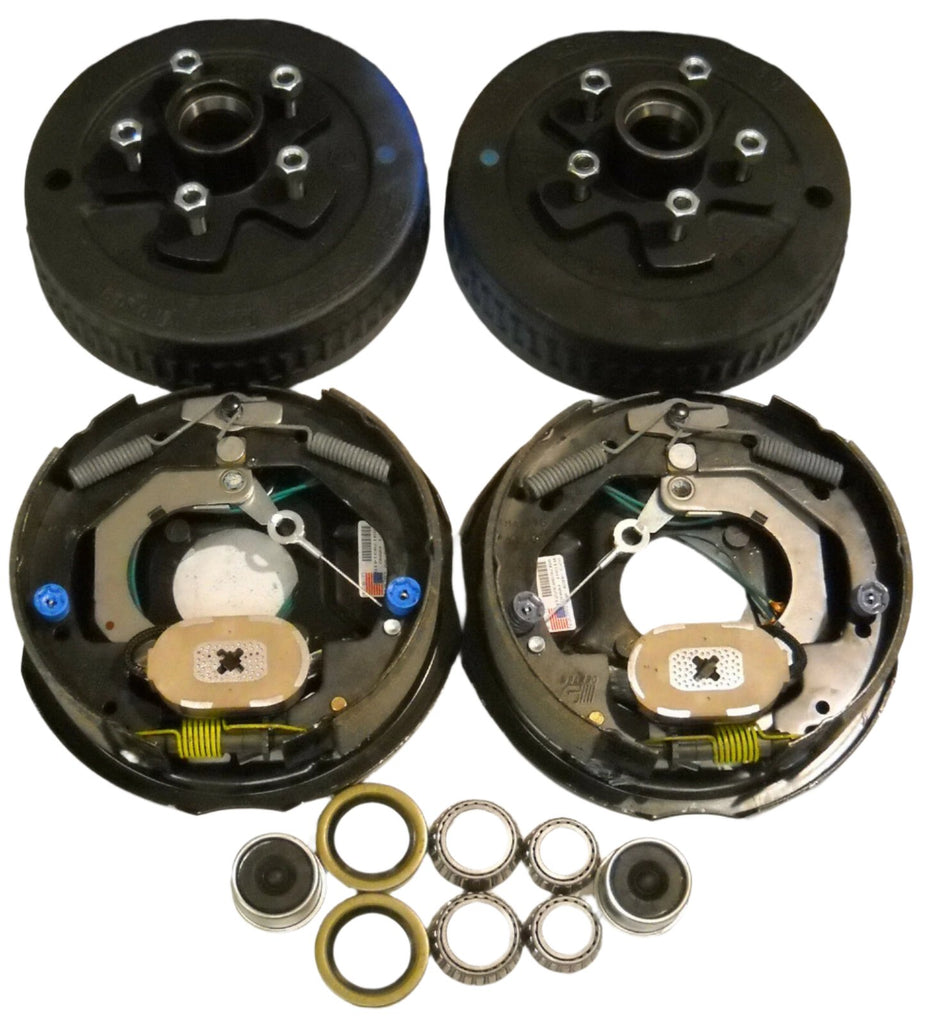

Kit Contents (BOM-Matched)
- 1 × Dexter RIGHT Electric Brake Assembly – 10" × 2.25"
Dexter P/N: 023-468-00 - 1 × Dexter LEFT Electric Brake Assembly – 10" × 2.25"

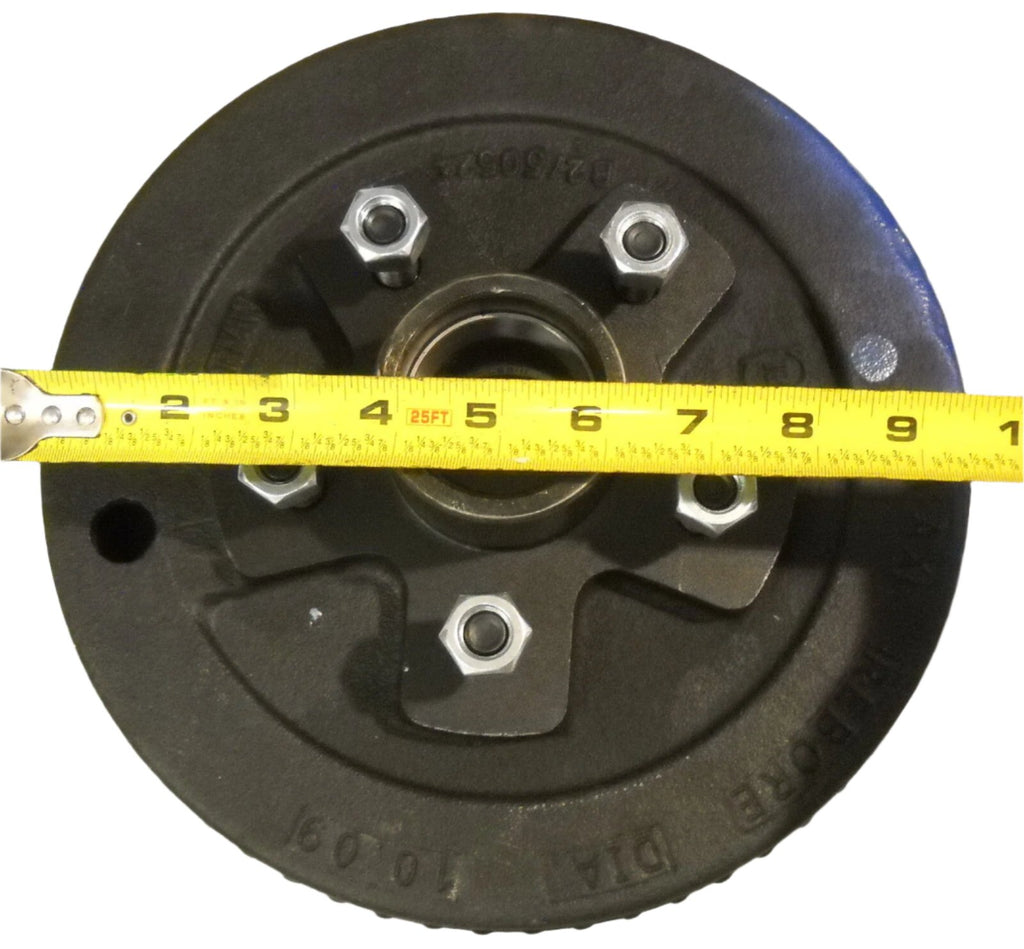

Dexter P/N: 023-469-00 - 2 × Dexter Hub/Drum Assemblies – 3,500 lb, 5×4.5 Bolt Pattern

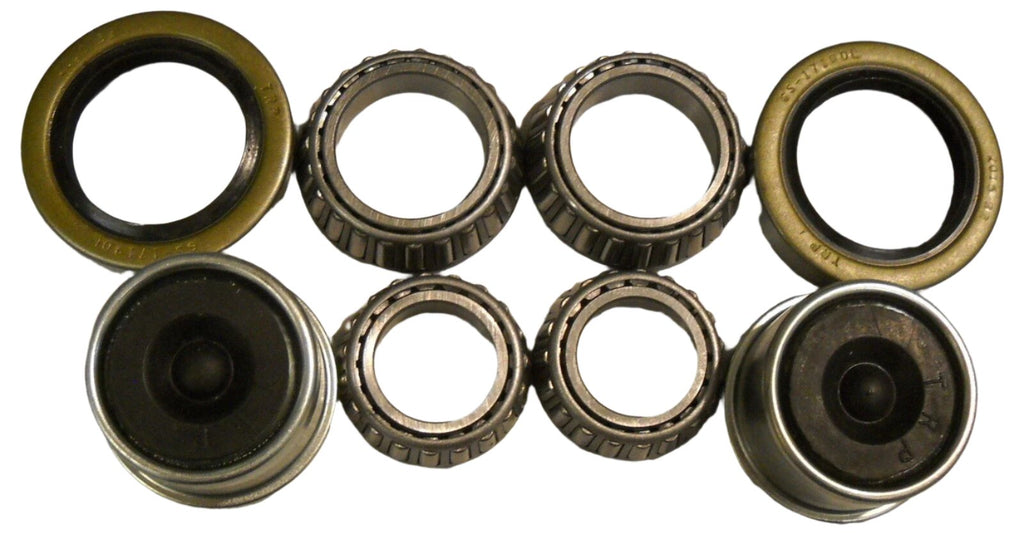

Dexter P/N: 008-247-05 - 2 × Bearing & Seal Sets (L68149 Inner / L44649 Outer)
- 10 × 1/2"-20 Coned Lug Nuts (60° seat)
- Brake mounting nuts and lock washers
Axle Fitment Requirements
- For 3,500 lb trailer axles only
- Requires 4-bolt brake mounting flange
- Fits 2.25" axle tube
- Uses standard L68149 / L44649 bearing combination
- NOT compatible with 2,000–2,200 lb or 5,200–7,000 lb axles
3,500 lb Spindle Reference

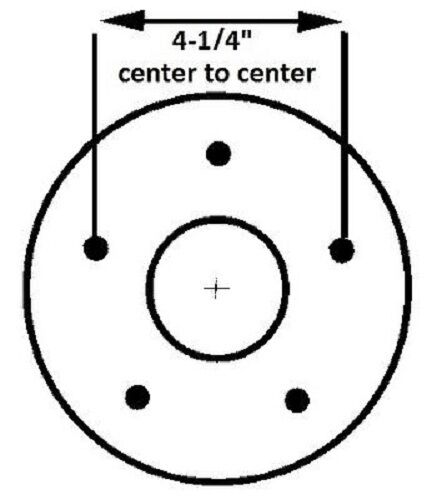

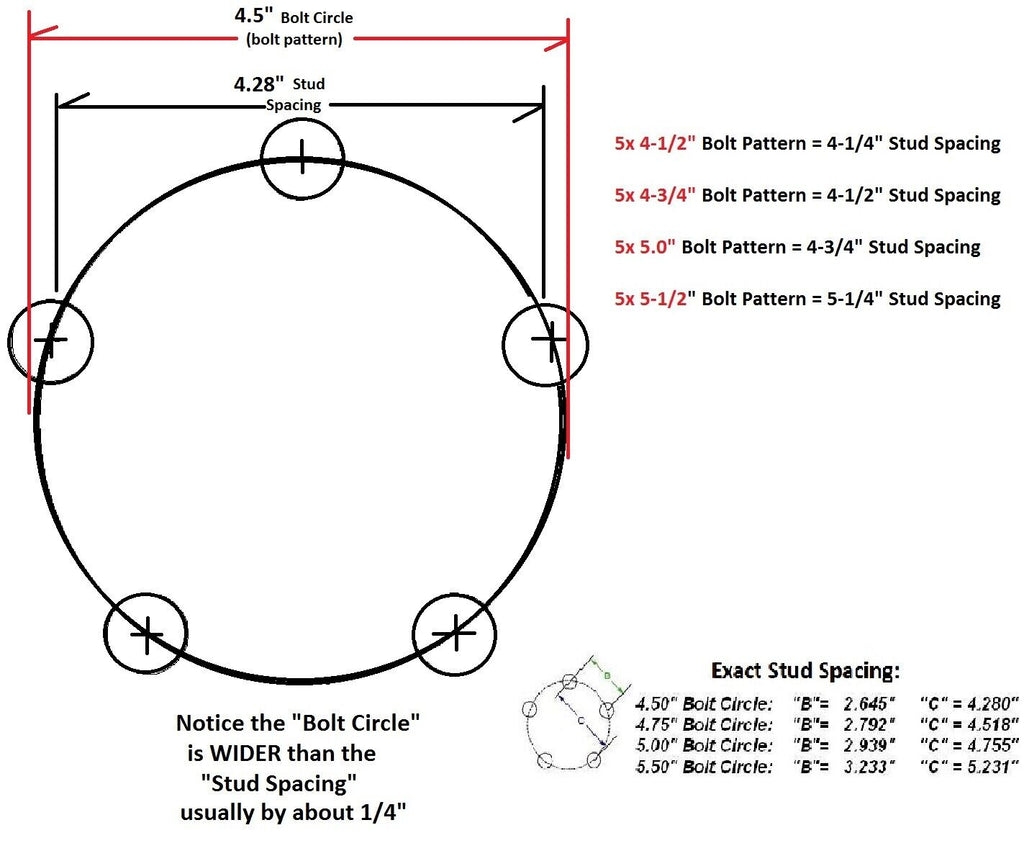

5×4.5 Bolt Pattern Guide
