Add Electric Brakes to Trailer – Complete Kit, 3,500 lb Axle, 5 on 4.5
Part Number: 94545-C-IMP

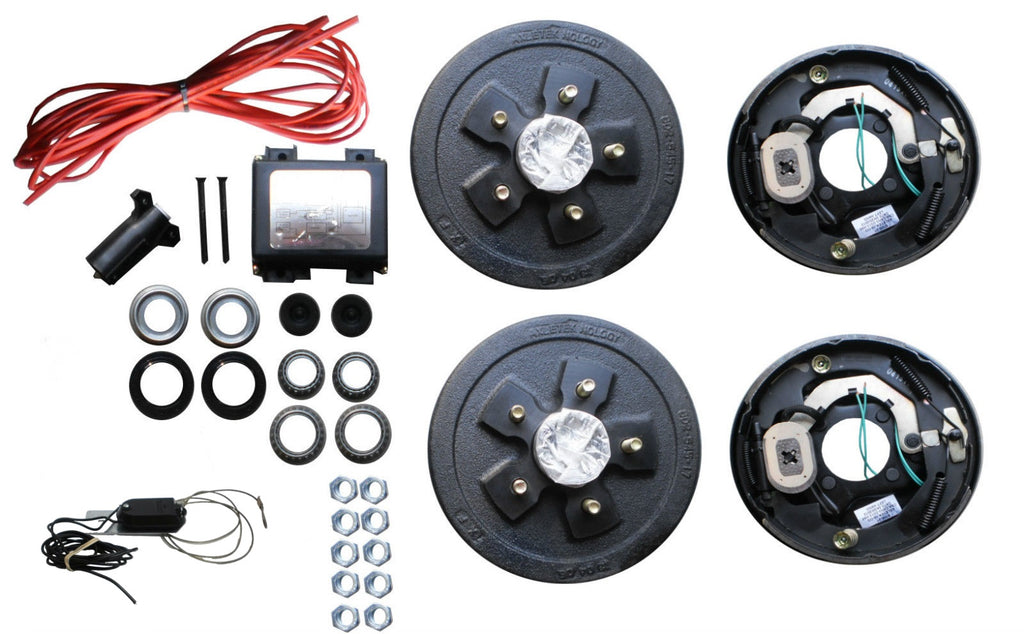

Complete electric brake conversion kit designed for trailers equipped with a single 3,500 lb axle using a 5 on 4.5 bolt pattern. This kit includes brake assemblies, drums, bearings, wiring components, and breakaway hardware required for electric brake installation.
Features
- Complete electric brake kit for one axle

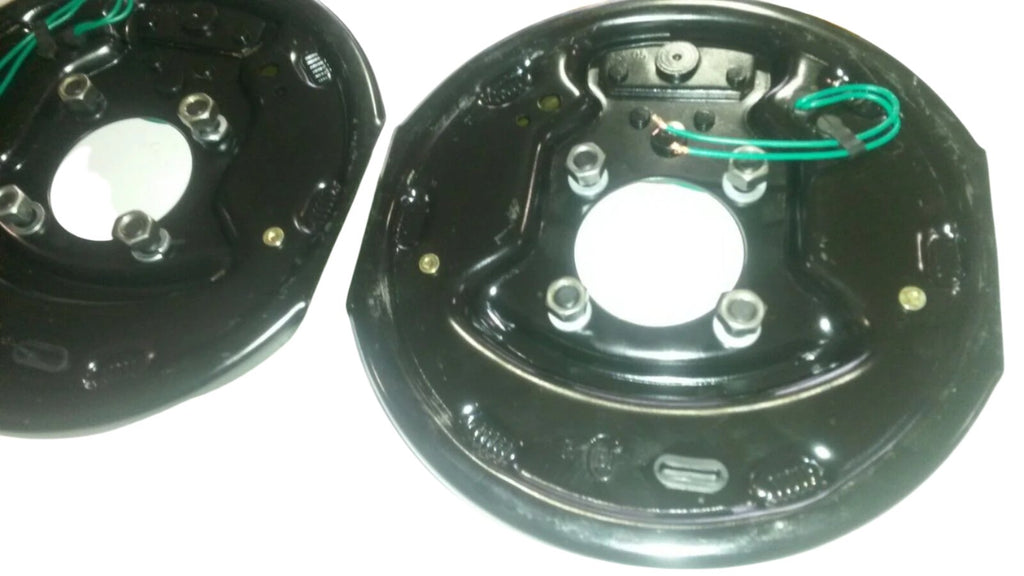

- Includes left- and right-hand electric brake backing plates
- 10" x 2.25" brake assemblies

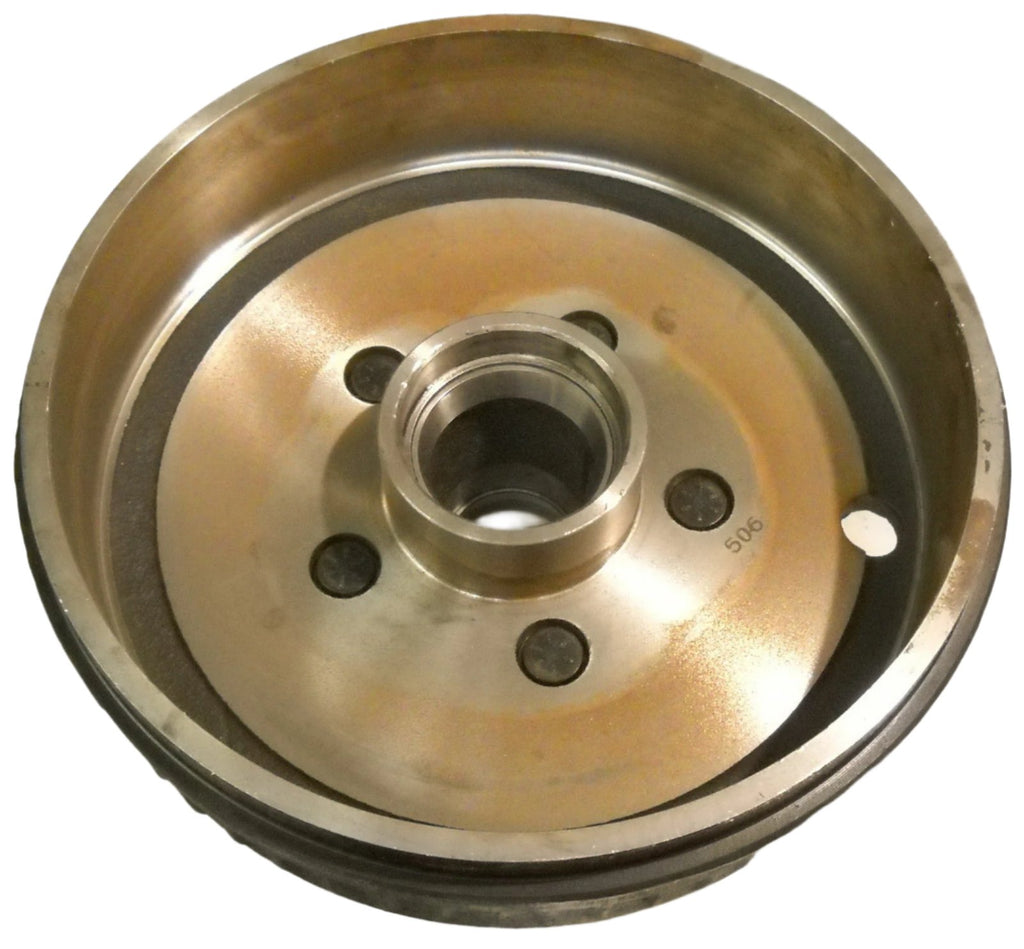

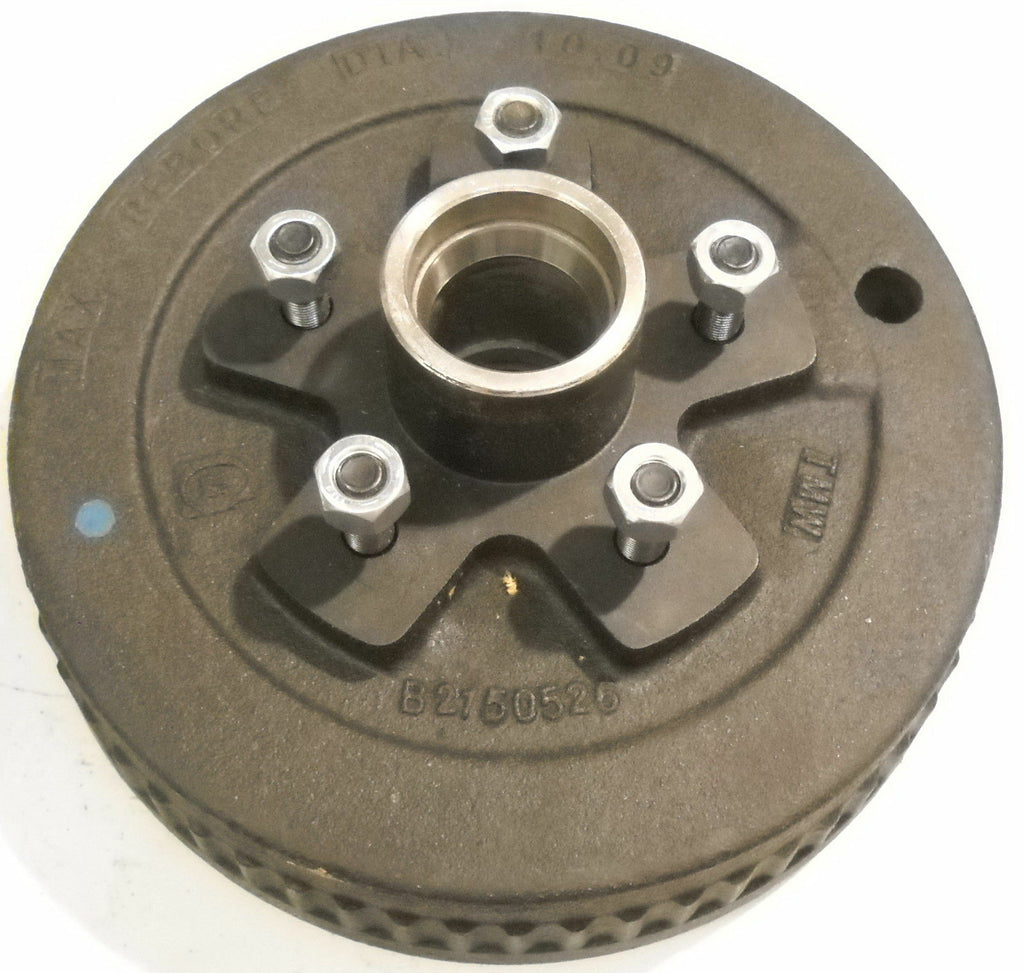

- 5 on 4.5 wheel bolt pattern drums with races installed
- Includes bearings, grease seals, wiring, breakaway system, and 7-way plug
Specifications
| Axle Rating | 3,500 lb |
|---|---|
| Brake Type | Electric |
| Brake Size | 10" x 2.25" |

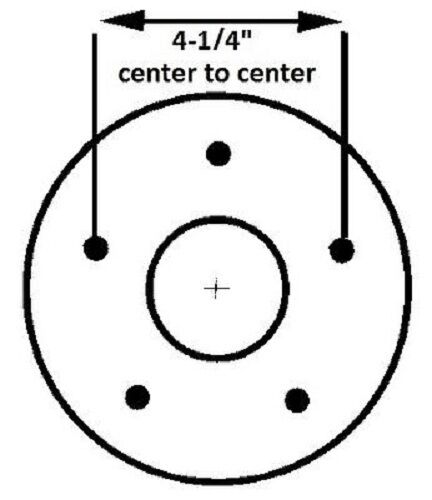

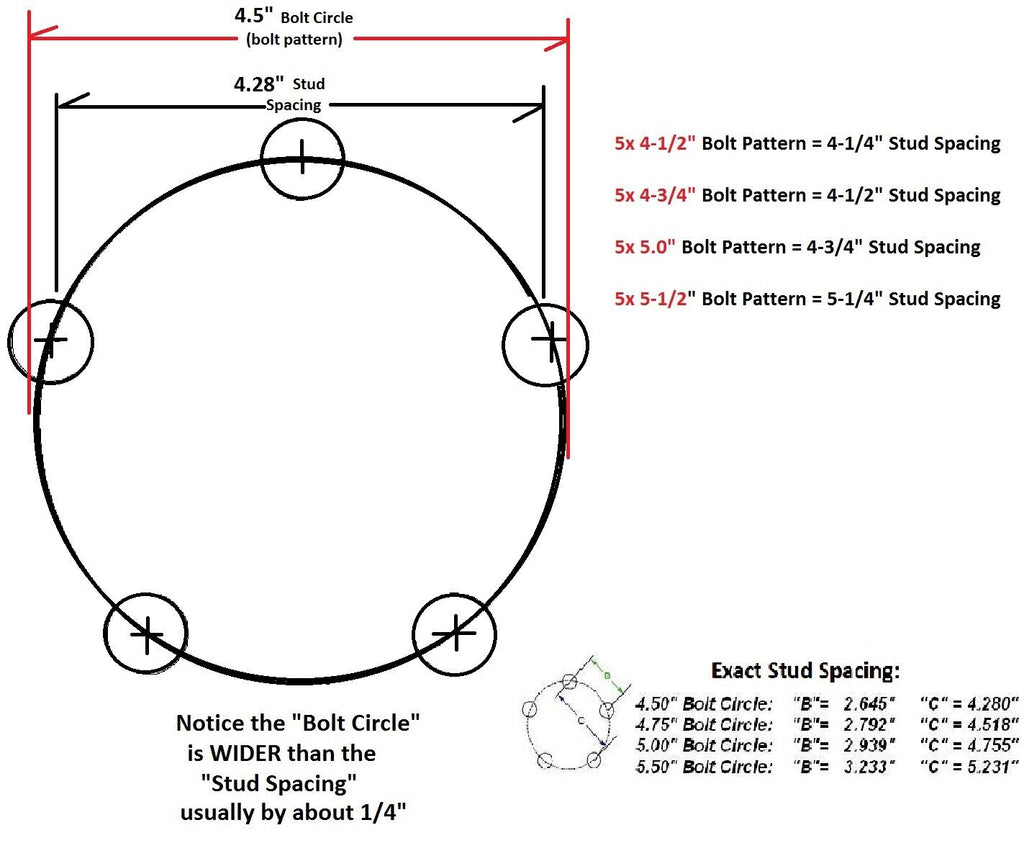

| Bolt Pattern | 5 on 4.5 |

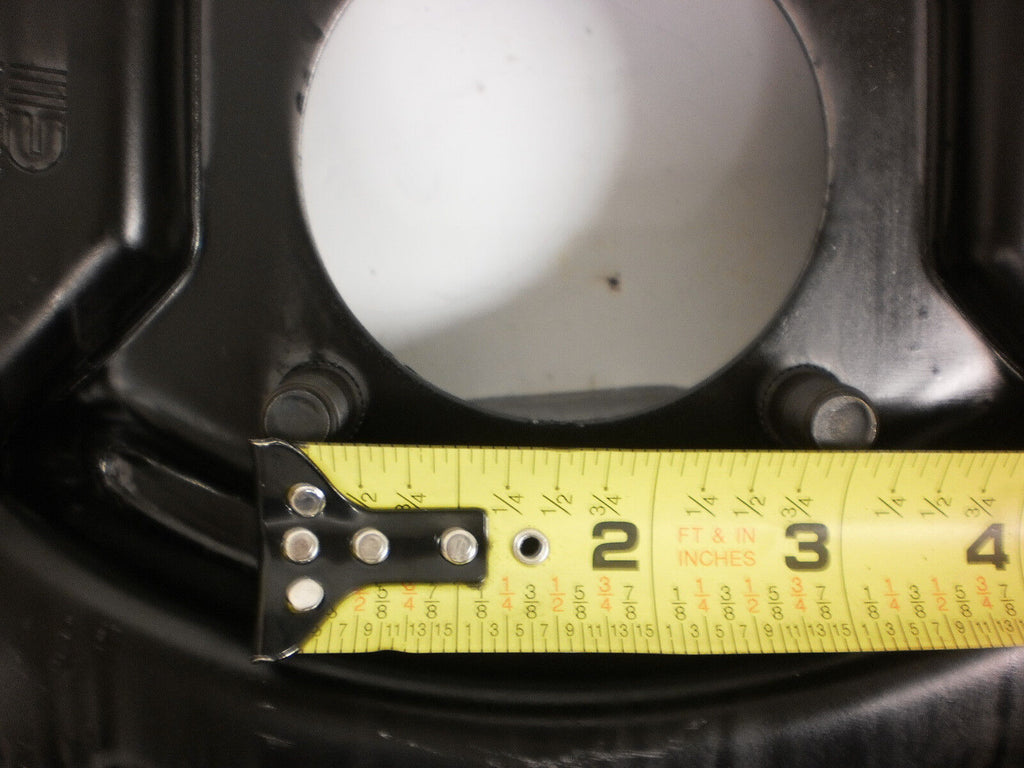

| Backing Plate Bolt Spacing | 2-7/8" center to center |

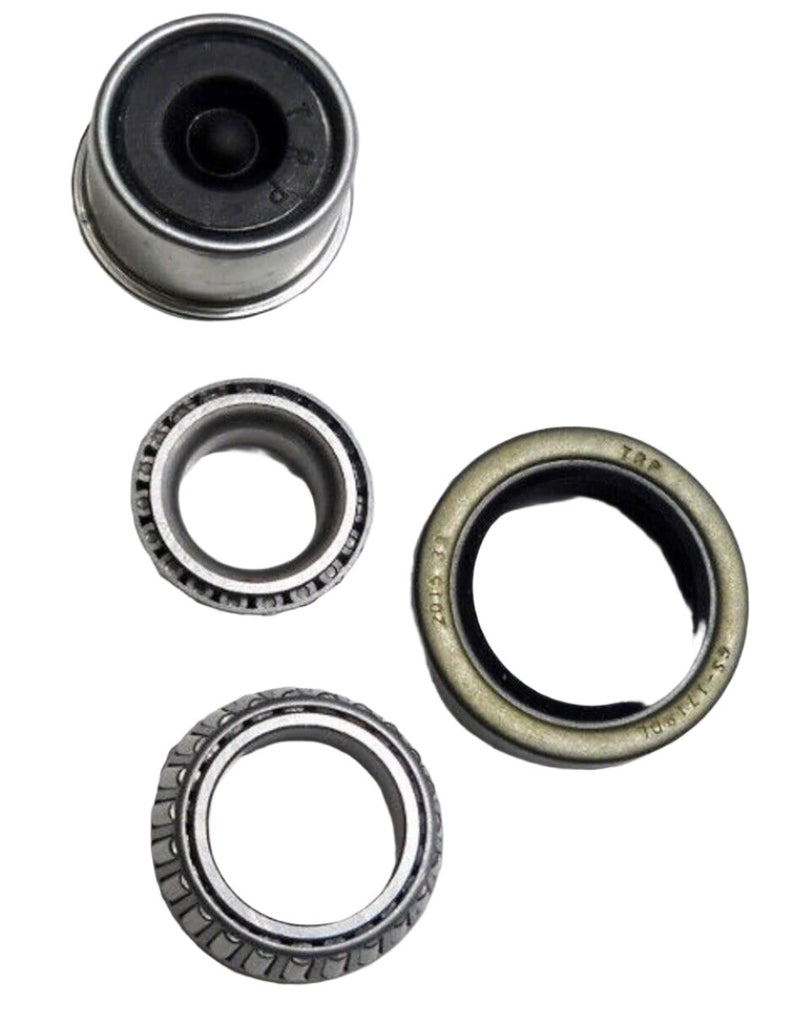

| Inner Bearing | L68149 |
| Outer Bearing | L44649 |
| Grease Seal | 10-19 (1.7") |
| Brake Wire Included | 25 ft, 14-gauge two-conductor |
Important Fitment Note: This kit requires an axle with a welded 4-bolt brake mounting flange. Trailers without a brake flange cannot accept electric brakes without axle modification.
Verify axle flange, spindle bearing sizes, and wheel bolt pattern before ordering.
A brake controller and 7-way vehicle connector are required for operation. Verify specifications before installation.
