Lippert 3500 lb Trailer Axle – 60" Hub Face – 5 x 4.5 Idler Hubs – EZ-Lube
Part Number: 3500-60-2-H545KIT

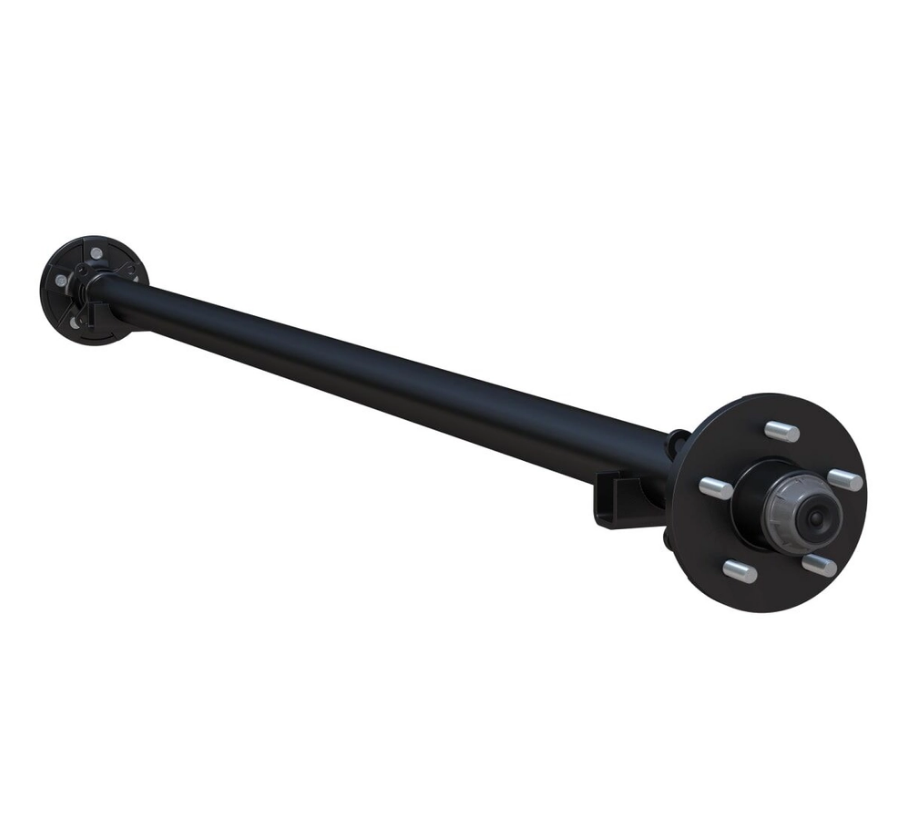

Lippert 3,500 lb trailer idler axle beam with 60" hub face and standard 2.4" tube. Includes 5 on 4.5 idler hubs, EZ-Lube spindles, brake flanges, and spring perches.
R&P Knowledge Hub

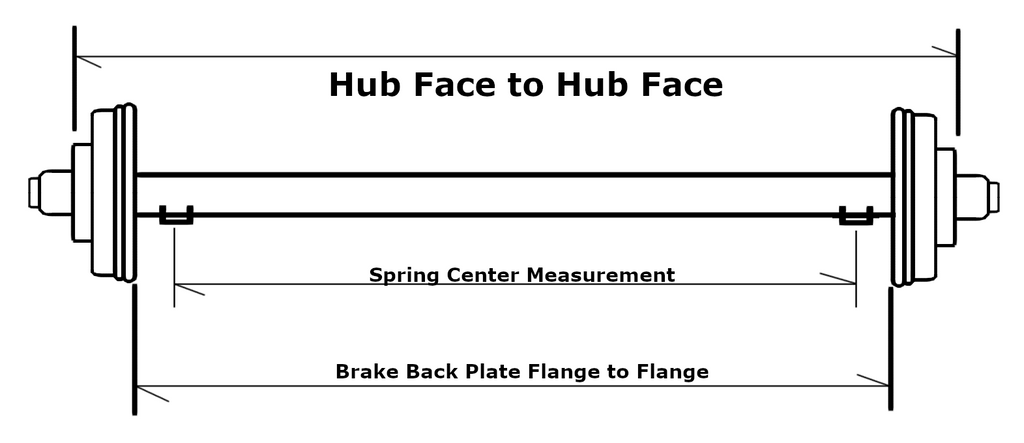

Hub face measures wheel mounting surface to wheel mounting surface. Brake flanges are installed so 10" electric trailer brakes can be added later if required.
Features
- 3,500 lb rated Lippert trailer axle
- 60" hub face with 5 on 4.5 idler hubs
- EZ-Lube spindles for easy bearing service
- Brake flanges and spring perches included
Specifications
| Specification | Detail |
| Axle Capacity | 3,500 lb |
| Hub Face | 60 inches |
| Bolt Pattern | 5 on 4.5 |
| Axle Tube | 2.4 inch straight tube |
Verify specifications before installation.
