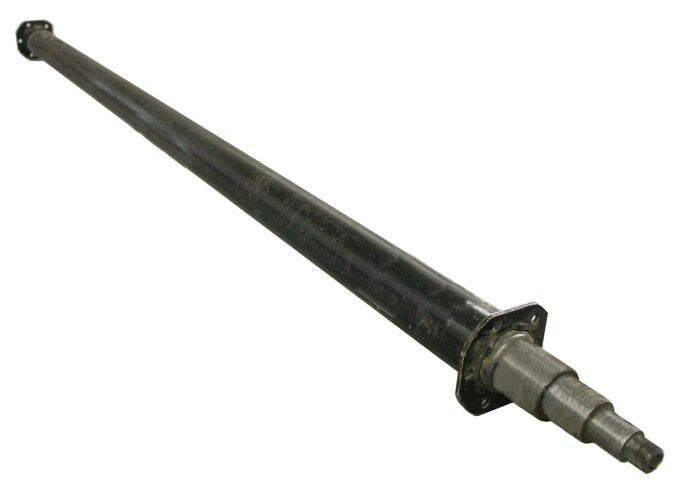

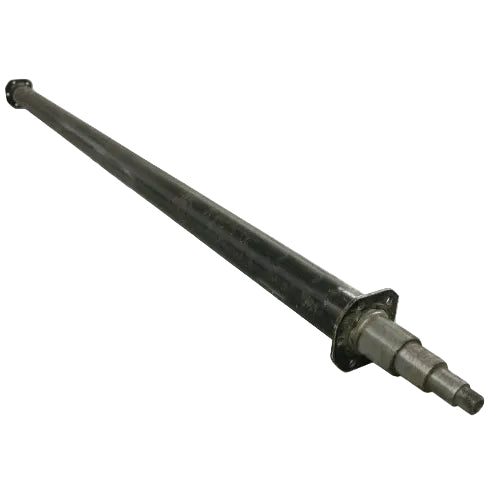

Lippert 8000 lb Hybrid Trailer Axle Kit – 92" Hub Face – 3" Tube – EZ Lube – Drums & Brakes Included
Part Number: 8000-HYB-92-3
Complete Lippert 8,000 lb hybrid trailer axle kit with 92" hub face and heavy-duty 3" tube. Includes hybrid drums, bearings, seals, and electric brake assemblies for a complete heavy-duty suspension and braking solution.
Full axle kit including beam, hybrid drums with bearings and seals, and electric brake assemblies. Designed as a ready-to-install system for 8K trailer applications.
R&P Knowledge Hub
Hybrid axle systems allow grease or oil bath configurations. Confirm bearing sizes (25580/02475), seal dimensions, and brake compatibility before installation to ensure proper service life and braking performance.
Features
- Complete 8000 lb axle kit with beam, drums, bearings, seals, and electric brakes
- Common replacement for trailers with 73" to 82" floor deck width
- Heavy duty 3" axle tube with straight camber design
- Includes hybrid drums (8 on 6.5 bolt pattern) and brake assemblies
Specifications
| Specification | Value |
|---|---|
| Axle Capacity | 8,000 lbs |
| Hub Face | 92" |
| Brake Flange to Flange | 82.91" |
| Bearing Shoulder to Shoulder | 89.125" |
| Spindle End to End | 97.875" |
| Bearing Set | 25580 Inner / 02475 Outer |
| Seal Size | 2.25" (2.125" on older applications) |
| Bolt Pattern | 8 on 6.5" |
Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 8000-HYB-92-3 | 1 | Lippert 8000# Brake Axle – 92" Hub Face – 3" Tube – Hybrid EZ Lube |
| SP-3 | 2 | Spring Perch for 3" Axle Beam |
| 99-865-916HD | 2 | 8 on 6.5 Hybrid Drum – 8000# – 9/16" Stud – Includes Bearings |
| 12RVEB-1P | 1 | Pair of 7000# Electric 12" Brake Backing Plates (Left & Right) |
Bearing & Seal Breakdown (Per Hub)
| Component | Part Number | Quantity (Per Hub) | Total Included (Kit) |
|---|---|---|---|
| Inner Bearing | 25580 | 1 | 2 |
| Outer Bearing | 02475 | 1 | 2 |
| Grease Seal | 2.25" ID (Typical) | 1 | 2 |
| Alt. Seal (Older) | 2.125" ID | 1 | 2 (if applicable) |
