NEW Lippert MINI 5 Torsion Trailer Axle Beam – 8,000 lb – 94" HF – 77" OB – 32° Down - Kaufman Mini-5
Product Info
Specs

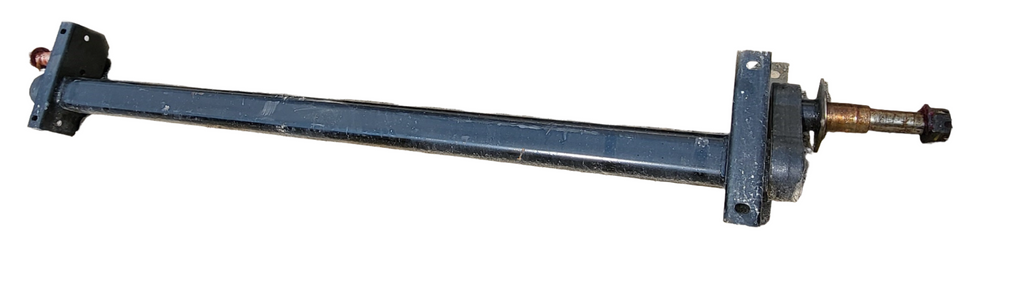

8,000 lb Torsion Axle — 94" Hub Face — 77" Outside Bracket — 32° Down — Kaufman Mini-5
New 8,000 lb torsion axle configured for certain later-model Kaufman Mini-5 trailers.
| Capacity | 8,000 lb |
| Axle Type | Torsion |
| Spindle | 1-3/4" Lubed Straight Spindle |
| Bearings | 25580 Inner and Outer Bearings |
| Drum Casting | 696104 |
| Application | Commonly found on some Kaufman Multi-Car Haulers built after 2018 |
| SKU | 8000-94-77-TORSION-Mini-5 |

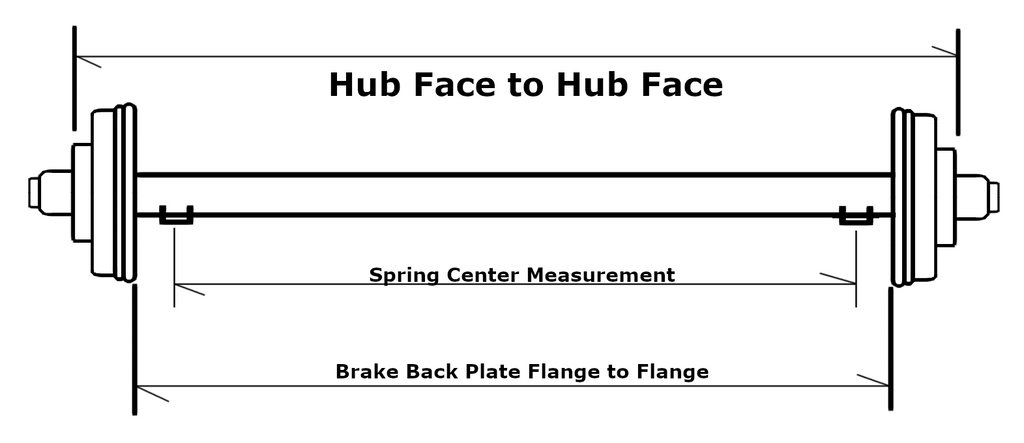

Measurements
| Hub Face | 94" |
| Outside Bracket | 77" |
| Start Angle | 32° Down |
Important Fitment Note
This axle uses a specific spindle, bearing and drum configuration. The axle and drums are specific to later-model Mini-5 applications.
Before purchasing, verify the 94" hub face, 77" outside bracket measurement, 32° down start angle, 1-3/4" straight spindle, 25580 inner and outer bearings, drum casting number 696104, mounting arrangement and axle orientation against the axle currently under your trailer.
Do not purchase based on trailer year or model alone.
Ask R&P About This Item
Call, text, or send your measurements. Your inquiry will include this item and its SKU.
Close Specifications Form
Include the measurements you have. This inquiry automatically identifies the product and SKU.
Need the axle installed?
R&P Carriages also handles trailer service and axle-related repair work.
How to Get It
Collect this item from our Seneca location. Please confirm availability before traveling.
Pick Up at R&P Carriages
This exact item is available from our Seneca, Illinois location and is not set up for standard shipping.
Seneca, IL 61360 R&P Carriages
Please confirm measurements and availability before making the trip. We want to make sure the item waiting here is the one you need.
