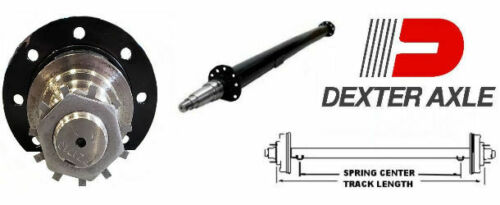

Dexter Trailer Axle 10,000# General Duty Bare Beam 70" Hub Face 70.5" Track Width 5" Tube Straight New Style (After 09) D100G Uses 9-123 / 8-430 Kaufman (10KGD-AF09-70-5-KIT)

Dexter

$1,020.14

Running Low — Only 5 left

Ask a Pro

Features

Common Replacement Axle for Trailers, Car Haulers, and Slant Loads that typically have 50 to 70" Floor Deck Width and 10K General Duty 8-430 Hub / 9-123 Drum / 8-415 One Piece
Standard 5" Tube
Straight Axle with Camber
Uses Standard 387A / 25580 Bearings and 2.87" 10-51 Seals (Not Included, See Chart Below)

Specifications

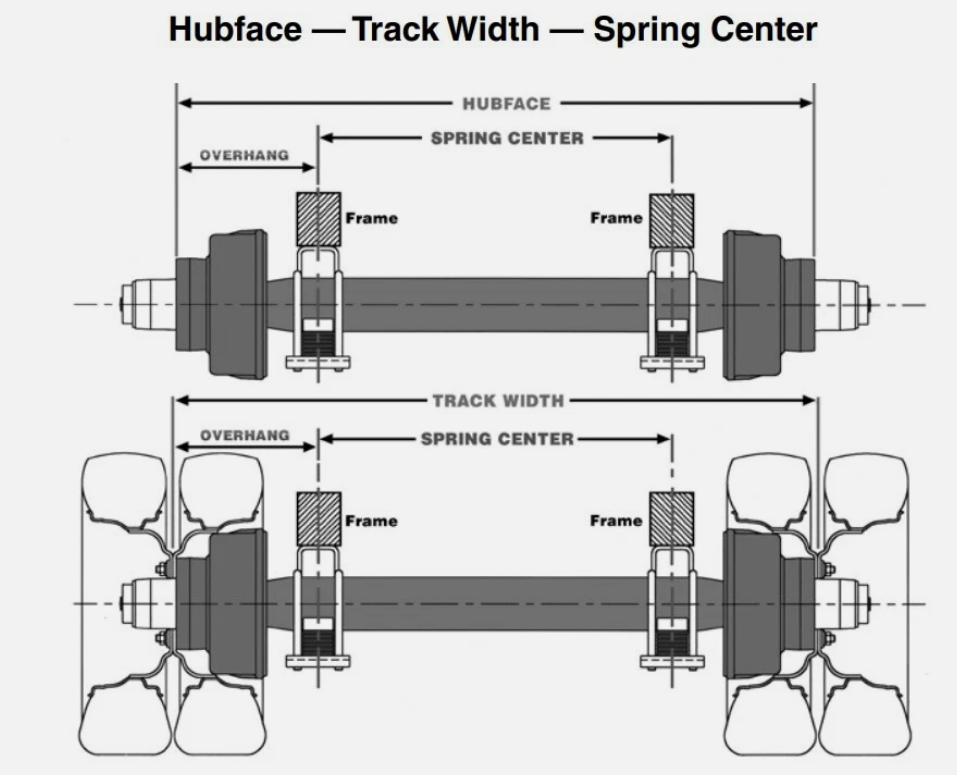

Brake Flange to Flange	78.5"
Bearing Shoulder to Shoulder	88"
Spindle End to End	100.0625"

Part Number	Quantity	Description
10KGD-AF09-70-5	1	Dexter Trailer Axle 10,000# General Duty Bare Beam 70" Hub Face 70.5" Track Width 5" Tube Straight New Style (After 09) D100G Uses 9-123 / 8-430 Kaufman
003-072-00	2	Spring Perch, Dexter, 5" Round Tube, Fits10KGD 5" Tube Axles, 2.50" Wide Springs
