Features
- Common replacement axle for trailers, car haulers, and slant load trailers
- Typically used on trailers with 32"–52" floor deck width
- 10,000 lb general duty straight axle with camber
- Standard 5" round tube construction
- Uses 387A / 25580 bearings and 2.87" 10-51 seals (not included)
Specifications

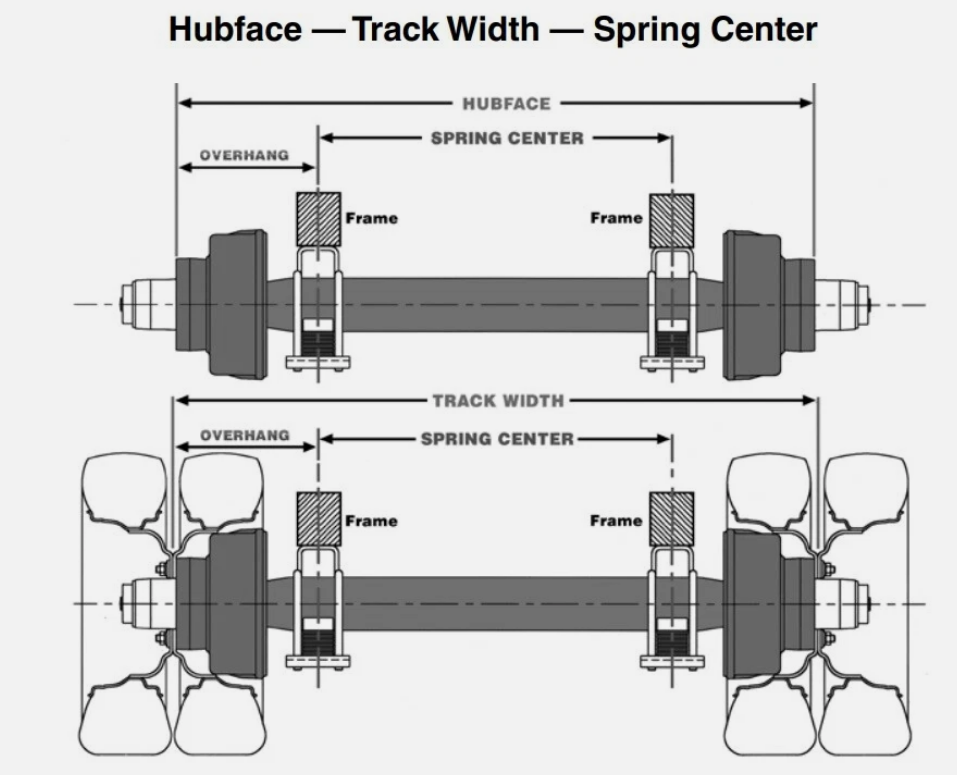

| Brake Flange to Flange | 60.5" |
| Bearing Shoulder to Shoulder | 70" |
| Spindle End to End | 82.0625" |
Included Components
| Part Number | Quantity | Description |
|---|---|---|

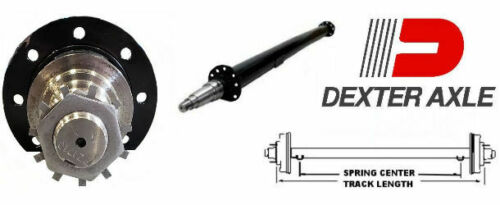

| 10KGD-AF09-735-5 | 1 | Dexter Trailer Axle 10,000 lb General Duty Bare Beam, 73.5" Hub Face, 74" Track Width, 5" Tube, Straight New Style (After 2009). Uses 9-123 drums and 8-430 hubs. |
| 003-072-00 | 2 | Spring perch for Dexter 5" round tube axles, fits 10K general duty axles using 2.50" wide springs. |
