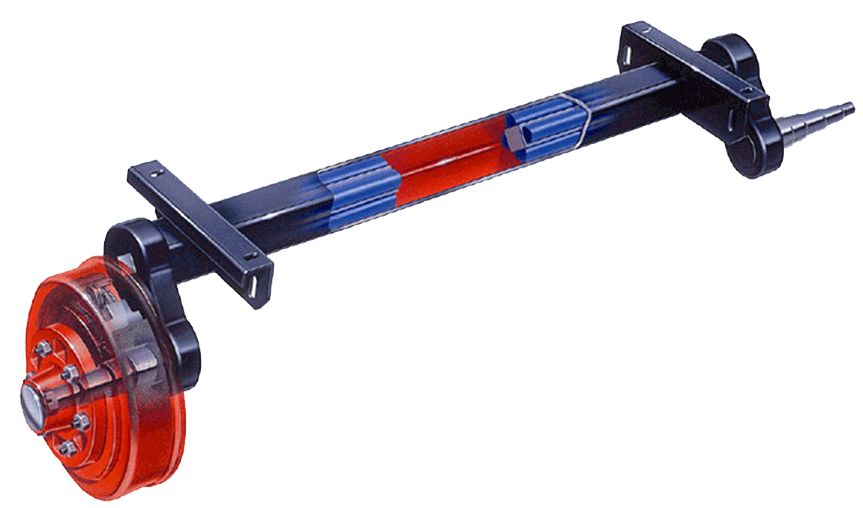

Dexter #9 Torsion Axle – 2.2K – 85.5" Hub Face – 72.5" Bracket Spacing – 22° Up – 5 Lug
Part Number: 2000-855-725OBI-22U
Dexter #9 torsion trailer axle rated for 2,200 lb capacity with 85.5" hub face and 72.5" outer bracket spacing. Features 22° up starting angle and idler hubs with standard 5 on 4.5 bolt pattern.
R&P Knowledge Hub
Torsion axles mount directly to the trailer frame and use internal rubber cords for suspension. Always verify hub face, bracket spacing, and starting angle to match your trailer frame and ride height.
Features
- Dexter #9 rubber torsion suspension
- 22° up starting angle
- 5 on 4.5 idler hub configuration
- Compact independent trailer suspension design
Specifications
| Specification | Detail |
| Axle Capacity | 2,200 lb |
| Hub Face (HF) | 85.5 inches |
| Outer Bracket Spacing (OB) | 72.5 inches |
| Bolt Pattern | 5 on 4.5 |
Verify torsion axle specifications before installation.
