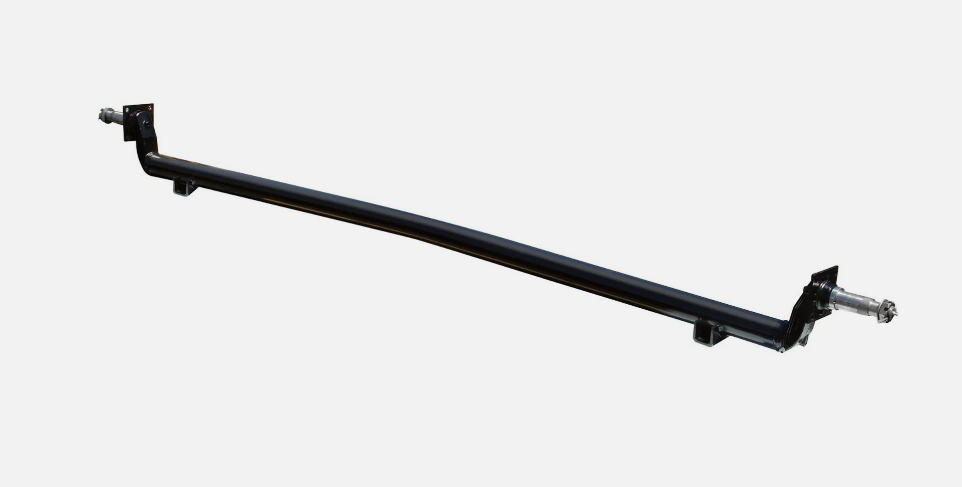

Lippert 3500 lb Trailer Axle Beam – 95" Hub Face – 4" Drop – EZ Lube – Standard 2.4" Tube
Part Number: 3500-95-2-D-KIT
Lippert 3500 lb trailer axle beam with 95" hub face and 4" drop configuration. Built with a standard 2.4" axle tube and EZ Lube spindles for utility trailers and campers using 5-lug hubs or 10" drum brakes.
R&P Knowledge Hub
A drop axle lowers the trailer frame relative to the spindle centerline. This allows for a lower deck height while maintaining proper suspension geometry and axle strength.
Features
- Common replacement axle for trailers or campers with 77" to 83" floor deck width
- Standard 2.4" axle tube (heavy duty 3" tube version also available)
- 4" drop axle design with cambered beam
- Uses L44649 and L68149 bearings with 10-19 grease seals (not included)

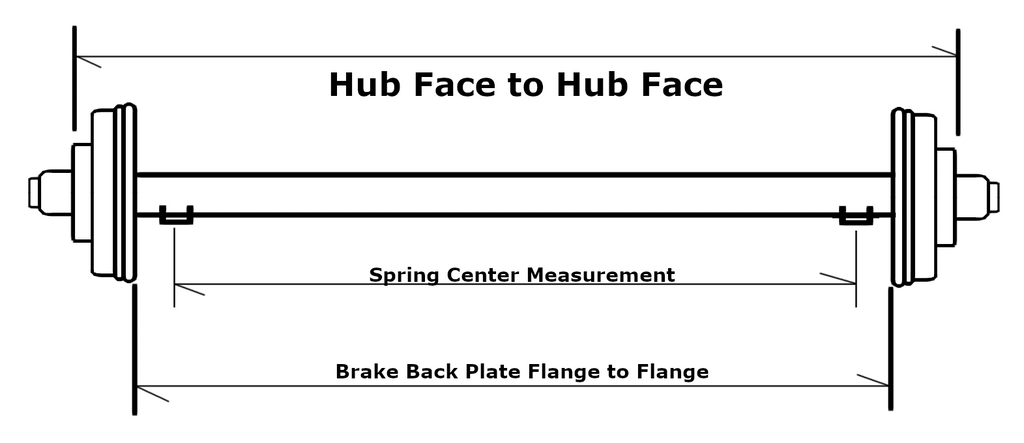

Specifications
| Brake Flange to Flange | 88.66" |
| Bearing Shoulder to Shoulder | 91.19" |
| Spindle End to End | 99.38" |
Included Components
| Part Number | Quantity | Description |
|---|---|---|
| 3500-95-2-D-KIT | 1 | Lippert Trailer Axle 3500# Bare Beam – 95" Hub Face – 2.4" Tube – 4" Drop – EZ Lube – USA Made |
| SP-2375 | 2 | Spring Perch for 2.4" Axle Beam |
