Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |

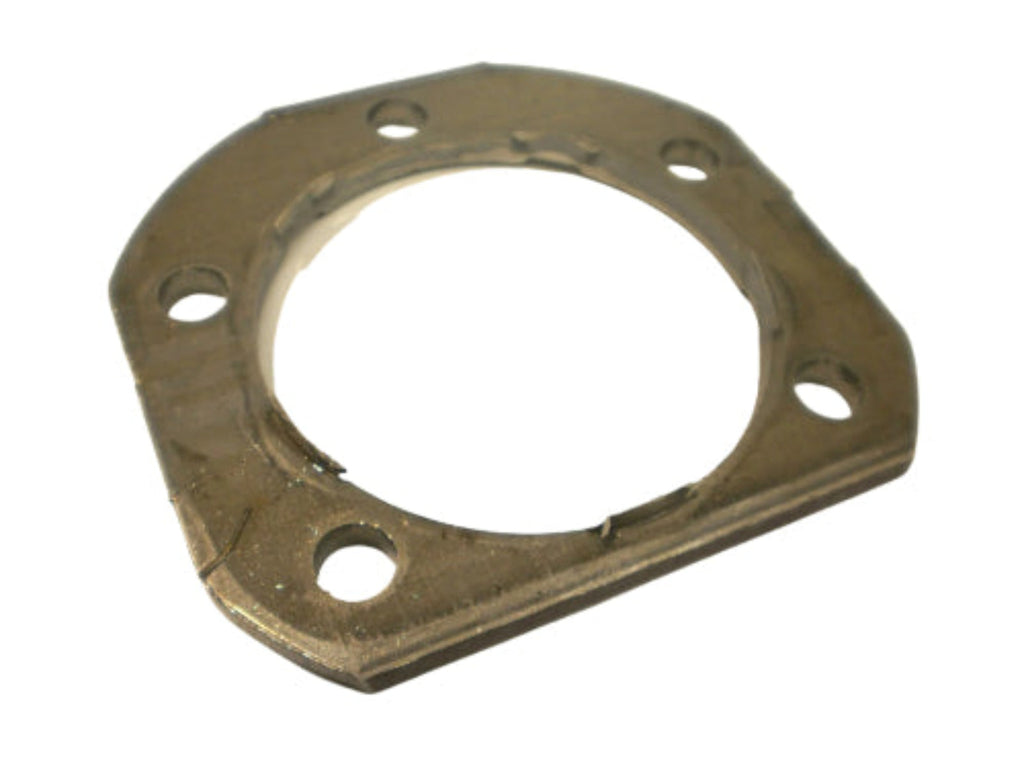

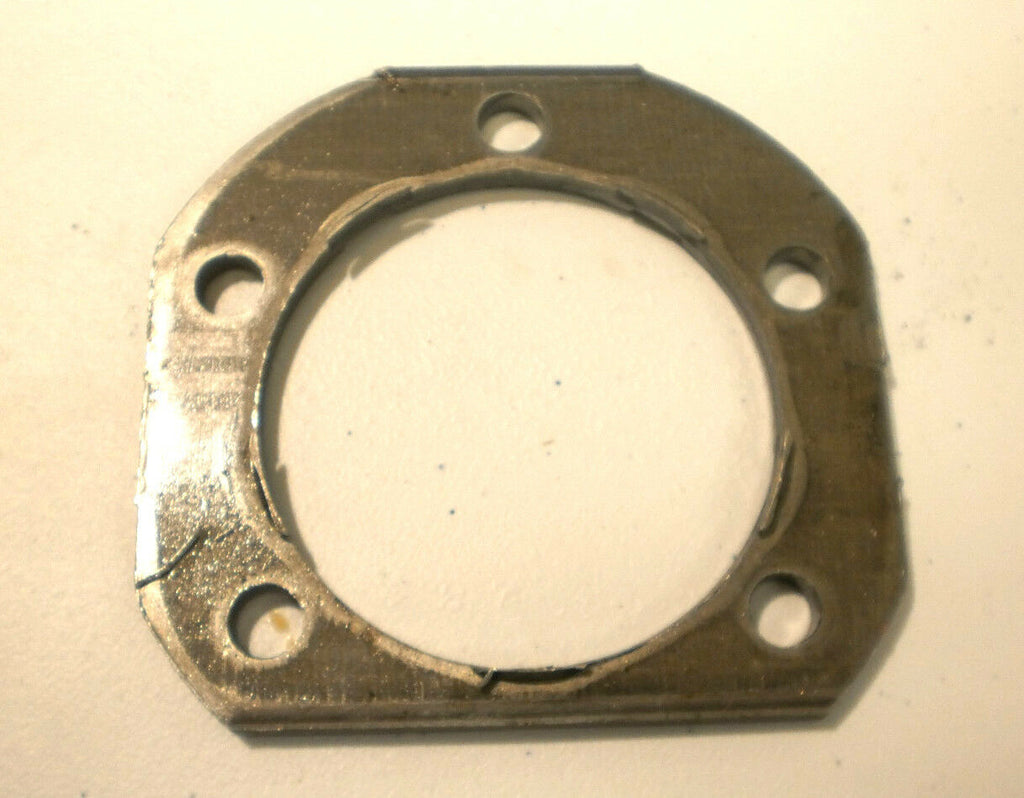

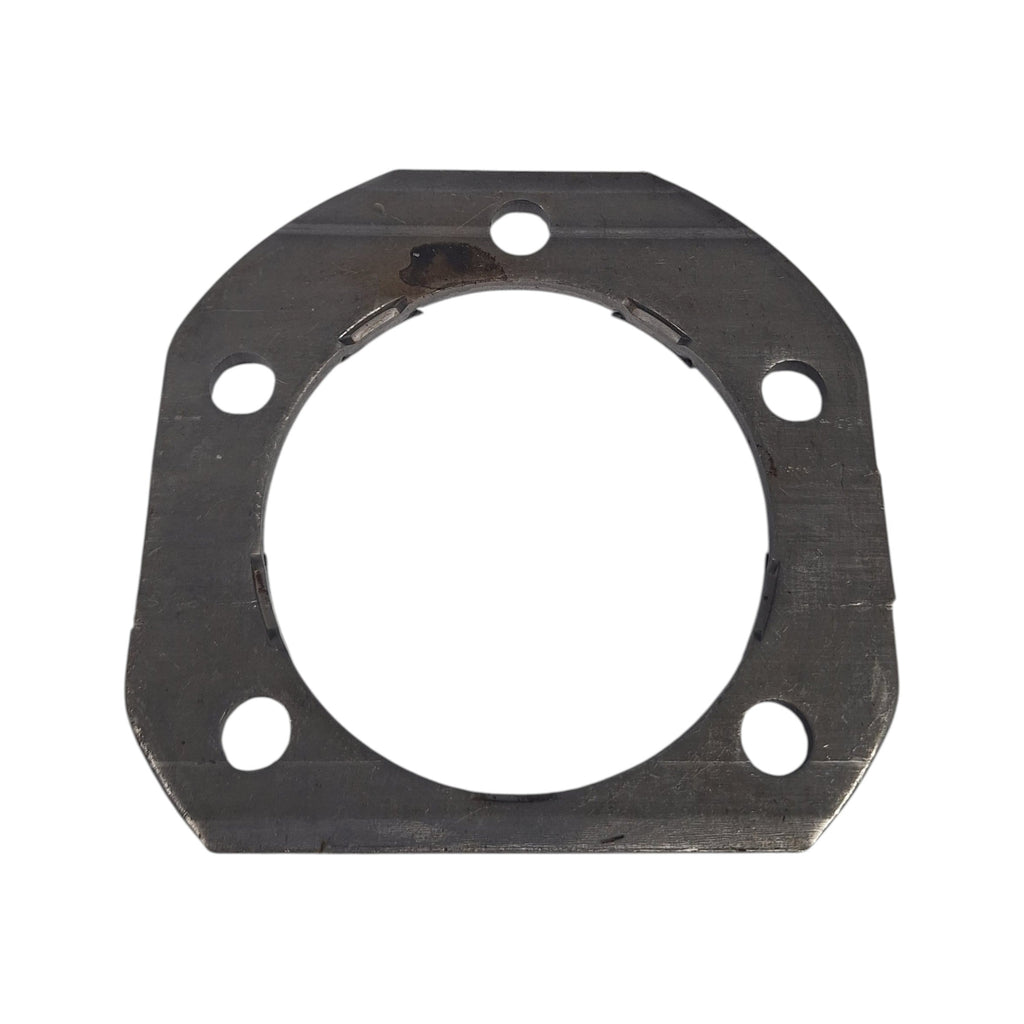

High-grade steel brake mounting flange with a 3-1/8" center opening. Designed for compatible 12" x 2" trailer drum brake applications using the common round 5-bolt mounting pattern.
| Specification | Detail |
|---|---|
| Part Number | BF-6-1 |
| Product Type | Weld-on brake backing plate flange |
| Brake Size | Compatible 12" x 2" drum brakes |
| Mounting Pattern | Round 5-bolt |
| Center Opening | 3-1/8" diameter |

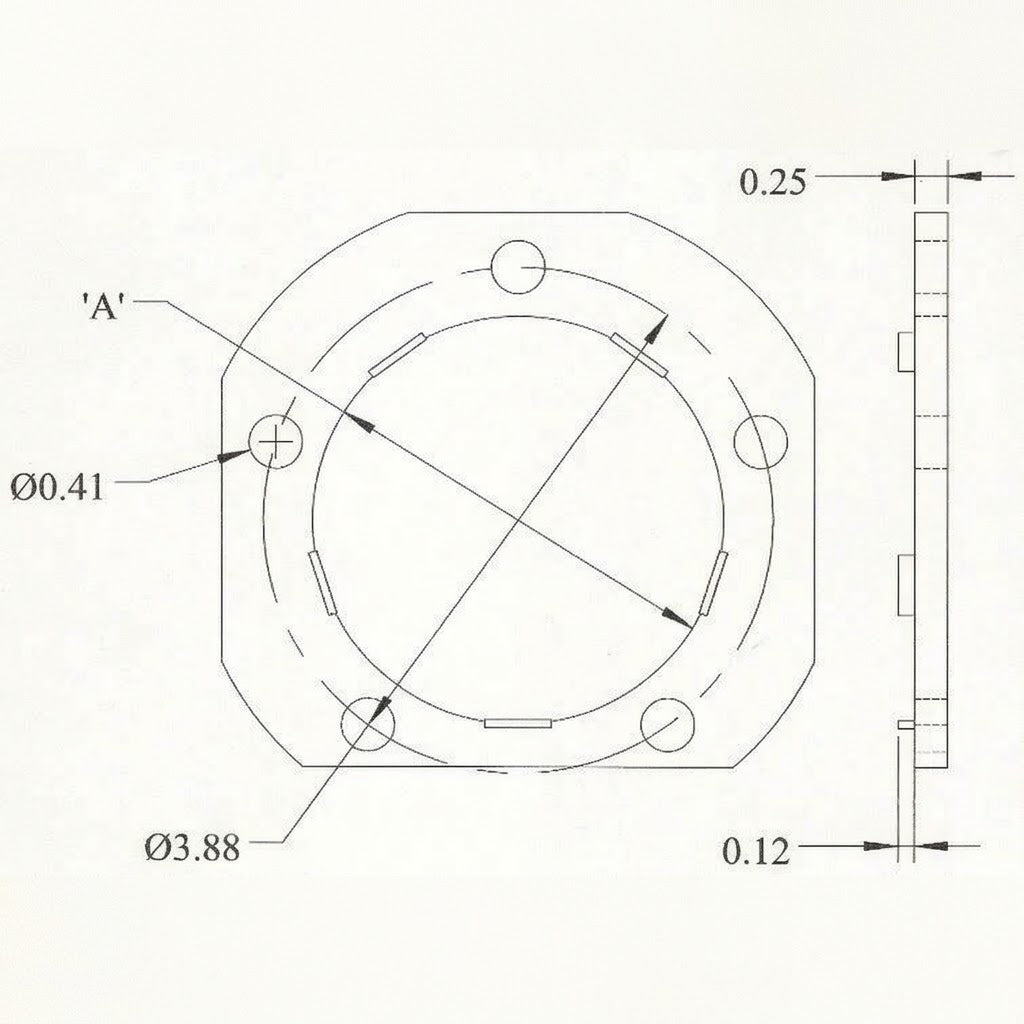

| Overall Size | 4-1/2" wide x 4-1/4" high |
| Corner to Corner | 5" |
| Thickness | 1/4" |
| Mounting Holes | For common 3/8" bolts |

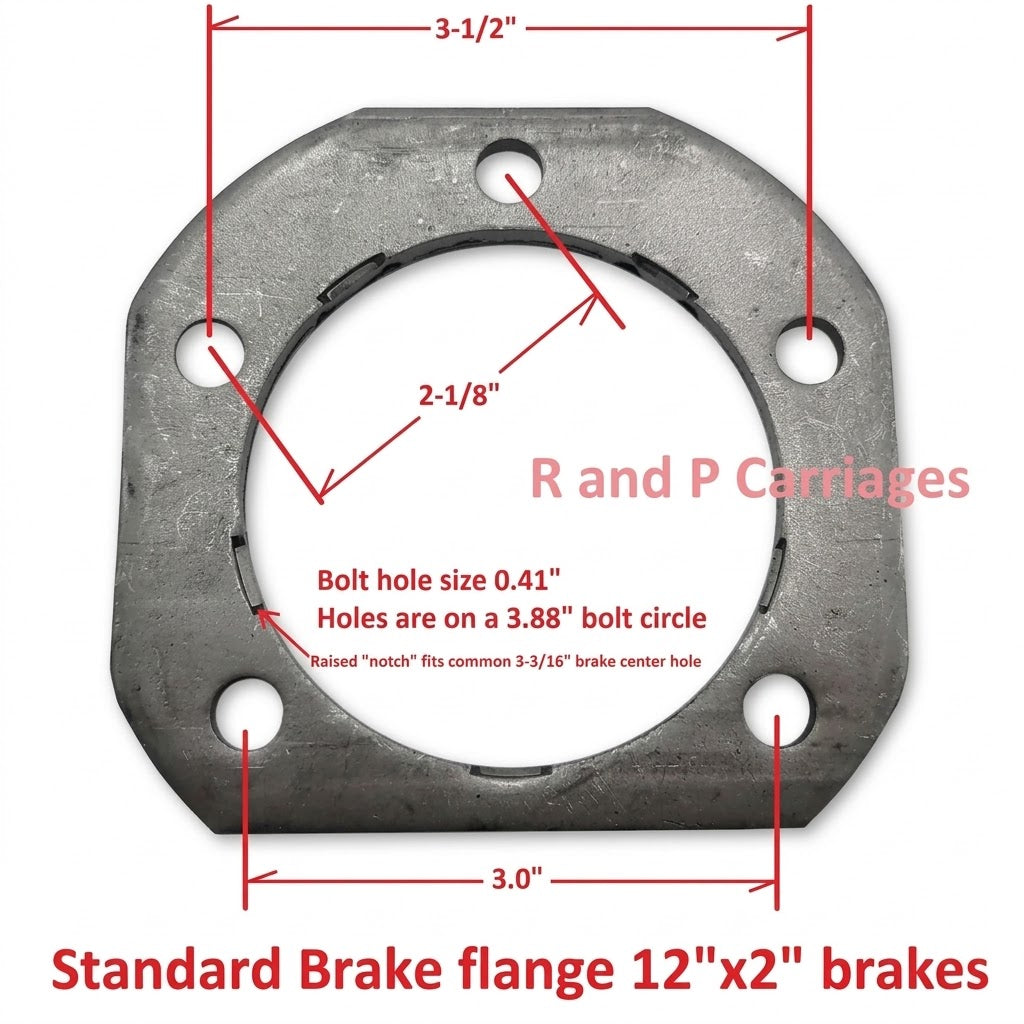

| Hole Spacing | 2-1/8" center to center between adjacent mounting holes |
| Material | High-grade steel |
| Quantity Included | One brake mounting flange |
| Category | Details |
|---|---|
| Brake Application | Compatible 12" x 2" trailer drum brakes |
| Common Axle Classes | Commonly used with 5,200 lb, 6,000 lb and 7,000 lb axle applications |
| Primary Use | Adding a compatible brake mounting flange or replacing a damaged flange |
| Installation | Must be welded to the axle |
| Fitment Check | Verify the center opening, flange dimensions, bolt pattern and brake mounting measurements before ordering |
| Important Note | Axle capacity alone does not confirm fitment. Match the actual brake and flange measurements. |
| Feature | Buyer Benefit |
|---|---|
| Round 5-Bolt Pattern | Matches compatible 12" x 2" trailer brake assemblies |
| 3-1/8" Center Opening | Provides a clear measurement for checking axle tube and spindle-area compatibility |
| 1/4" Steel Construction | Provides a substantial mounting surface for a properly welded installation |
| Repair or Conversion Use | Can be used when adding compatible brakes or replacing a damaged mounting flange |
The BF-6-1 is a weld-on steel backing plate flange for compatible 12" x 2" trailer drum brakes. It uses the common round 5-bolt mounting pattern frequently found on 5,200 lb, 6,000 lb and 7,000 lb axle applications. It may be used when adding compatible brakes to an axle without mounting flanges or when replacing a damaged flange.
Compatibility: Designed for compatible 12" x 2" trailer drum brakes using a round 5-bolt mounting flange.
Axle Application: This flange style is commonly used on 5,200 lb, 6,000 lb and 7,000 lb trailer axle applications. Capacity is only an application reference and does not guarantee fitment.
Pattern Difference: Many modern 7" and 10" trailer drum brakes use a square 4-bolt flange. This BF-6-1 flange uses a different round 5-bolt configuration.
Installation Notes: Confirm flange position, alignment and brake-to-drum relationship before final welding.

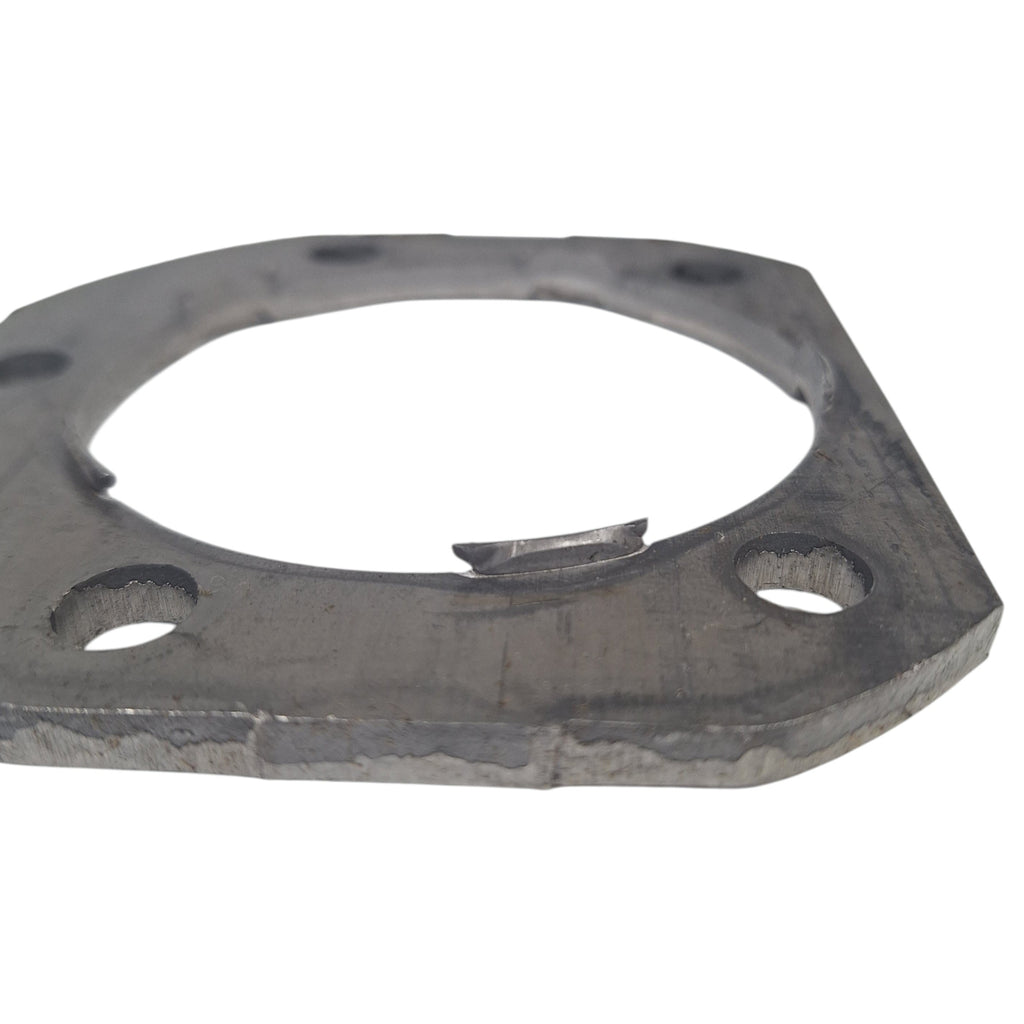

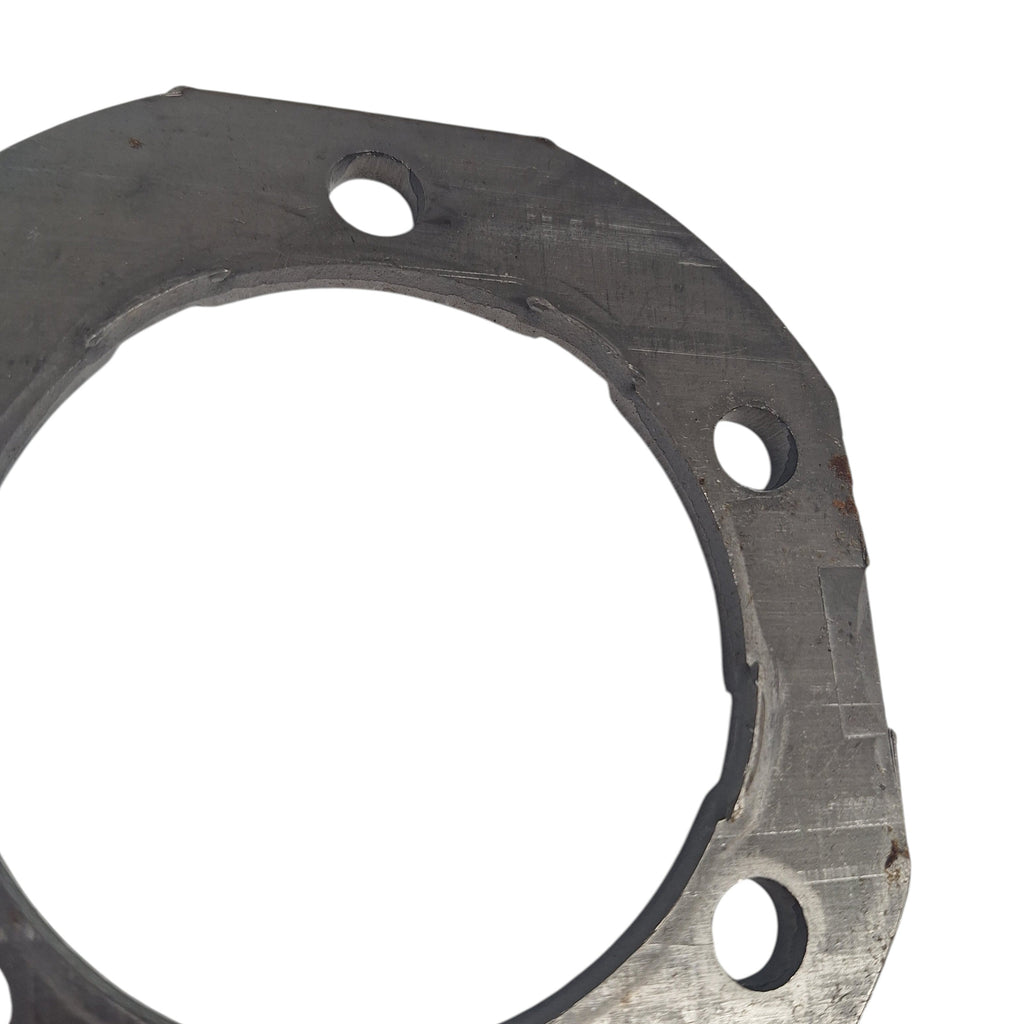

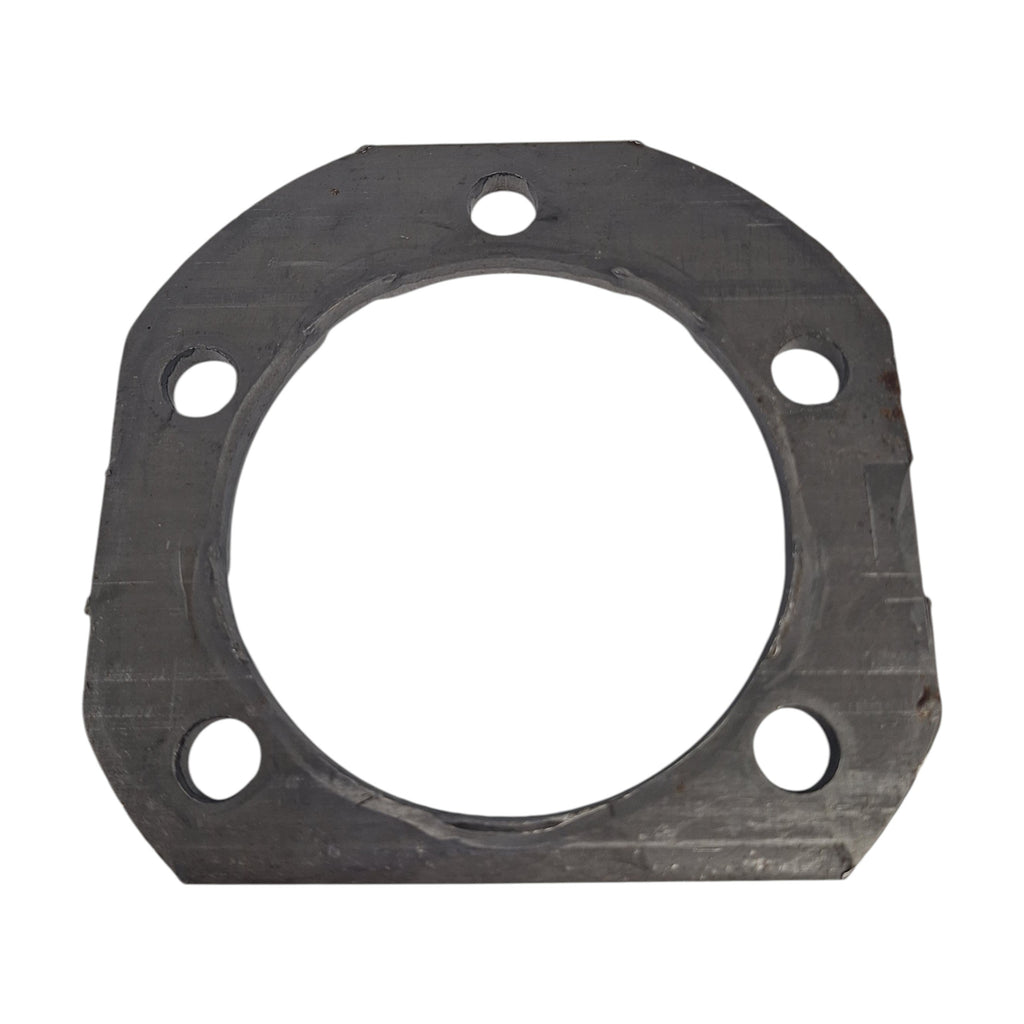

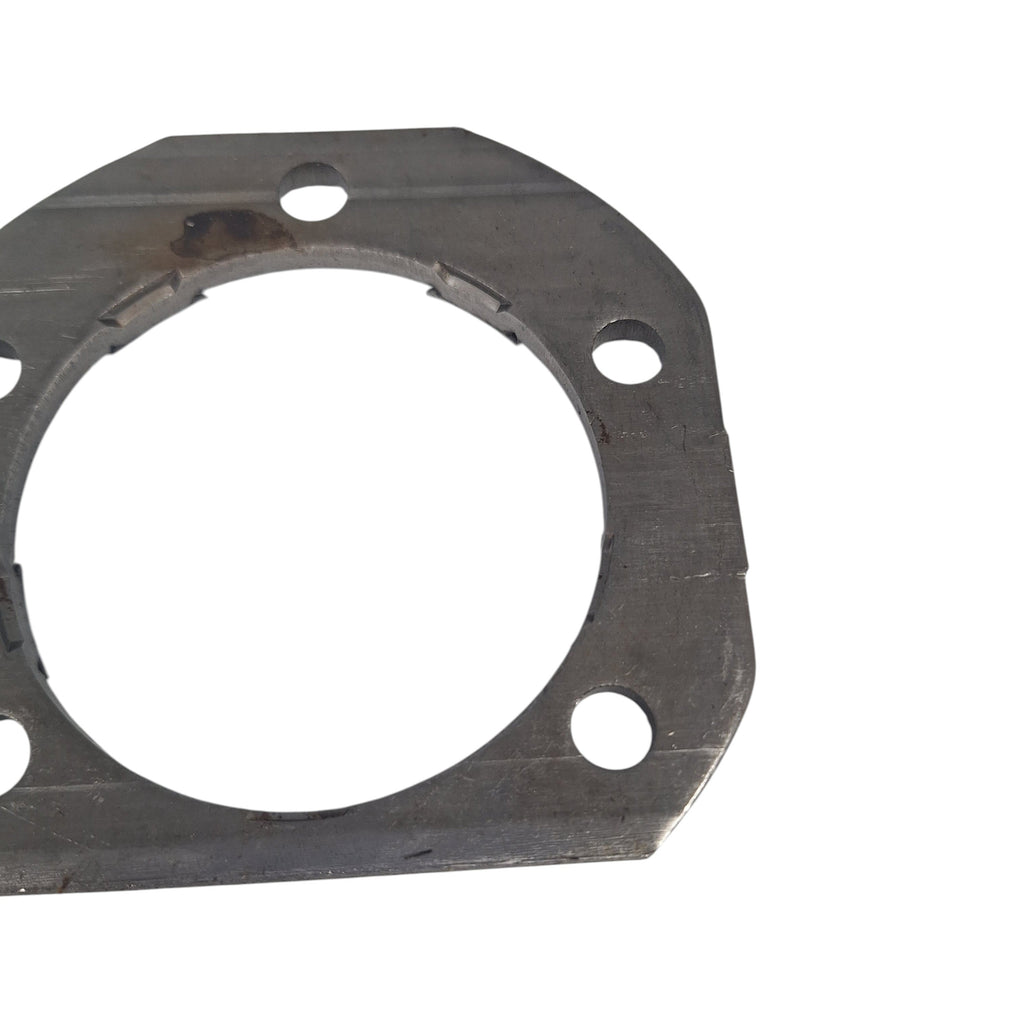

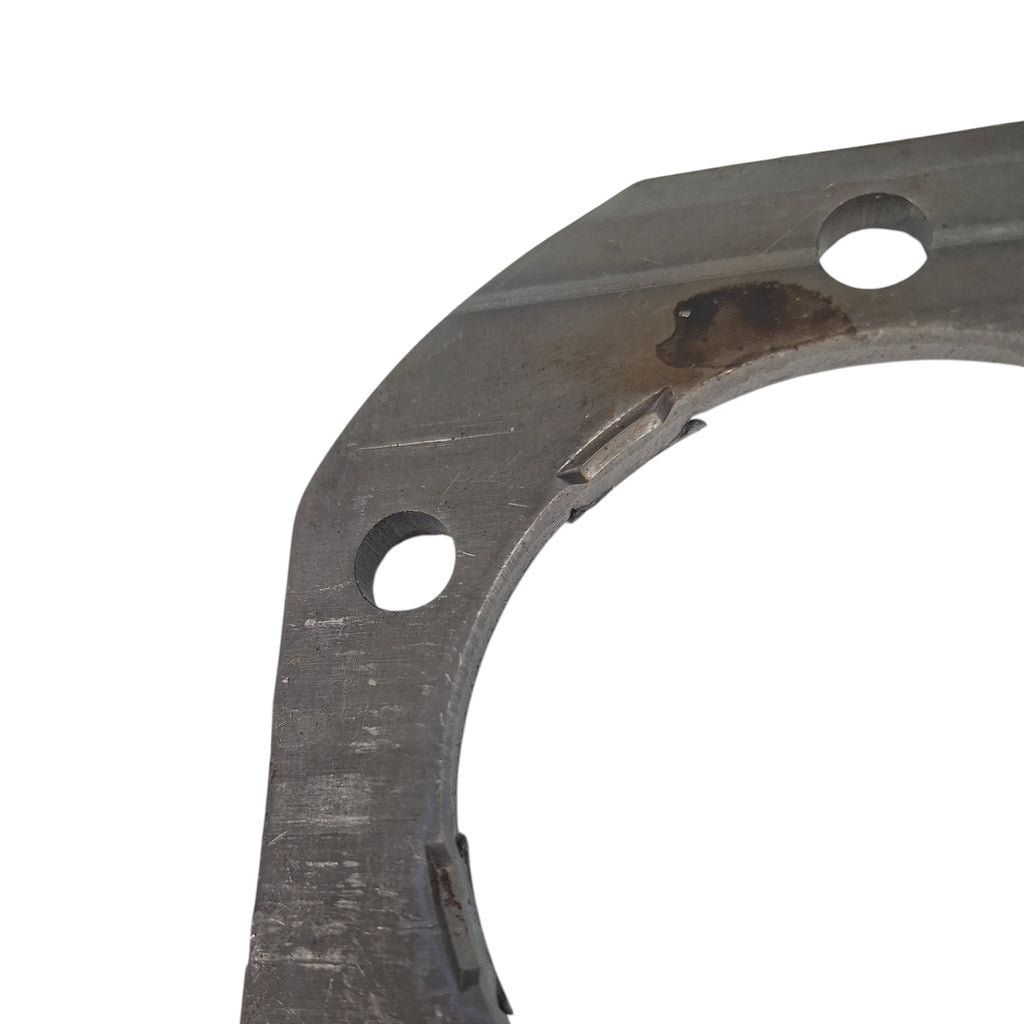

Made from 1/4"-thick steel for use as a weld-on trailer brake mounting flange.
Configured for compatible 12" x 2" trailer drum brake assemblies using the common round 5-bolt pattern.
Features a 3-1/8" center opening, 4-1/2" width and 4-1/4" height for pre-purchase measurement checks.
Suitable for compatible axle repair work or for adding a mounting point where the axle does not currently have one.
| Quantity | Item |
|---|---|
| 1 | BF-6-1 weld-on round 5-bolt brake backing plate flange |
| Not Included | Brake assembly, mounting bolts, hub, drum, spindle, axle tube and welding services |
