Hub Rotor 7,000 LB Trailer Axle Disc Brake Replacement or Conversion Kit (77-7K-RTR-KIT)

MAT`

Regular price $276.80



Replacement or Conversion Disc Brake Kit for 7,000 LB Trailer Axles

Part Number: 77-7K-RTR-KIT

This listing is for One Wheel

Fits Dexter and Lippert Axles

8 X 6.5" Lug Pattern

Uses 235/80R16 or 235/85R16 Tires

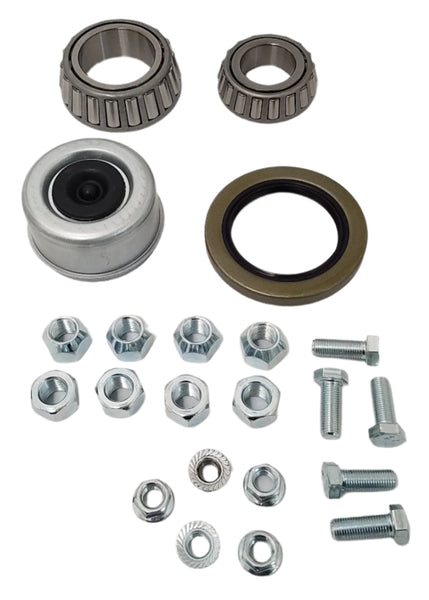

Kit Includes:

1x 77-7K-RTR- Replacement 7k 13" 8x6.5 Brake Hub/Rotor for Greased Bearings
1x 77-7K-DBB- Replacement 7K 5 Bolt Multi Position Caliper Mounting Yoke
1x 77-7K LB- Replacement 7K/8K Brake Caliper for 13" Rotors

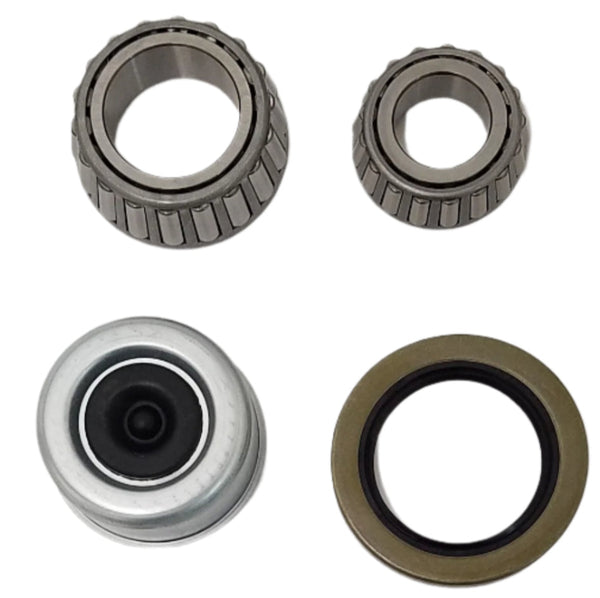

1x 14125A- 1.25" ID Outer Bearing
1x 25580- 1.75" ID Inner Bearing
1x 10-225- Replacement 010-036-00 2.25" ID Grease Seal
1x DC-275L- 2.71" OD Grease Cap (Replacement for Dexter 021-043-02)

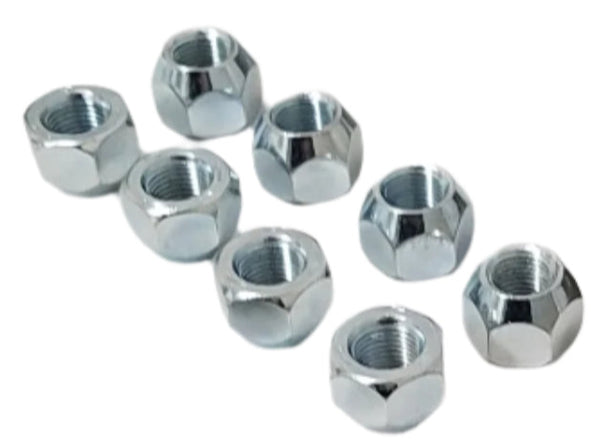

8x X1023R- 1/2" - 20 60 Degree Cone Conical Lug Nuts

Mounting Hardware Also Included:

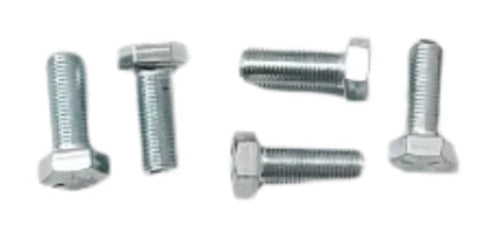

 5x 5C38241- 3/8" - 24 x 1" Bolts

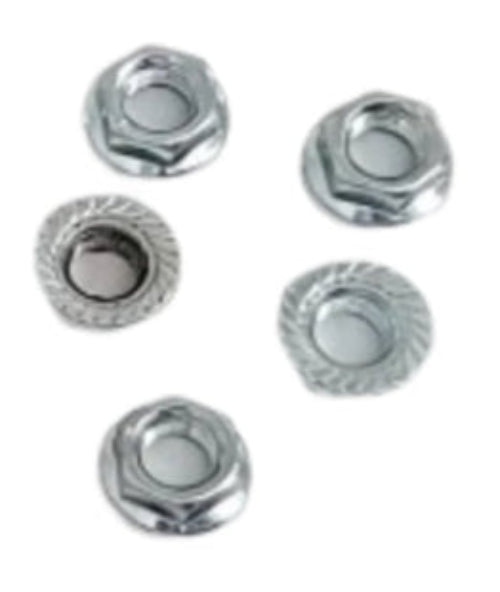

 5x 6-130- 3/8" - 24 Flanged "Whiz" Nuts


This kit can be used to replace Kodiak disc brakes or convert drum brakes to disc.
If converting, you will need the following pump and brake line kit for a tandem axle trailer.

496-152- Tandem Axle Disc Brake Line Kit
HBA-16- 1,600psi Disc Brake Electric Over Hydraulic Brake Actuator for Tandem or Triple Axle Applications
If you have any questions, please do not hesitate to contact us. We have an amazing team with an abundance of knowledge!
