Build Your Own Axle Kit – 3,500 lb Round Spindles, 6 x 5.5 Hub
Part Number: BYOAK-84-H655-R
Axle component kit configured for 3,500 lb applications using #84 round spindles and 6 on 5.5″ idler hubs. Kit includes hubs, spindles, mounting hardware, and bearing kits for assembly.
Features
- Designed for 3,500 lb axle builds
- 6 lug x 5.5″ bolt pattern hubs
- #84 round spindles
- Includes bearings, seals, caps, and hardware
- Individual components packaged as listed below
Specifications
| Specification | Detail |
|---|---|
| Kit Part Number | BYOAK-84-H655-R |
| Axle Rating | 3,500 lb |

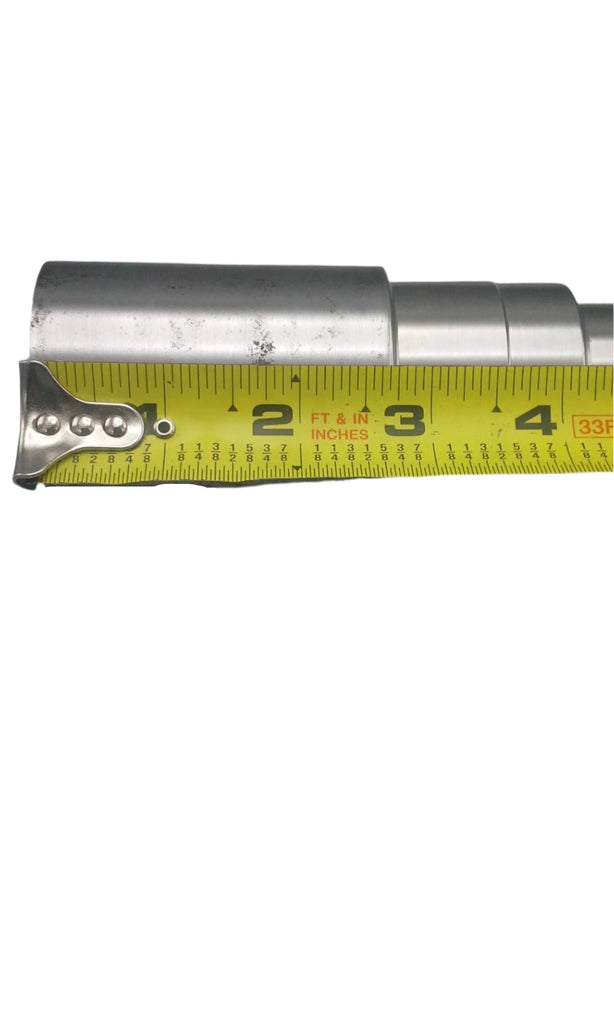

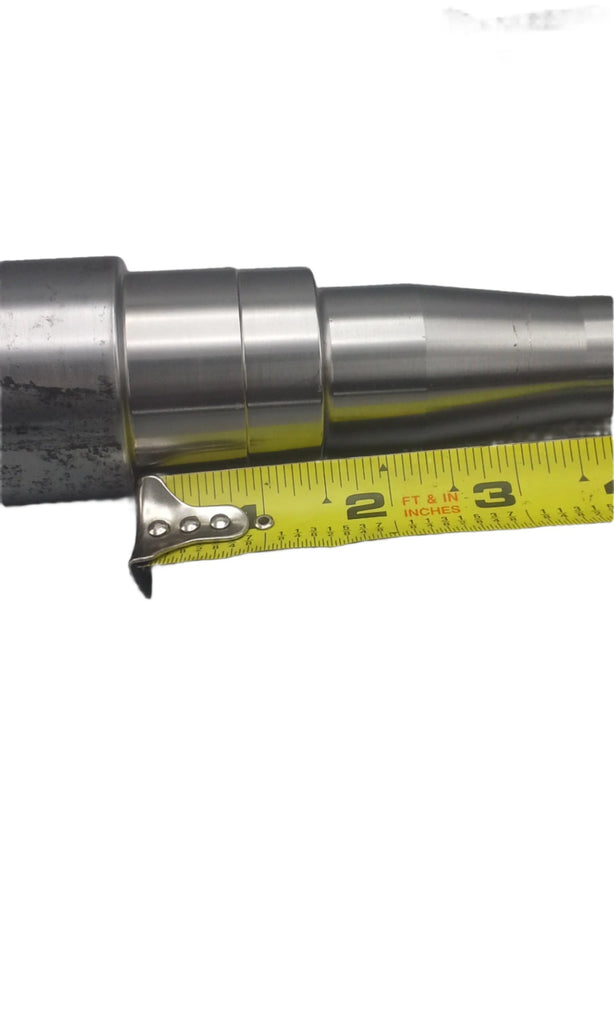

| Spindle Type | #84 Round Spindle (3″ x 3.337″) |
| Hub Bolt Pattern | 6 on 5.5″ |

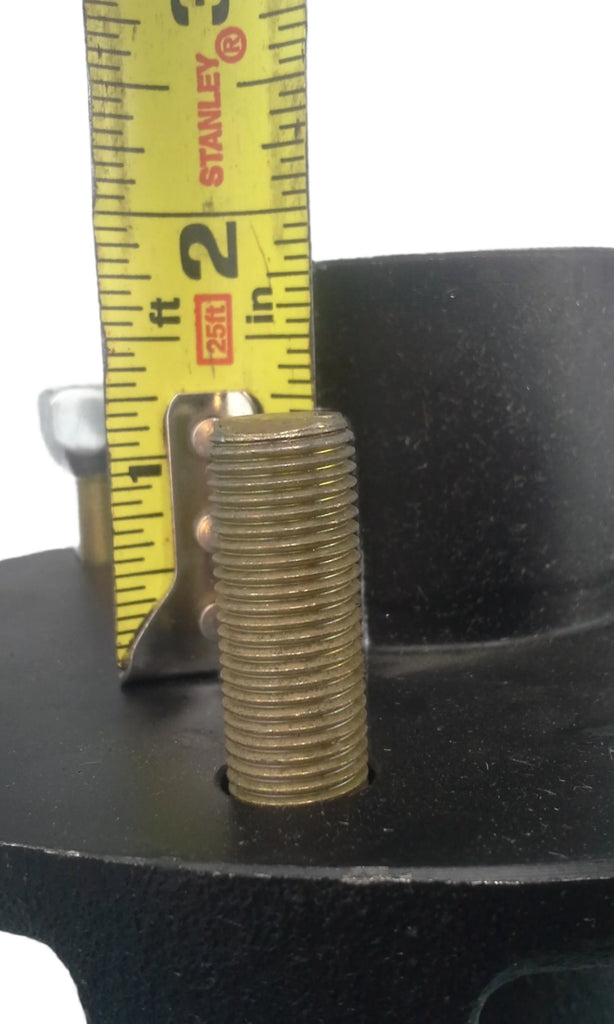

| Lug Stud Size | 1/2″ |

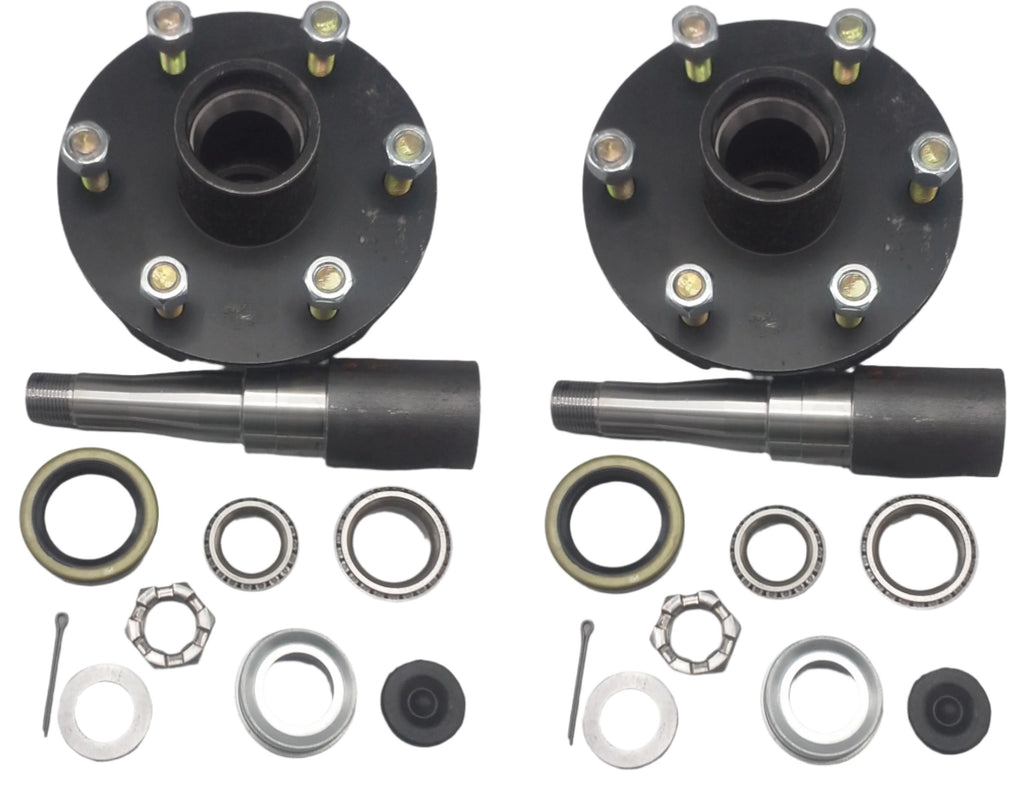

Kit Components
| Quantity | Part Number | Description |
|---|---|---|

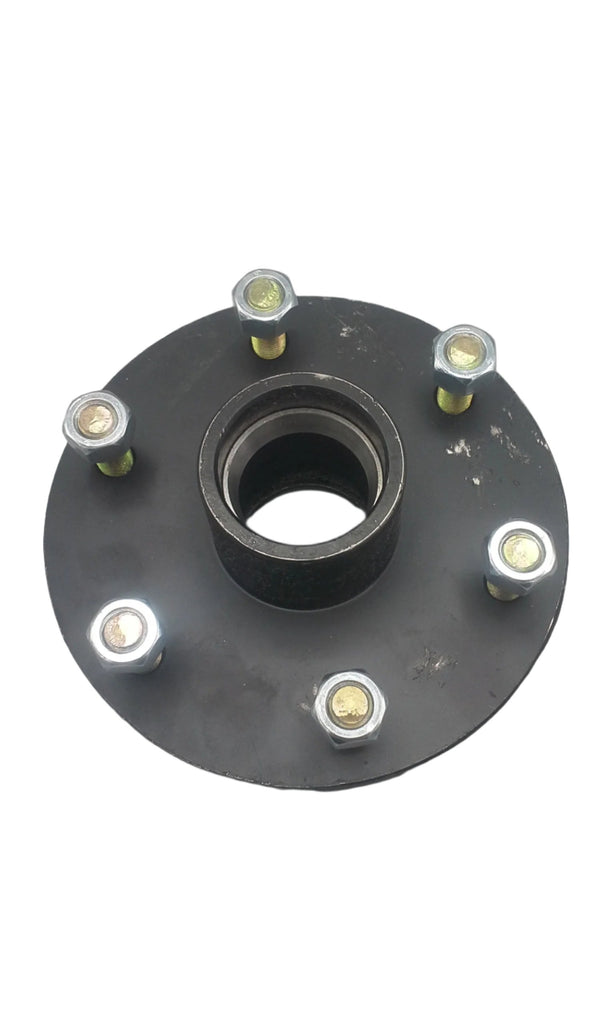

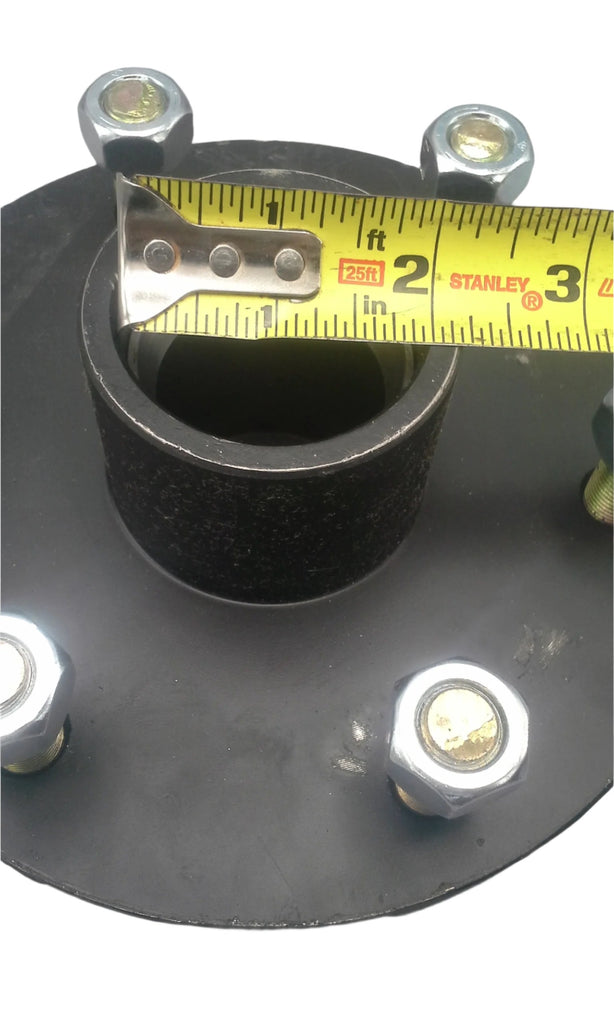

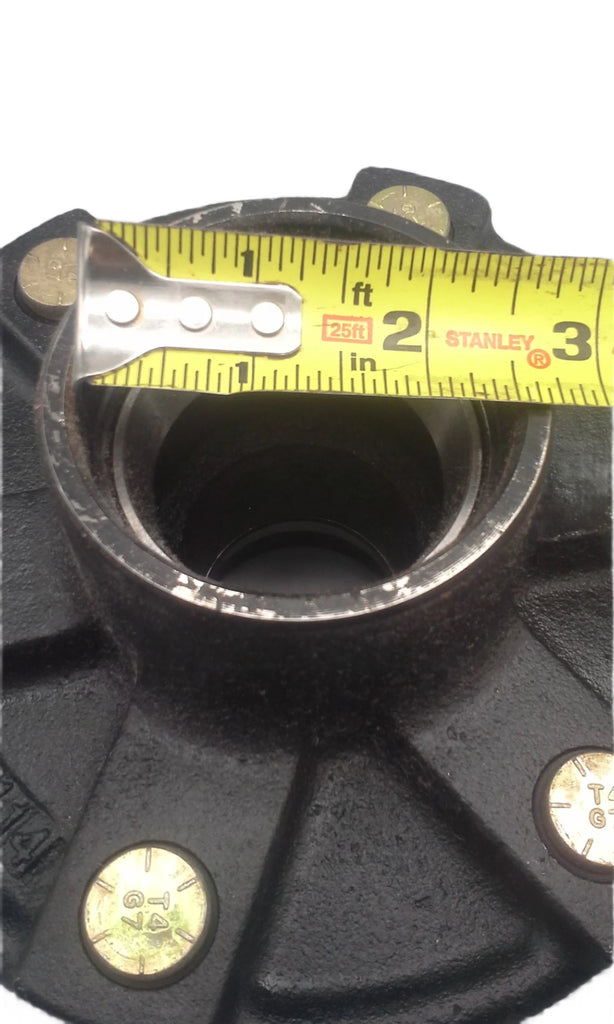

| (2) | 84655-1 | Idler Hub, 3,500 lb, 6 x 5.5″, 1/2″ studs |

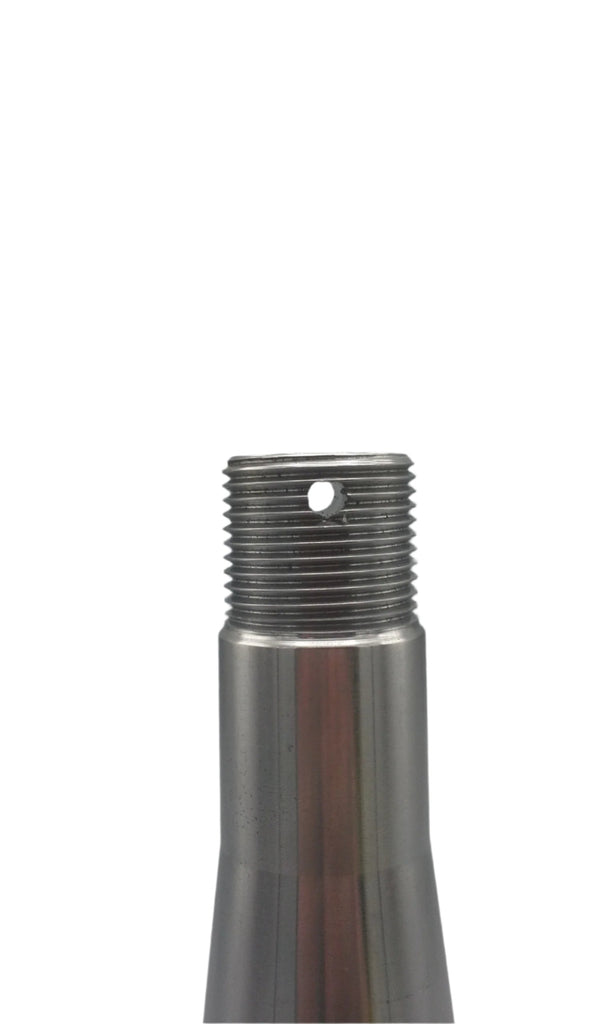

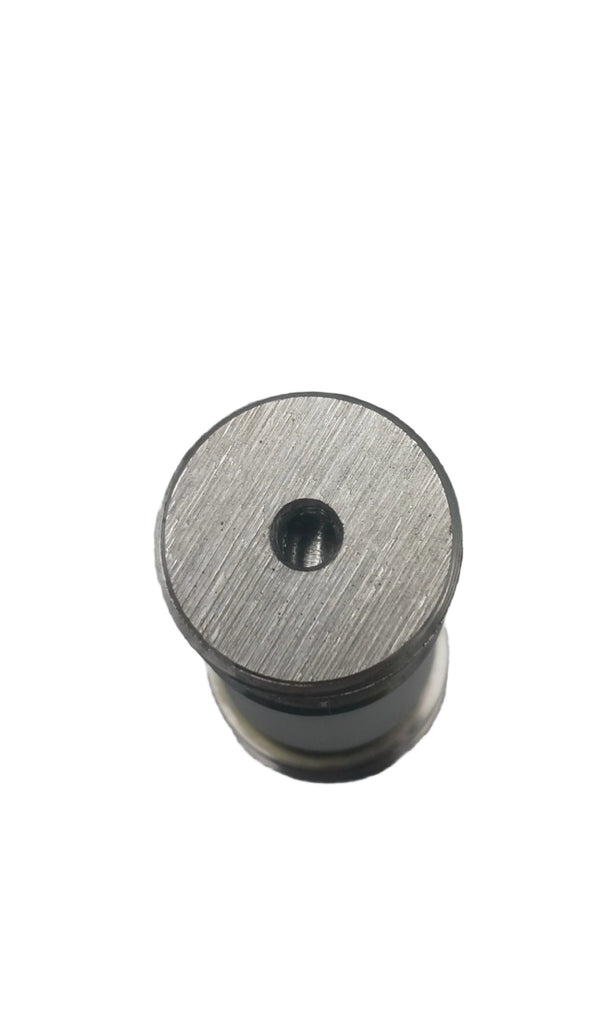

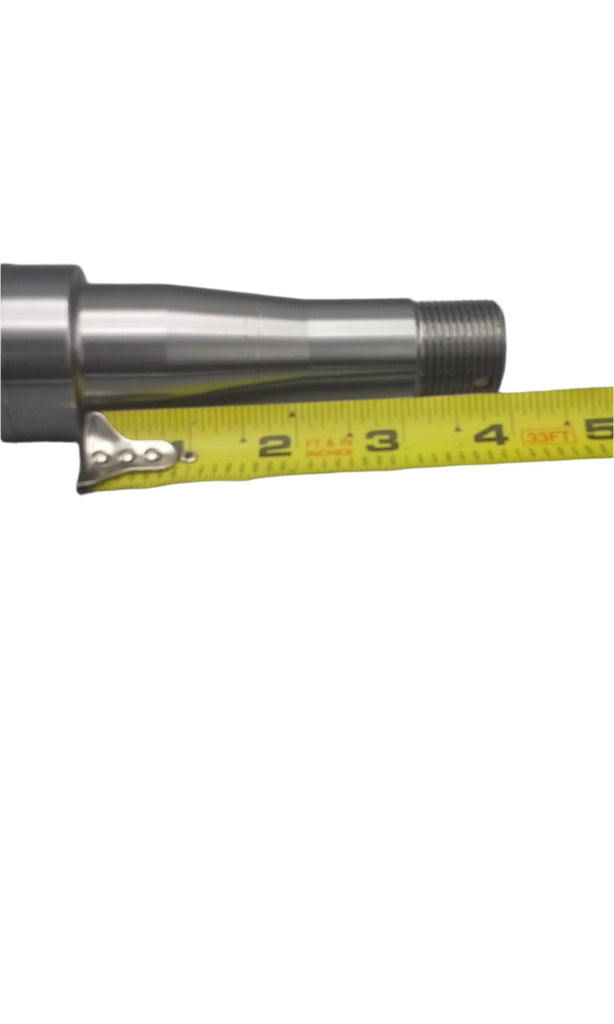

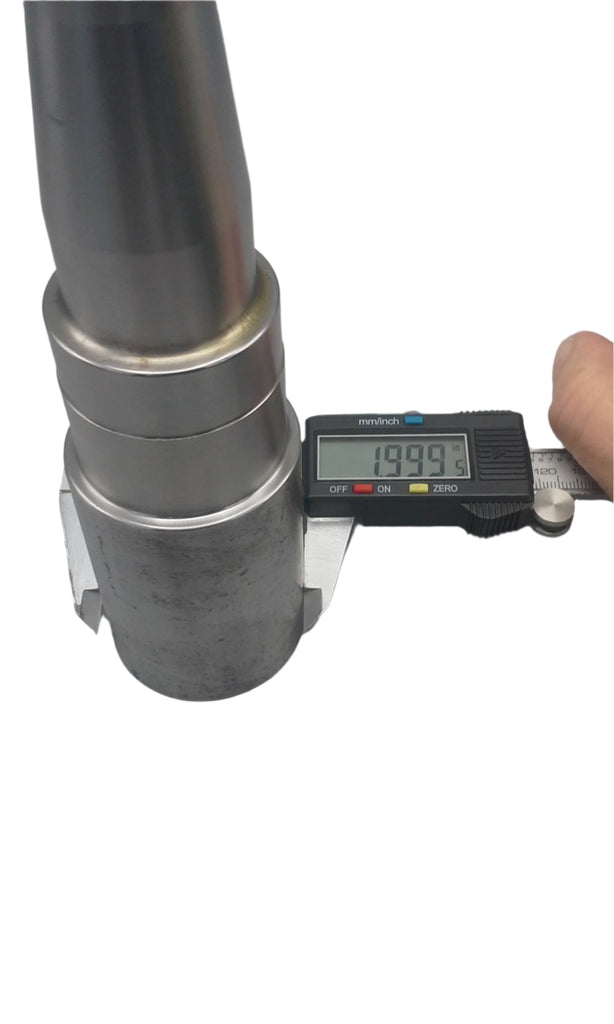

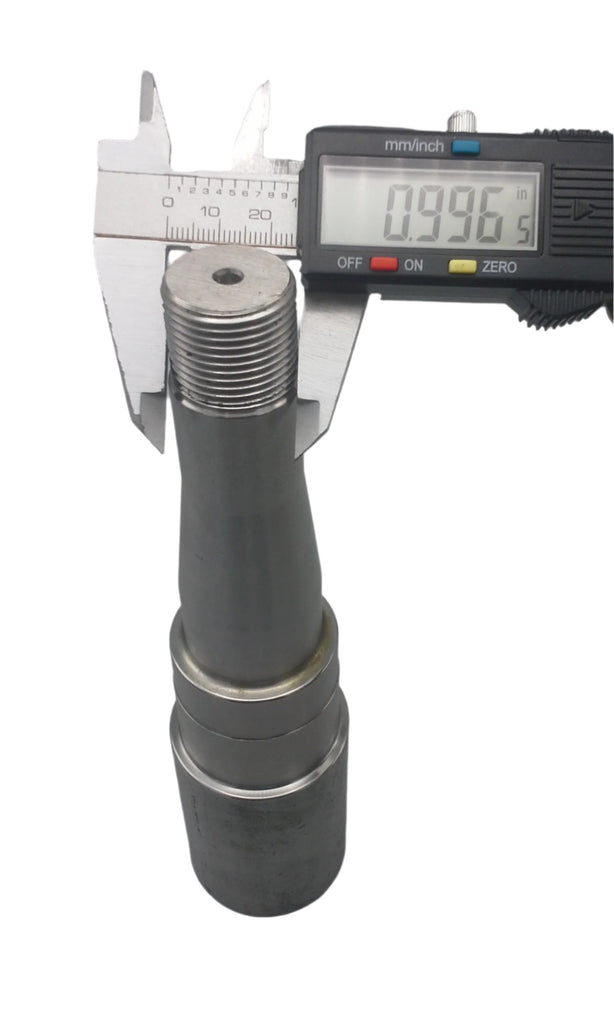

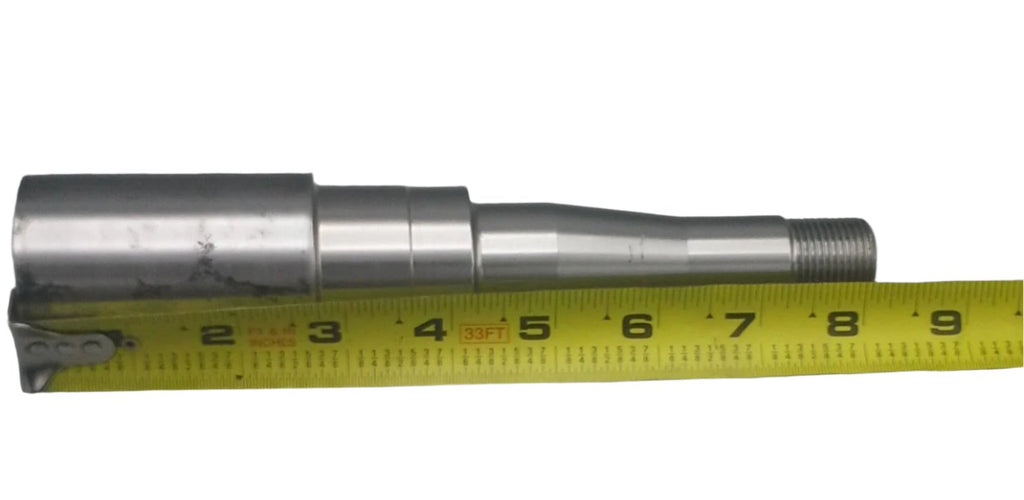

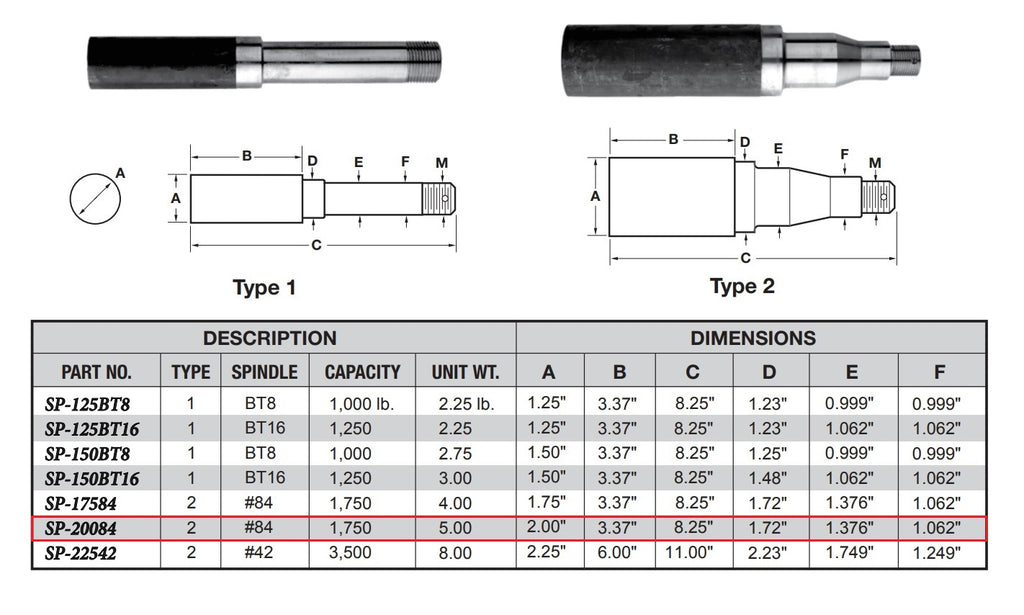

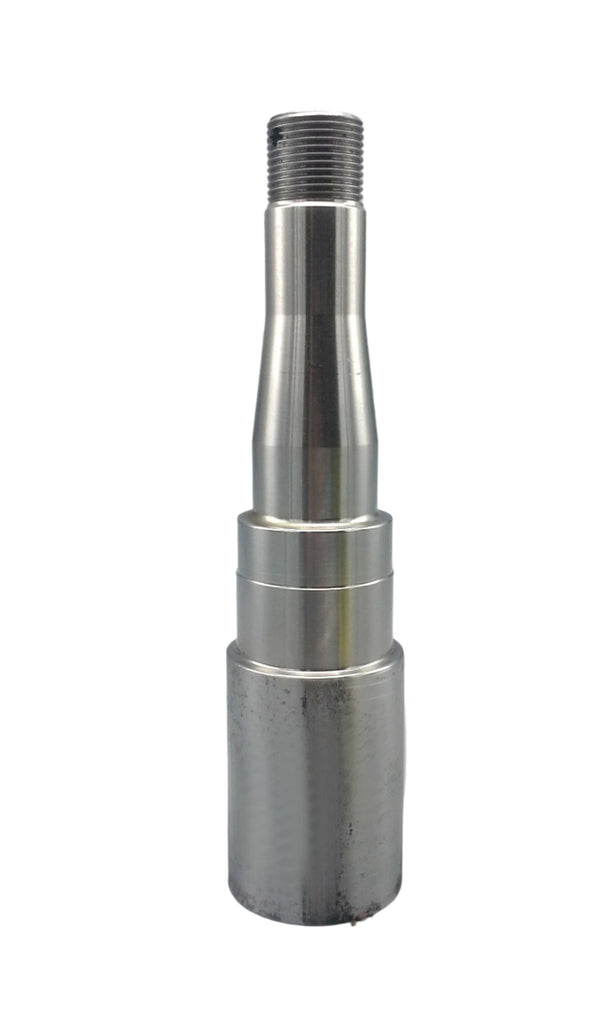

| (2) | SP-20084 | #84 Round Spindle |

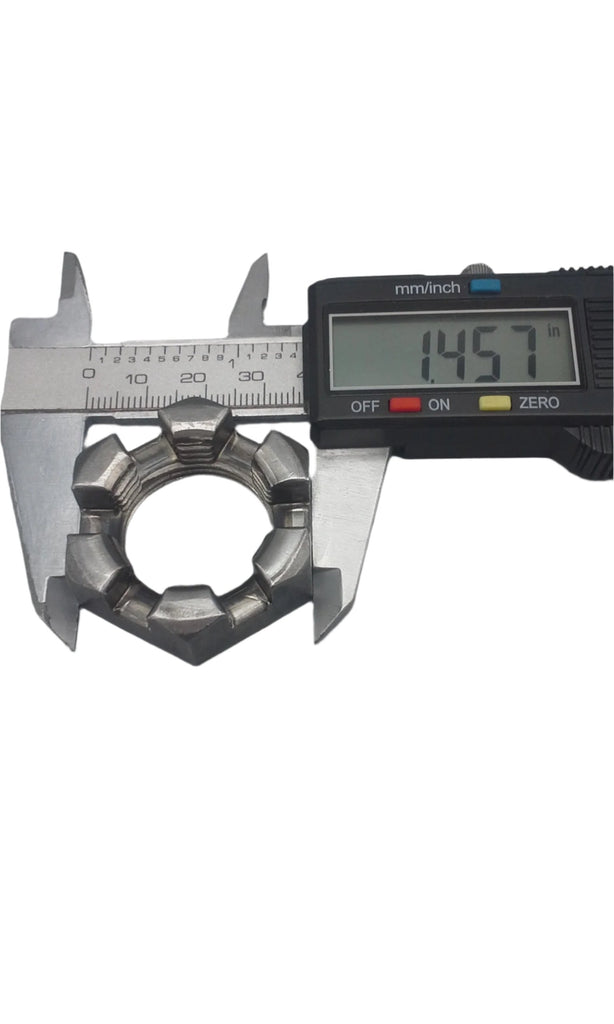

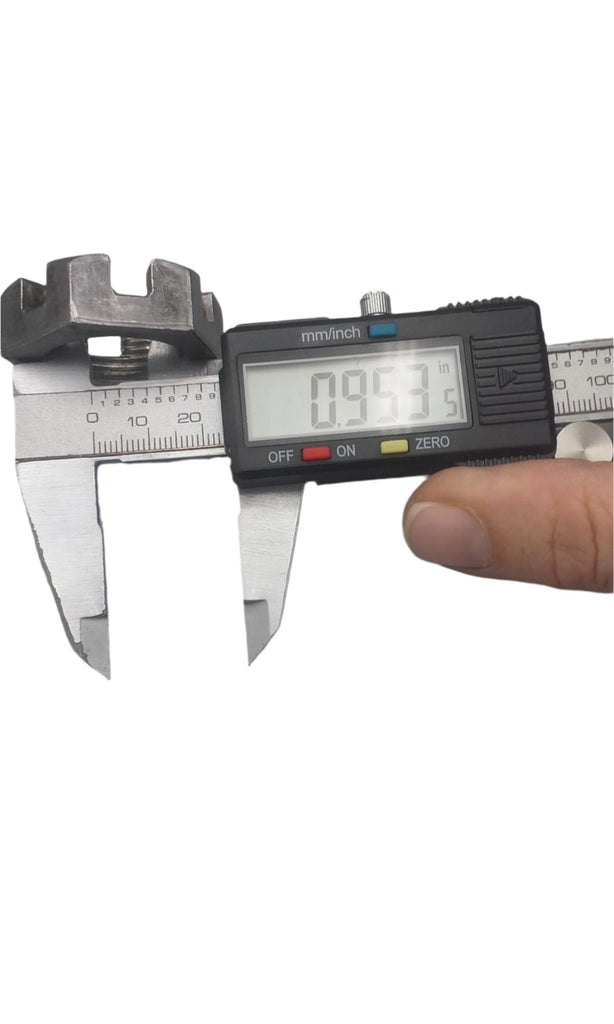

| (2) | FA-SN100 | 1″ Spindle Castle Nut |

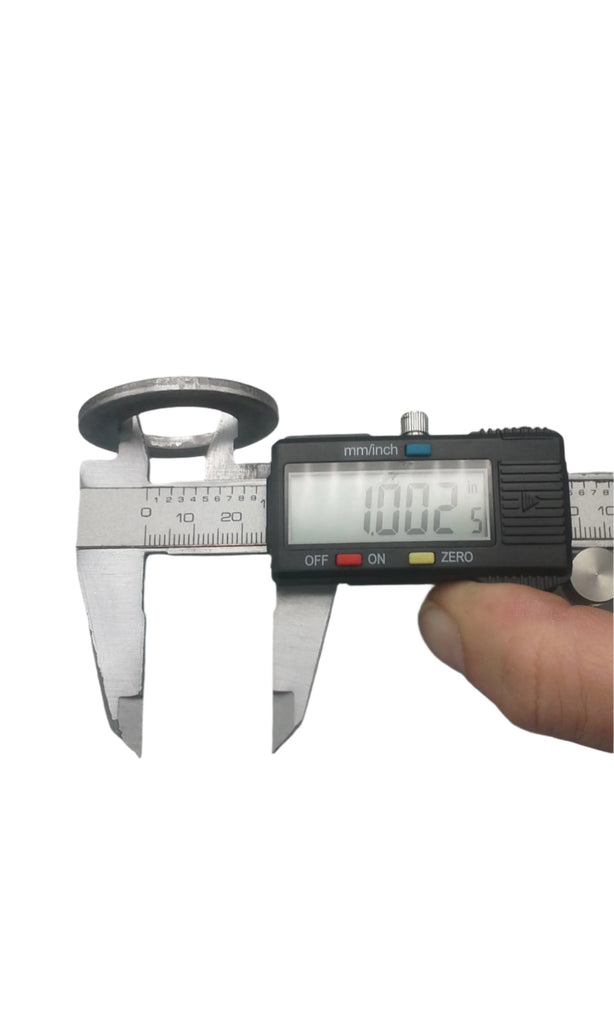

| (2) | SW1000 | 1″ Spindle Washer |

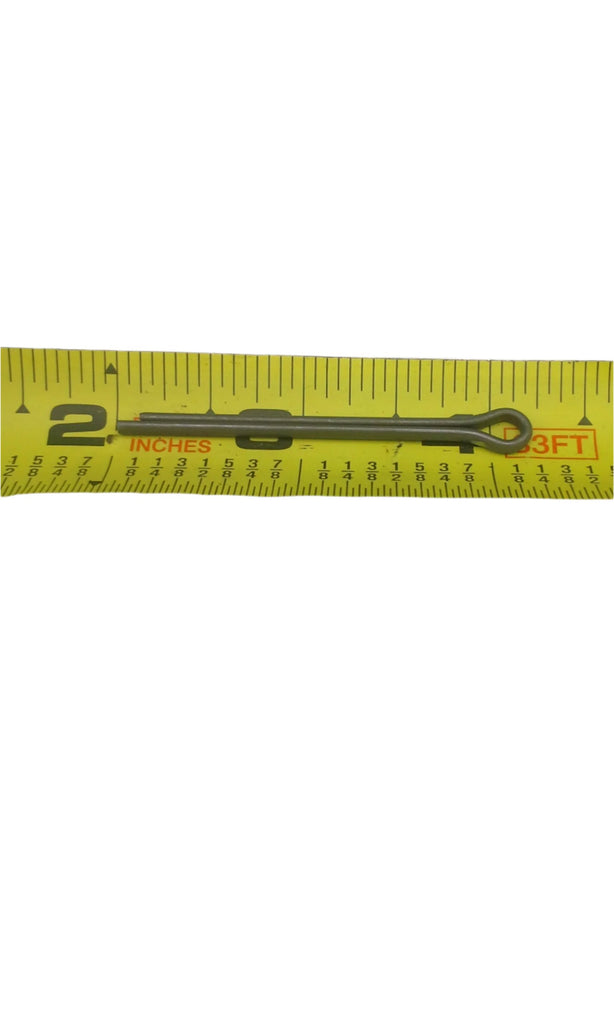

| (2) | 165649 | Cotter Pin 1/8″ x 1-3/4″ |
| (2) | HD-3500-KIT | Bearing / Seal / Cap Kit (See Below) |

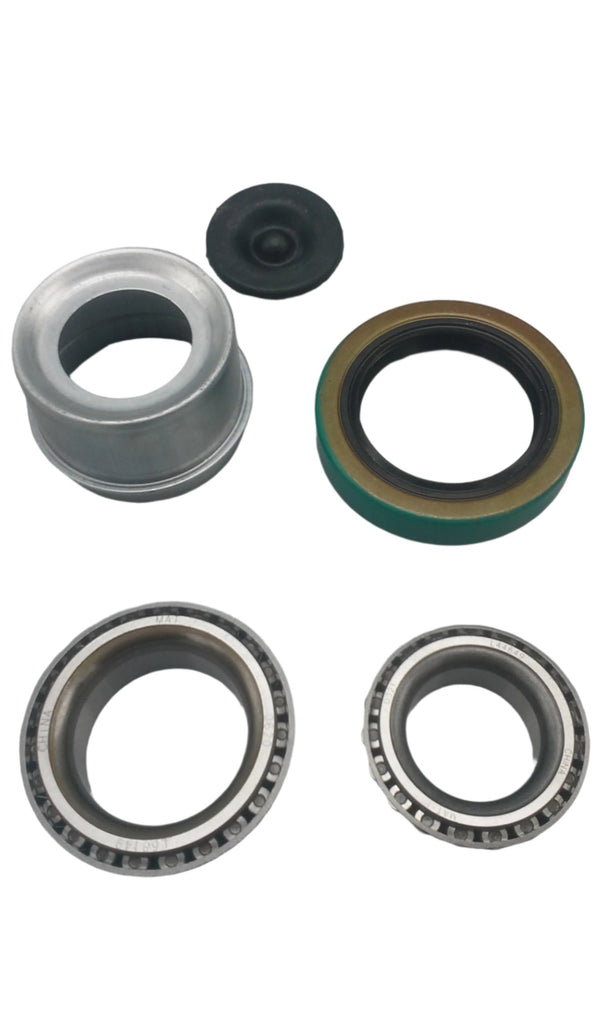

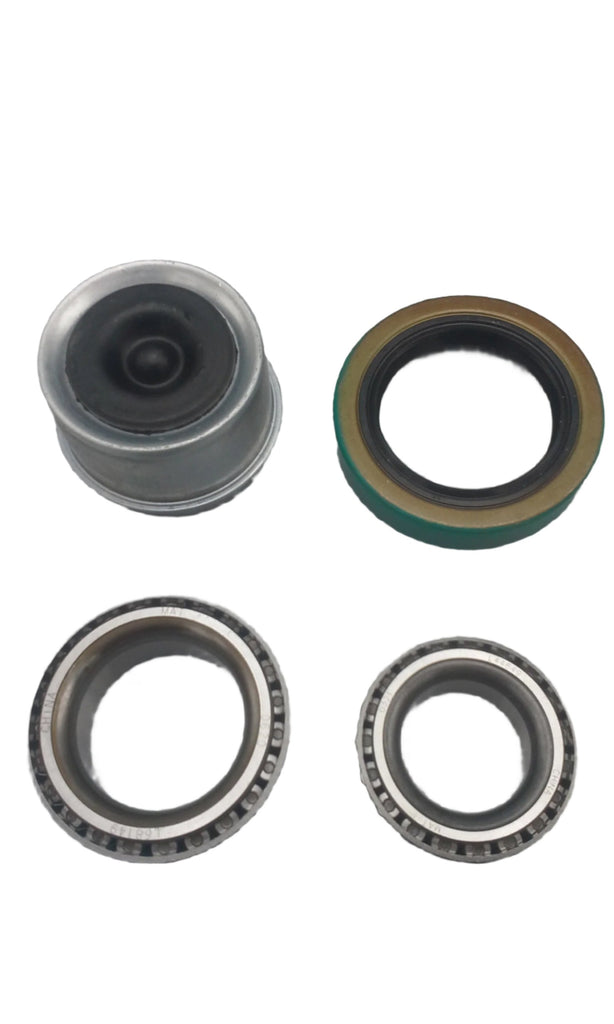

Each HD-3500-KIT Includes
| Quantity | Part Number | Description |
|---|---|---|

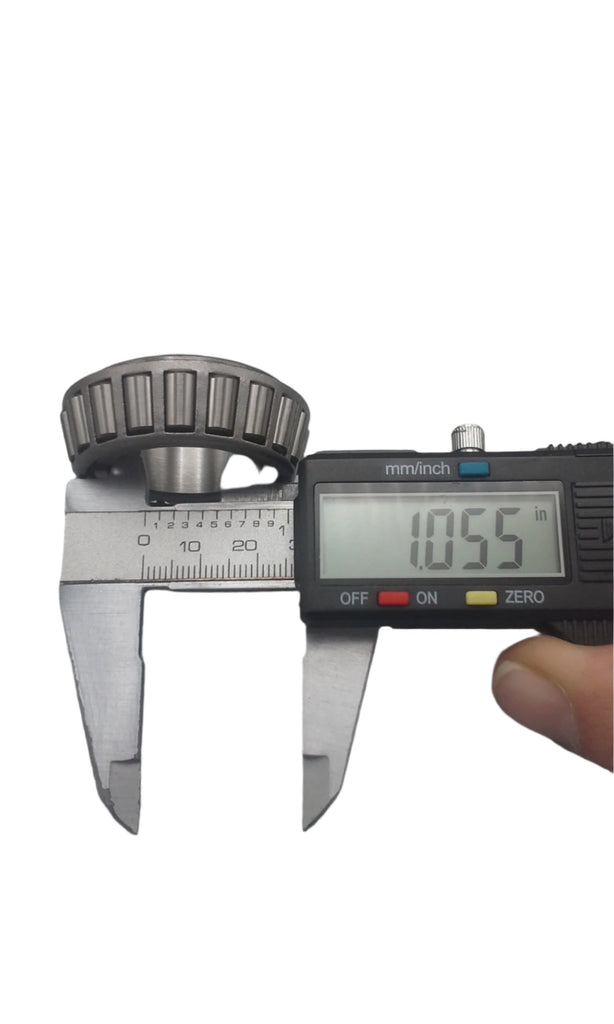

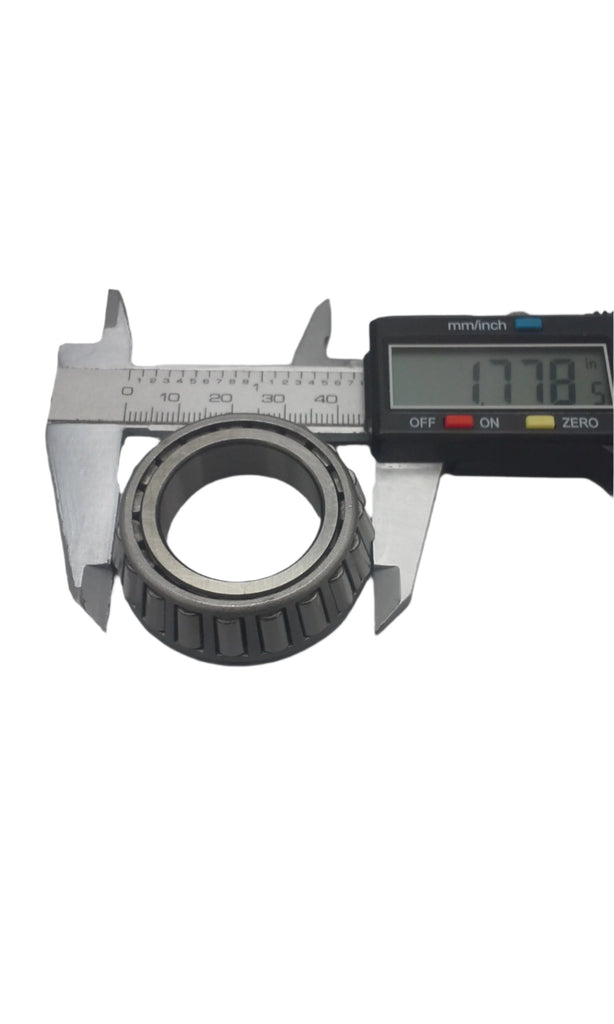

| (1) | L44649 | 1.0625″ I.D. Bearing |

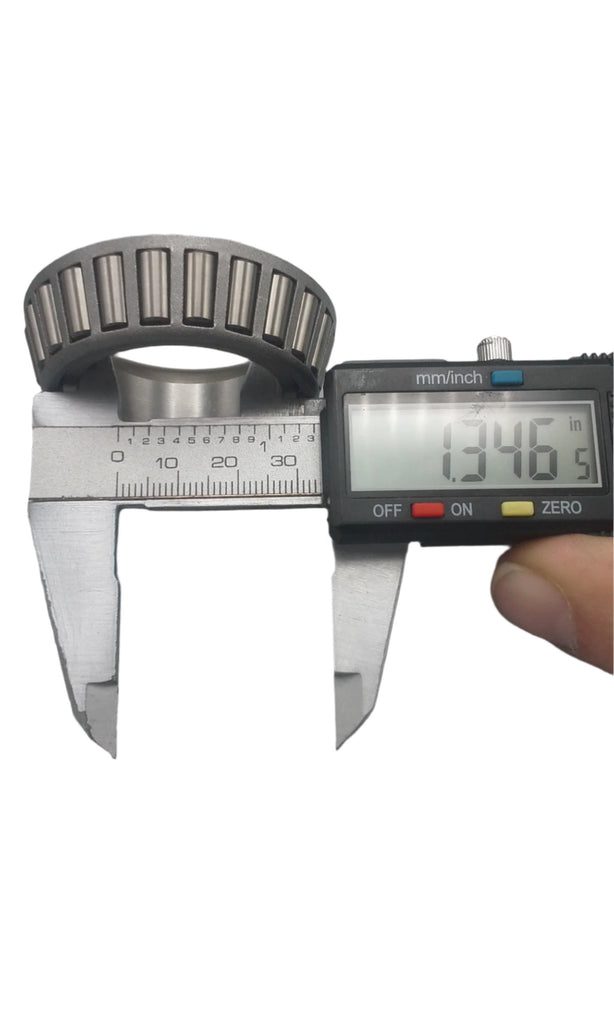

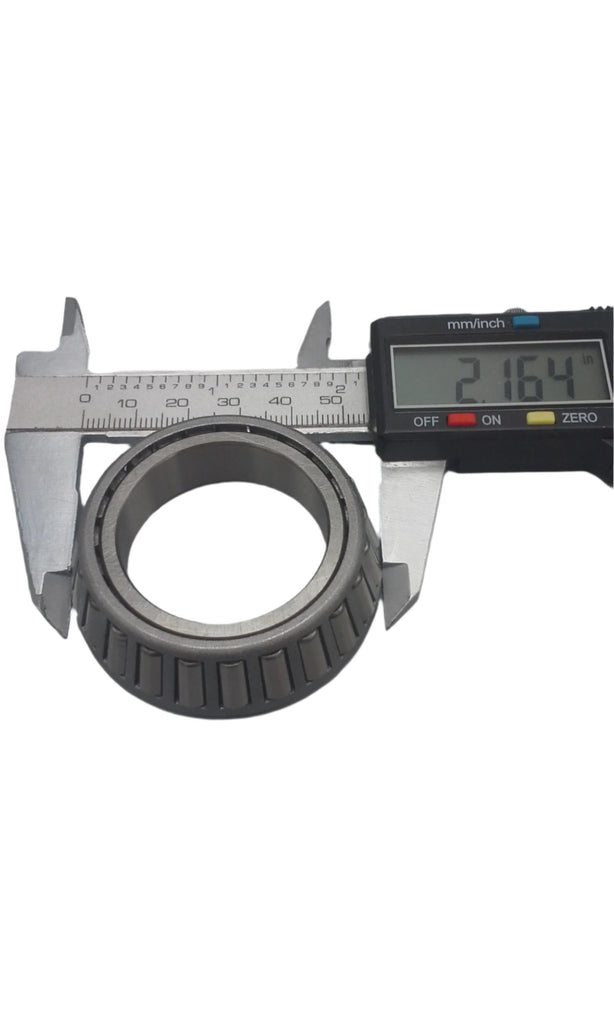

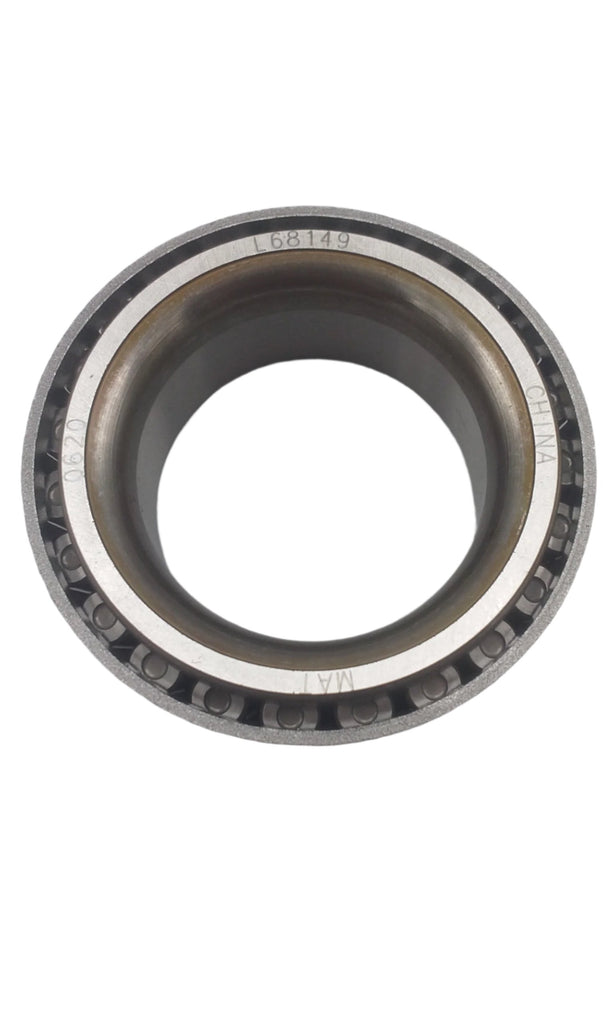

| (1) | L68149 | 1.378″ I.D. Bearing |

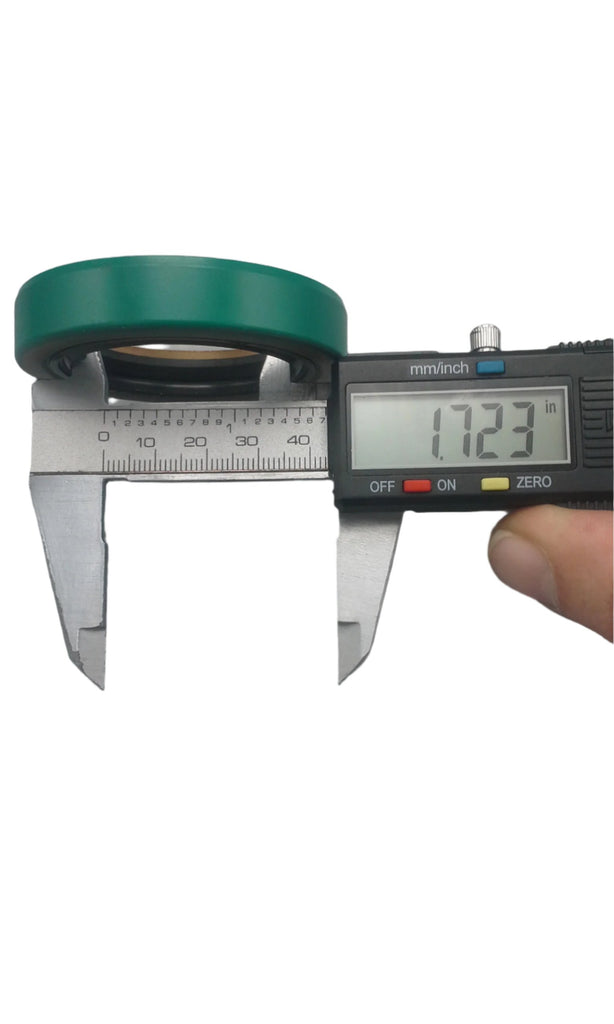

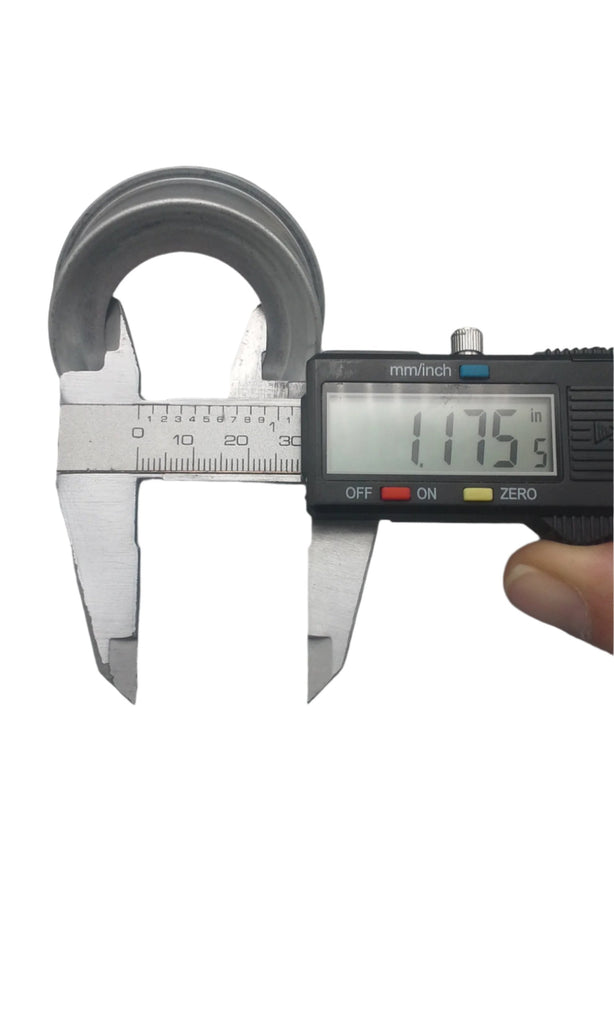

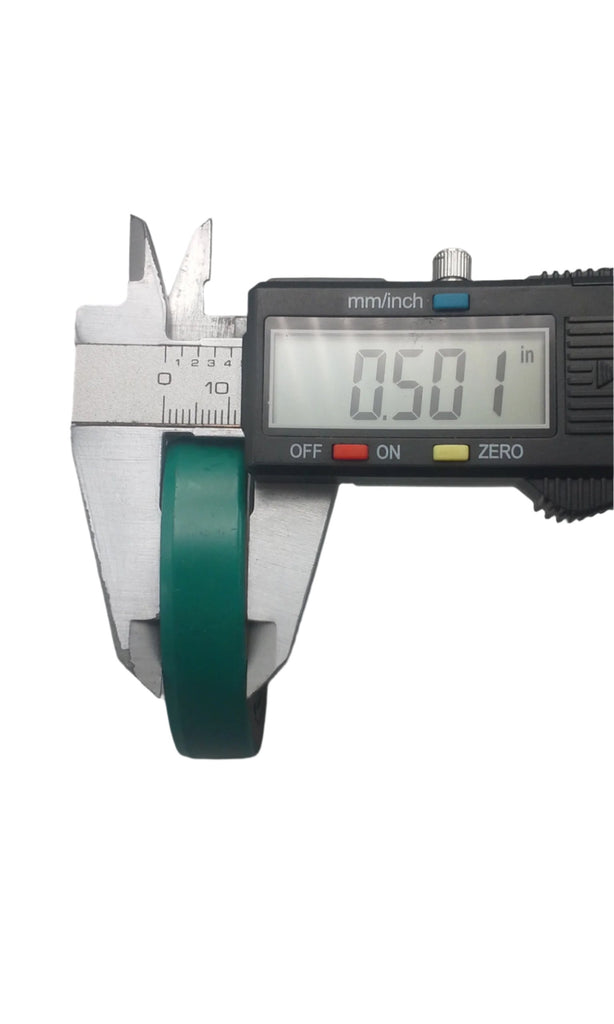

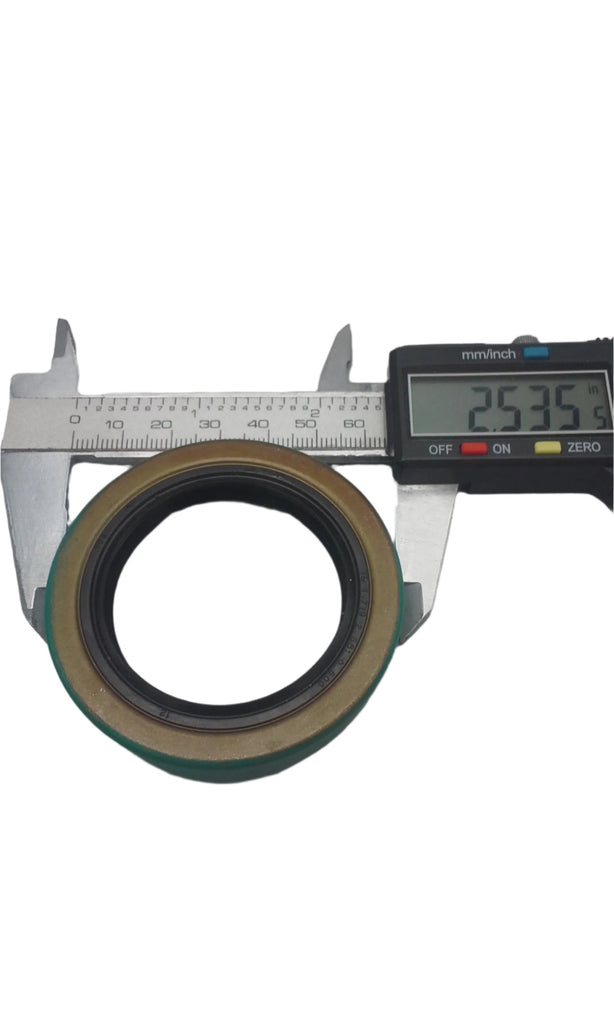

| (1) | 10-19 | Grease Seal 1.719″ x 2.56″ |

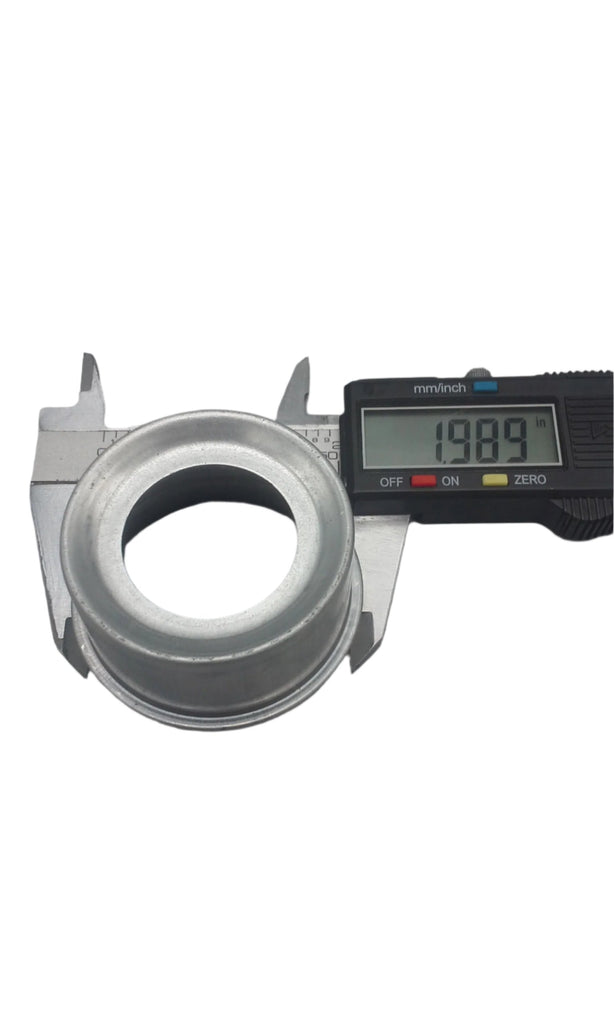

| (1) | DC-200 | 1.986″ Dust Cap |

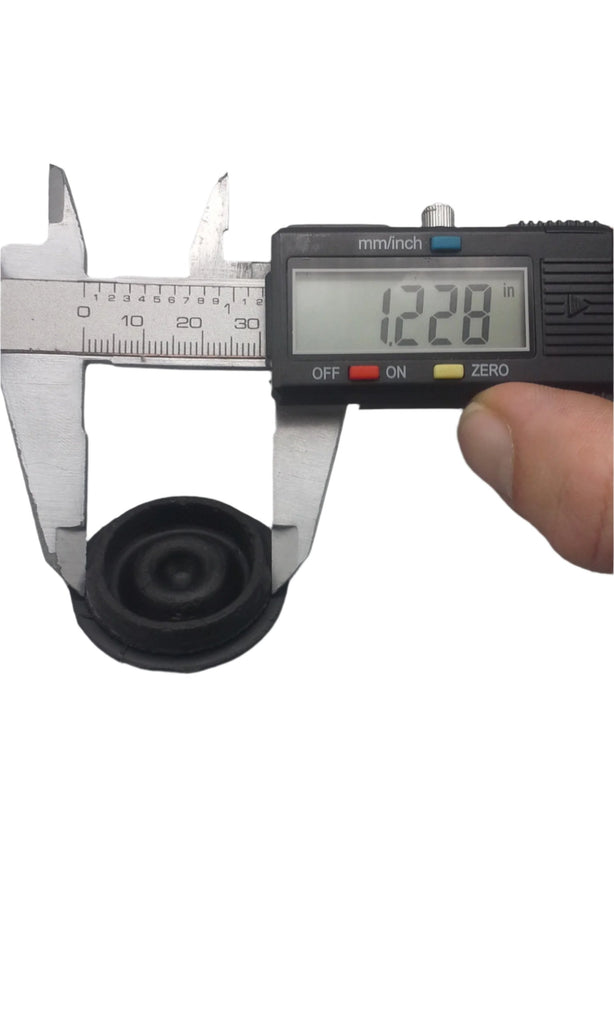

| (1) | DC-RP | Dust Cap Rubber Insert |
Verify compatibility with your axle tube, spring configuration, and wheel requirements before installation.
