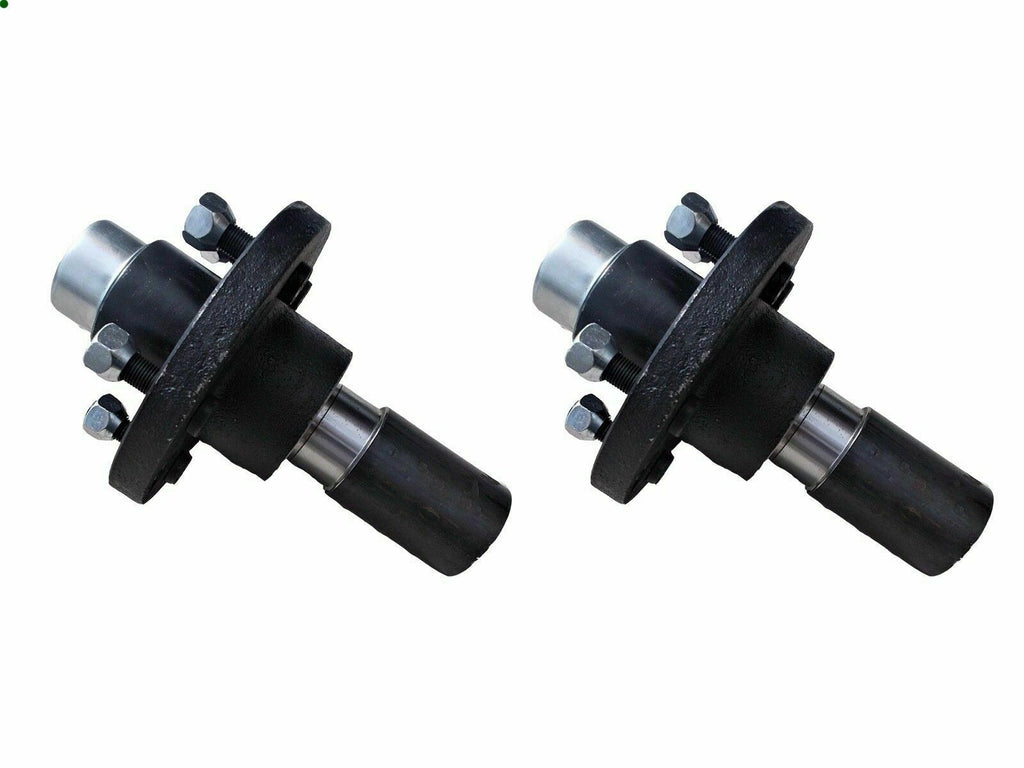

Build your own 1750# Trailer axle Kit
(R40484)
Common 5 x 4.5" Bolt Pattern
(R40484)
Common 5 x 4.5" Bolt Pattern
(4-1/4" stud Spacing)
Use to build you own axle, or as a replacment.

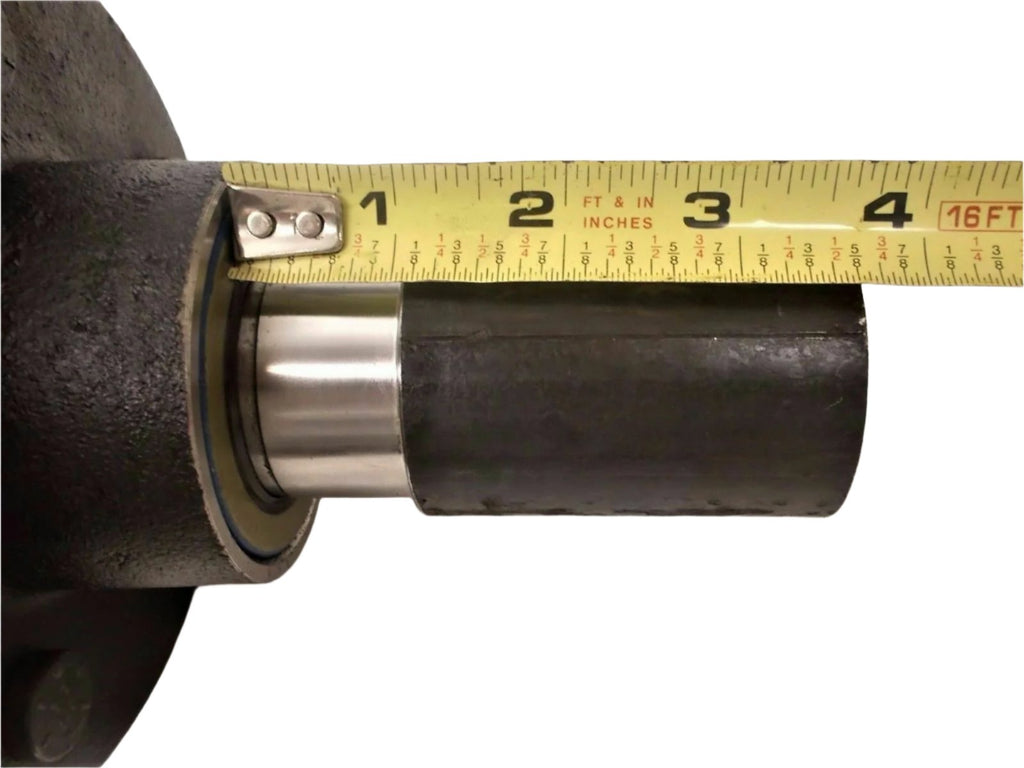

Spindles have 4" long "tail shaft", 2.0" Diameter
(Should fit inside in Standard 2" Schedule 40 pipe!)
Rated to 1750 pounds per wheel, 3500# axle.
Includes standard 1.0625 outer Bearings, L44649
L68149 1 3/8" Inner Bearings
1.75" seal ID, 10-19

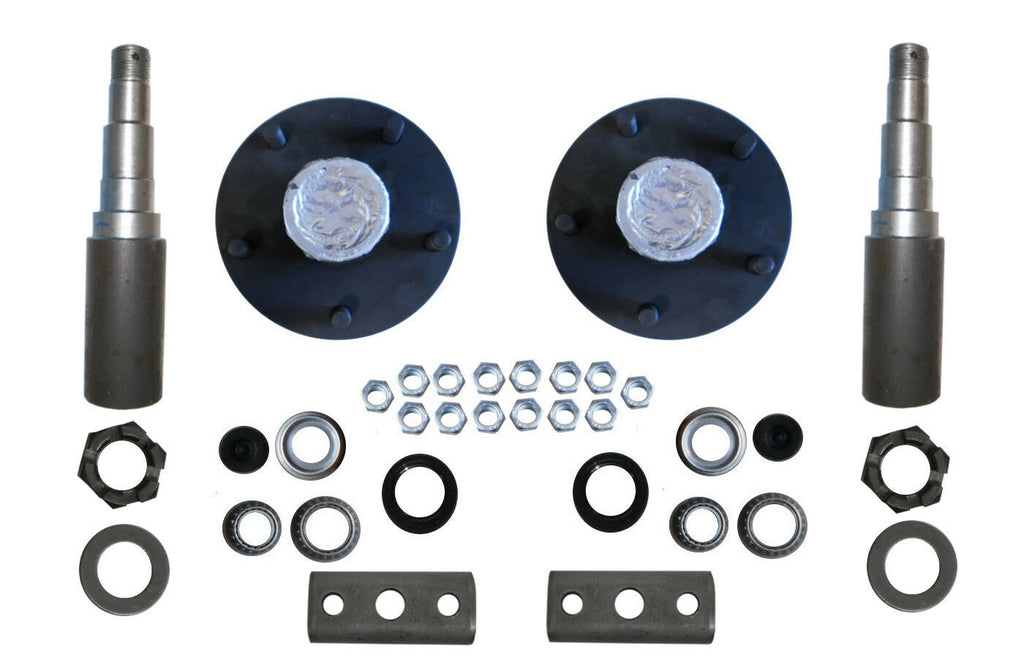

Includes 2 of the 5 bolt x 4.5 Hubs, bearings, spindles, axle nuts, everything you need except for the tube!
Just add common 2" Schedule 40 Steel Pipe!
(Standard 2" sch 40 pipe is 2.375" OD, 2.04" ID)
Includes weld on spring perches/pads to fit pipe

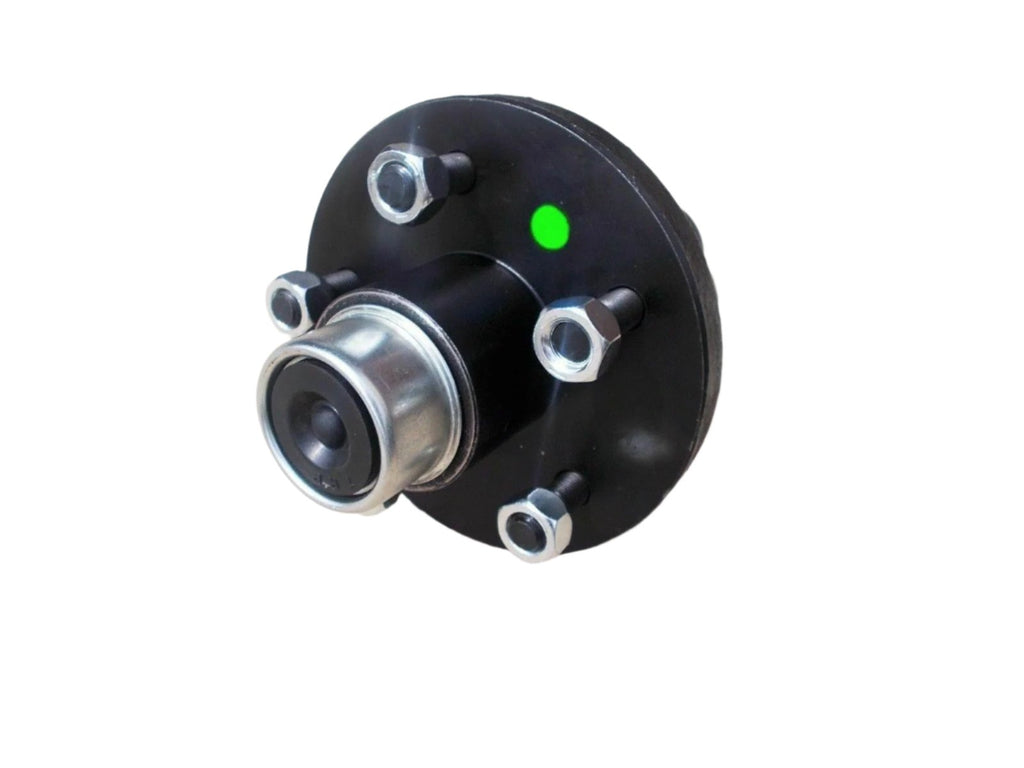

2 x Idler hub. 5 x 4.5" 3500# (code blue)
10 x Lug Nuts
2 x 1.98" Dust caps
2 x L44649 Bearing
2 x L68149 Bearing
2 x 10-19 Seals
2 x R40484 Spindles
2 x 1" Axle Nuts
2 x 1" spindle washer
2 x 2.375" 3500# weld on Spring pads
Use to build you own axle, or as a replacment.
Spindles have 4" long "tail shaft", 2.0" Diameter
(Should fit inside in Standard 2" Schedule 40 pipe!)
Rated to 1750 pounds per wheel, 3500# axle.
Includes standard 1.0625 outer Bearings, L44649
L68149 1 3/8" Inner Bearings
1.75" seal ID, 10-19
Includes 2 of the 5 bolt x 4.5 Hubs, bearings, spindles, axle nuts, everything you need except for the tube!
Just add common 2" Schedule 40 Steel Pipe!
(Standard 2" sch 40 pipe is 2.375" OD, 2.04" ID)
Includes weld on spring perches/pads to fit pipe
2 x Idler hub. 5 x 4.5" 3500# (code blue)
10 x Lug Nuts
2 x 1.98" Dust caps
2 x L44649 Bearing
2 x L68149 Bearing
2 x 10-19 Seals
2 x R40484 Spindles
2 x 1" Axle Nuts
2 x 1" spindle washer
2 x 2.375" 3500# weld on Spring pads
Perfect for making your own axle, slips inside common 2" ID tube.
Click on the picture below for a larger image:

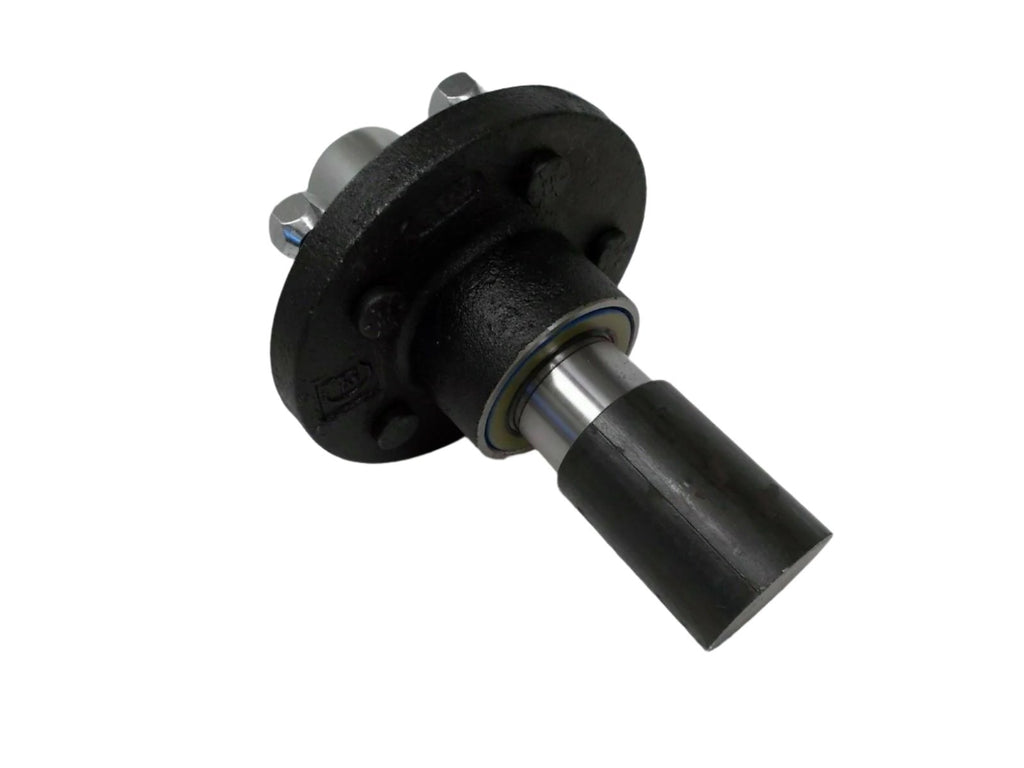

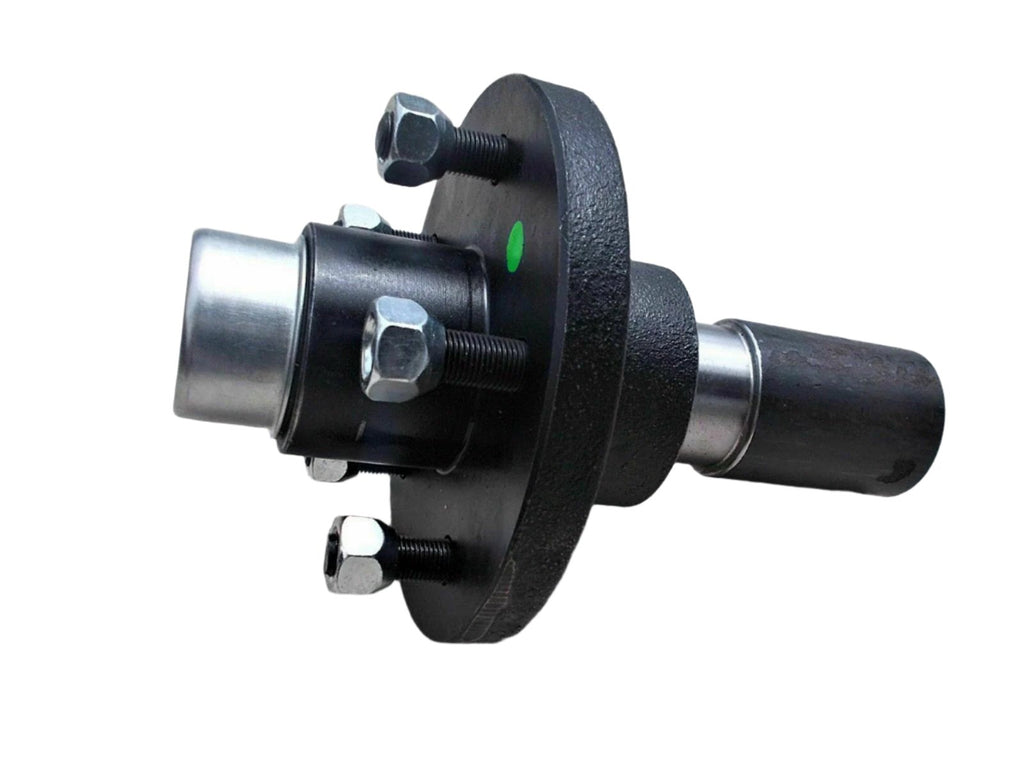

This auction includes spindle R40484,
(standard 3500# Axle spindle with 2" round base)
Click on the picture below for a larger image:
This auction includes spindle R40484,
(standard 3500# Axle spindle with 2" round base)
