At a Glance

> Signal Combining: Takes left and right brake signals and creates one output for a center brake lamp.
> Circuit Isolation: Helps prevent electrical backfeeding between the connected brake circuits.
> Install Check: Verify the brake lamp current draw does not exceed the 3 amp rating before installation.
> Input Check: Confirm the left and right brake signal wires are the correct circuits before connecting.
> Output Check: Confirm the center brake light load is within the 3 amp current rating.
Brand: Lavanture
SKU: AT-LC-1

Before You Order

Match the part number, measurements and connection points that apply to your trailer.

Opening	Measure the existing roof or wall opening.
Flange	Confirm overall and flange dimensions.
Operation	Confirm powered, manual or fixed operation.
Mount / Power	Verify mounting and electrical requirements.

Product Details

Trailer Brake Light Wiring / Center Stop Lamp Converter

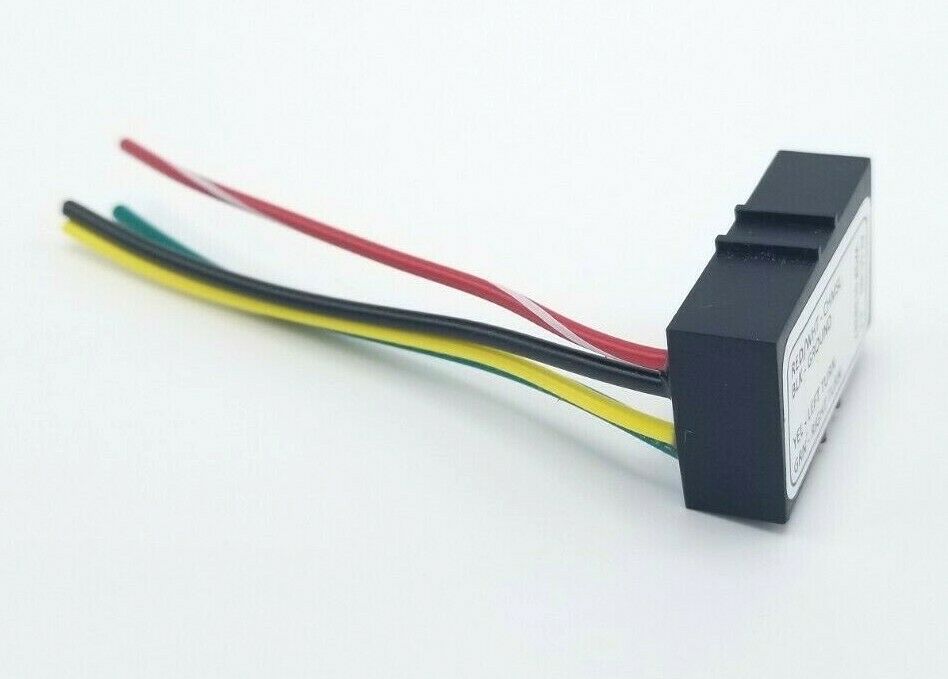

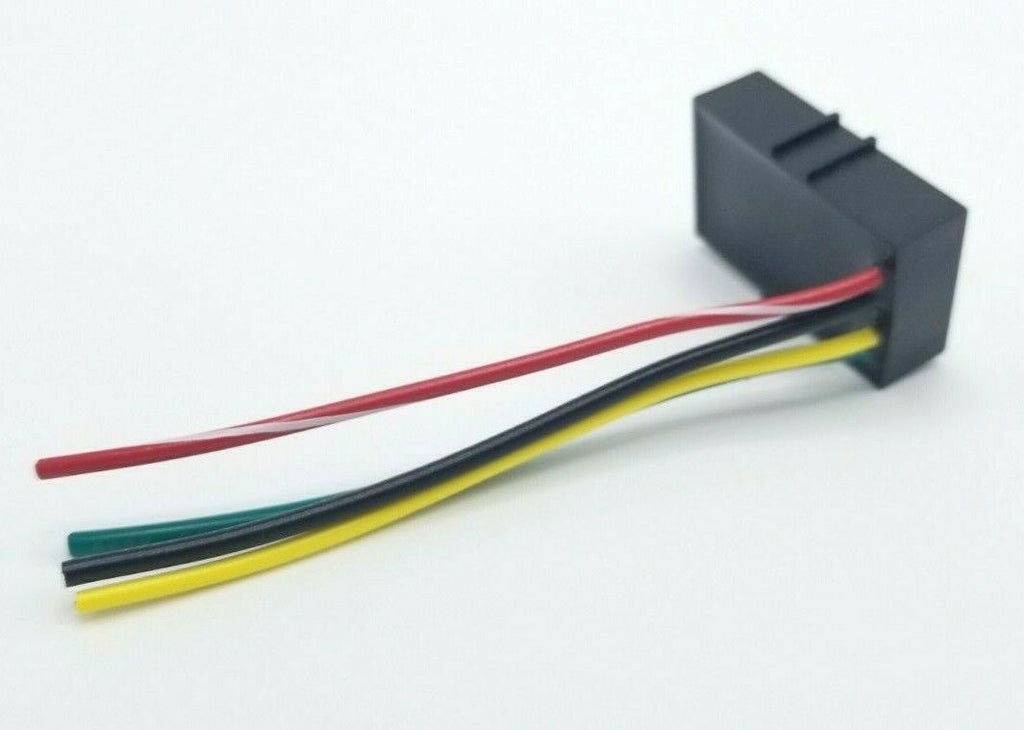

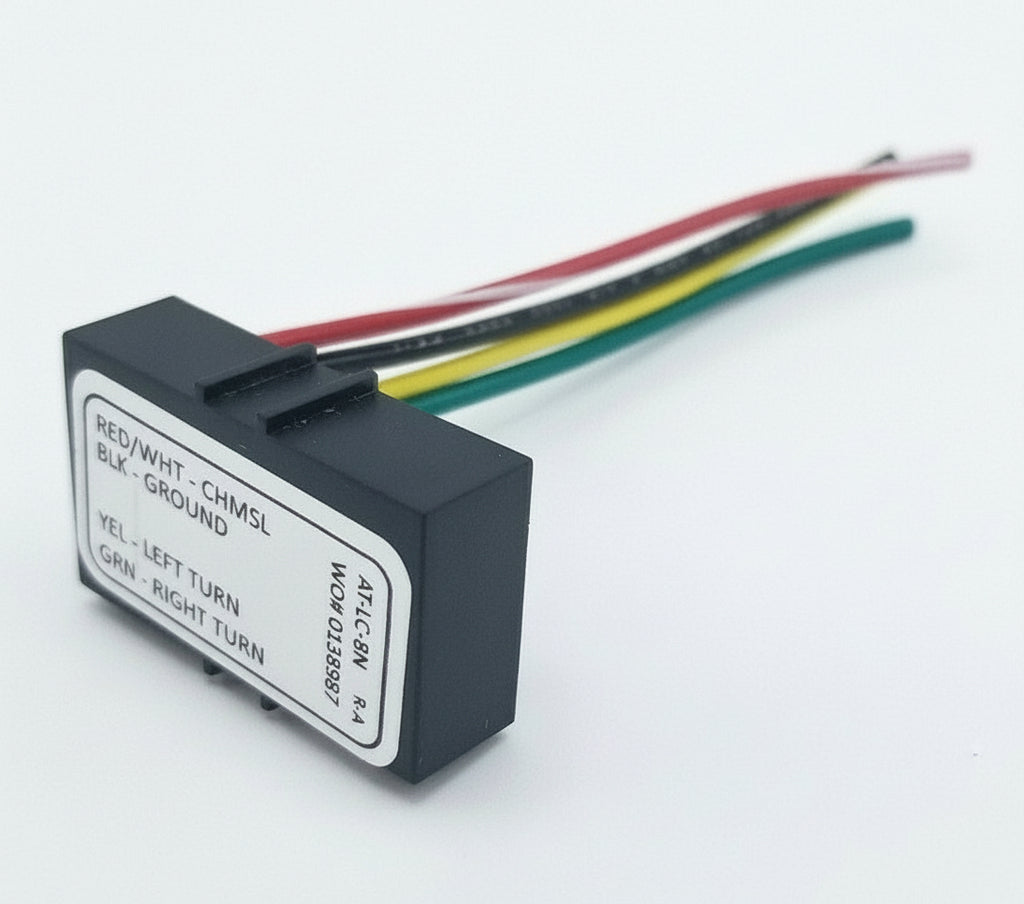

StopLogic Center Brake Light Converter Diode AT-LC-1

Brake signal combining diode designed to create a single output signal for a center high-mount brake light while helping prevent backfeeding between left and right brake circuits.

Part Number: AT-LC-1 3 Amp Rating 1/4" Spade Terminals

Overview

This StopLogic center brake light converter diode combines left and right brake signal inputs into one output for adding a center high-mount brake light. It is commonly used where separate brake circuits need to feed one center brake lamp while keeping the circuits isolated from each other.

Video starts muted by browser rule. Tap the gold button to turn audio on.

R&P Service Insight

A center brake light converter is used when the left and right brake circuits need to work together without feeding power back across the vehicle or trailer wiring.

Signal Combining: Takes left and right brake signals and creates one output for a center brake lamp.
Circuit Isolation: Helps prevent electrical backfeeding between the connected brake circuits.
Install Check: Verify the brake lamp current draw does not exceed the 3 amp rating before installation.

R&P Knowledge Hub

Compatibility: Used for applications where left and right brake signal circuits must be combined into one isolated center brake light output.

Vehicle / System Fit: Typical applications include vehicles, trailers, toppers, and camper shells with an added center high-mount brake light.

Installation Notes: Verify wiring layout, current requirements, brake light load, and 1/4" spade terminal connections before installing.

Performance Insight: The diode design allows brake signal combining while helping block unwanted feedback between separate circuits.

Brand & Fitment Note

Selling Brand: StopLogic

Application Reference: Vehicle, trailer, topper, and camper shell references describe wiring applications only where the brake light circuit layout and current requirements match.

What This Means: This listing is for a StopLogic brake light converter diode, not a vehicle-specific OEM-branded component.

Before Ordering: Verify wiring configuration, brake lamp current draw, terminal style, circuit routing, and installation requirements before use.

R&P Repair Insight

Incorrect brake light converter wiring can cause backfeeding, unusual lamp operation, or no center brake light output. Match the circuit layout before connecting the converter.

Input Check: Confirm the left and right brake signal wires are the correct circuits before connecting.
Output Check: Confirm the center brake light load is within the 3 amp current rating.
Terminal Check: Confirm the installation uses compatible 1/4" spade terminal connections.

Features

Combines Left & Right Brake Signals

Creates a single output signal from separate left and right brake circuits for a center high-mount brake light.

Helps Prevent Backfeeding

Diode design helps isolate the connected brake circuits so power does not feed back across the wiring system.

Durable Sealed Housing

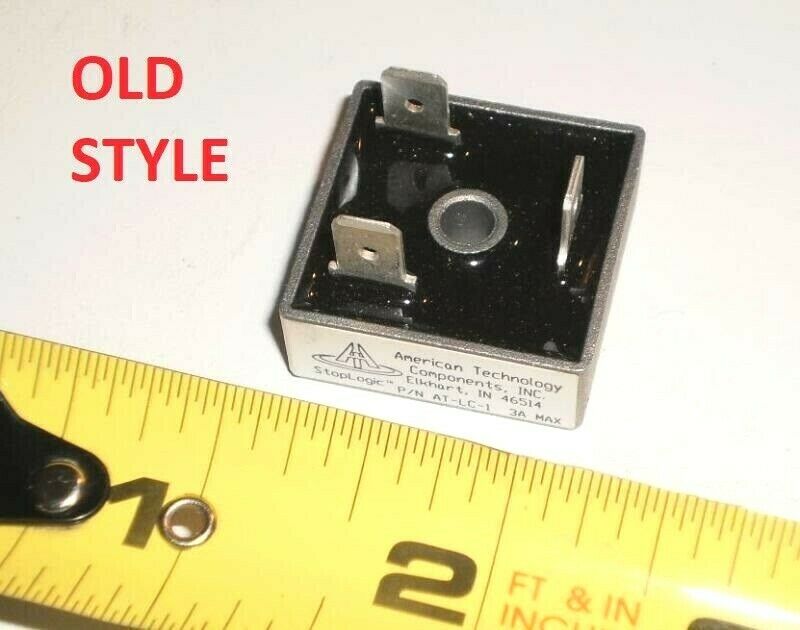

Die-cast aluminum housing is epoxy sealed for a compact electrical converter assembly.

Standard Spade Terminal Layout

Uses standard 1/4" spade terminals for the three-wire brake signal input and output configuration.

Specifications

Specification	Detail
Part Number	AT-LC-1
Brand	StopLogic
Product Type	Center brake light converter diode
Function	Combines left and right brake signals into one output
Current Rating	3 amps
Housing	Die-cast aluminum, epoxy sealed
Connector Type	1/4" spade terminals

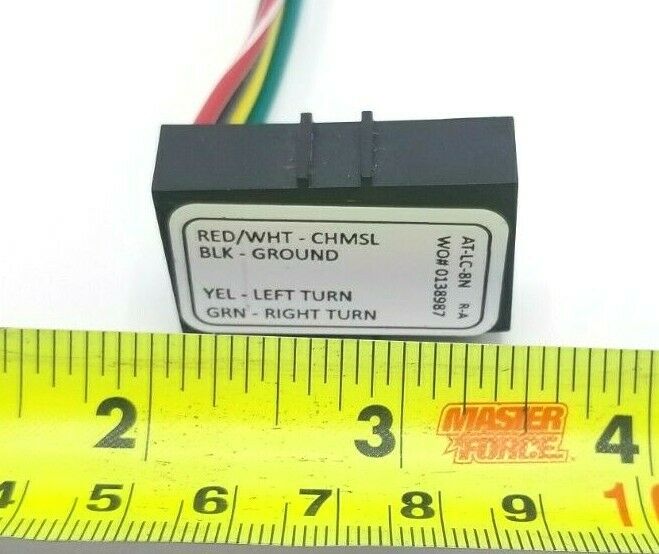

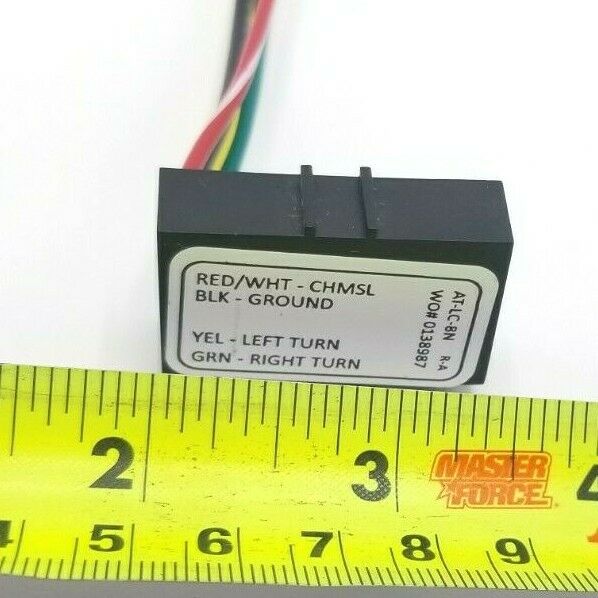

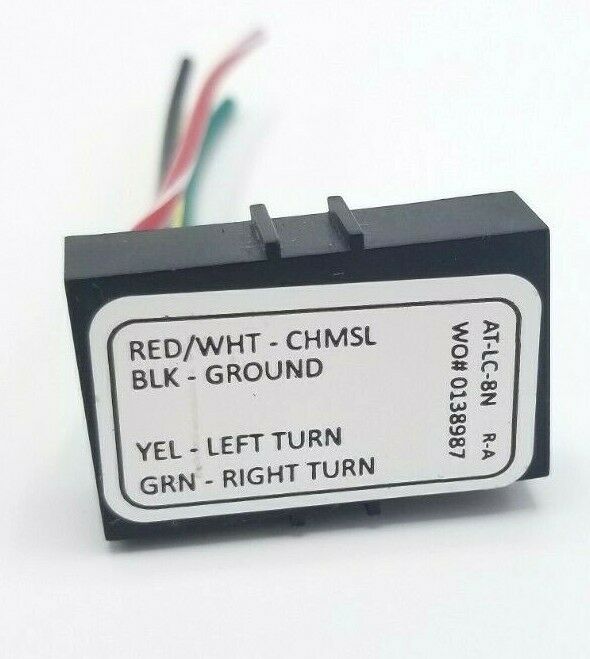

Wire Configuration	Three-wire brake signal input and output configuration

Fitment / Application

Category	Details
Vehicle / System	Brake light wiring system
Primary Fit	Center high-mount brake light installations requiring one output from left and right brake circuits
Typical Applications	Vehicles, trailers, toppers, and camper shells
Notes	Verify wiring layout, current draw, and terminal compatibility before installation.

Included Components

Quantity	Item
1	StopLogic AT-LC-1 center brake light converter diode

Verify wiring layout, current draw, circuit function, terminal size, and installation requirements before connecting this converter. This part is intended for compatible brake light circuit applications where the 3 amp rating and 1/4" spade terminal configuration match the installation.
