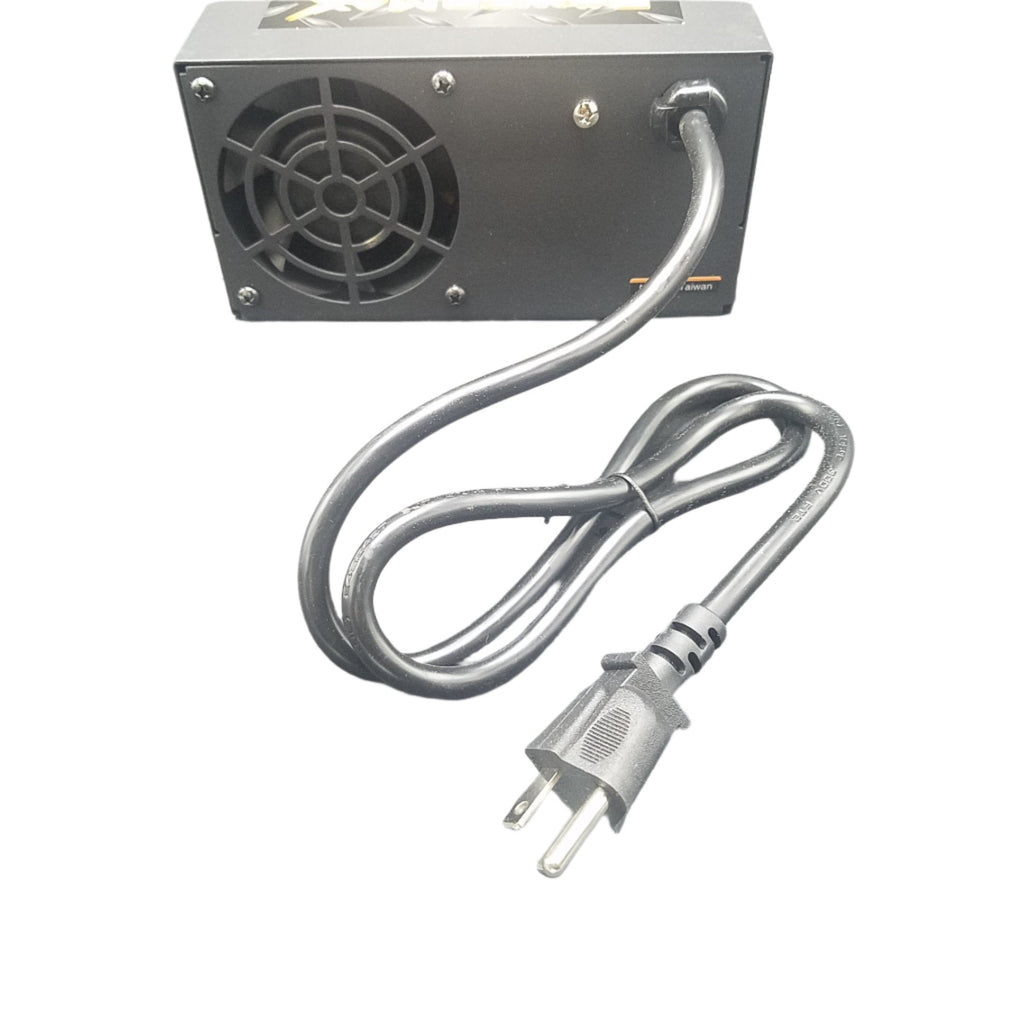

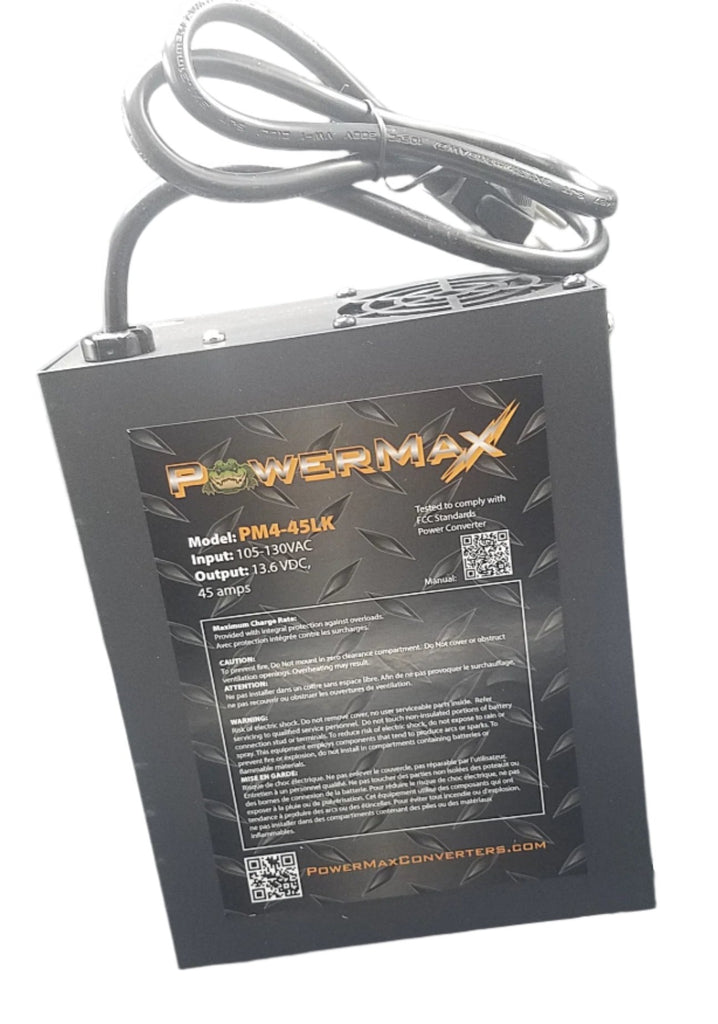

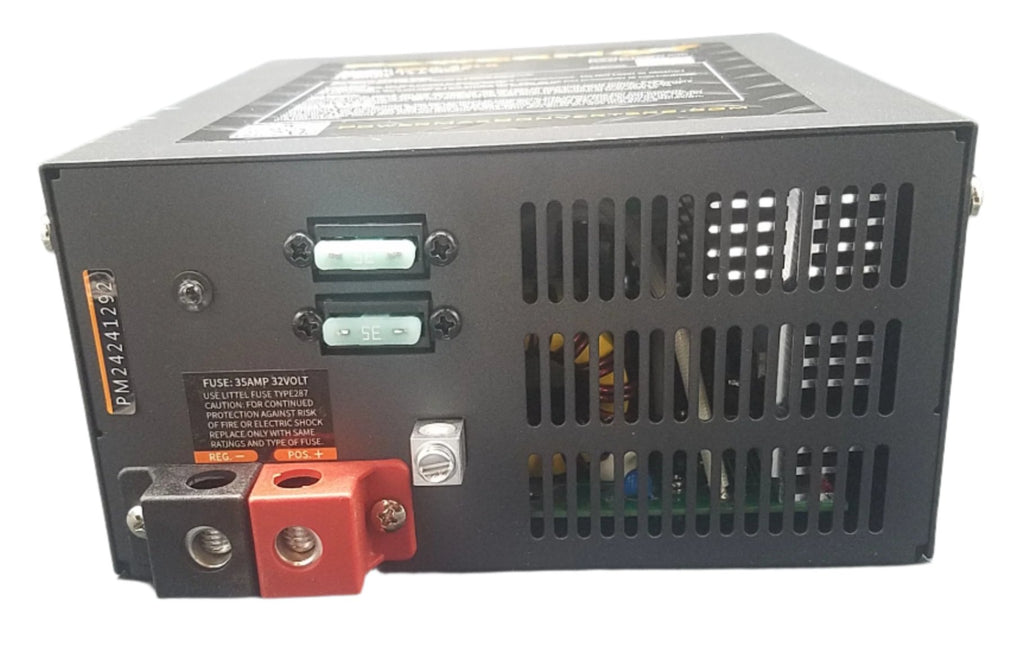

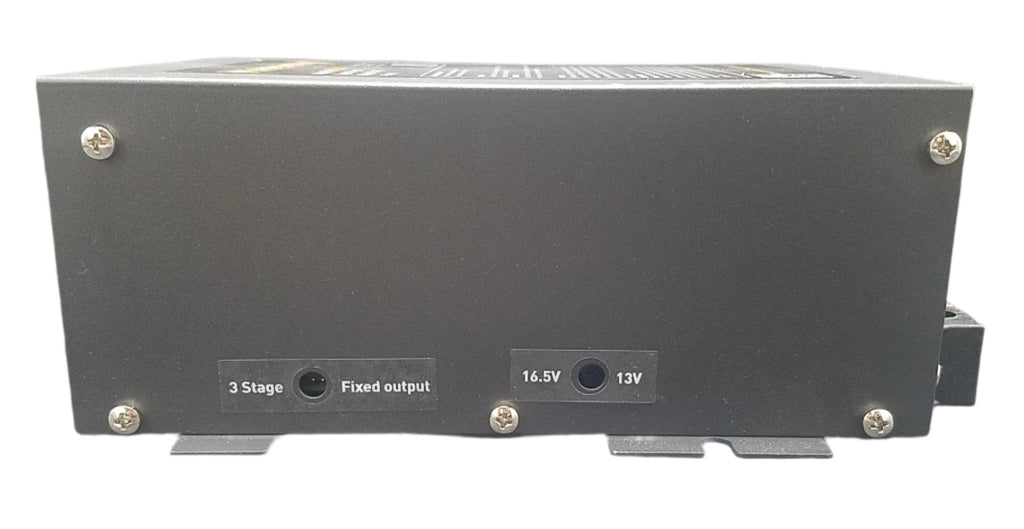

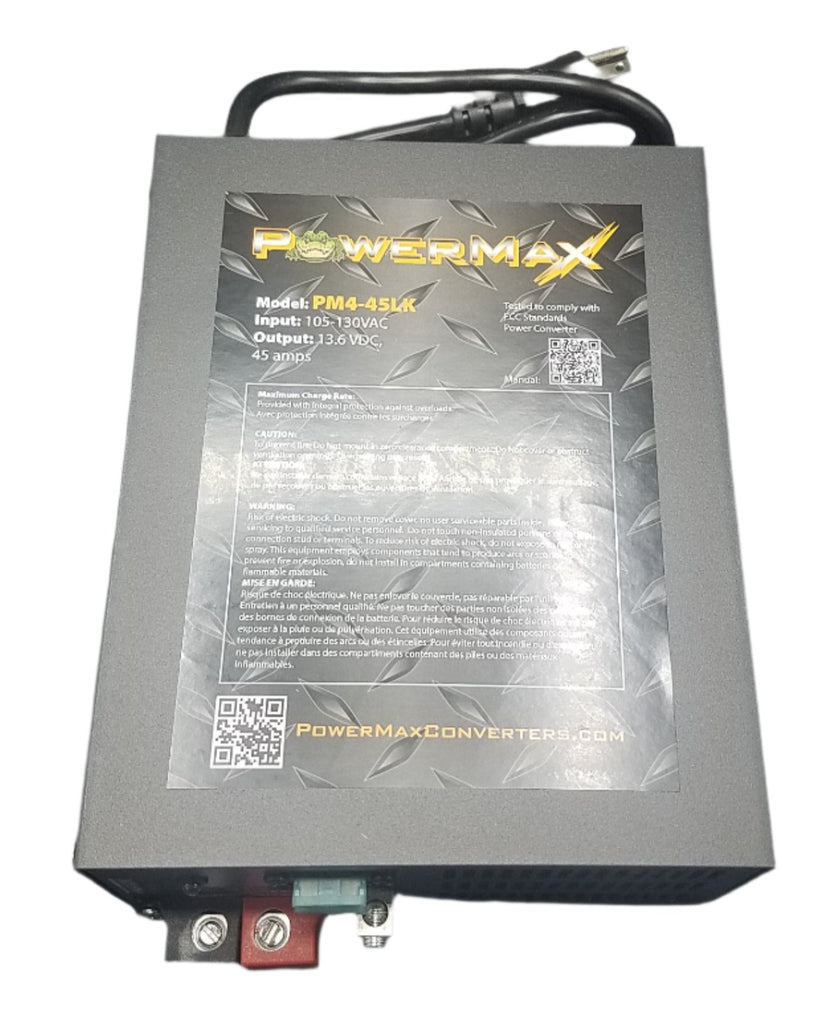

 PowerMax 45 AMP 12VDC Power ConverterPart Number: PM4-45
Built-in Stage Smart Charge Reliable, Safe and Clean AC/DC Power Reverse Polarity, Overload and Thermal Protection UL and CUL Approved Features: DC Output Voltage (No Load) approx14.8/13.2/13.6/14.4(DC) Output Voltage Tolerance (No Load): + or -.7% Output Amperage, Max Continuous: 45 Amps Output Voltage (Full Load) approx: >13.4V(DC) Maximum Power Output, Continuous: 600watts Input Voltage Range: 105 -135 AC Input Voltage Frequency: 47-63 Maximum AC Current @ 108VAC: 5 Amps Typical Efficiency: >85% Max Inrush Current, Single Cycle: 40 Amps Short Circuit Protection: Yes Overload Protection: >100% Line Regulation: 50 mVrms Load Regulation: <1.0% Fan Control: Proportional Thermal Protection: YES Working Temperature Range: 0-45C Storage Temperature:-20 to 80C Withstand Voltage: 1240V @ leads Dimensions: 7.15 X10.5 X 3.45 Weight: 7.0 lbs
The PowerMax PM4 Series converters 110Vac power to 12Vdc power to charge a battery and/or power 12V equipment. With our state of the art Smart Charging and adjustable power supply modes, the PowerMax AC to DC power converter/battery charger is engineered with the user and variable environmental conditions in mind. They will fully charge and maintain any battery type while providing very clean DC power. Ideal for use in RV, Automotive, Boat, Car Audio, or any applications where battery charging and/or 12V power is needed. The PowerMax PM4 Series are available in a wide range of amperage sizes and in 12V, 24V and 48V outputs – We also have 220Vac models so we can fit any power requirement. PM4 Series Converters can be wired in Series or Parallel to reach even higher power outputs. |
