4" Round Bolt-On D-Ring Tie-Downs — Lot of 6
Part Number: RR02-LOTOF6

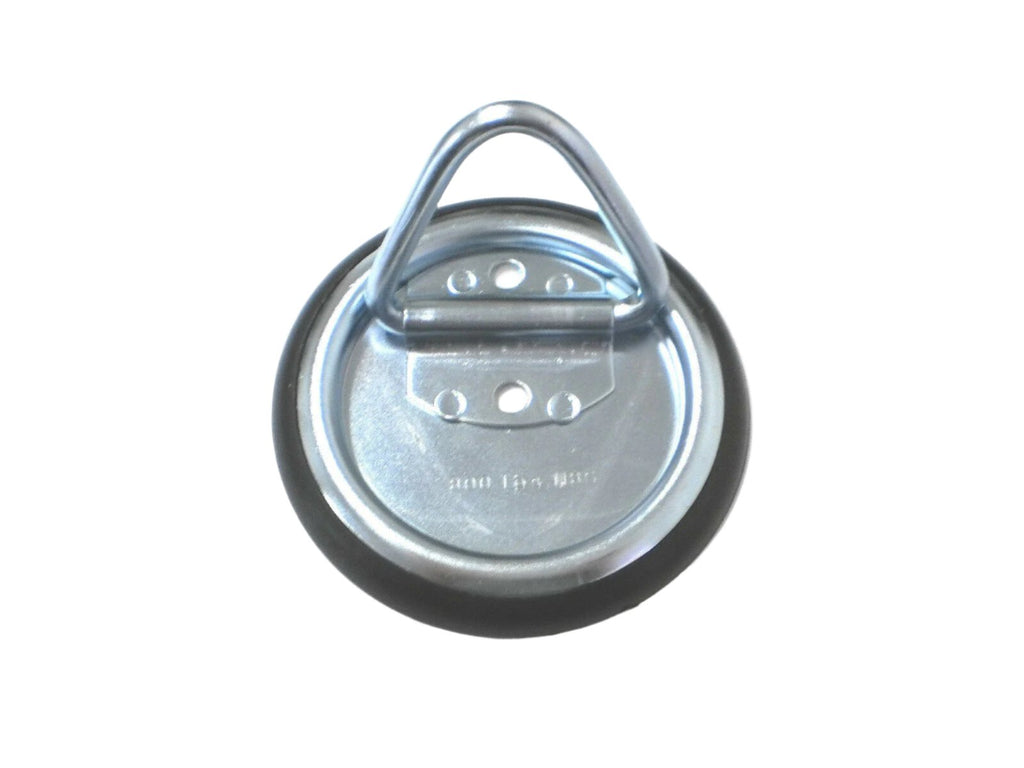

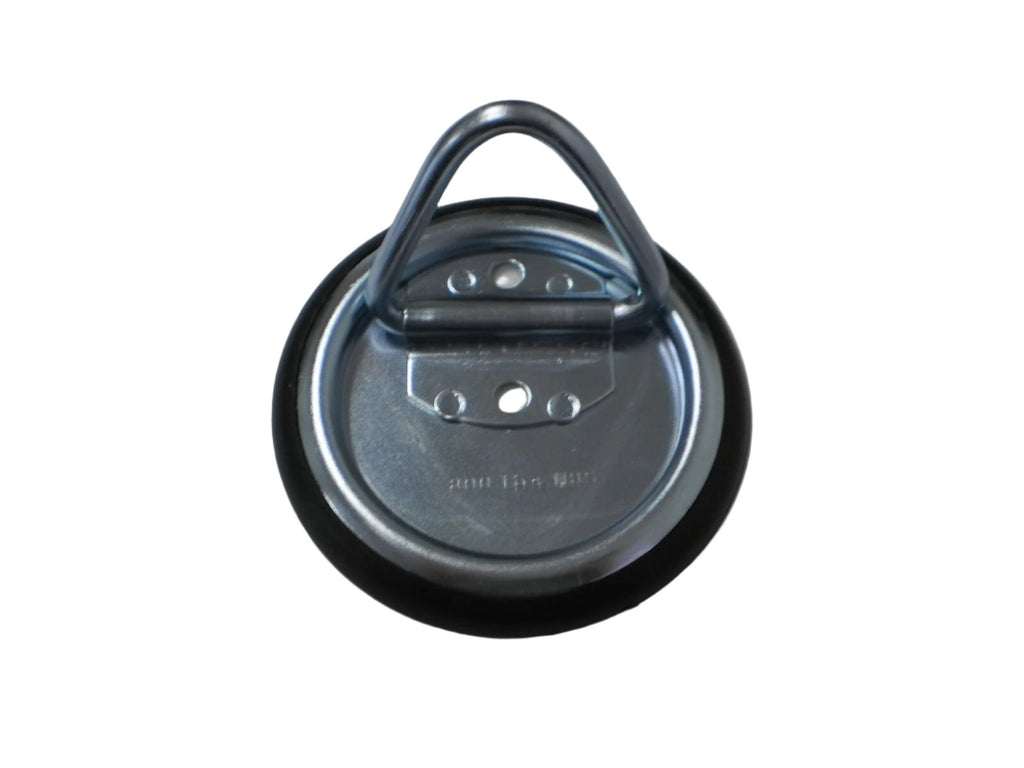

Set of six (6) 4" round surface-mount D-ring tie-downs designed for floor or wall mounting in trailers, vans, trucks, and utility applications. Each D-ring features a zinc-plated steel ring with a plastic trim bezel for a clean finished installation.
Features

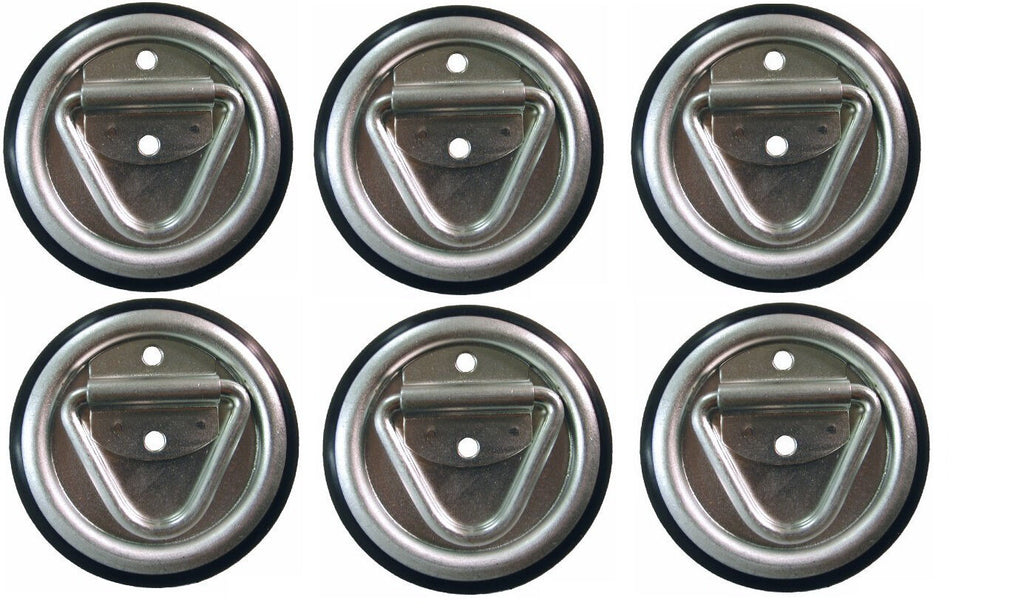

- Lot of six (6) surface-mount D-ring tie-downs
- 4" round plastic trim bezel included with each ring
- Zinc-plated steel construction for corrosion resistance
- Surface mount or recessed installation option
- Commonly used for securing motorcycles, ATVs, lawn equipment, and cargo
Specifications
| Quantity | 6 D-rings |
|---|---|
| Ring Thickness | 1/4" steel |
| Ring Shape | Triangular bend, approx. 2" tall |

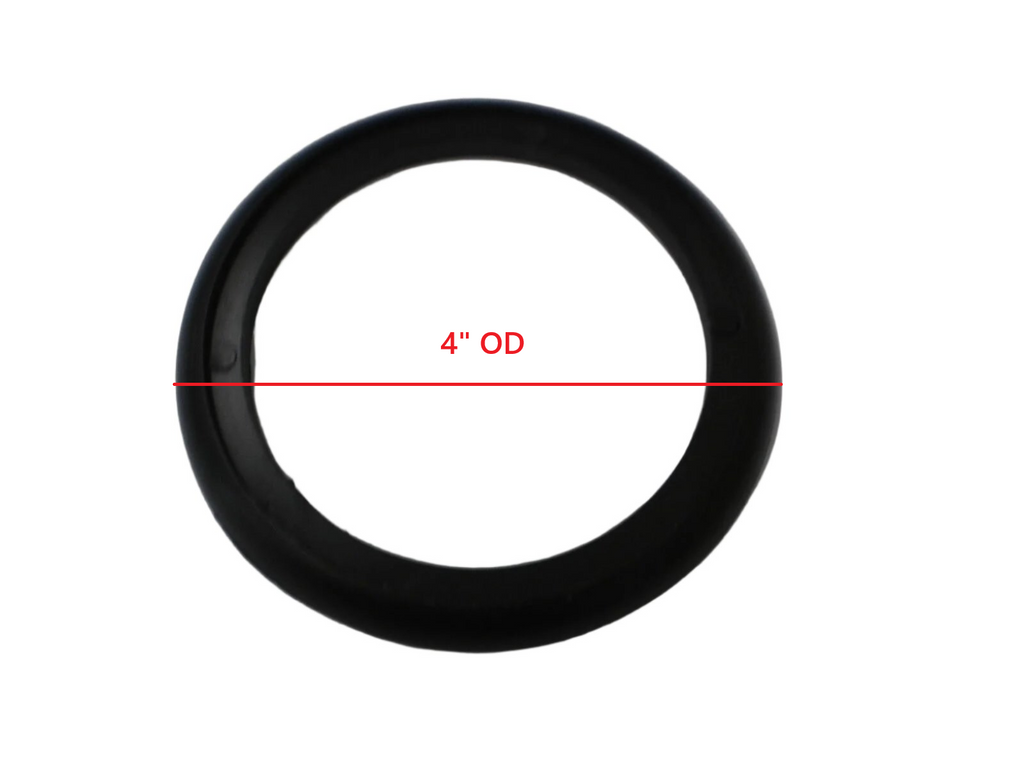

| Plastic Trim Ring OD | 4.0" |

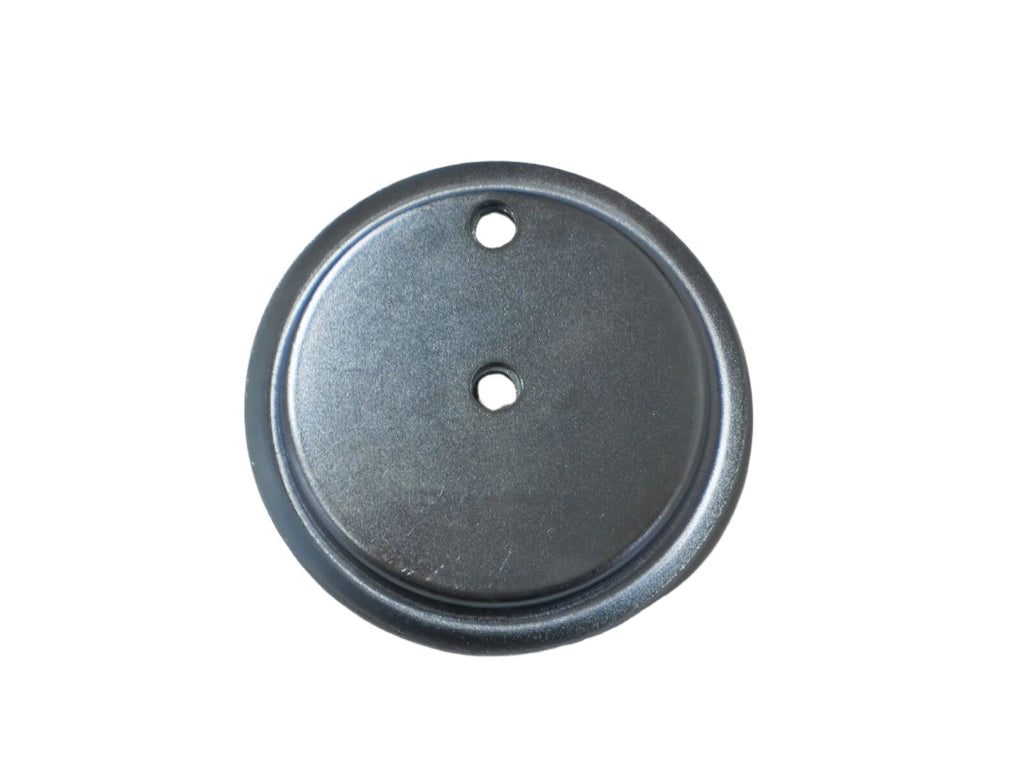

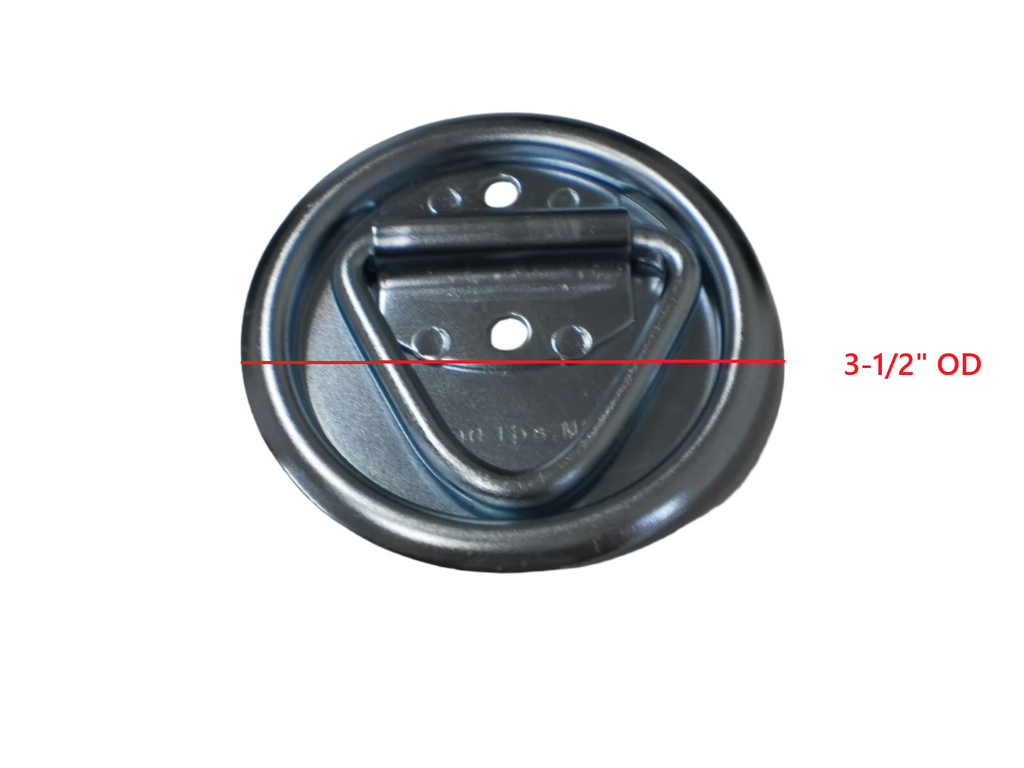

| Steel Base Diameter | 3.5" |
| Recess Option | Fits 3.0" hole, 1/4" deep (trim ring removed) |
| Mounting Holes | (3) holes total — (2) outer holes 1-1/8" center-to-center, (1) center hole |
| Rated Capacity | 800 lb (per D-ring) |
Typically mounted to trailer floors or frame crossmembers for secure tie-down points. Verify mounting surface strength and application requirements before installation. Not intended for vehicle recovery or heavy equipment restraint.
