Replacement Stub Axle End for 3500# Axles with a

5 x 5 Bolt Pattern

Part Number: STUB-84-550-H

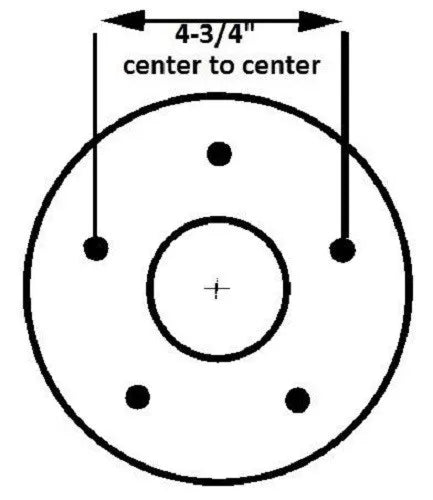

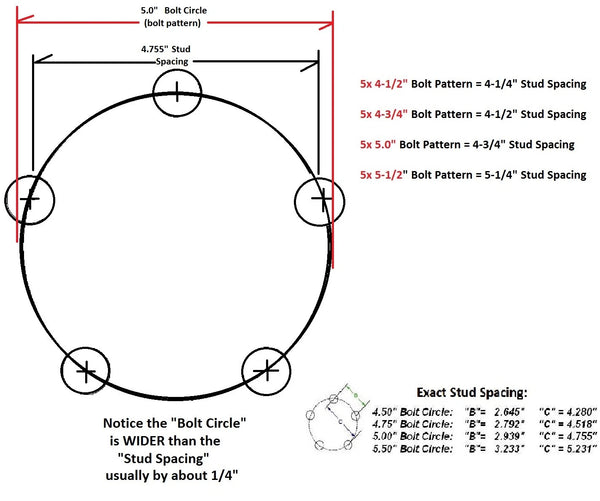

4-3/4" Stud Spacing (LARGE GM Bolt pattern)

This can be used as a direct replacement for a spindle that is not safely usable anymore. Spindles have 3.37" long  "tail shaft", 2.0" Diameter (Should fit inside in Standard 2" Schedule 40 pipe!)

Will fit most brands: Dexter, AL-KO, Quality, Lippert, etc. (If you are not sure, look at the axle spindle chart above, this hub fits spindle #84) I can ship more, if needed. I also have a few of other bolt patterns, see my other listings or just ask, and I will list them!

Includes:

1 x 3500 pound idler hub, 5 x 5 bolt pattern (code Red)

1 x 1.98" Dust cap

1 x L44649 Bearing

1 x L68149 Bearing

1 x 10-19 Seal

1 x SP-20084NWC Spindle

1 x 1" Axle Nut

1 x 1" spindle washer

Includes the 5 bolt x 5" bolt circle Hub, Bearings, Spindle, Axle nut, everything you need to replace ONE SIDE OF YOUR AXLE!

This hub will fit this axle:
