At a Glance
- >13 x 5mm LED diodes
- >Polycarbonate lens and housing
- >Solid-state circuit board
- >Moisture, vibration, and corrosion resistant construction
- >Rated 100,000-hour LED life
- Brand: Maxxima
- SKU: M11300WCL-KIT
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Function | Confirm stop, turn, tail, marker or clearance function. |
|---|---|
| Mount | Verify housing and mounting style. |
| Connection | Match the plug, pigtail or wiring. |
Product Details

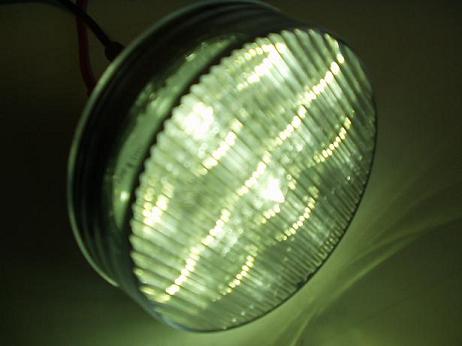

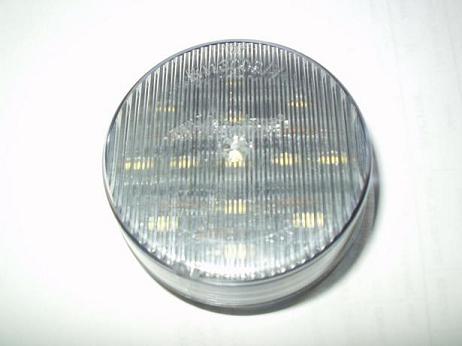

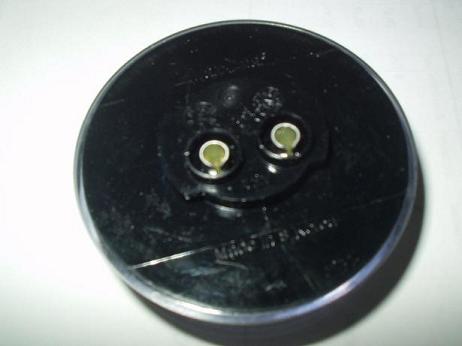

Maxxima 2-1/2" Round White Interior Courtesy Light – 13 LED
Part Number: M11300WCL
2-1/2" round white interior courtesy light featuring 13 LED diodes. Designed with a polycarbonate lens and housing and a solid-state circuit board. This light fits standard mounting holes, grommets, and PL-2 connectors and is grommet mounted.
Features
- 13 x 5mm LED diodes
- Polycarbonate lens and housing
- Solid-state circuit board
- Moisture, vibration, and corrosion resistant construction
- Rated 100,000-hour LED life
- Grommet mount design
- Compatible with standard PL-2 connector
Specifications
| Diameter | 2.50" |
|---|---|
| Depth | 0.69" |
| Voltage | 12.8 VDC |
| Amp Draw | 90 milliamps |
| LED Count | 13 x 5mm Diodes |
| Connector | PL-2 |
| Warranty | 10 Years |
Verify specifications before installation.
