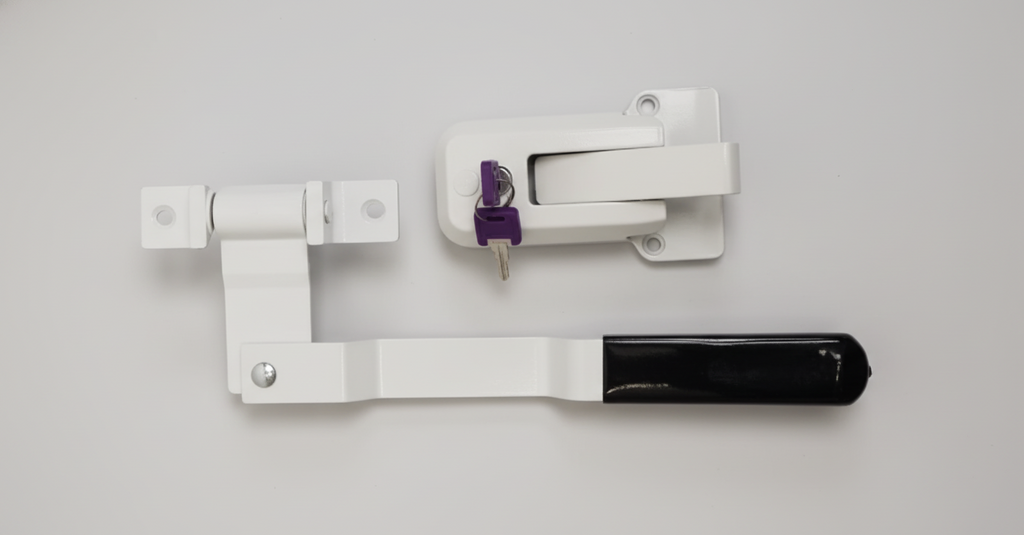

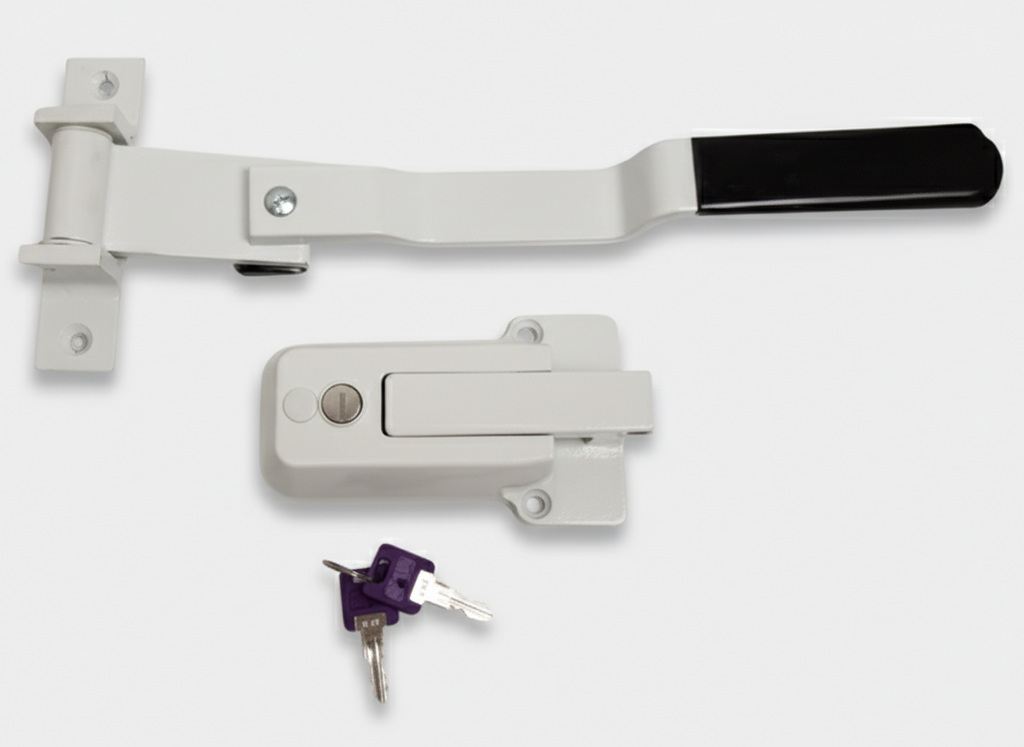

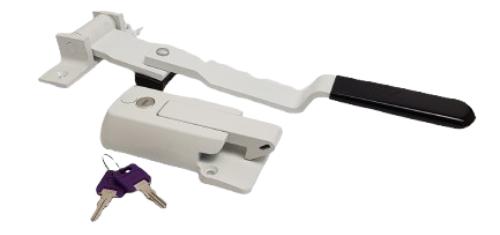

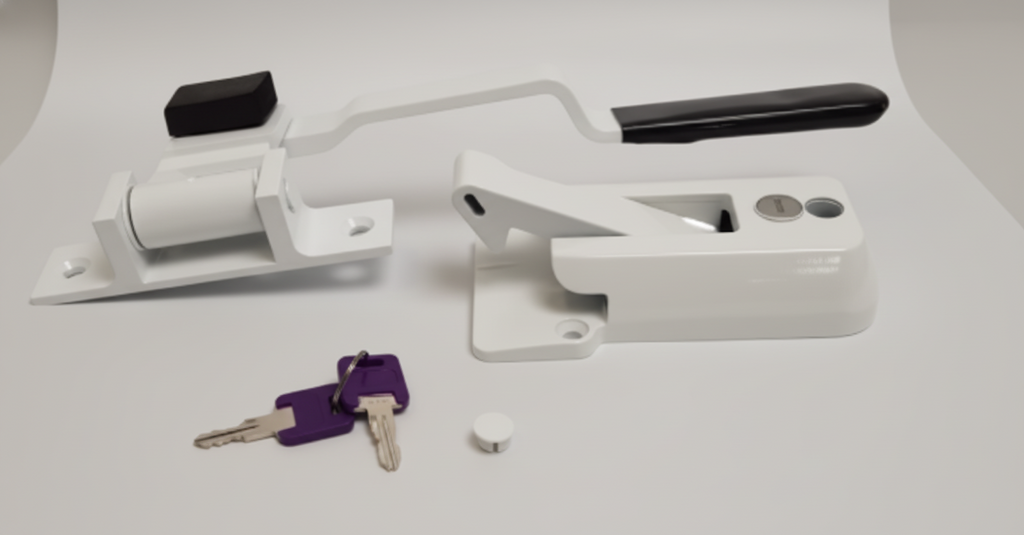

White Powder-Coated Swivel Bar Cambar with White Lock
Part Number: SCB-W2F-WHT
Complete cambar and latch system for cargo or utility trailer doors. This white powder-coated set includes a swivel bar cambar with a matching keyed-alike lock, providing secure closure, smooth operation, and a clean, finished appearance for rear or side-swing trailer doors.
Cambar Specifications
| Specification | Detail |
|---|---|
| Finish | White Powder Coat |
| Cambar Arm Length | 13" Overall, 1-1/2" Wide |
| Mounting Holes (On Center) | 4-5/8" |
| Mounting Bracket Size | 5-3/4" × 1-3/8" |
| Swivel Range | 180° |
| Padding | Foam Pad – Reduces Wear on Door Surface |
| Installation | Two-Hole Mounting |
Lock Specifications
| Specification | Detail |
|---|---|
| Finish | White Powder Coat |
| Dimensions | 6" × 3-9/16" |
| Mounting Holes | 3-Hole Mount Top holes: 2-7/8" OC | Bottom hole: 3-5/8" from top All holes 1/4" diameter |
| Latch Type | Spring-Assisted, Self-Latching |
| Security | Latch Locks Securely to Cam-Bar Includes 2 Keys – Keyed Alike |
Designed for reliability and ease of use, this cambar and lock set ensures a tight, rattle-free closure and a durable finish for long service life. Excellent for new installations or replacement of worn or corroded hardware on enclosed cargo, service, or specialty trailers. Can also be adapted for fold-out beds or compartments that require a compact, keyed latch system.
Note: Mounting hardware sold separately. Verify measurements and spacing before installation.
