Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
Affordable Pricing
Quality Products
|
Fast Shipping
Ships from our warehouse
|
Fitment Help
Real trailer-parts experts
|

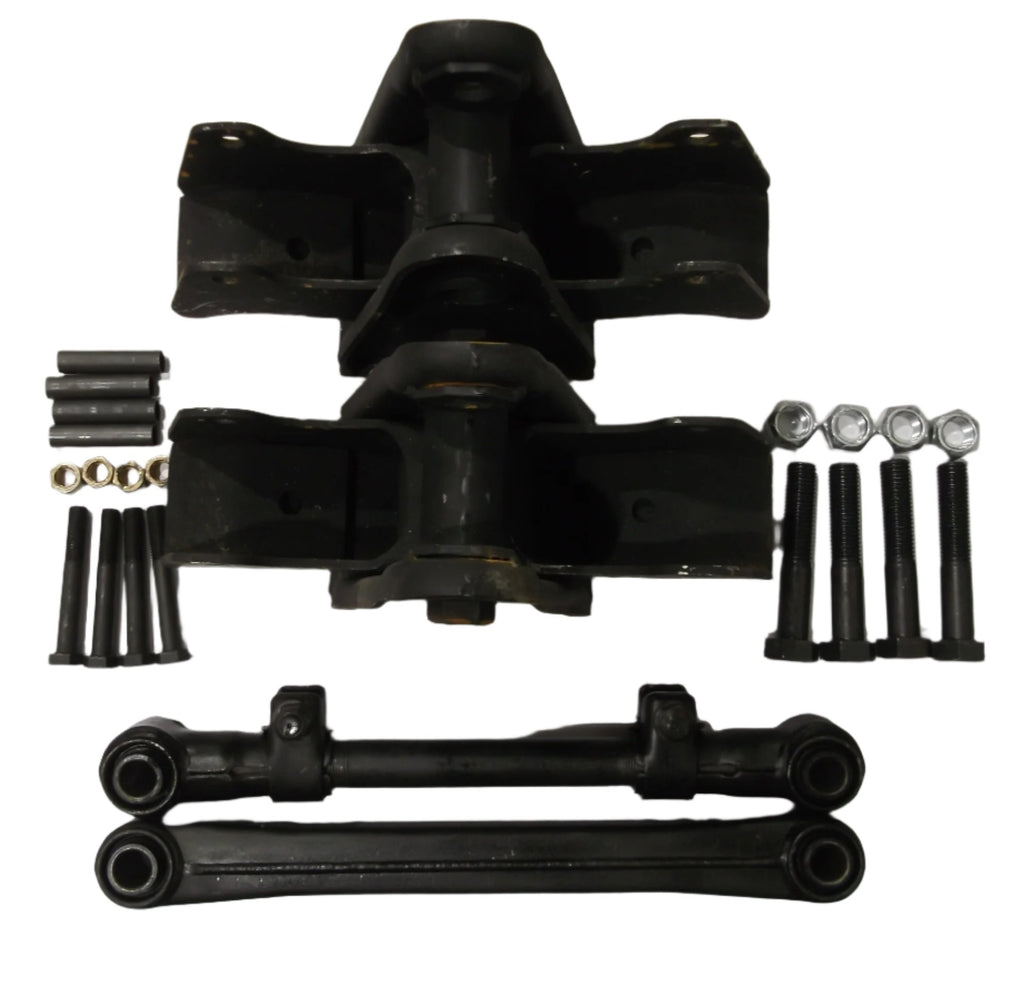

10K-25K Single Axles W/Double Slipper Springs
49" Axle Spacing
HAP-261-10 & HAP-261-11 = HAP-261-01
This Kit Contains:
(2) Center Hangers and EQ Assembly HAP-261-01 (29-44-10)
(1) Track Rod Bushed Adjustable 19.25 (62-10-10)
(1) Track Rod Bushed Fixed 19.25 (62-11-10)
(4) Track Rod Bolt 1-8 x 5.50 UNC (7-169)
(4) Track Rod Locknut 1-8 UNC (6-278)
(4) Keeper Bolt Sleeve (33-91)
(4) Spring Keeper Bolt 5/8-18 x 4.50 UNF (7-294)
(4) Keeper Bolt Locknut 5/8-18 UNF (6-126)
|
Not sure if this will fit your trailer?
Send us a message – our trailer-parts experts are standing by to help you get the right part the first time.
|
