Tandem Slipper Spring Hanger Kit for 2-Inch Springs with 12-Inch Equalizers (23002)

$142.15
Contact us for availability

Enter the quantity you need to check availability.

Quantity options
Selected quantity subtotal $142.15
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 23002
PRODUCT INFORMATION

Product Details

Tandem-Axle Slipper Spring Suspension Hardware

Tandem Slipper Spring Hanger Kit for 2-Inch Springs with 12-Inch Equalizers

A heavy-duty tandem-axle suspension hardware kit for compatible trailers using 2-inch-wide slipper springs. Includes front, center and rear hangers, two 12-inch equalizers, greaseable equalizer bolts and attaching hardware.

R&P SKU: 23002 2-Inch Slipper Springs 12-Inch Equalizers Tandem-Axle Kit

Key Measurements & Specs

Specification Detail
Part Number / SKU 23002
Product Type Tandem slipper spring hanger kit
Spring Type Slipper spring
Spring Width 2 inches
Equalizer Size 12 inches long × 3.78 inches wide
Equalizer Center Bolt 7/8-inch greaseable bolt
Quantity Included 1 complete component kit

Fitment / Application

Category Details
Trailer Configuration Tandem-axle trailer suspension
Spring Application Compatible 2-inch-wide slipper springs
Comparable Kit References Comparable in general application to BAK-1 and APT6SE-GS3 where all measurements match
Hanger References HG-15843-F and HG-15843-R are application references only
Fitment Method Verify spring width, hanger dimensions, bolt heights, equalizer size and suspension layout
Installation Weld-on hangers require proper positioning and welding

Top Features

Feature Buyer Benefit
Complete Hanger Set Includes front, center and rear hanger components for a tandem suspension layout.
12-Inch Equalizers Provides the specified equalizer size for compatible slipper spring systems.
Greaseable Bolts Includes two 7/8-inch greaseable bolts for the equalizer center mounting points.
Attaching Hardware Includes eight 9/16-inch bolts, eight matching nuts and two cotter pins.

Overview

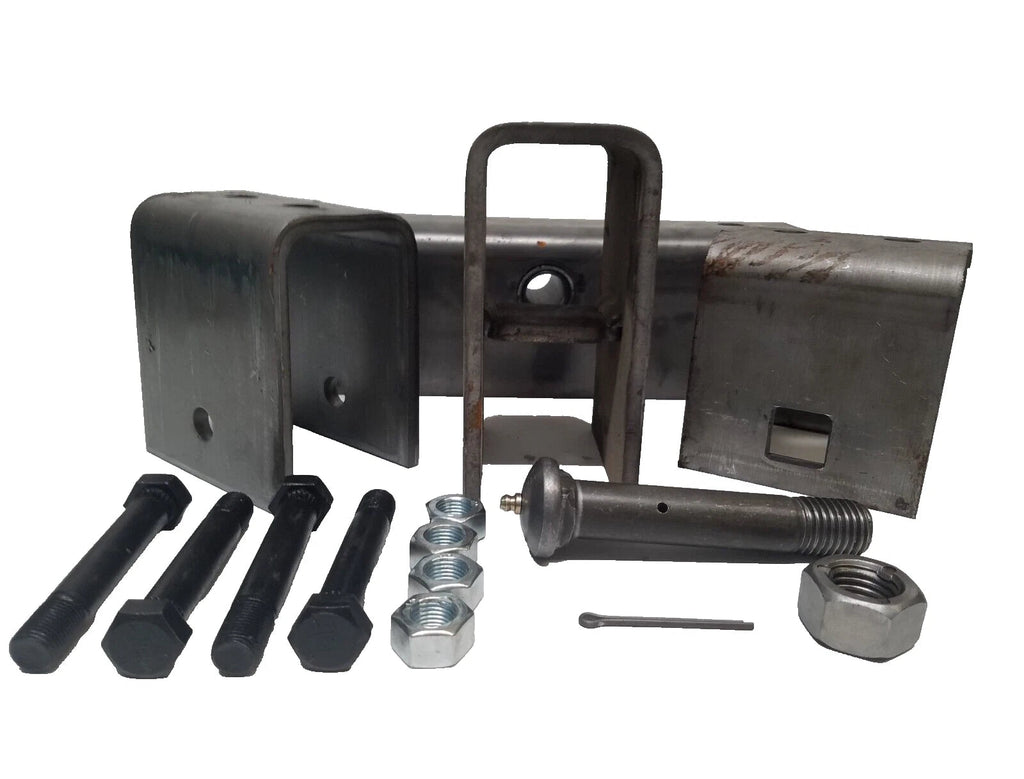

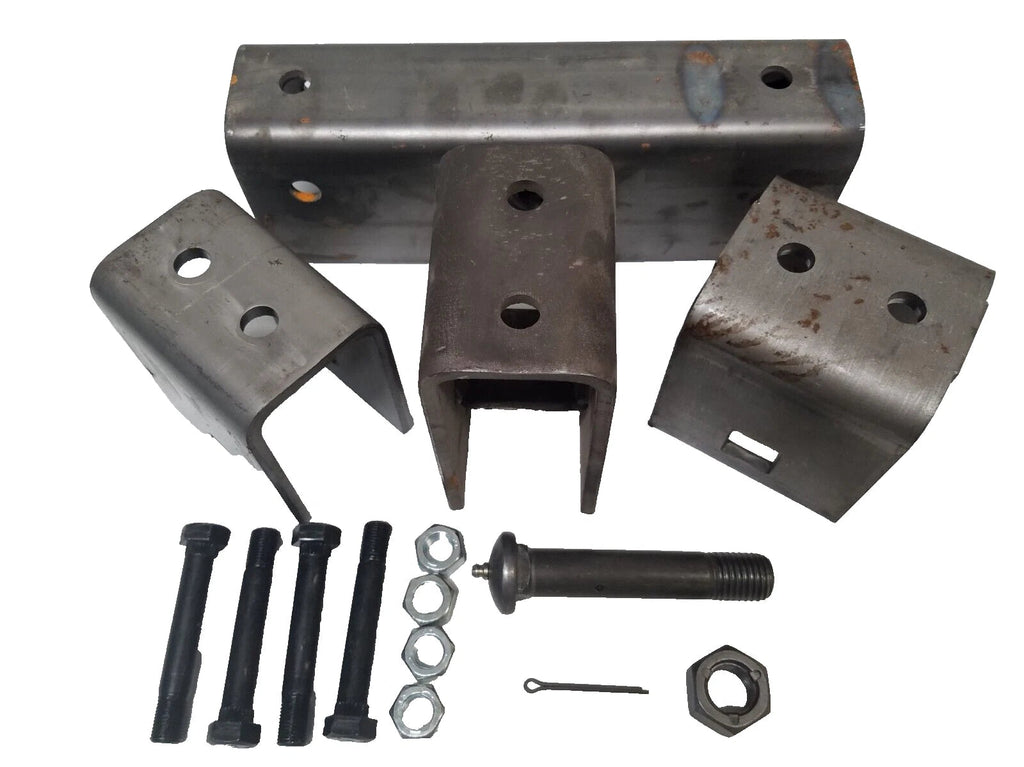

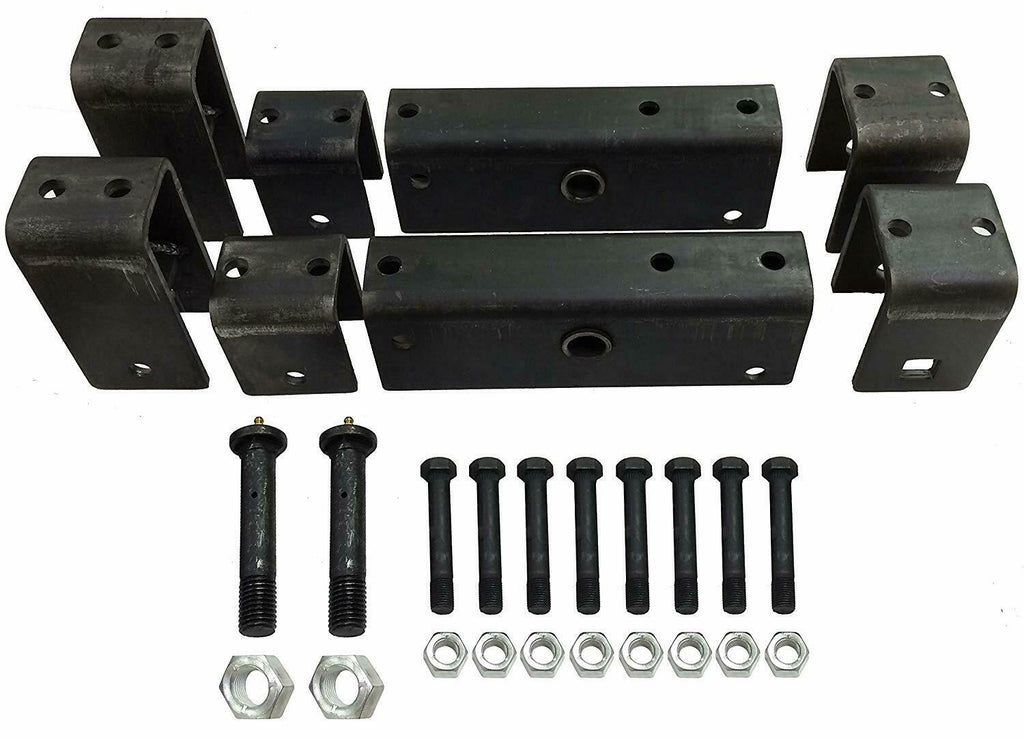

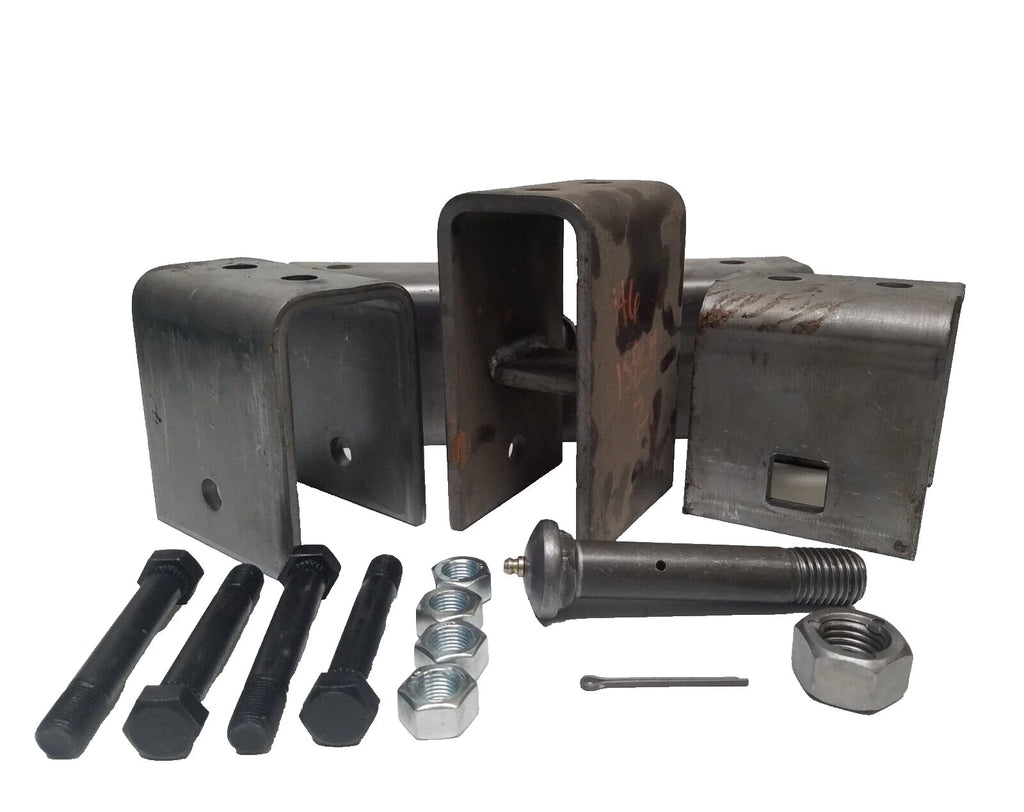

The R&P Carriages 23002 hanger kit brings together the primary hanger, equalizer and attaching components needed for a compatible tandem-axle trailer suspension using 2-inch-wide slipper springs. The kit includes two front hangers, two center hangers, two rear hangers, two 12-inch equalizers, two greaseable equalizer bolts, eight 9/16-inch bolts, eight matching nuts and two cotter pins.

R&P Service Insight

A hanger kit should be matched by its actual suspension geometry rather than by a comparable kit number alone. Measure the existing components and record their mounting positions before removing or replacing the suspension hardware.

  • Spring Check: Confirm that the trailer uses 2-inch-wide slipper springs.
  • Equalizer Check: Compare the 12-inch length, 3.78-inch width and mounting-hole locations with the existing equalizers.
  • Hanger Check: Verify each hanger’s width, length and top-to-bolt-center height before welding.

R&P Knowledge Hub

Compatibility: Designed for compatible tandem-axle suspension systems using 2-inch-wide slipper springs and 12-inch equalizers.

System Fit: The front, center and rear hangers create the frame attachment points for the slipper spring suspension. The equalizers mount beneath the center hangers.

Installation Notes: Record the original axle spacing and hanger locations before removing the old components. The replacement hangers must be aligned and welded securely to the trailer frame.

Performance Insight: The equalizers allow movement between the two slipper spring assemblies as the tandem axles travel over changes in the road surface.

Brand & Fitment Note

Selling Brand: R&P Carriages component kit

Application References: BAK-1, APT6SE-GS3, HG-15843-F and HG-15843-R are supplied as general comparison or application references. They do not establish an exact interchange.

What This Means: This listing is for the R&P Carriages 23002 component kit. It is not represented as an OEM-branded BAK-1 or APT6SE-GS3 kit.

Before Ordering: Compare every hanger dimension, bolt height, bolt-hole size, equalizer measurement, spring width and mounting location with the trailer’s existing suspension.

R&P Repair Insight

Suspension geometry affects axle position and spring movement. Do not assume that two kits are interchangeable based only on spring width or equalizer length.

  • Measure Before Removal: Record the center-to-center hanger locations and axle spacing before cutting old hangers from the frame.
  • Inspect the Frame: Check the intended mounting areas and surrounding frame structure before installing new weld-on hangers.
  • Verify Hardware: Confirm that all required nuts, retainers and installation hardware are present before beginning the repair.

Features

Tandem Slipper Spring Layout

Component selection is arranged for a compatible tandem-axle trailer using 2-inch-wide slipper springs.

Front, Center & Rear Hangers

Includes two hangers for each of the three required mounting positions.

12-Inch Equalizer Pair

Includes two EQ-12 equalizers measuring 12 inches long by 3.78 inches wide.

Greaseable Center Hardware

Two GEB-78 greaseable bolts provide the specified 7/8-inch equalizer center mounting hardware.

Included Components

Quantity Part Specifications

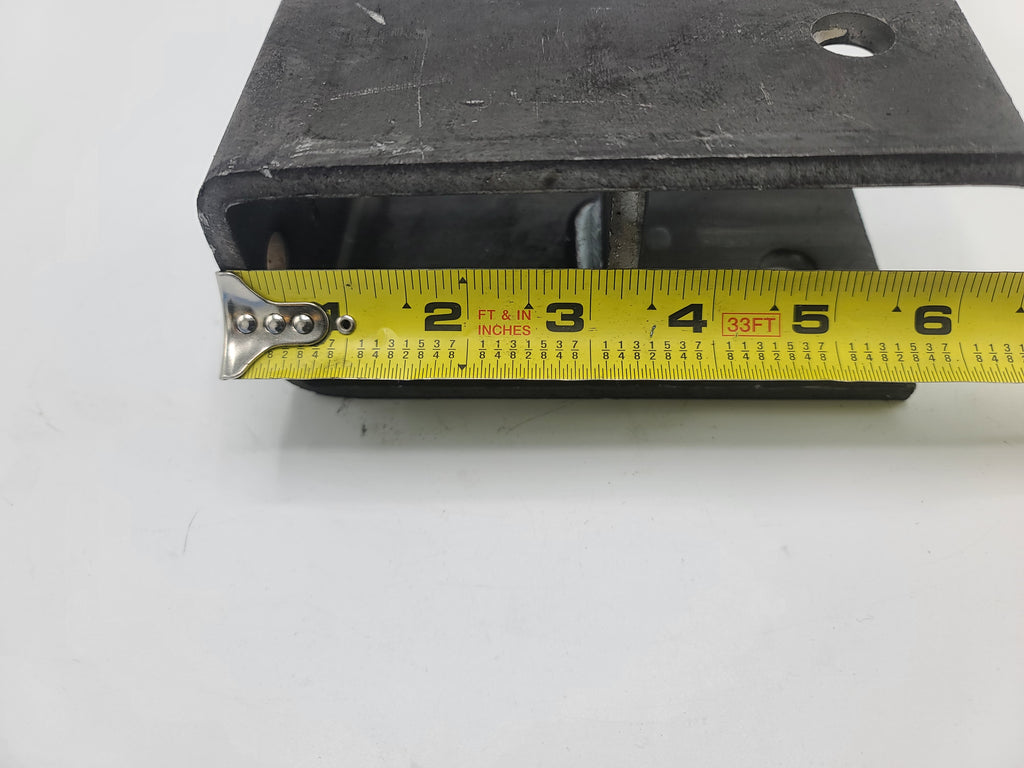

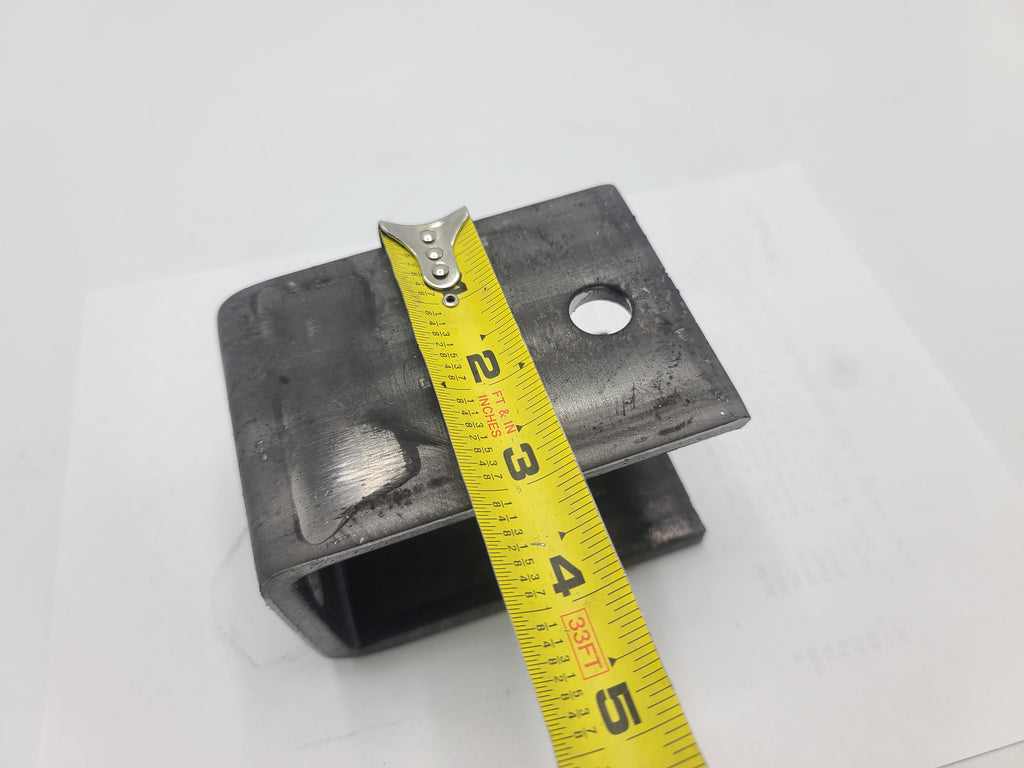

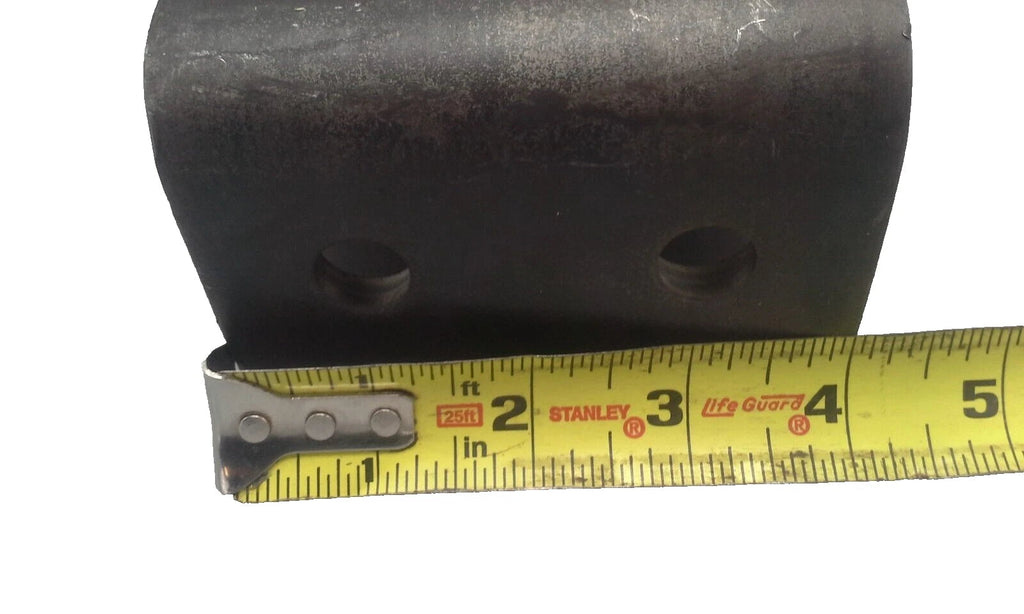

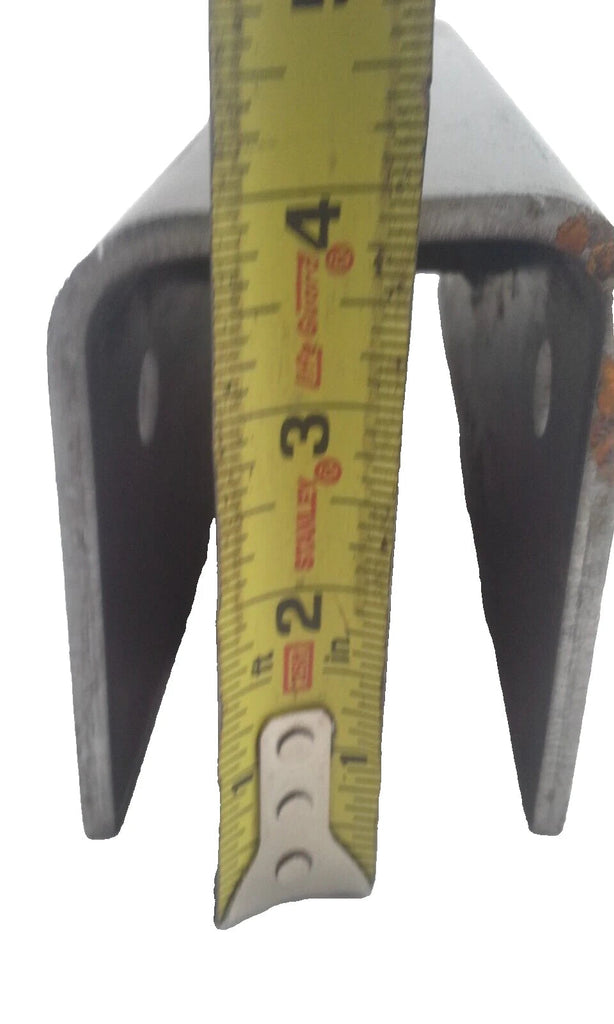

2 H4.375F Front Hangers 2.25 inches wide; 3.625-inch bolt height; 4 inches long

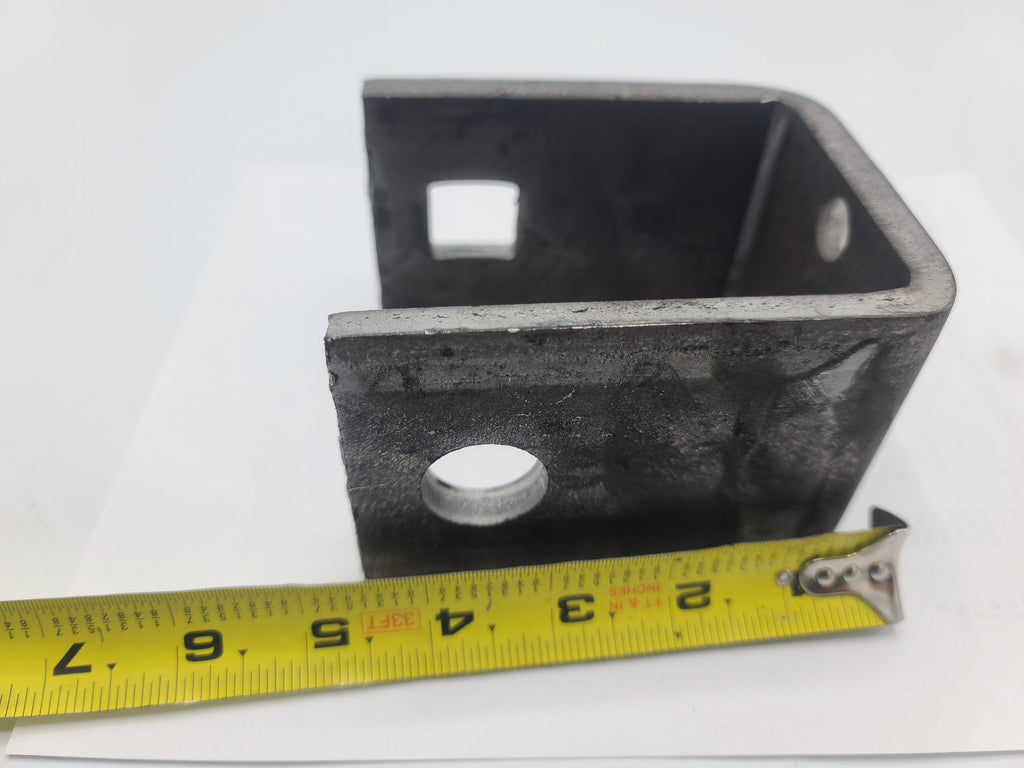

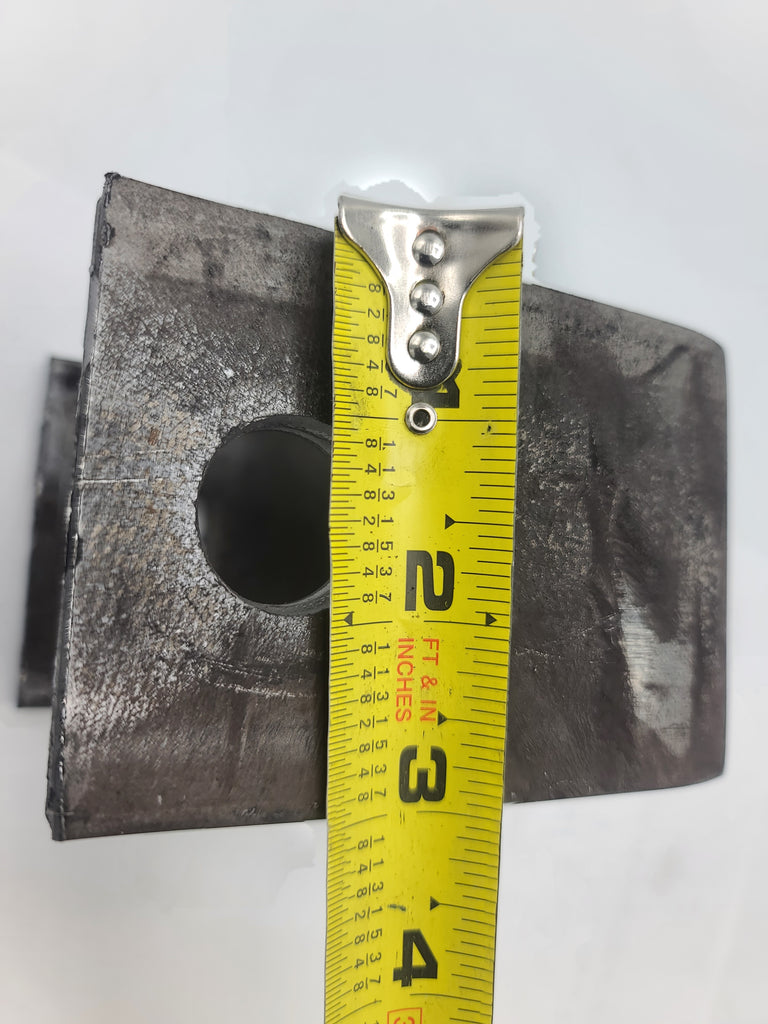

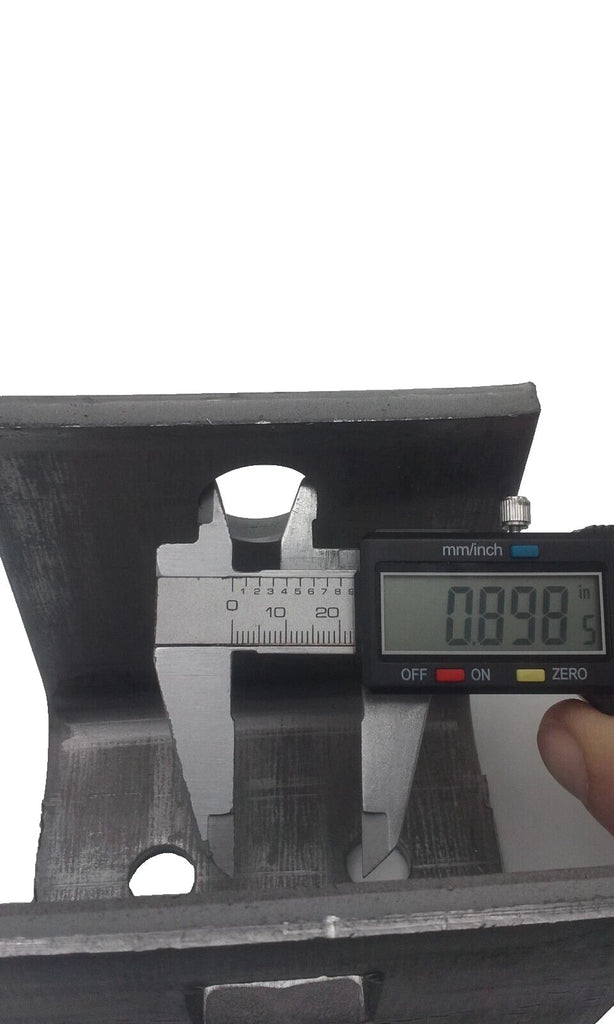

2 H-4.5-SQ4 Center Hangers 3 inches wide; 3.625-inch bolt height; 3.062 inches long; 0.9-inch square hole

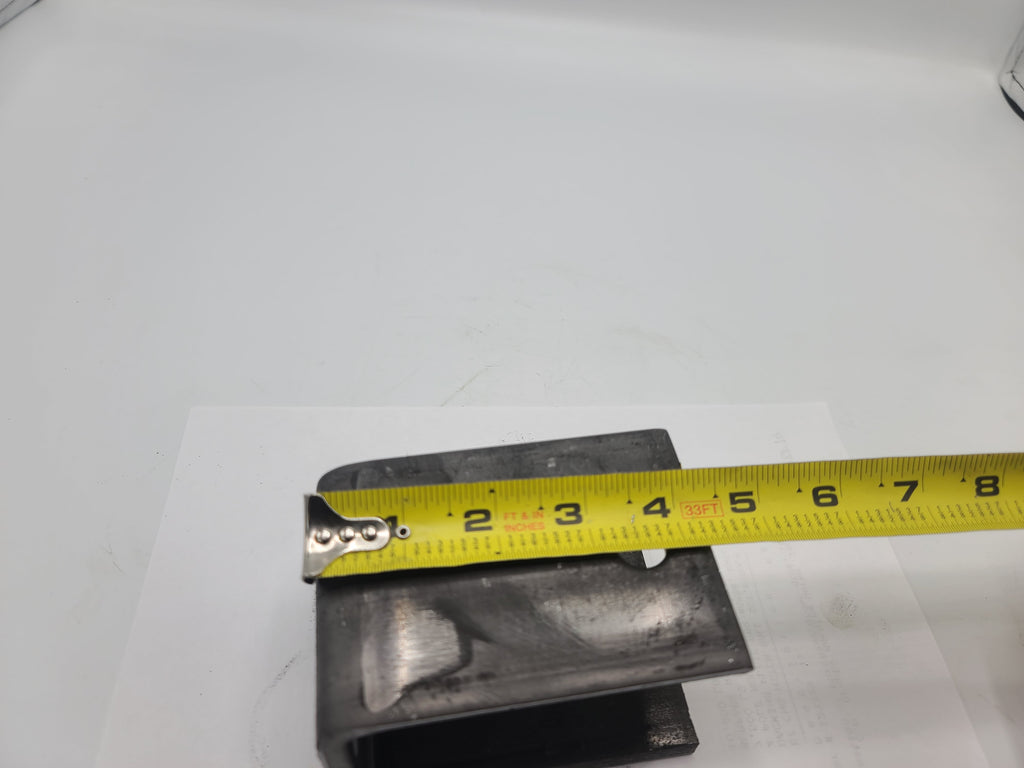

2 H6R Rear Hangers 2.25 inches wide; 5-inch bolt height; 4 inches long; 5/8-inch bolt holes

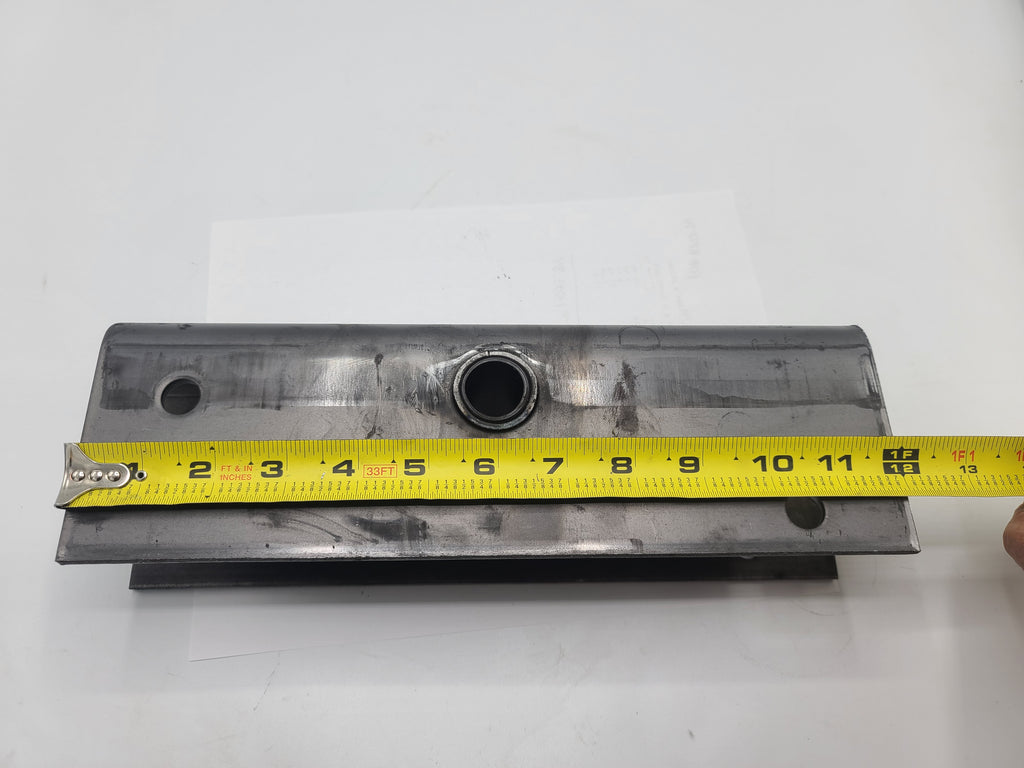

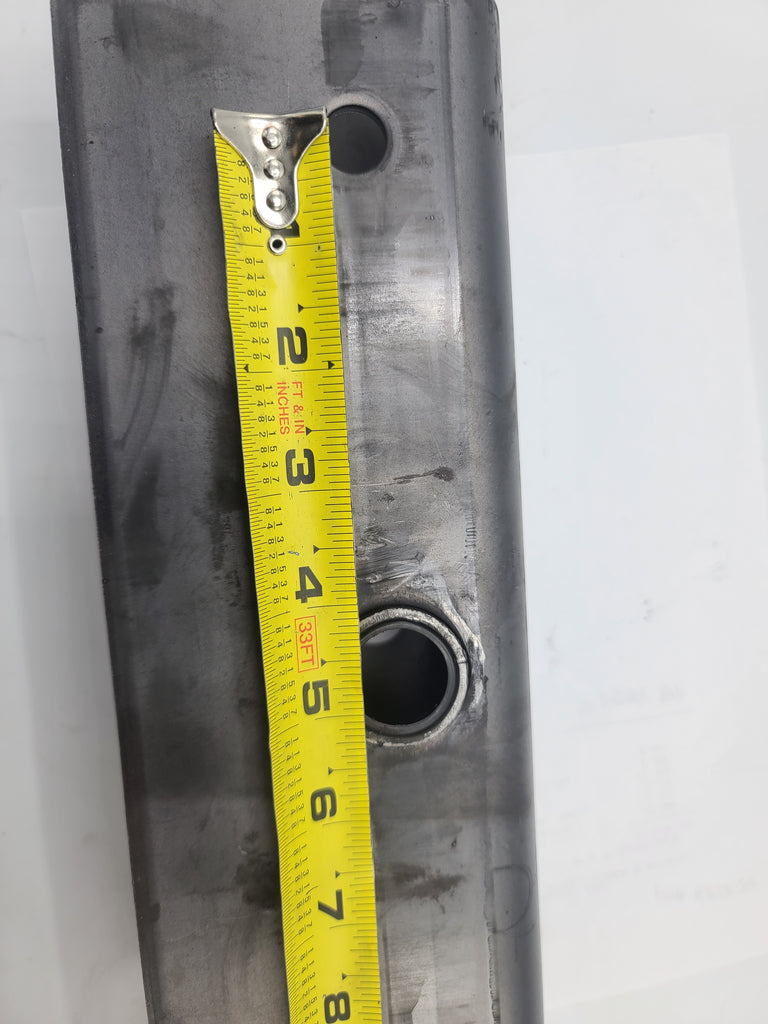

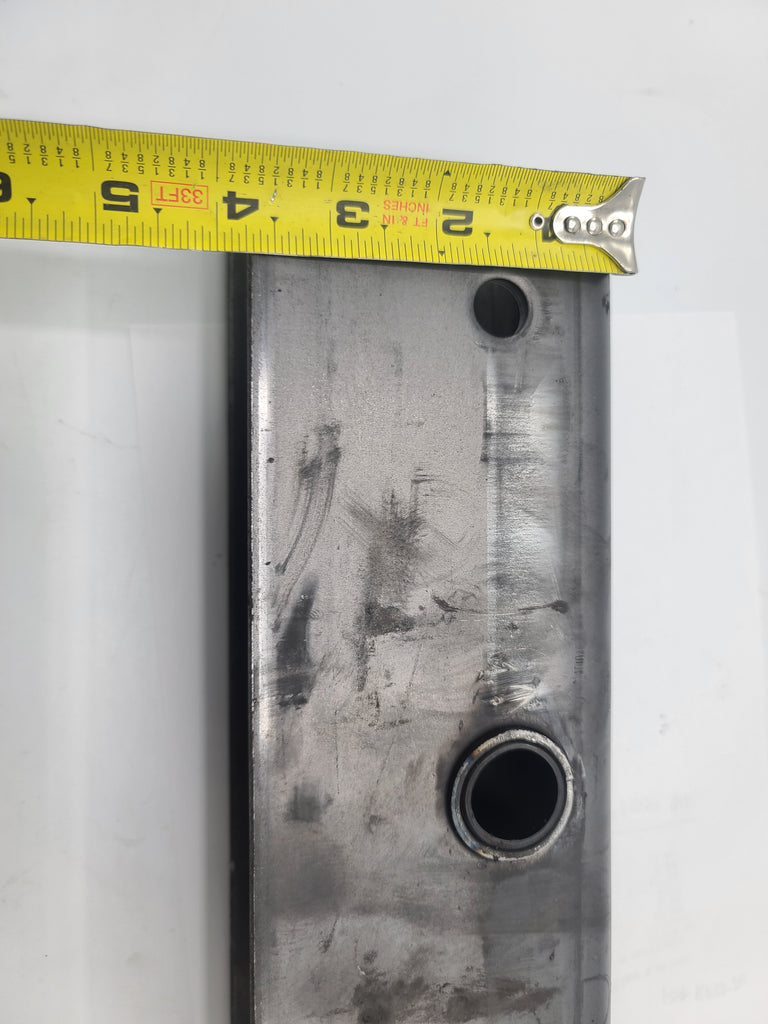

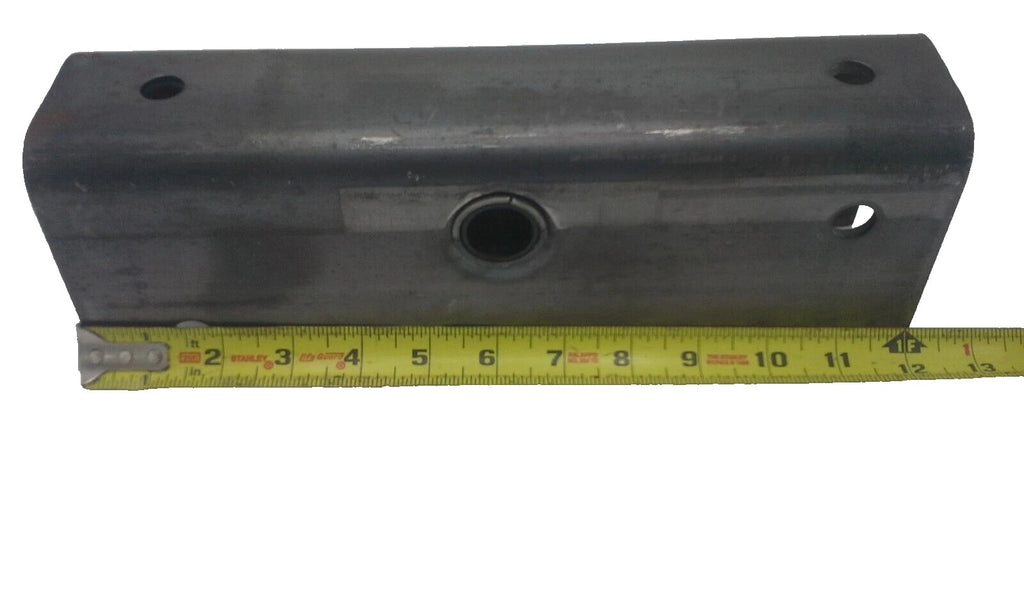

2 EQ-12 Equalizers 12 inches long × 3.78 inches wide; designed for the listed GEB-78 center bolt
2 GEB-78 Greaseable Bolts 7/8-inch diameter; fits the EQ-12 center mounting location
8 91635B Bolts 9/16"-18 thread; 3.5 inches long; 1/2-inch thread length
8 SB-LN-9 Nuts 9/16"-18 thread
2 165649 Cotter Pins 1/8 inch × 1-3/4 inches
Important Fitment Note: Comparable kit and hanger numbers are application references only. Before ordering, verify the 2-inch spring width, 12-inch equalizer dimensions, hanger widths, hanger lengths, top-to-bolt-center heights, bolt-hole sizes, original axle spacing and every included component. Welding and final suspension alignment should be completed by a qualified installer.
R&P Carriages 23002 tandem slipper spring hanger kit, 2 inch slipper spring hanger kit, 12 inch trailer equalizer kit, tandem axle suspension hanger hardware, EQ-12 equalizer, GEB-78 greaseable equalizer bolt, H4.375F front hanger, H-4.5-SQ4 center hanger, H6R rear hanger, comparable application to BAK-1, comparable application to APT6SE-GS3, HG-15843-F application reference, HG-15843-R application reference
