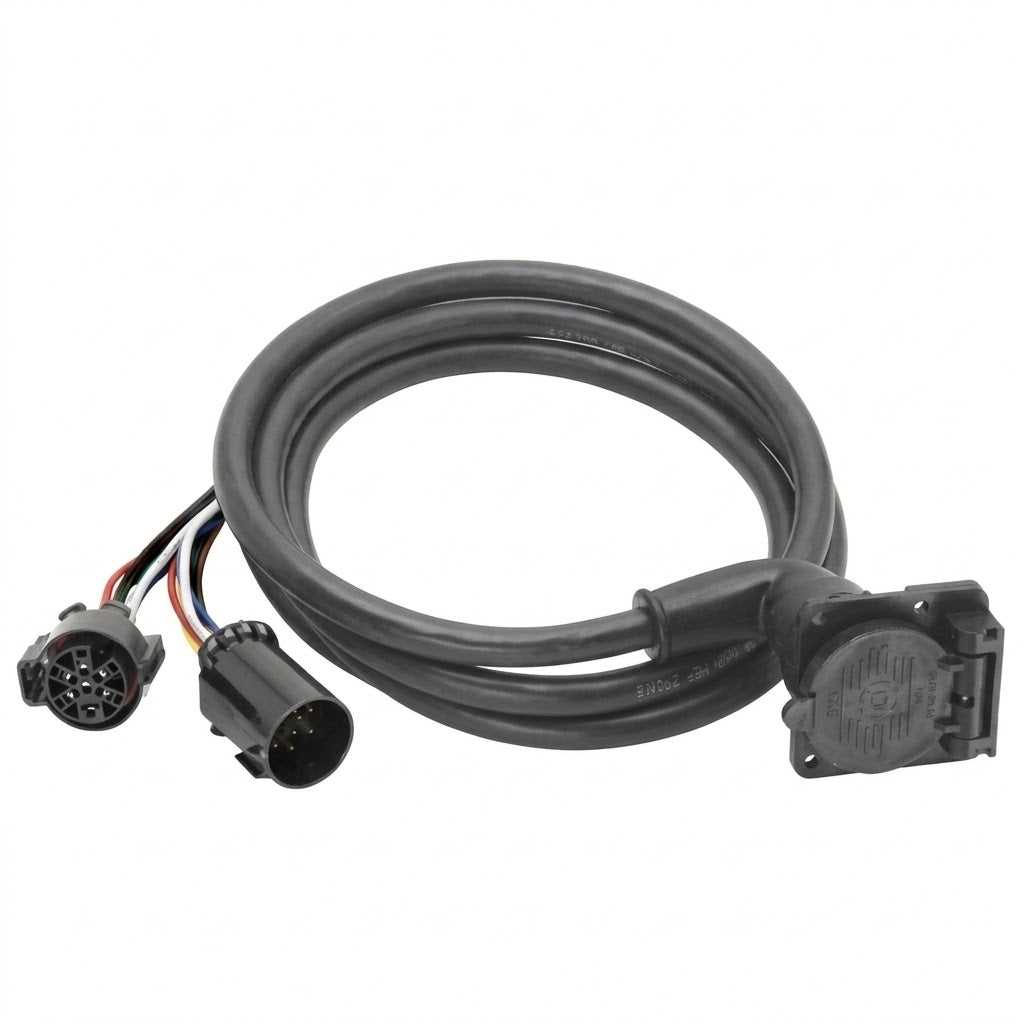

5th Wheel/Gooseneck 90-Degree 9' Wiring Harness w 7-Pole Plug GM Ford Ram Toyota (50-97-410)

Bargman

Regular price $125.99



Bargman Custom Fit Vehicle Wiring
PN: 50-97-410

T-Connector works with fifth-wheel and gooseneck trailers and retains use of your vehicle's factory 7-way connector. It connects your factory 7-pole at the bumper to a new 7-pole in the truck bed. Adapter has a 90-degree angle for tight spaces.

*Truck not included*

Features:

  • Enables hassle-free hookup of 5th-wheel and gooseneck trailers using 7-way, RV-style connector
    • 9' Long, insulated wiring harness easily reaches from rear bumper to truck bed
    • Adapter head is designed with 90-degree angle to fit into tight spaces in truck-bed side rails
      • Constructed of flame-retardant material
    • Molded-on cable protects the wiring from water and debris
  • Plugs between OEM wiring harness and your factory-installed 7-way connector
    • Requires that your vehicle have factory tow package with a 7-pole trailer connector
    • Retains use of factory 7-pole connector at the rear of your vehicle
  • Includes mounting bracket and self-tapping, stainless steel screws for installation

Specs:

  • Harness length: 9'
  • Wire configuration:
    • Yellow: center auxiliary
    • Green: tail and license lights
    • Brown: right turn and stop lights
    • Blue: electric brake
    • Black: battery charge
    • Red: left turn and stop lights
    • White: ground wire
  • Wire gauges:
    • Black/white: 10
    • Blue: 12
    • Brown/red/green/yellow: 14
  • 1-Year limited warranty


Note: On some vehicles, you may need to add a fuse or relay (not included) to complete all of the functions going to the 7-way. Consult your owner's manual for locations.


90 Degree Wiring Harness

Simple Wiring

The Bargman 90-degree wiring harness makes attaching your trailer to your tow vehicle a snap. With a 9' lead that can easily reach your truck bed and a 90-degree angled head that fits into tight spaces, this uniquely designed wiring harness is perfect not only for your new fifth-wheel hitch, but for gooseneck hitches as well. Simply tee the harness into your vehicle's factory-installed 7-way trailer connector, which is mounted under the bumper of your truck. The 7-way connector on this harness then mounts in the wheel well, right next to your hitch, for quick, easy hookup.



50-97-410 5th Wheel/Gooseneck 90-Degree Wiring Harness w/ 7-Pole Plug - GM, Ford, Dodge, Toyota - 9' Long

Replaces 20134

Same as 51-97-410
