Match the part number, measurements and connection points that apply to your trailer.
| Hub Face | Measure hub face to hub face. |
|---|---|
| Spring Center | Measure mounting centers and confirm perch configuration. |
| Capacity | Match the required axle rating. |
| Brakes | Confirm brake type and flange configuration. |
 Affordable Pricing
Quality Products
|
 Fast Shipping
Ships from our warehouse
|
 Fitment Help
Real trailer-parts experts
|

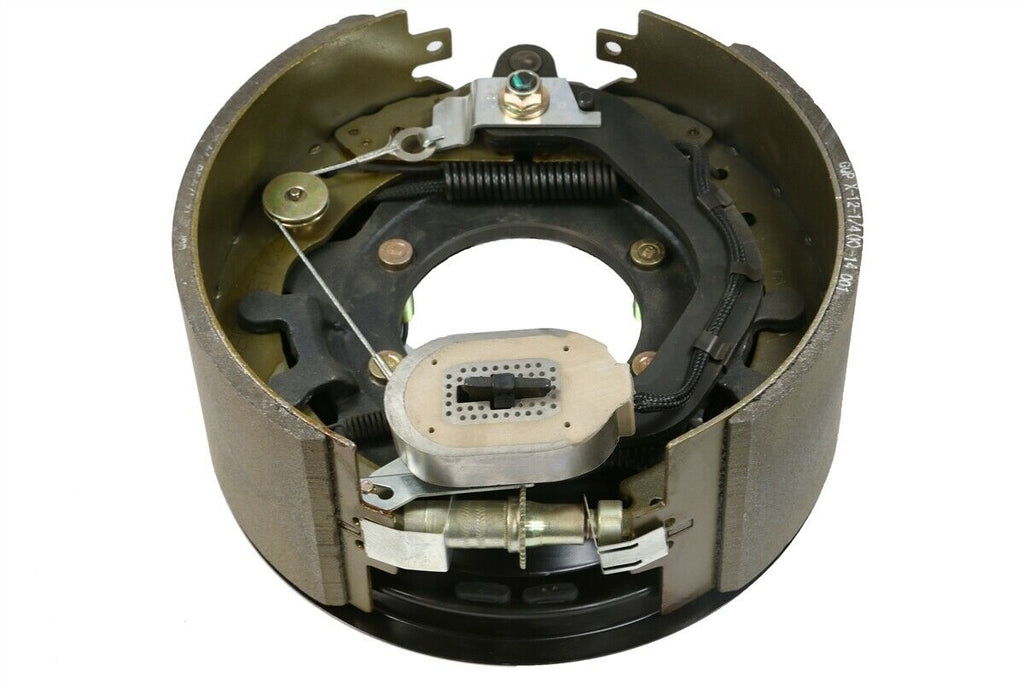

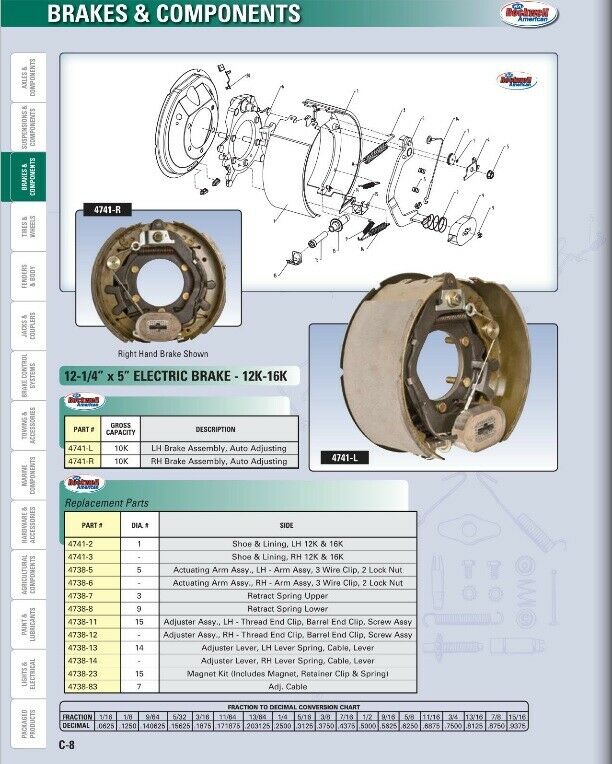

Complete Right Hand (Passenger's side) brake assembly ready to bolt on.
Shoe size 12-1/4" x 5" wide
Shoes are self adjusting ,you will not have to manually adjust
Fits 12-16K axles built by Quality/Rockwell axles
Bolts on with 5 bolts
Simple 2 wire hook up
This electric brake assembly is NOT used on Dexter axles. It is found on trailers with imported axles and is hard to find. So far, we know trailers made by Quality Trailer, H and H Trailer, J and J Trailer, and Lippert Trailer have been found to use this brake assembly, and we're sure there are others.
|
Not sure if this will fit your trailer?
Send us a message – our trailer-parts experts are standing by to help you get the right part the first time.
|
Selected from R&P customer feedback for Trailer Axle / Running Gear products and related trailer service.
“Got me the axle I needed right away with custom spring perch setting.”
“Had a trailer made to my needs.ken was able to get it done and at a price that was very acceptable.i have bought parts there for 2 other trailers and always in stock”
“Quality work. Staff is polite. Great job welding a project for me. Didn't even want to charge me, so I bought them a case of Corona. They were ecstatic. I ever need a welding or like that R&P Carriages is #1 !!!!!”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
