2-5/16" Chrome Trailer Hitch Ball with 1" Shank, 2-1/8" Long, 7,500 lb Rated
Heavy-duty chrome trailer hitch ball for ball mounts with a 1" diameter ball hole. Designed for use with 2-5/16" trailer couplers where the trailer, hitch, ball mount, and towing system are rated appropriately.
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 6300079 |
| Product Type | Trailer hitch ball |
| Ball Diameter | 2-5/16" |
| Shank Diameter | 1" |
| Shank Length | 2-1/8" |
| Weight Rating | 7,500 lb |
| Finish | Chrome |
| Quantity Included | 1 hitch ball with lock washer and nut |
Fitment / Application
| Category | Details |
|---|---|
| Trailer Coupler Size | For 2-5/16" trailer couplers |
| Ball Mount Fit | Fits ball mounts with a 1" diameter ball hole |
| Mounting Check | Verify shank diameter, platform thickness, and available thread engagement before installation |
| Important Note | Do not exceed the lowest-rated component in the towing system, including vehicle, hitch, ball mount, hitch ball, coupler, and trailer |
Top Features
| Feature | Buyer Benefit |
|---|---|
| 2-5/16" Ball Size | Matches common heavy-duty trailer couplers |
| 1" Shank Diameter | Fits compatible ball mounts with 1" ball holes |
| 2-1/8" Shank Length | Provides mounting length for compatible ball mount platforms |
| Chrome Finish | Clean finish for standard towing setups and replacement applications |
Overview
This 2-5/16" chrome trailer hitch ball is rated for 7,500 lb and uses a 1" diameter shank with a 2-1/8" shank length. It is a practical replacement or setup component for compatible ball mounts used with 2-5/16" trailer couplers.
R&P Service Insight
Correct hitch ball selection depends on more than coupler size. The shank diameter, shank length, ball mount platform thickness, and towing rating all need to match the application.
- Coupler Match: Use only with a 2-5/16" coupler.
- Ball Mount Match: Confirm the ball mount accepts a 1" shank.
- Capacity Check: The usable towing capacity is limited by the lowest-rated towing component.
R&P Knowledge Hub
Compatibility: Fits compatible towing setups requiring a 2-5/16" hitch ball with a 1" diameter shank and 2-1/8" shank length.
Vehicle / System Fit: Commonly used with receiver-style ball mounts, trailer hitches, and couplers rated for the load being towed.
Installation Notes: Install with the included lock washer and nut. Verify proper seating, thread engagement, and torque before towing.
Performance Insight: Matching the ball diameter to the coupler and the shank diameter to the ball mount is essential for safe, secure trailer connection.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: This listing is for a replacement hitch ball used in compatible trailer towing applications.
What This Means: This listing is for one 2-5/16" chrome trailer hitch ball with included lock washer and nut.
Before Ordering: Verify ball size, shank diameter, shank length, towing rating, ball mount hole size, and ball mount platform thickness before installation.
R&P Repair Insight
Hitch balls should be replaced when the ball surface, threads, nut, or washer show damage, severe wear, deformation, or corrosion that could affect safe towing.
- Check Ball Size: The trailer coupler must match the 2-5/16" hitch ball size.
- Check Shank Fit: A 1" shank requires a compatible 1" ball mount hole.
- Check Rating: Confirm the hitch ball rating is appropriate for the trailer and that all towing components meet or exceed the required capacity.
Features
2-5/16" Hitch Ball
Designed for trailers using a 2-5/16" coupler, a common size for heavier trailer towing applications.
1" Diameter Shank
Fits compatible ball mounts with a 1" ball hole for secure mounting.
2-1/8" Shank Length
Provides the listed shank length needed for compatible ball mount platforms.
Chrome Finish
Chrome finish gives the hitch ball a clean appearance for standard receiver-style towing setups.

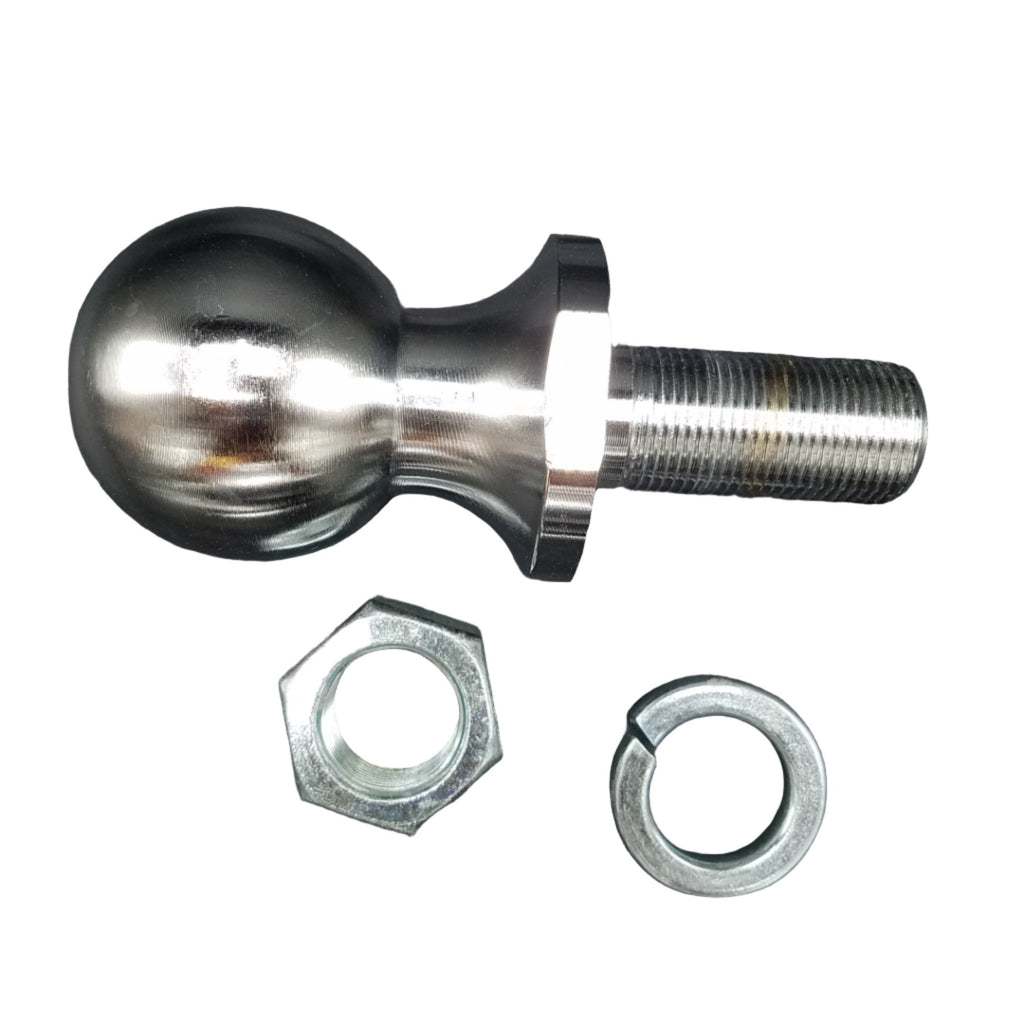

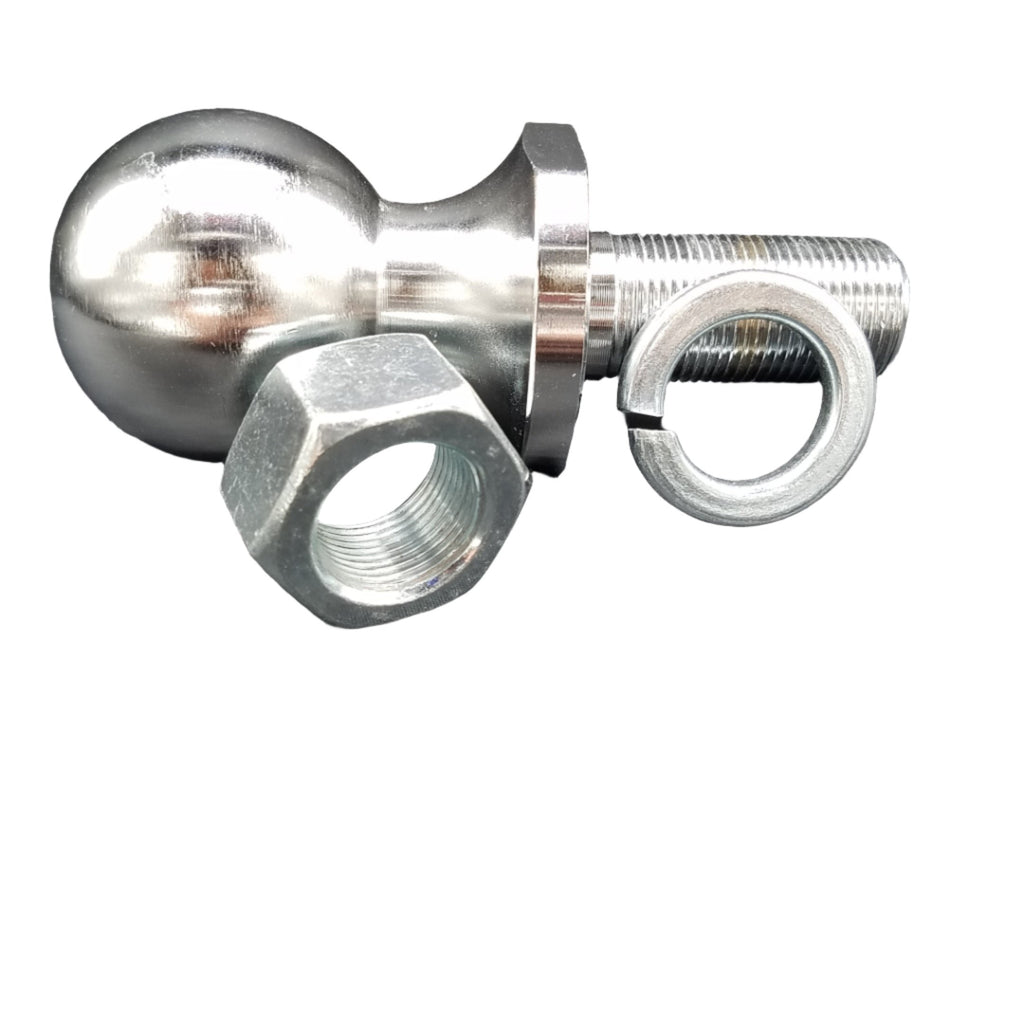

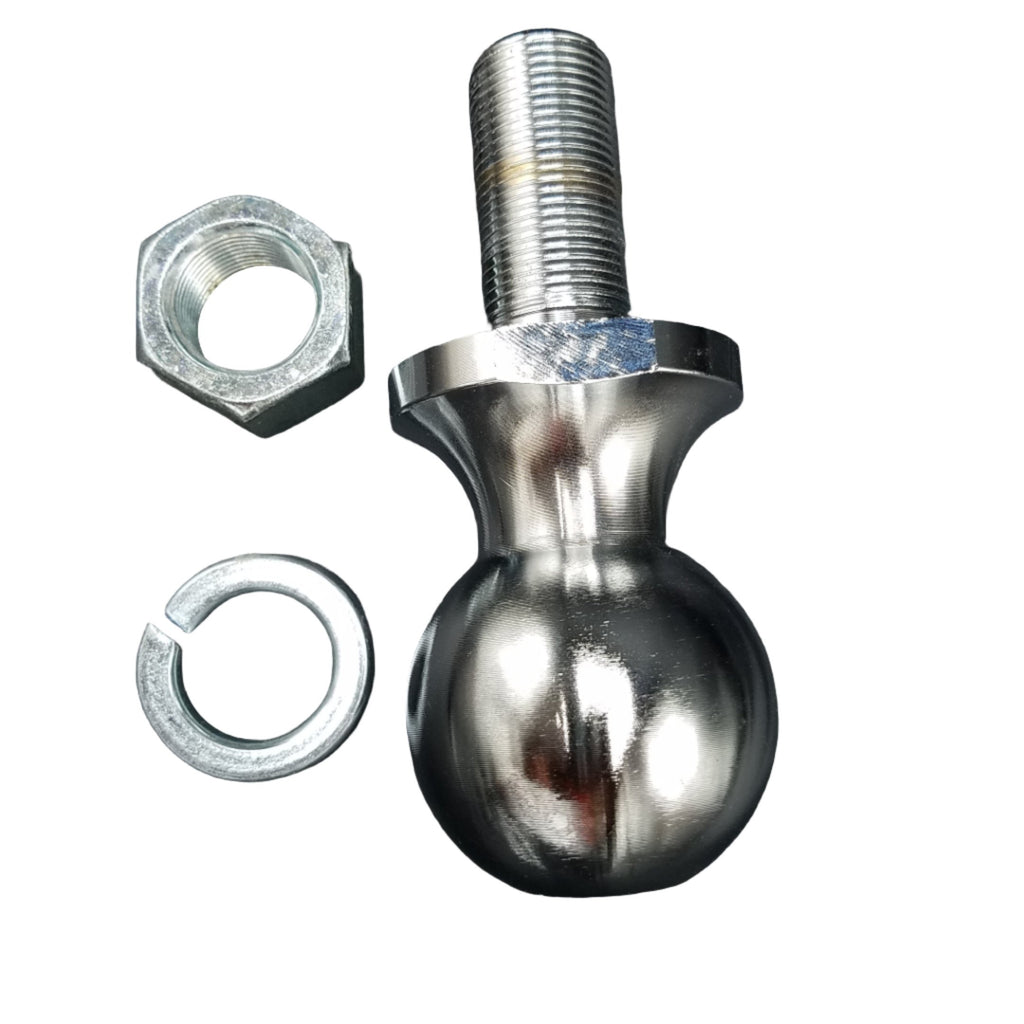

Included Components
| Quantity | Item |
|---|---|
| 1 | 2-5/16" chrome trailer hitch ball with 1" x 2-1/8" shank |
| 1 | Lock washer |
| 1 | Nut |
