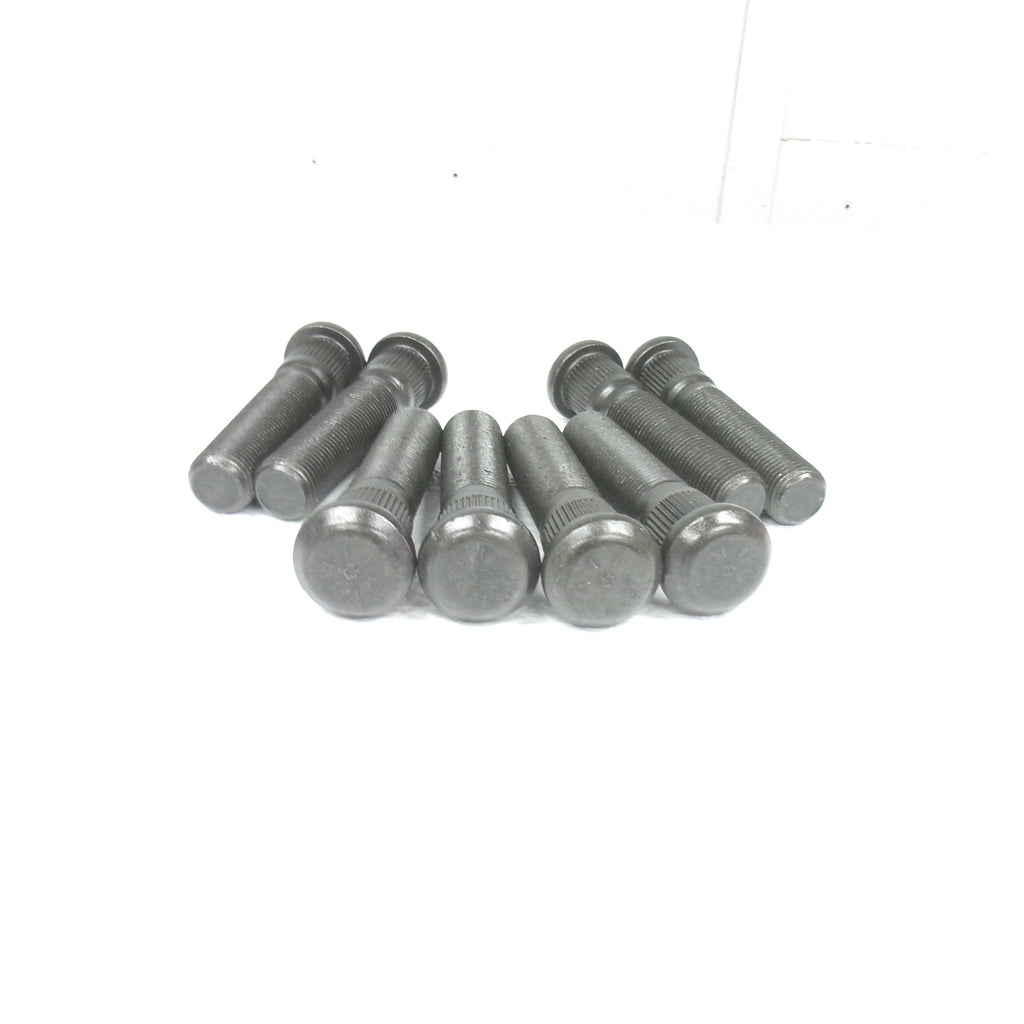

Eight - Wheel Stud Lug ALKO 10K-12K Trailer Wheel Brake Hub 5/8" x 2.75" Lug 7-362

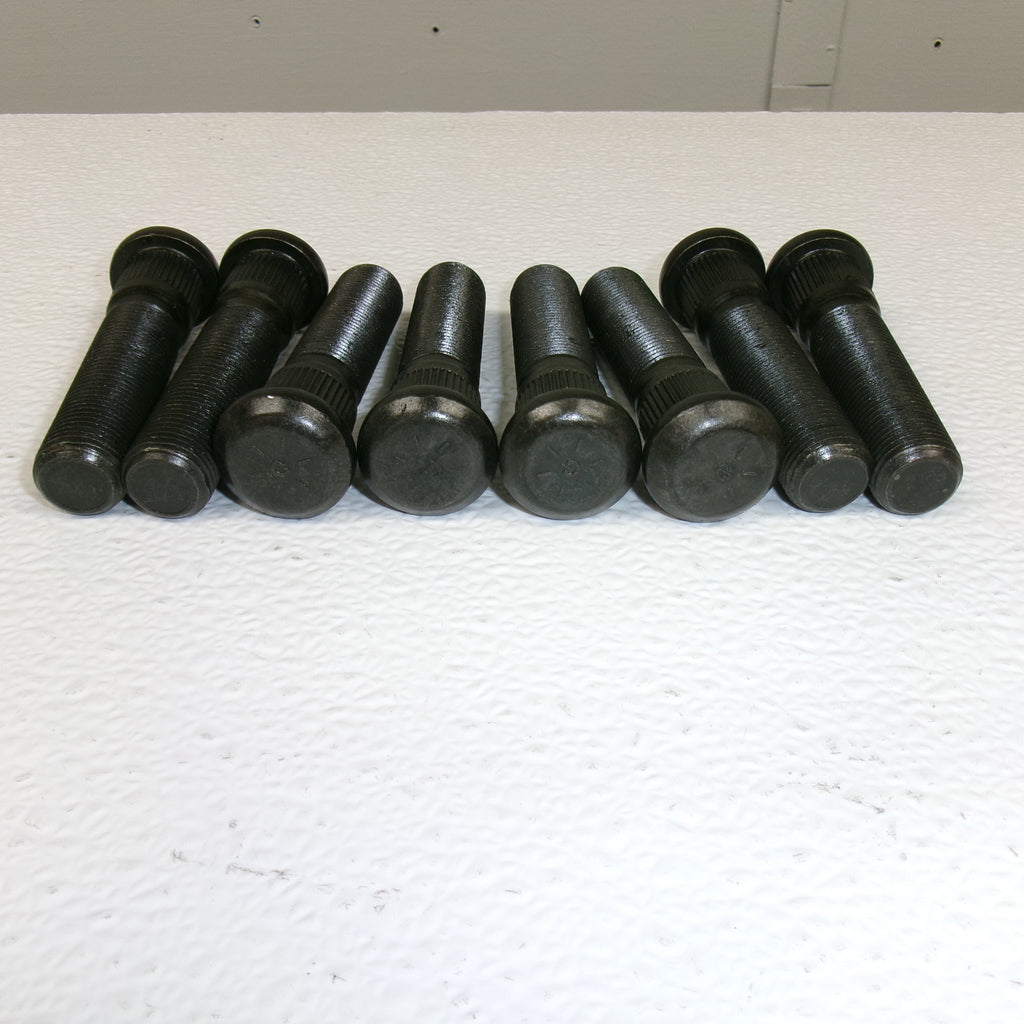

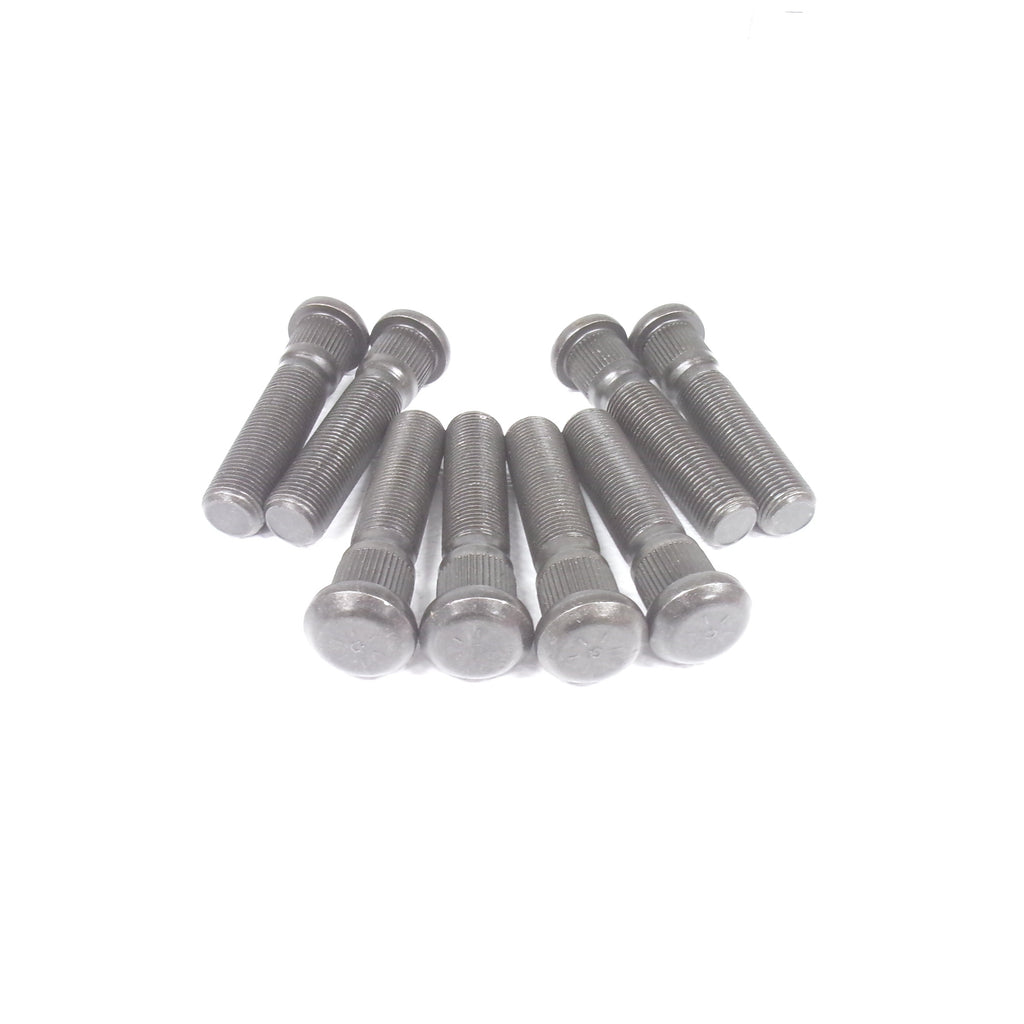

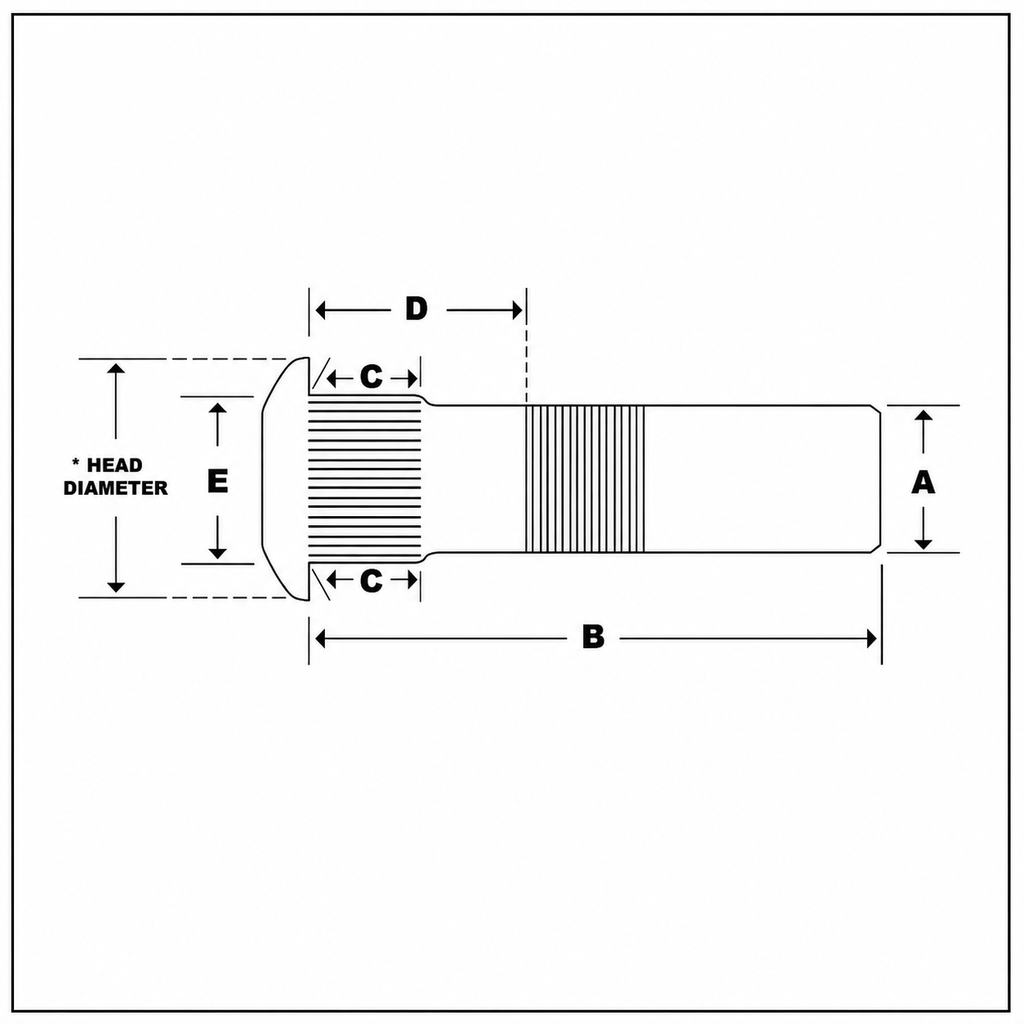

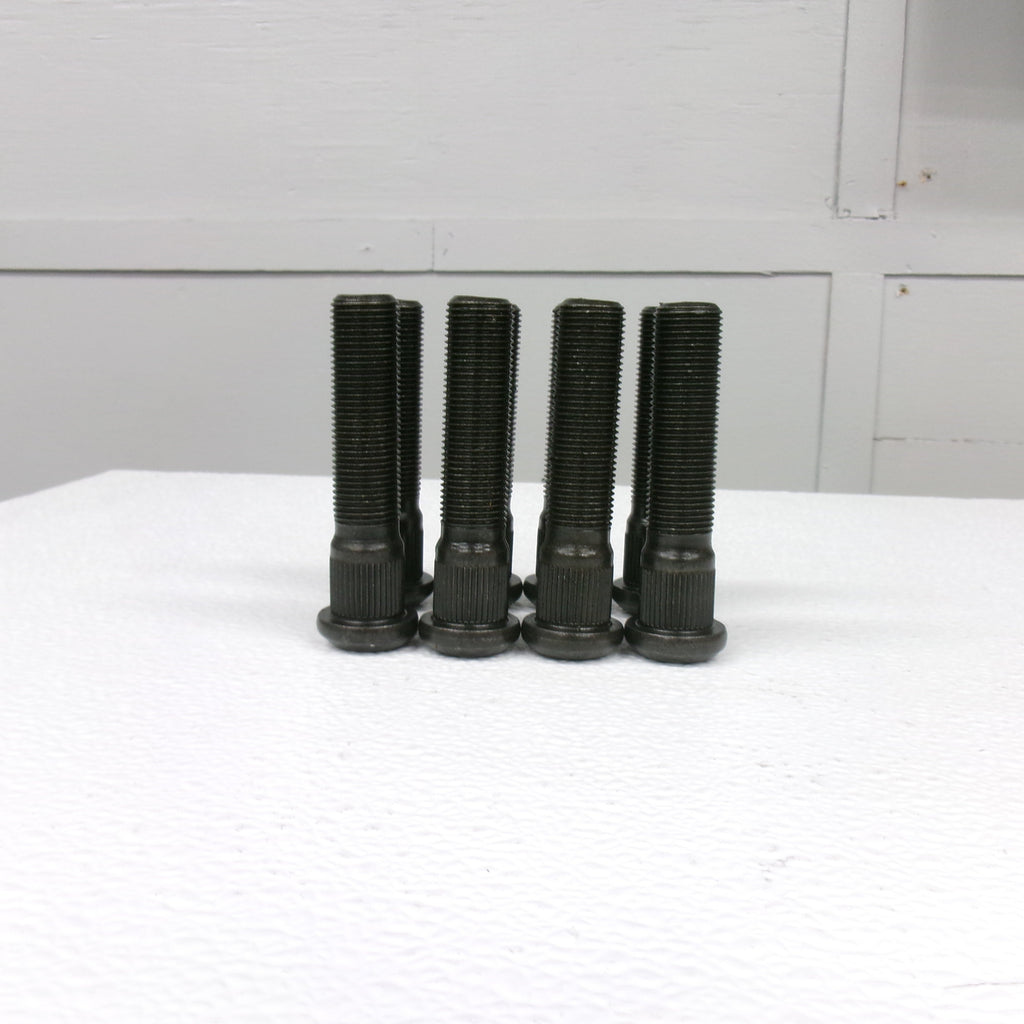

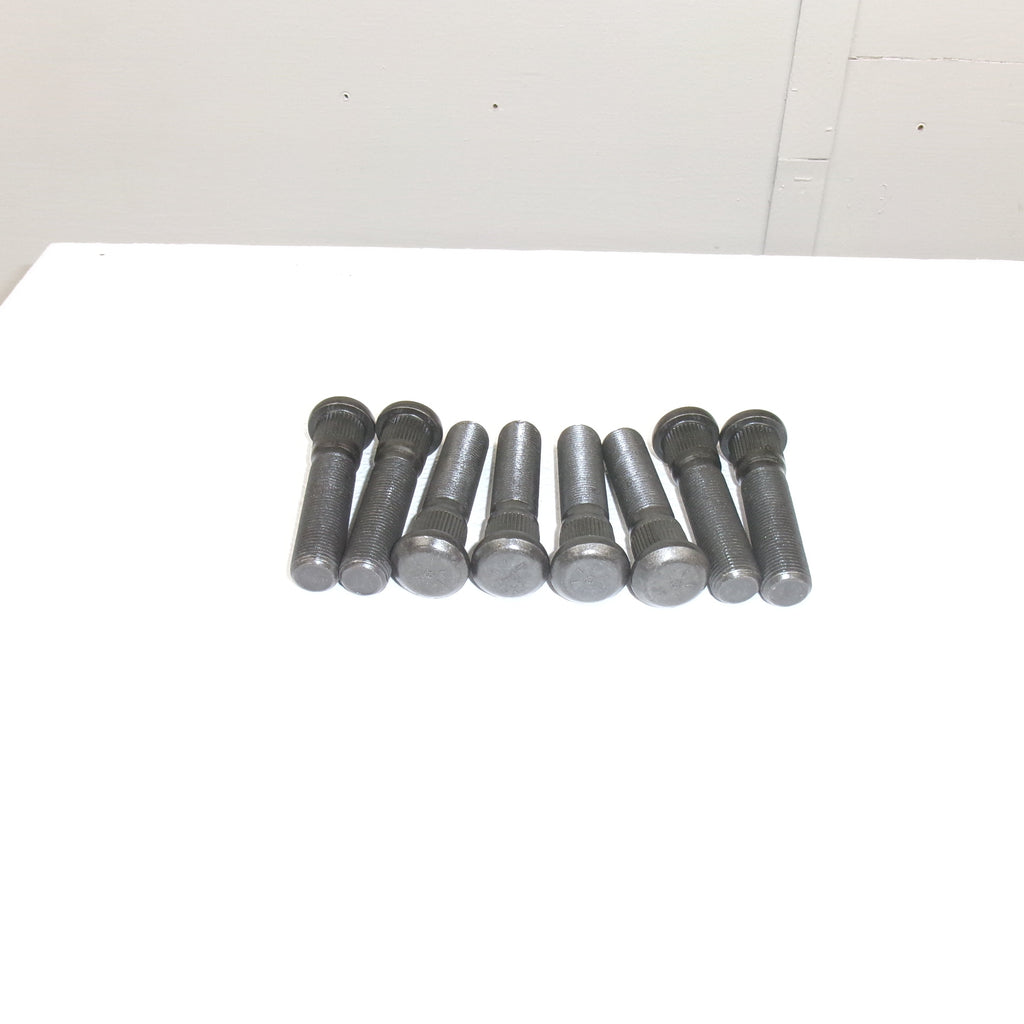

Set of eight replacement press-in wheel studs for compatible AL-KO, Hayes, and select heavy-duty trailer hub applications using 5/8"-18 studs. Diagram reference included in images - A: Thread 5/8"-18, B: Total length 2.85", C: Spline Length 0.52", D: Base length 0.76", E: Spline Dia 0.677", Head Diameter: 0.93"
Part Number: 7-362x8 Dexter Reference: 007-362-00 Quantity: Set of 8

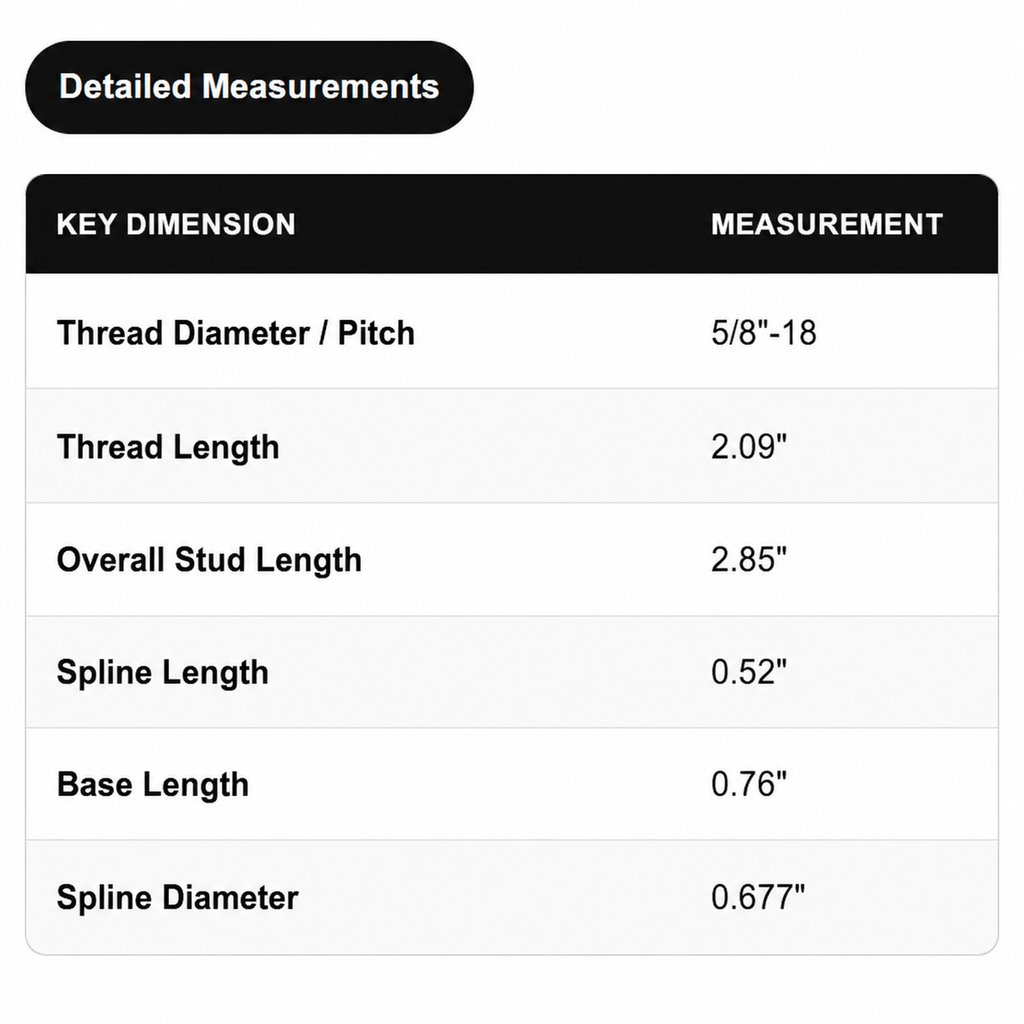

Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | 7-362x8 |
| Cross Reference | Dexter 007-362-00 / 7-362 / K363910 |
| AL-KO Reference | K363910 |
| Product Type | Press-in trailer wheel stud set |
| Thread Size | 5/8"-18 |
| Quantity Included | 8 wheel studs |
Fitment / Application
| Category | Details |
|---|---|
| Trailer / System | Heavy-duty trailer hubs, drums, and rotor hubs using compatible 5/8"-18 press-in wheel studs |
| Primary Fit | Commonly used on AL-KO and Hayes 10K–16K axle applications where stud dimensions match |
| Bolt Pattern Note | Often used with 8 on 6.5" heavy-duty trailer hub applications |
| Fitment Method | Verify thread size, spline diameter, spline style, shoulder length, head style, and hub/drum application before ordering |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Set of 8 | Enough studs for one 8-lug hub or drum application |
| 5/8"-18 Thread | Matches common heavy-duty trailer wheel hardware requirements |
| Press-In Style | Designed for compatible trailer hub and drum assemblies |
| Multiple References | Useful replacement reference for AL-KO, Dexter, Hayes, and related applications where specs match |
Overview
This listing includes eight replacement 5/8" wheel studs commonly used in AL-KO 10K and 12K brake drum and hub assemblies. These studs match several OEM cross-reference numbers and are frequently found on heavy-duty AL-KO, Dexter, and Hayes axle hubs.
R&P Service Insight
Wheel studs must match more than thread size alone. Always compare the full stud dimensions before ordering.
- Thread: 5/8"-18 thread diameter and pitch.
- Spline: 0.677" spline diameter for proper press-fit retention.
- Length: 2.85" overall stud length.
R&P Knowledge Hub
Compatibility: Commonly used with AL-KO 10K and 12K brake drums and hub assemblies.
Vehicle / System Fit: Heavy-duty trailer axle hubs, brake drums, and wheel-end service applications.
Installation Notes: Studs are press-fit hardware. Confirm spline diameter and stud length before installation.
Performance Insight: Correct spline fit is critical. A stud that is too loose or too large can damage the hub or fail to seat properly.
Brand & Fitment Note
Selling Brand: R&P Carriages
Application Reference: Dexter 007-362-00 / 7-362 / K363910
What This Means: This listing includes eight replacement wheel studs only.
Before Ordering: Measure your existing studs to confirm thread size, overall length, spline diameter, and base dimensions.
R&P Repair Insight
When replacing wheel studs, inspect the hub or drum bore for elongation, cracking, or damage. A new stud will not correct a damaged mounting hole.
- Check the Bore: Replace the hub or drum if the stud hole is worn or oversized.
- Match the Spline: The knurl/spline diameter must match the original stud.
- Torque Properly: Follow the wheel and axle manufacturer torque procedure after installation.
- Safety Notice: Re-torque all wheel lug nuts within the first 50 miles of installation to prevent wheel detachment. Failure to do so may result in wheel loss.
Features
Eight-Stud Replacement Set
Includes eight wheel studs for one compatible 8-lug hub, drum, or rotor hub application.
Heavy-Duty 5/8"-18 Thread
Designed for compatible heavy-duty trailer wheel applications requiring 5/8"-18 lug hardware.
Press-In Stud Design
Made for hub and drum assemblies that use press-in wheel studs with a matching spline pattern.
Useful Cross References
Dexter 007-362-00 / 7-362 / K363910
Included Components
| Quantity | Item |
|---|---|
| 8 | 5/8"-18 press-in replacement wheel studs |
| Not Included | Lug nuts, hub, brake drum, rotor, axle parts, and installation tools |
Important Fitment Note: Do not order by axle capacity alone. Confirm the removed stud’s thread size, total length, spline diameter, spline length, shoulder/base length, head style, and hub application before installation. Cross-reference numbers describe compatible applications only where measurements match.
