Match the part number, measurements and connection points that apply to your trailer.
| Size | Match the complete size designation. |
|---|---|
| Bolt Pattern | Verify the complete lug pattern. |
| Load Rating | Meet or exceed the required rating. |
Replacement drive-in hub stud commonly used on Dexter 5,200 lb, 6,000 lb, and 7,000 lb trailer hubs. This listing includes 8 drive-in studs only. Lug nuts are not included. If you need the version that includes nuts, please refer to the appropriate stud and nut kit.

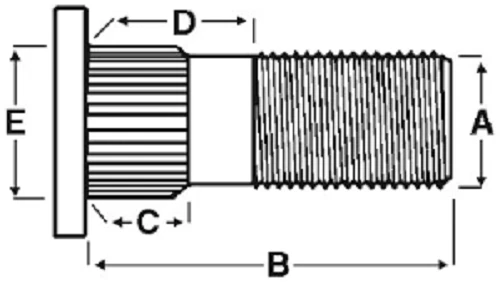

Diagram letters A–E correspond directly to the specifications listed below.
| Thread Size (A) | 9/16"-18 |
| Overall Length (B) | 2-5/16" |
| Knurl Length (C) | 0.31" |
| Shoulder Length (D) | 1" |
| Knurl Diameter (E) | 0.69" |
Part Number: K71-748-00
Industry reference: Drive-In Hub Stud 7-132
Fitment varies by hub manufacturer and application. Typically used on Dexter 5,200 lb, 6,000 lb, and 7,000 lb hubs. Verify all dimensions and knurl size before installation.
Selected from R&P customer feedback for Wheel / Tire products and related trailer service.
“I've ordered lots of trailer repair parts from them, always fast service, well packed, and the right parts. I highly recommend.”
“Great customer service, working for many years with them!”
“Would like to say thanks to everyone at R and P Carriages parts were delivered fast and with the very helpful staff, the right parts were sent the first time. Thanks Happy Holiday's.”
Need help matching a part? Send us photos, part numbers and measurements. We can help narrow it down before you order.
