At a Glance

> Quantity Check: One kit repairs one brake caliper only.
> System Check: Hydraulic disc brake systems must be inspected and bled properly after caliper service.
> Fitment Check: Match the caliper reference number before assuming fitment on a 10K or 12K axle.
> Confirm the Caliper: Check for Redline BP18-060 / BP18-061 or AL-KO by Dexter 089-052-00 / 089-053-00 application references.
> Order Correct Quantity: One caliper uses one kit; one axle with two calipers requires two kits.
Brand: AL-KO by Dexter
SKU: K71-832-00

Before You Order

Match the part number, measurements and connection points that apply to your trailer.

Hub Face	Measure hub face to hub face.
Spring Center	Measure mounting centers and confirm perch configuration.
Capacity	Match the required axle rating.
Brakes	Confirm brake type and flange configuration.

Product Details

Hydraulic Disc Brake Caliper Repair Kit

AL-KO / Hayes 10K–12K Trailer Disc Brake Caliper Repair Kit for One Caliper

Seal and dust boot repair kit for one AL-KO / Hayes 10,000 lb or 12,000 lb hydraulic disc brake caliper. Includes the piston seal and dust boot components needed to service one compatible caliper.

Part Number: K71-832-00 Fits AL-KO / Hayes 10K–12K Repairs One Caliper

Key Measurements & Specs

Specification	Detail
Part Number / SKU	K71-832-00
Product Type	Hydraulic disc brake caliper repair kit
Axle Rating Reference	10,000 lb and 12,000 lb AL-KO / Hayes disc brake caliper applications
Older Reference Number	K080862
Material / Finish	Rubber
Quantity Included	1 repair kit for one brake caliper

Fitment / Application

Category	Details
Brake System	Hydraulic disc brake calipers on compatible AL-KO / Hayes 10K and 12K trailer axle applications
Primary Fit	AL-KO / Hayes 10,000 lb and 12,000 lb disc brake calipers
Caliper References	Redline BP18-060 and BP18-061; AL-KO by Dexter 089-052-00 and 089-053-00
Fitment Method	Verify your caliper assembly number and compare the existing seal and dust boot style before ordering
Important Note	This kit repairs one caliper. To service one axle with two calipers, order two kits.

Top Features

Feature	Buyer Benefit
One-Caliper Kit	Correct quantity language for a single brake caliper repair
Seal Components Included	Includes the internal caliper seals and dust boots needed for compatible caliper service
10K–12K Application	Built around heavy-duty AL-KO / Hayes hydraulic disc brake axle applications
Cross-Reference Friendly	Useful when matching by AL-KO / Hayes, Redline, or AL-KO by Dexter caliper references

Overview

This K71-832-00 disc brake caliper repair kit is used to service one compatible AL-KO / Hayes 10K or 12K hydraulic disc brake caliper. The kit includes two caliper seals and two dust boots / dust seals for rebuilding the seal components in one caliper assembly. For a complete axle service with two calipers, two kits are required.

R&P Service Insight

Brake caliper repair kits should be matched by caliper application, not axle capacity alone. Before ordering, confirm the caliper assembly number and inspect the condition of the piston, bore, bleeder, pads, rotor, and hydraulic system.

Quantity Check: One kit repairs one brake caliper only.
System Check: Hydraulic disc brake systems must be inspected and bled properly after caliper service.
Fitment Check: Match the caliper reference number before assuming fitment on a 10K or 12K axle.

R&P Knowledge Hub

Compatibility: Designed for compatible AL-KO / Hayes 10,000 lb and 12,000 lb hydraulic disc brake caliper applications.

Vehicle / System Fit: Commonly used on heavy-duty trailer hydraulic disc brake systems, including boat trailer and equipment trailer brake applications where the matching caliper is installed.

Installation Notes: Confirm caliper condition before rebuilding. If the piston, caliper bore, bleeder screw, or mounting hardware is damaged, additional parts or a complete caliper replacement may be needed.

Performance Insight: Seal and dust boot condition matters because these parts help the caliper maintain hydraulic pressure and protect the piston area from contamination.

Brand & Fitment Note

Selling Brand / Application: AL-KO / Hayes 10K–12K disc brake caliper application; sold by R&P Carriages.

Application Reference: AL-KO, Hayes, Dexter, and Redline names are used here as fitment and cross-reference terms for compatible brake caliper applications.

What This Means: This listing is for a disc brake caliper repair kit for the listed compatible applications. Do not assume fitment by axle rating alone.

Before Ordering: Verify your caliper part number, axle brake system, seal style, and included components before installation.

R&P Repair Insight

This kit is intended for seal-service work on a compatible caliper, not for replacing every brake component at the wheel end. The caliper, pads, rotor, mounting hardware, piston, and brake fluid are not included unless separately listed.

Confirm the Caliper: Check for Redline BP18-060 / BP18-061 or AL-KO by Dexter 089-052-00 / 089-053-00 application references.
Order Correct Quantity: One caliper uses one kit; one axle with two calipers requires two kits.
Inspect Before Rebuild: A leaking or sticking caliper may also require piston, bore, pad, rotor, or hydraulic system inspection.

Features

Fits AL-KO / Hayes 10K–12K Calipers

Application-focused repair kit for compatible 10,000 lb and 12,000 lb AL-KO / Hayes hydraulic disc brake calipers.

Repairs One Brake Caliper

Each kit is packaged for one caliper repair. Use two kits when servicing both calipers on a single axle.

Includes Seal and Dust Boot Components

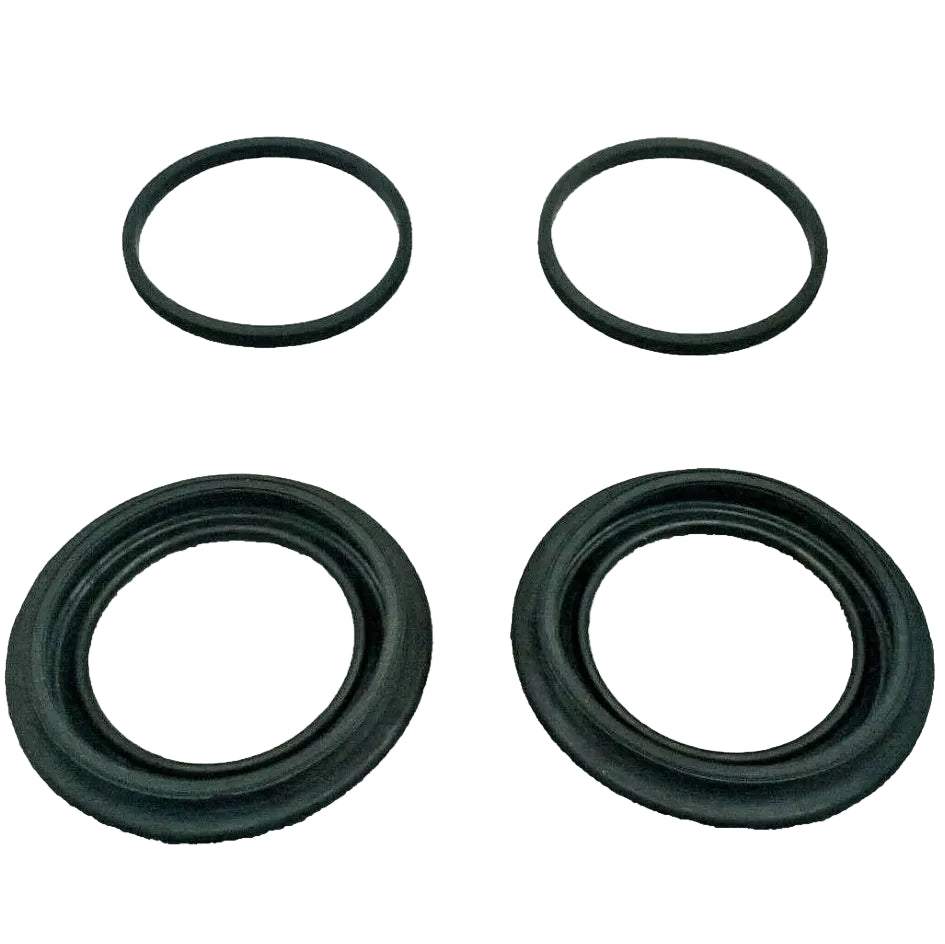

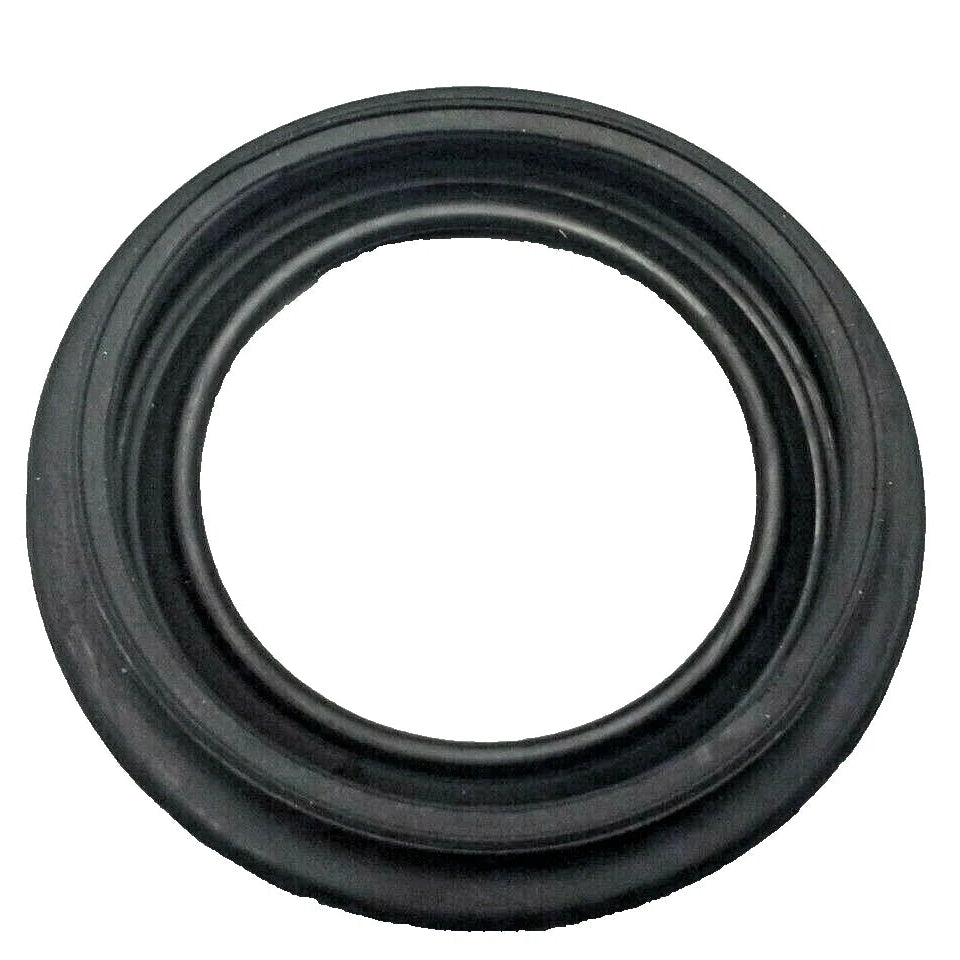

Includes two 010-260-00 caliper seals and two 010-261-00 caliper dust boots / dust seals.

Helpful Cross-Reference Fitment

Useful for matching compatible Redline BP18-060 / BP18-061 and AL-KO by Dexter 089-052-00 / 089-053-00 caliper applications.

Included Components

Quantity	Item

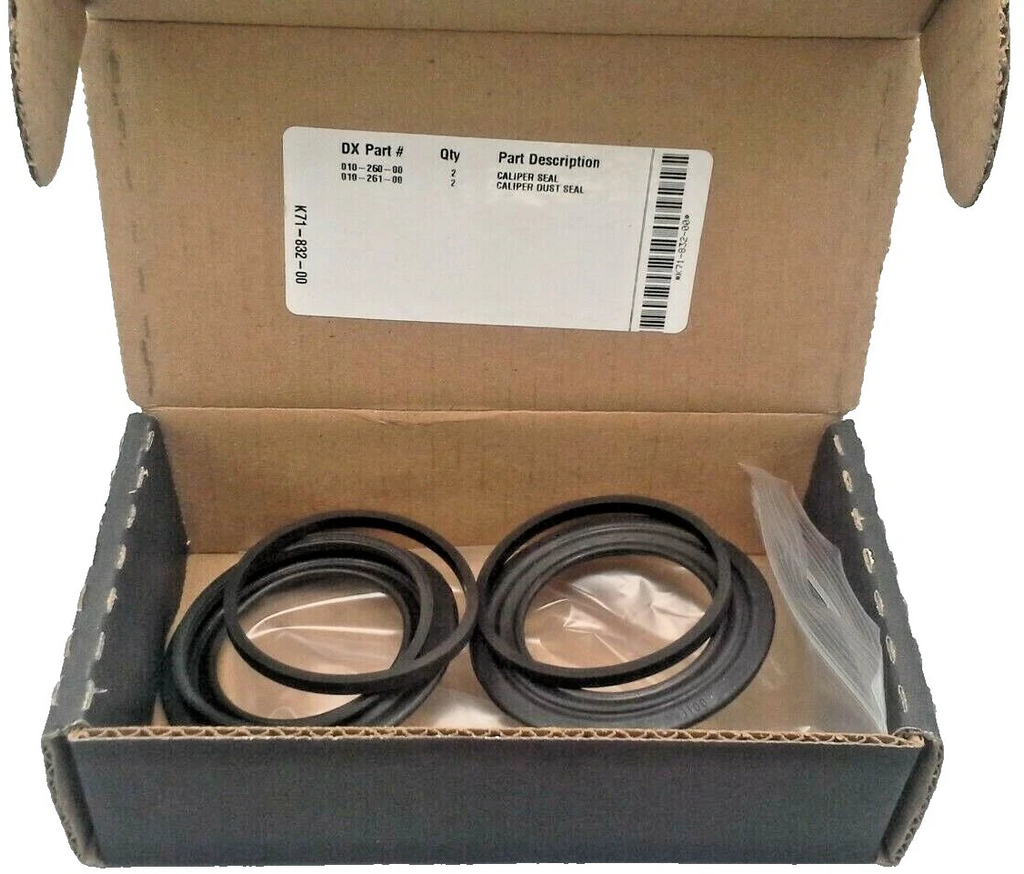

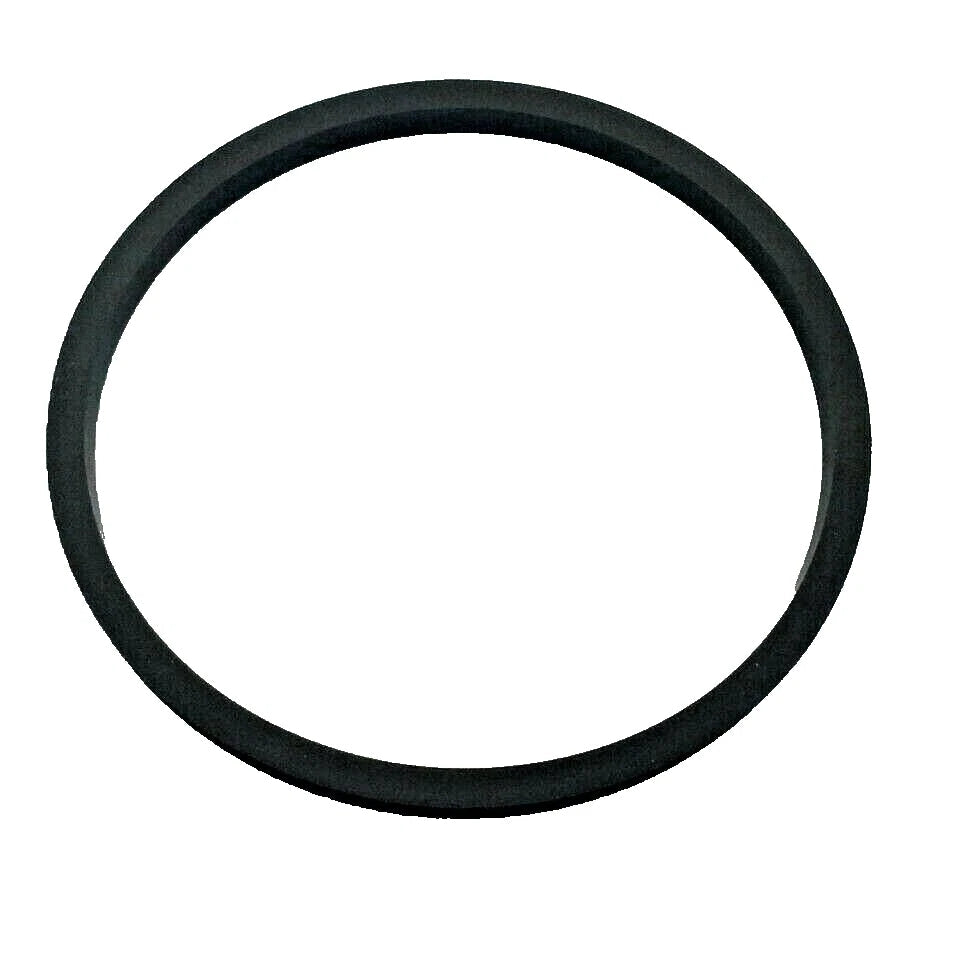

2	010-260-00 caliper seals
2	010-261-00 caliper dust boots / dust seals
Not Included	Caliper, piston, brake pads, rotor, mounting hardware, brake fluid, and additional wheel-end brake components

Important Fitment Note: This kit repairs one compatible brake caliper only. To repair one axle with two calipers, order two kits. Verify your caliper part number, brake system, axle application, and existing seal / dust boot style before ordering or installation.
