Left Hand - 12" by 3 3/8" Electric Trailer Brake – 8,000 lb – 4 Bolt Mount (4739-L)

$320.00
Contact us for availability

Enter the quantity you need to check availability.

Quantity options
Selected quantity subtotal $320.00
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 4739-L
PRODUCT INFORMATION

Product Details

R & P Carriages

Left Hand - 12" by 3-3/8" Electric Trailer Brake – 8,000 lb – 4 Bolt Mount

Part Number: 4739-L

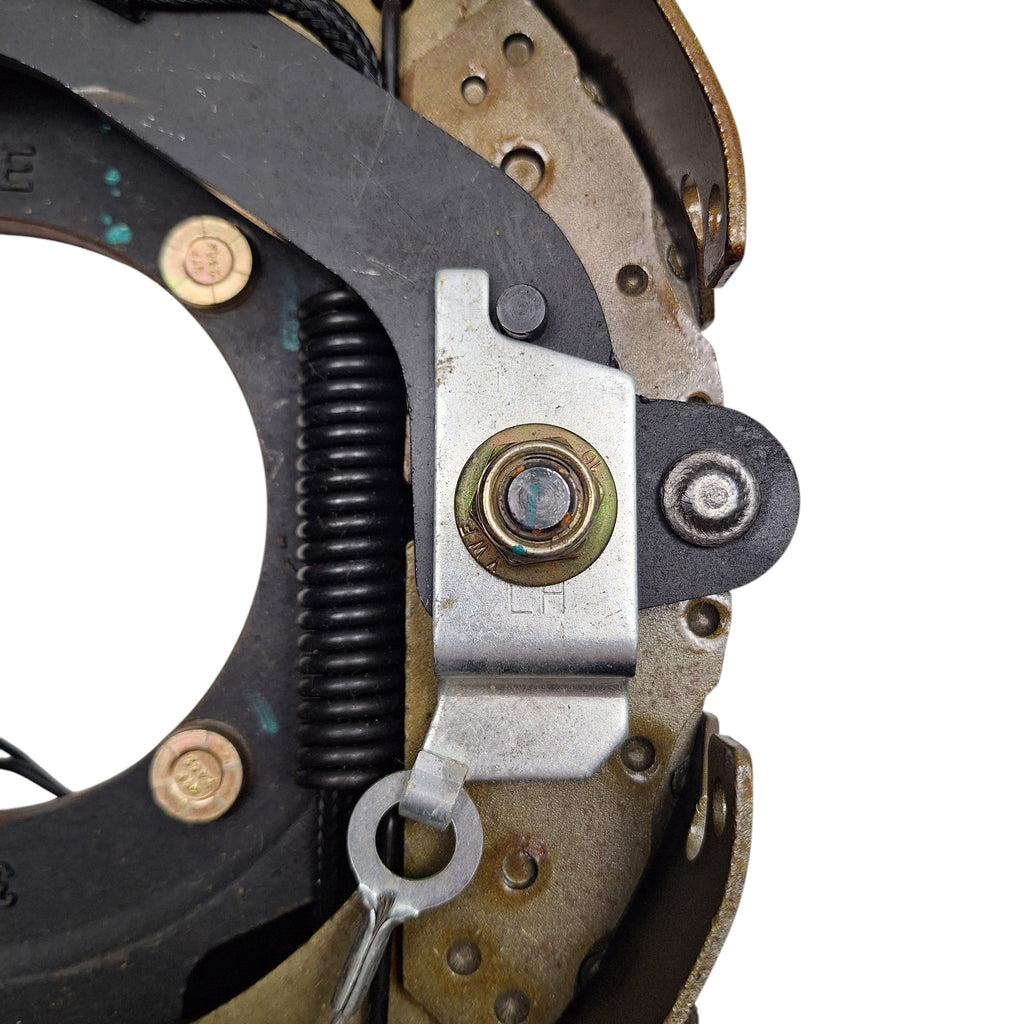

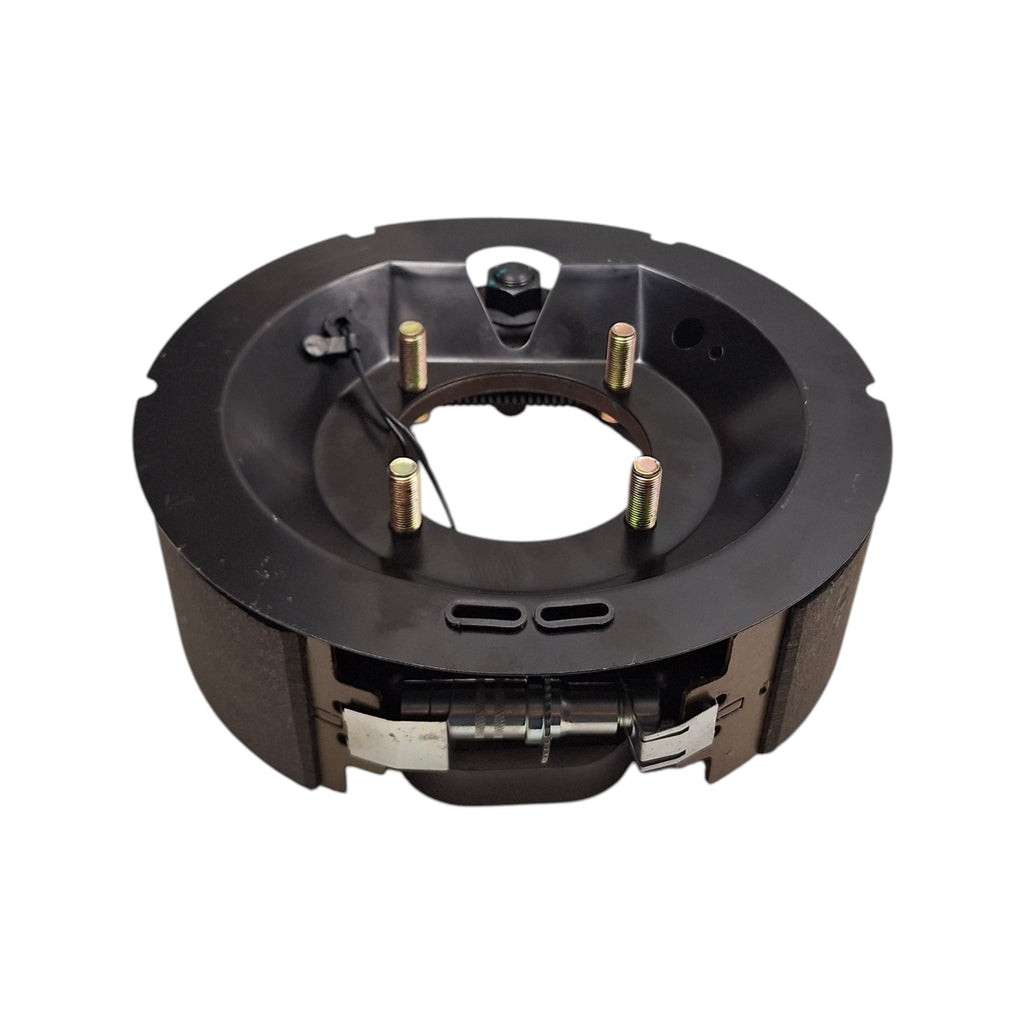

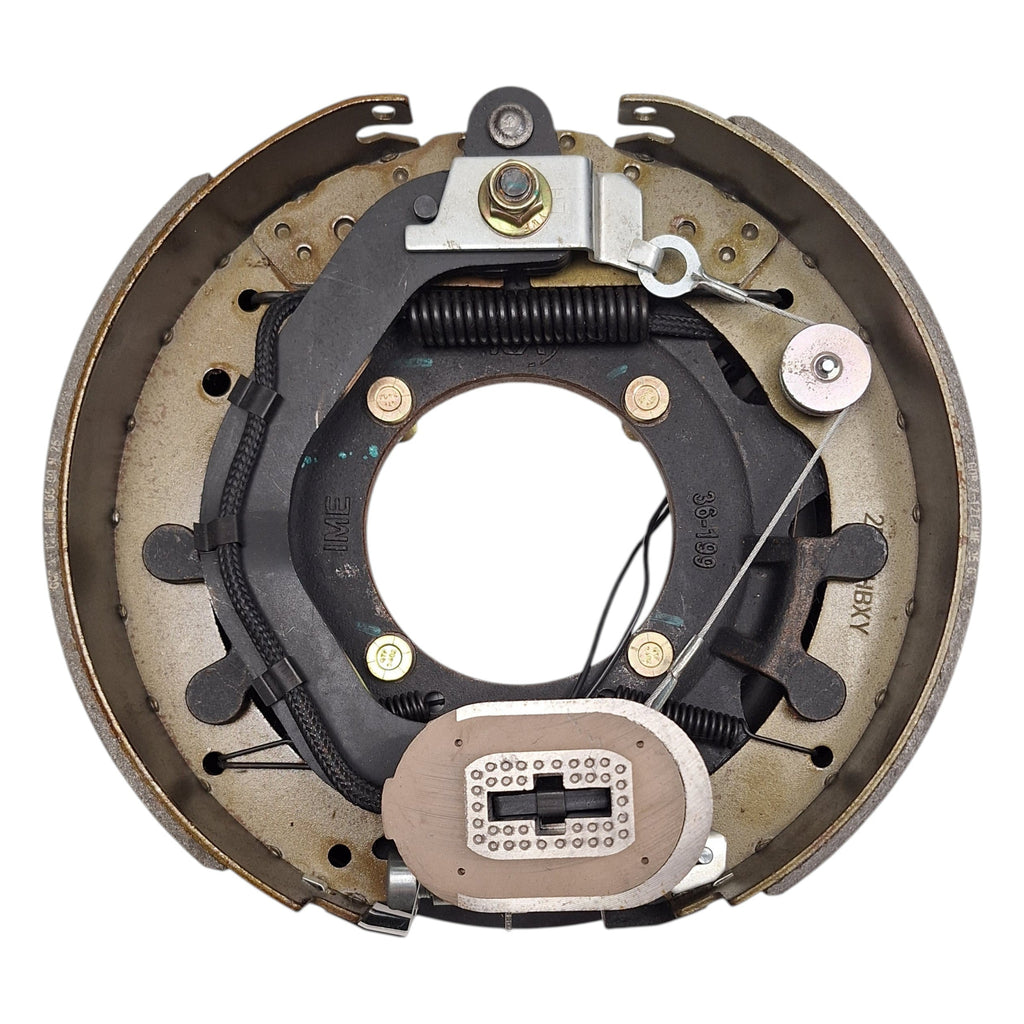

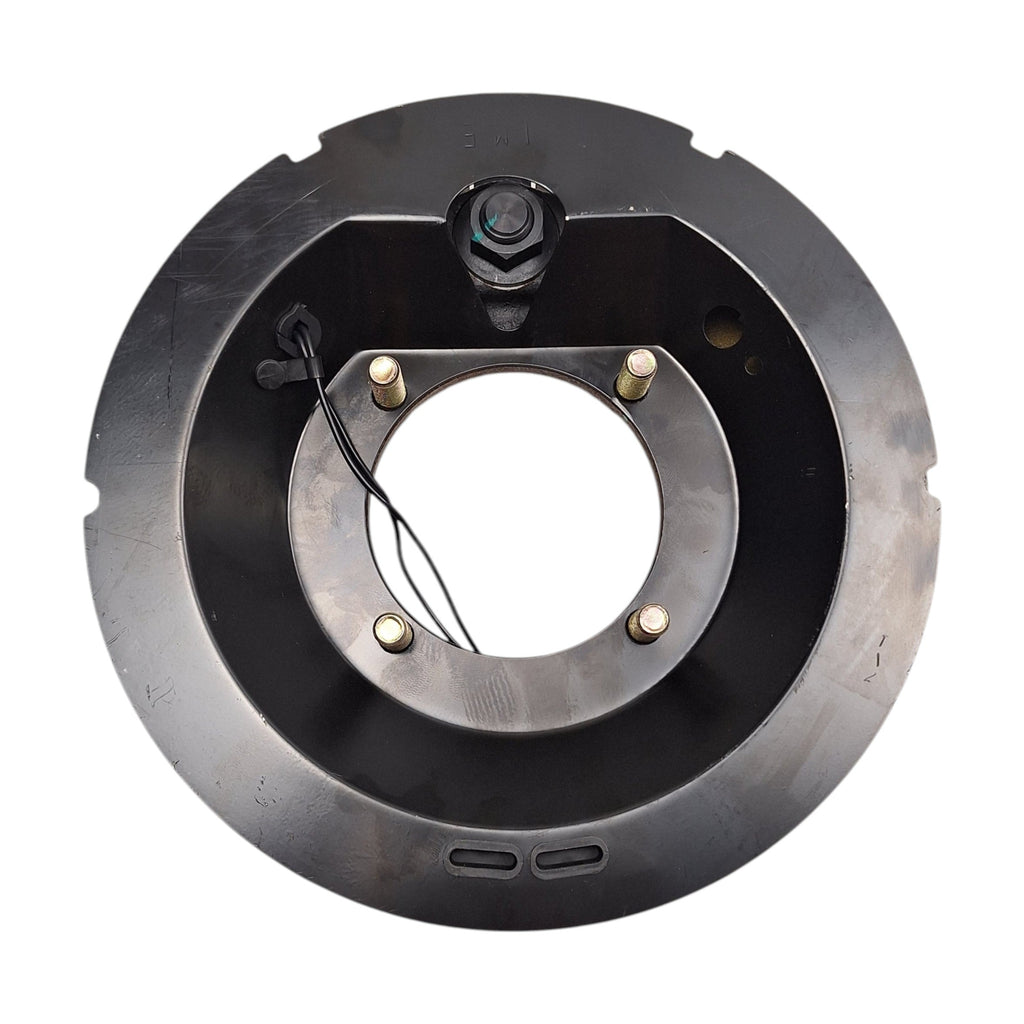

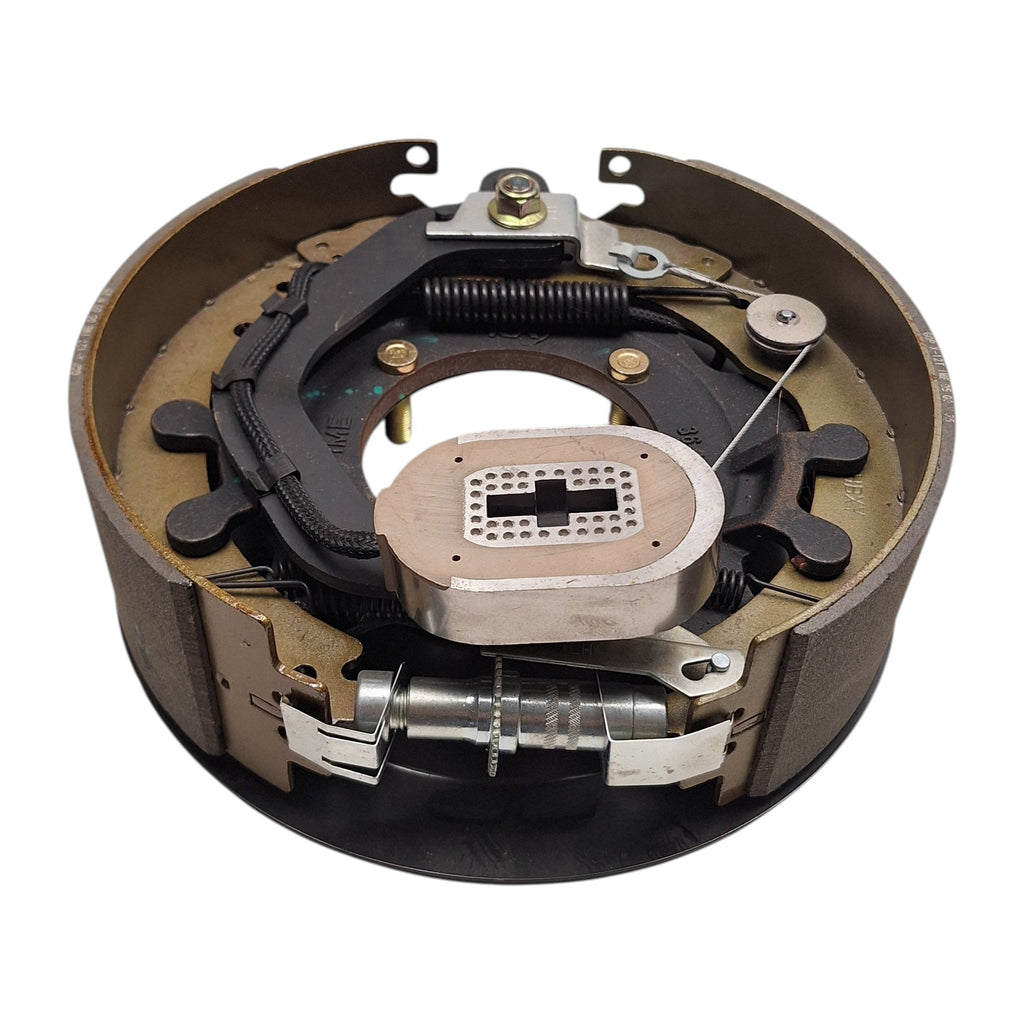

Left-hand (driver side) 12" by 3 3/8" electric brake assembly for 8,000 lb trailer axles using a 4-bolt backing plate mount. Features a cast backing plate and auto-adjusting brake design. All internal brake components are pre-assembled on the backing plate for direct replacement.

R&P Knowledge Hub

This brake assembly is commonly used on imported 8K axles and is not used on standard Dexter 8,000 lb axles. It has been found on certain Quality Trailer, H&H, J&J, Lippert, and similar configurations.

Left-hand (LH) brake assemblies mount on the driver side of the trailer axle. Always confirm brake size (12" by 3-3/8") and 4-bolt flange pattern before ordering.

Features

  • 12" by 3-3/8" electric brake configuration
  • 8,000 lb axle rating
  • 4-bolt backing plate mount
  • Cast backing plate
  • Auto-adjusting brake design
  • Pre-assembled for direct replacement

Specifications

Specification Detail
Brake Size 12" by 3-3/8"
Axle Rating 8,000 lb
Mounting Pattern 4 Bolt
Orientation Left Hand (Driver Side)
Adjustment Type Automatic

Verify brake size, bolt pattern, and axle compatibility before installation.

Left Hand (Driver Side)
4739-L
You are viewing this item
Right Hand (Passenger Side)
4739-R
12" x 3.5" – 8K – 4 Bolt
Pair – LH + RH
4739-L + 4739-R
Complete set for one axle
4739-L Rockwell electric brake left 8000 lb 12x3.5 4 bolt backing plate assembly imported axle auto adjust
