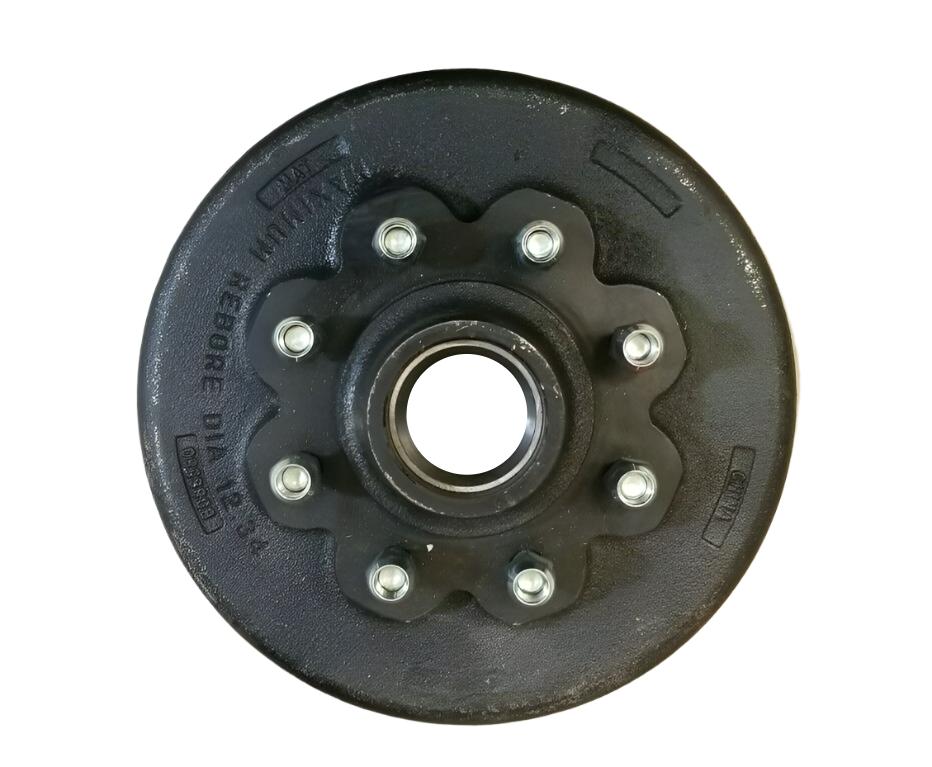

Brake Hub/Drum 12-1/4"x3-3/8" Fits Dexter 8-285 Lippert 9/16" Studs 8000# 8K Trailer (99-86580-KIT)

$242.13
Available to order

Enter the quantity you need to check availability.

Quantity options
1 selected · 18 available 17 remaining after purchase
Selected quantity subtotal $242.13
Not Sure It Fits? Ask a Pro
R&P PARTS GUIDE

At a Glance

  • SKU: 99-86580-KIT
PRODUCT INFORMATION

Product Details




Trailer Hub Drum 8K Axles 12 1/4" x 3-3/8"
Compare to Dexter 8-285 (008-285-11)
Lippert LCI 674862

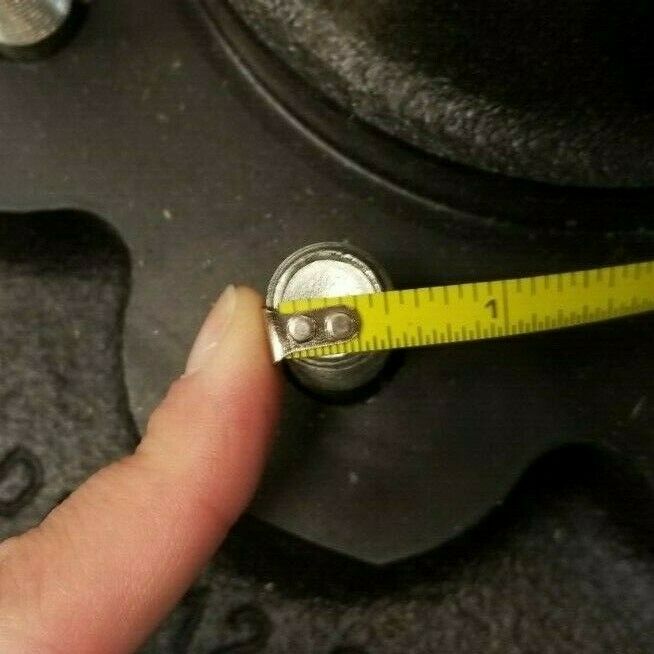

9/16" studs,  8 on 6-1/2
Grease type hub
Also fits Lippert (LCI) HD 8000# axles
99-86580-KIT

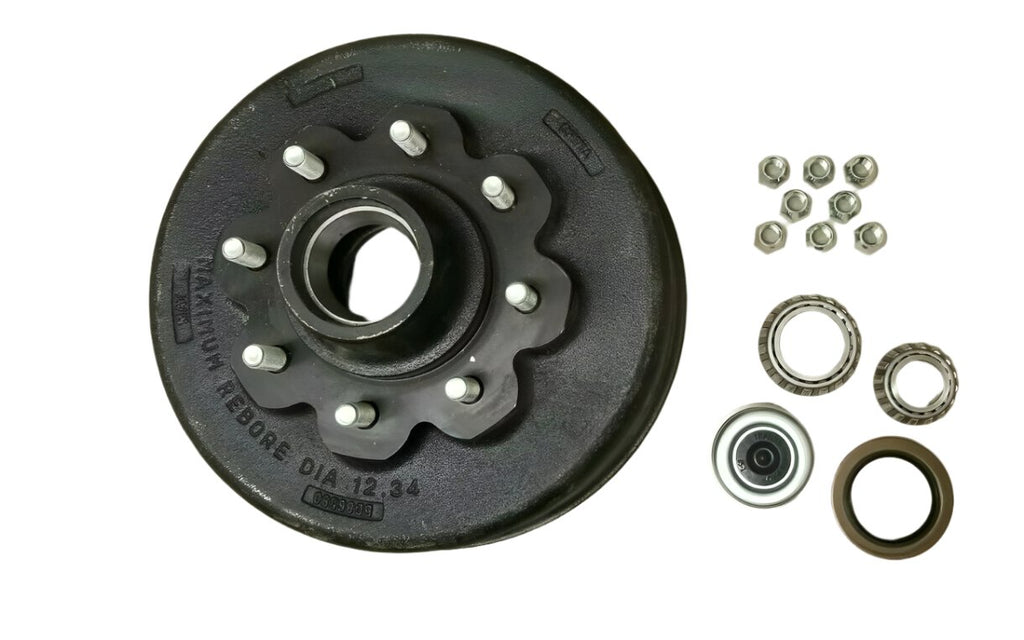

This kit contains:

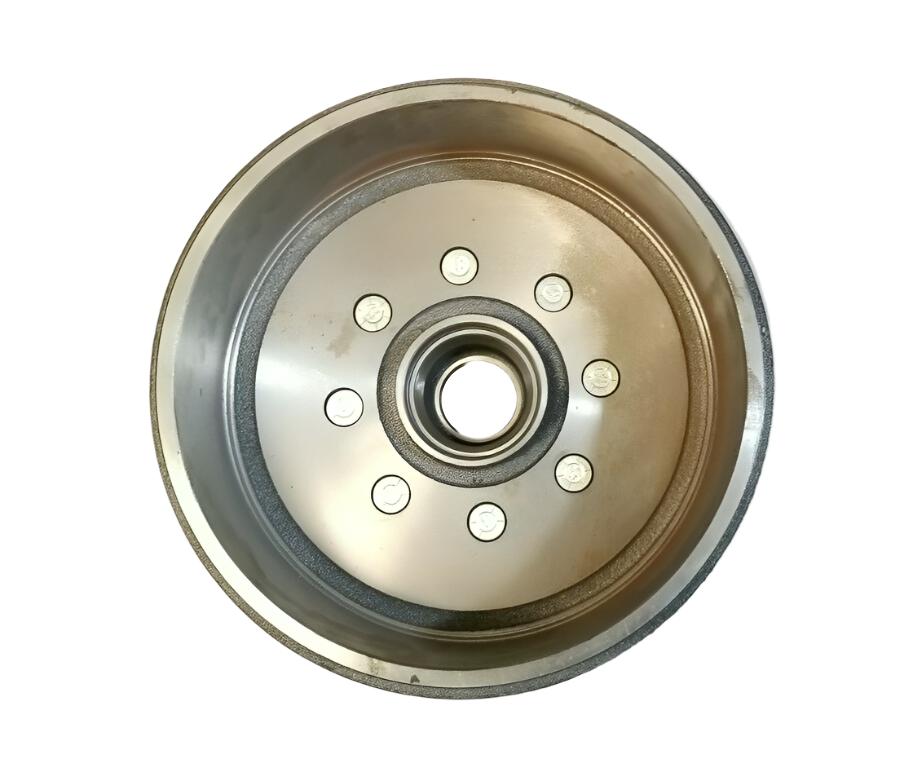

99-86580 Hub Drum x1

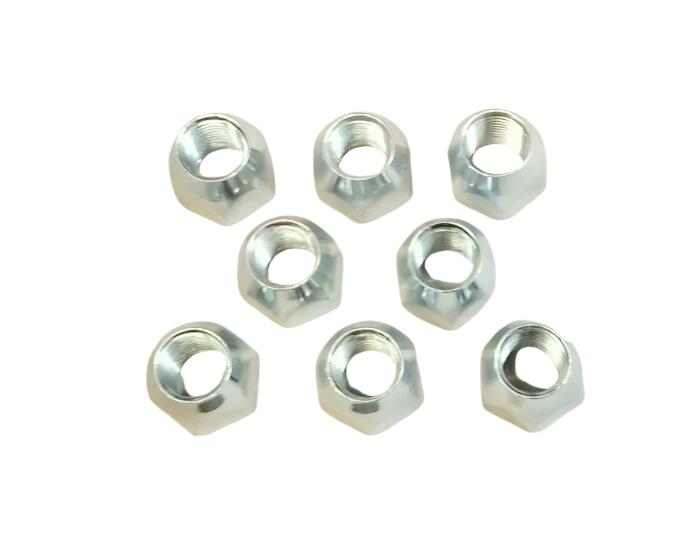

9/16" Lug Nuts x8

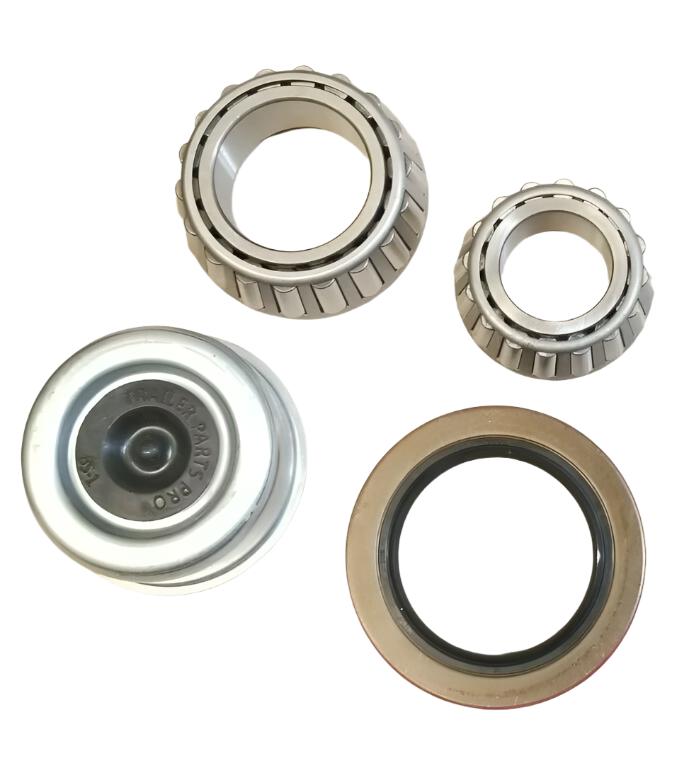

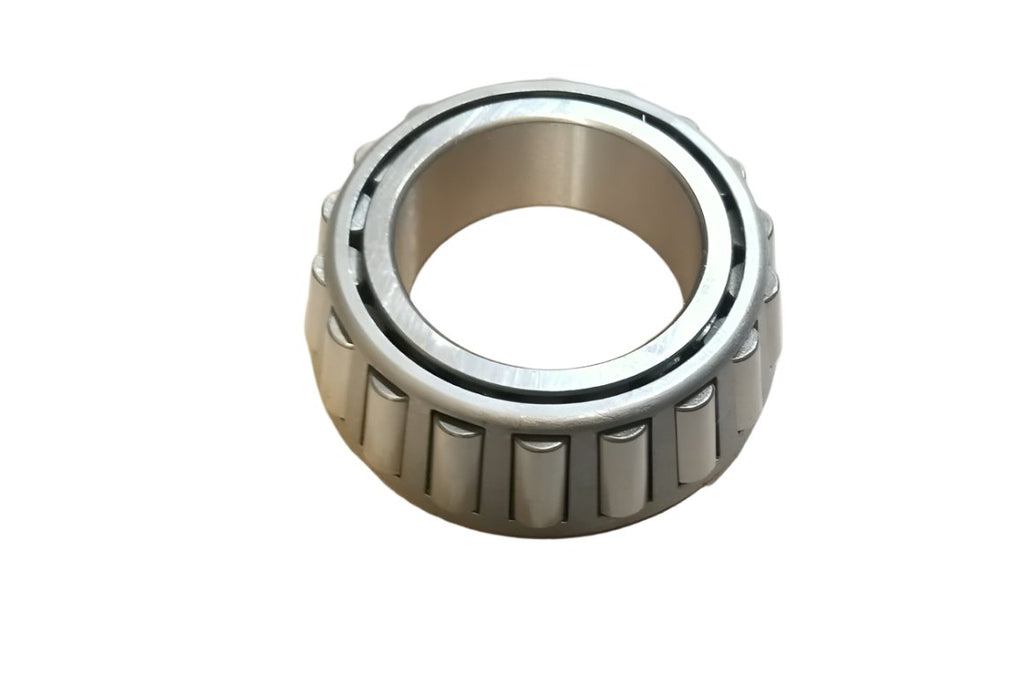

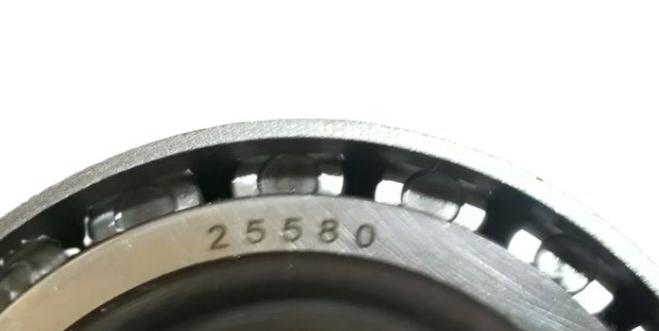

25580 Bearing x1
25520 Race x1 (Pressed into Drum)

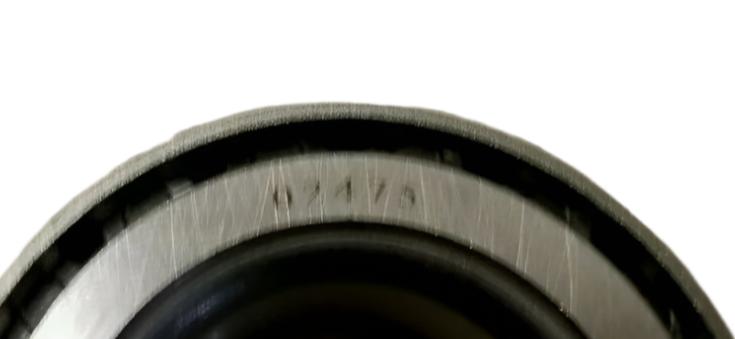

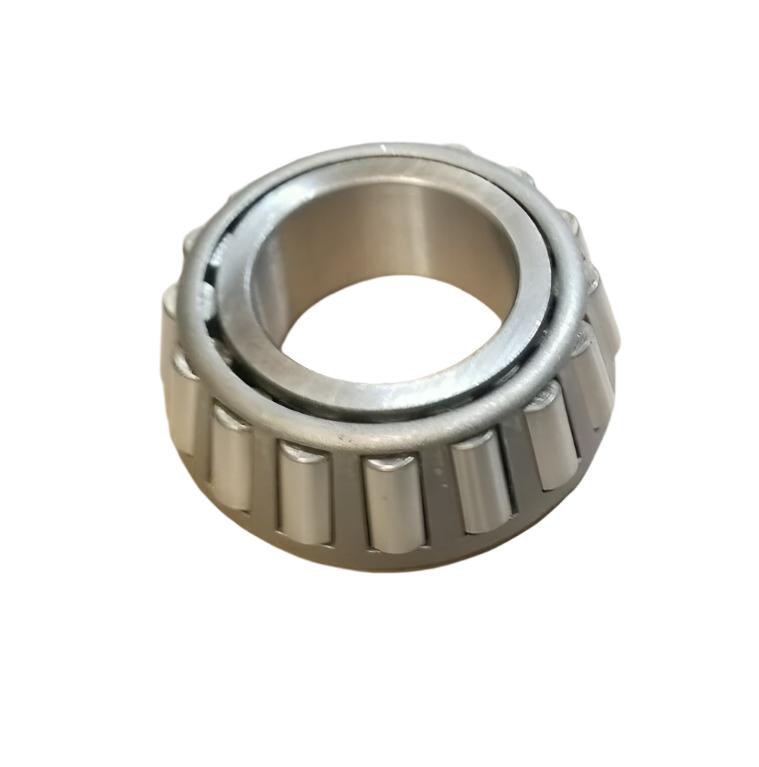

2475 bearing x1
2420 Race x1 (Pressed into Drum)

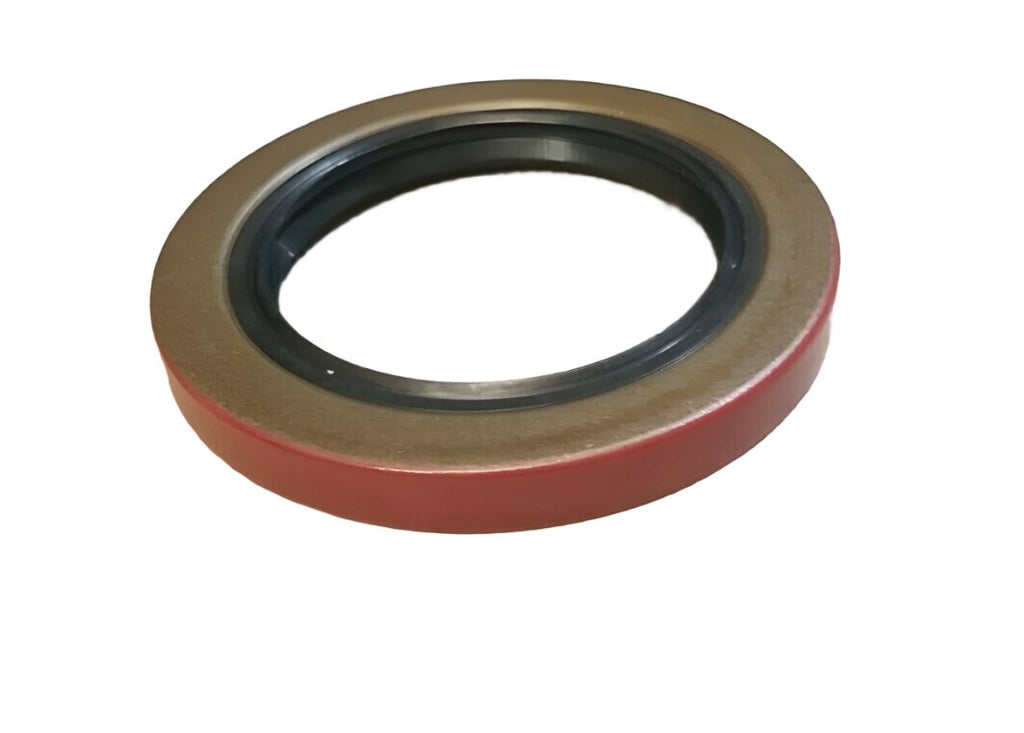

10-36 Grease Seal x1

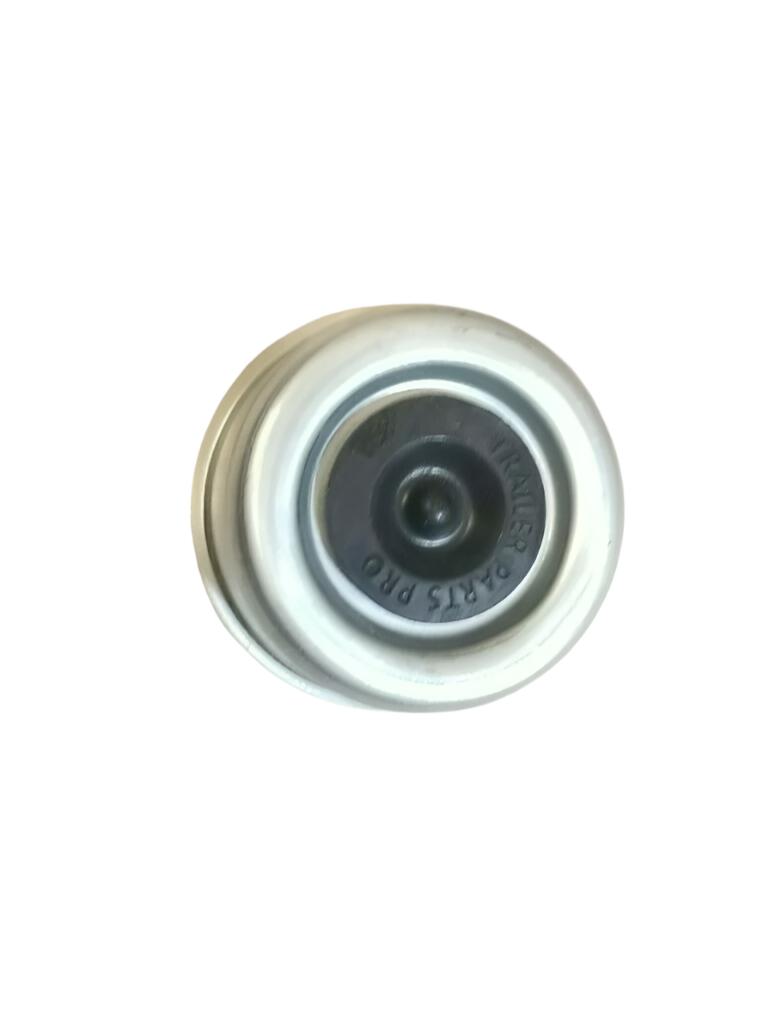

021-043-02 Grease Cap x1
085-001-00 Rubber Plug x1

Additional Information:Pilot: 4.75"Application: 8,000-LB E-Z Lube Stud Size: 9/16""No of Studs: 8Bolt Circle: 6.50"Inner Bearing Cone: 25580 (Included)Outer Bearing Cone: 02475 (Included)Grease Seal: 10-36 (Included)

Please note, as with most automotive parts, this item fits most MOST standard 8000# axles from Dexter and LCI, but, obviously not every 8000# axles ever made was the same.

 Both LCI (Lippert) and Dexter make some rare variations of their 8K axles, like the "Narrow brake" 8000# axles (D80N Dexter of LCI80H LCI), so, before you buy, make sure it fits.

WE’RE HERE TO HELP

Not sure it fits?

Have your SKU or manufacturer part number, photos of the original part and mounting, and any critical measurements ready. Capacity, voltage, or bolt pattern can help too.
