At a Glance
- > 1× Brake Hub — 12-1/4" x 3-3/8" (Straight Spindle)
- >Casting Number: 696104
- >Races pre-pressed
- >Rated Capacity: 8,000 lb
- >Drum Size: 12.25" x 3.75"
- Brand: Lippert
- SKU: 696107
Before You Order
Match the part number, measurements and connection points that apply to your trailer.
Fitment Check
| Bearings | Match inner and outer bearing numbers. |
|---|---|
| Seal | Match the seal number or dimensions. |
| Bolt Pattern | Verify the complete lug pattern. |
| Brake Size | Confirm when applicable. |
Product Details

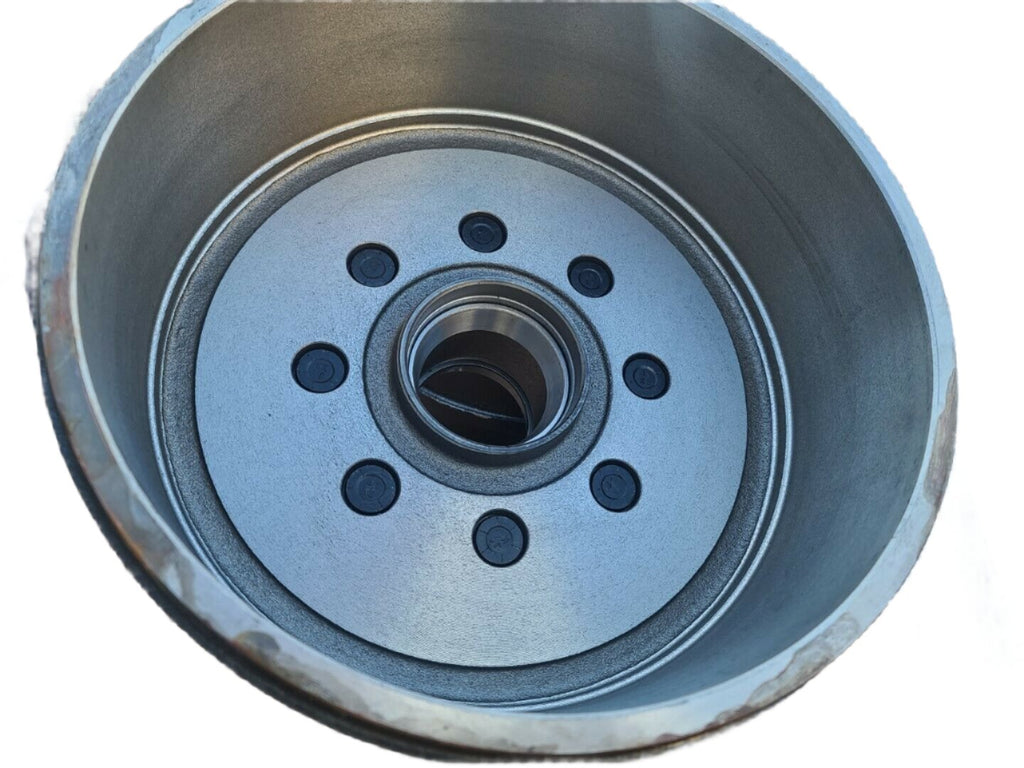

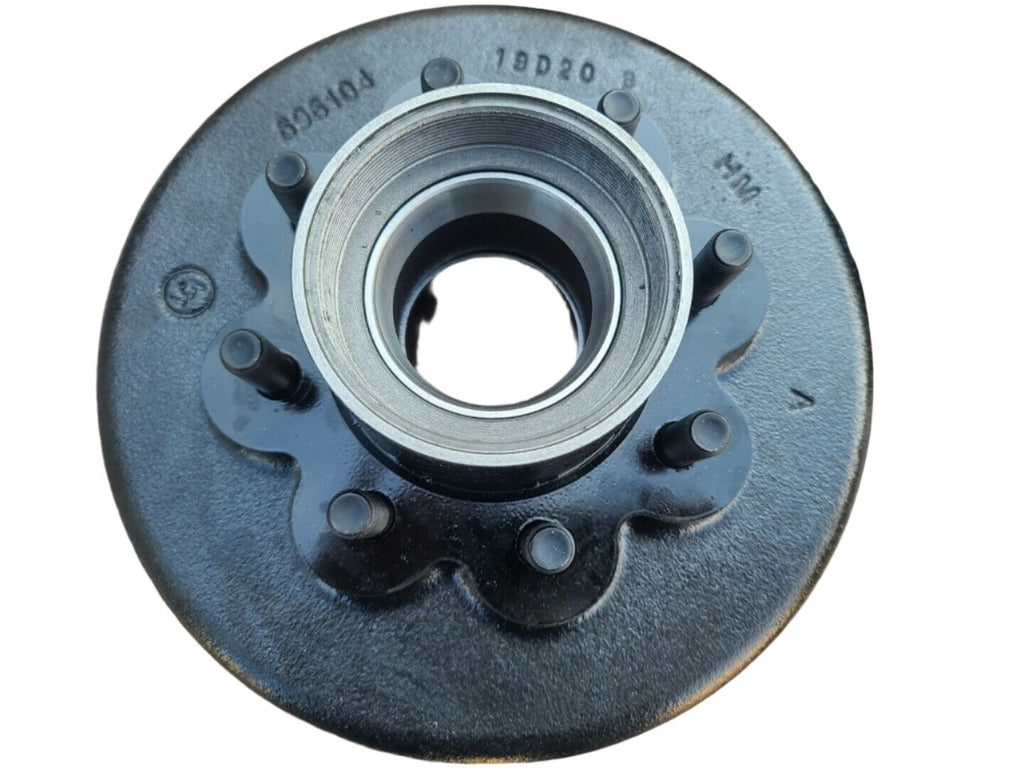

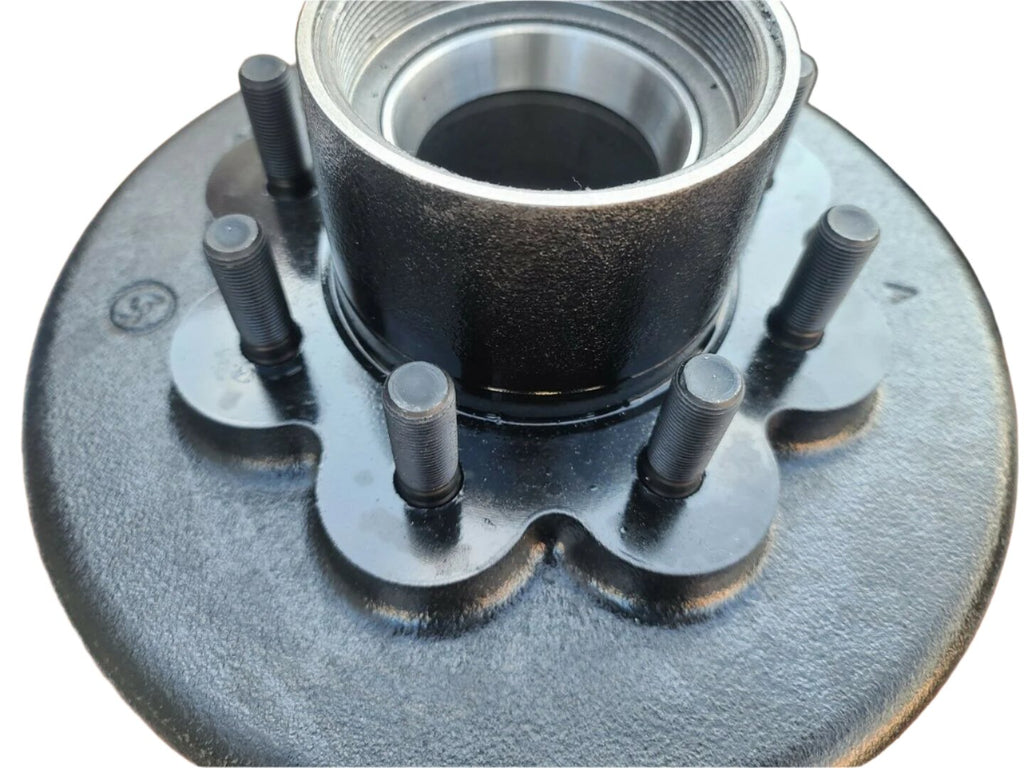

SPECIAL 8K Brake Hub Drum — Lippert LCI A80-B-MINI5-TOR — Kaufmann Mini 5 Straight Spindle (696104 / 696107)
Fits Kaufmann Mini 5 • Torsion Straight Spindle • 1-3/4" Inner & Outer Bearings
Part Number: 696107
This Listing Includes:
- 1× Brake Hub — 12-1/4" x 3-3/8" (Straight Spindle)

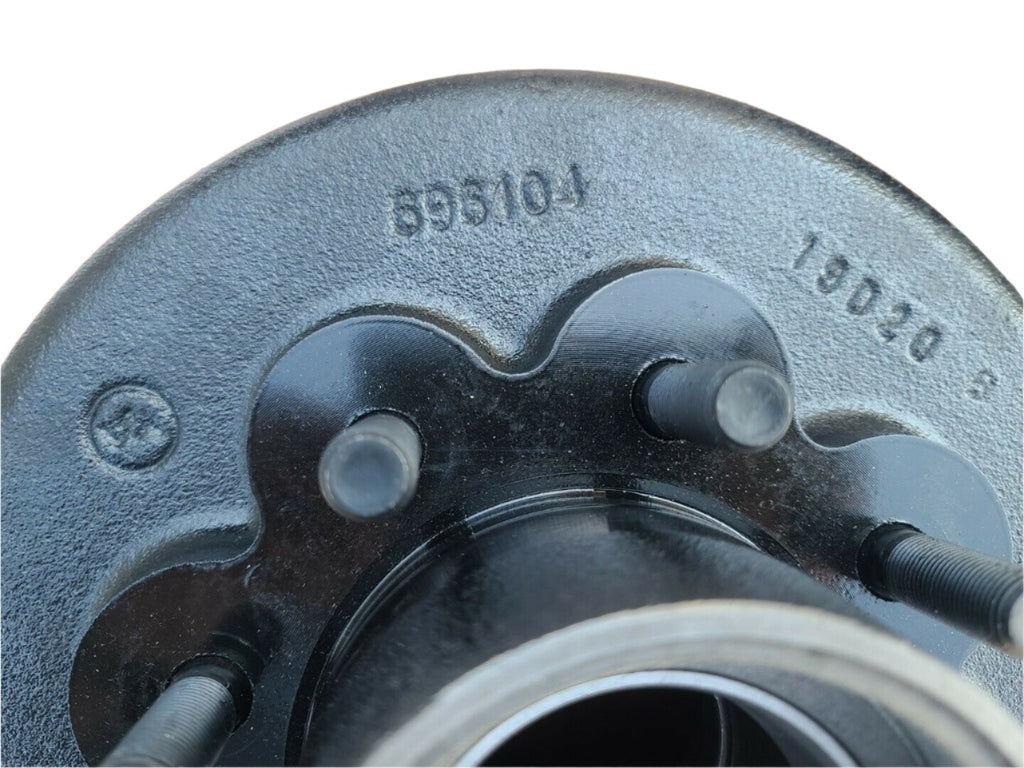

- Casting Number: 696104
- Races pre-pressed
Specifications
- Rated Capacity: 8,000 lb

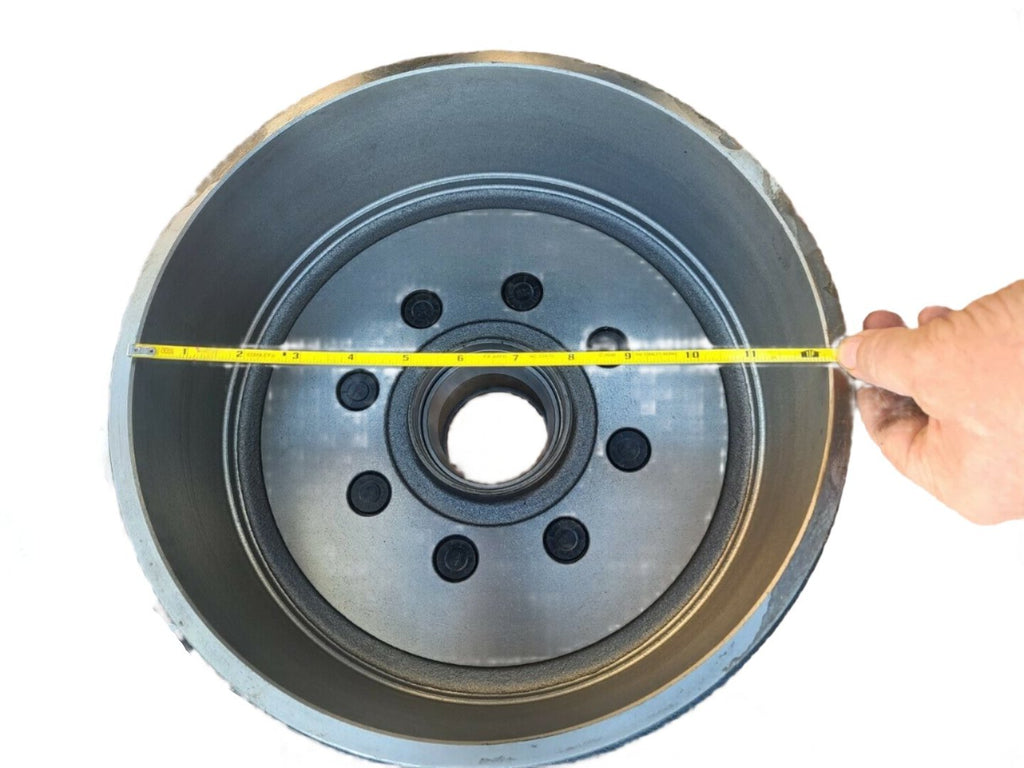

- Drum Size: 12.25" x 3.75"
- Brake Size: 12.25" x 3.375"

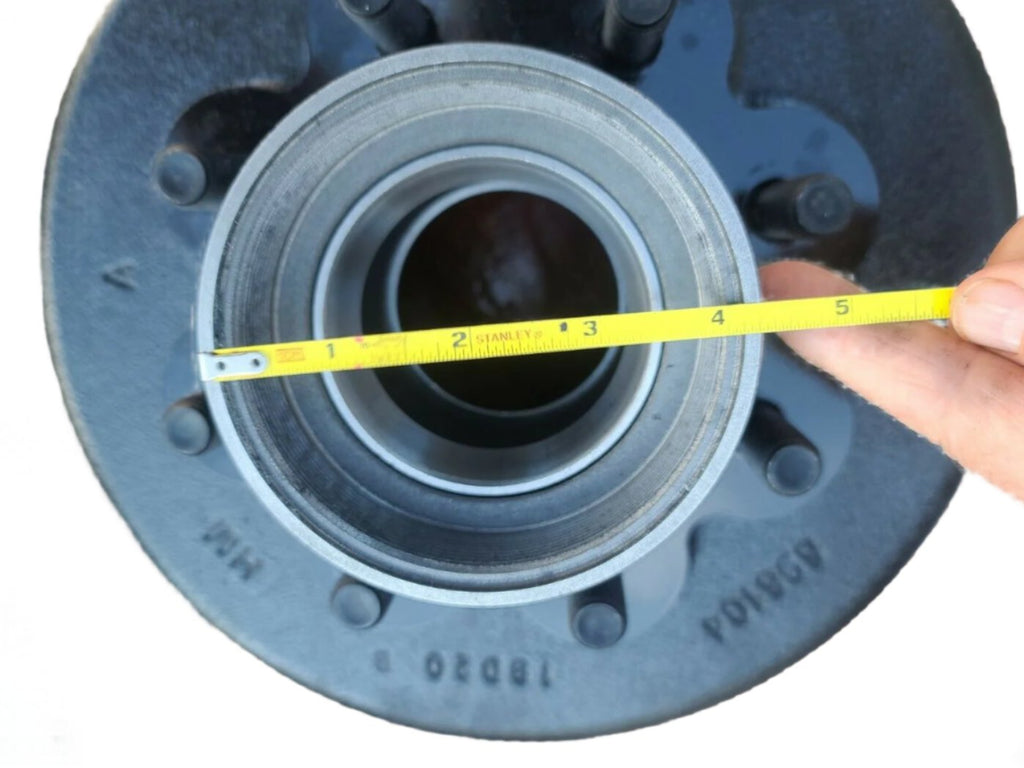

- Pilot Diameter: 4-7/8" (ID)
- Bearings Required: 25580 (Inner & Outer)
- Fits Lippert LCI Axle Type: A80-B-MINI5-TOR
This hub is commonly found on Kaufmann Mini 5 Car Haulers with torsion axles. It is designed for a special straight spindle and uses the 25580 bearing for both inner and outer positions.
Please confirm your spindle type before ordering — this hub is not universal.
