Inside Diameter: 12-1/4" x 3-3/8"Mounting Holes: 8 @ 7-1/2" circleCapacity: 5,000 lbs. per drum
Compatible with the following parts (not included): Oil Lube PartsOil Seal: 10-51
Inner Bearing: 387A
Inner Race: 382A
Outer Bearing: 25580
Outer Race: 25520
Oil Cap: 21-36

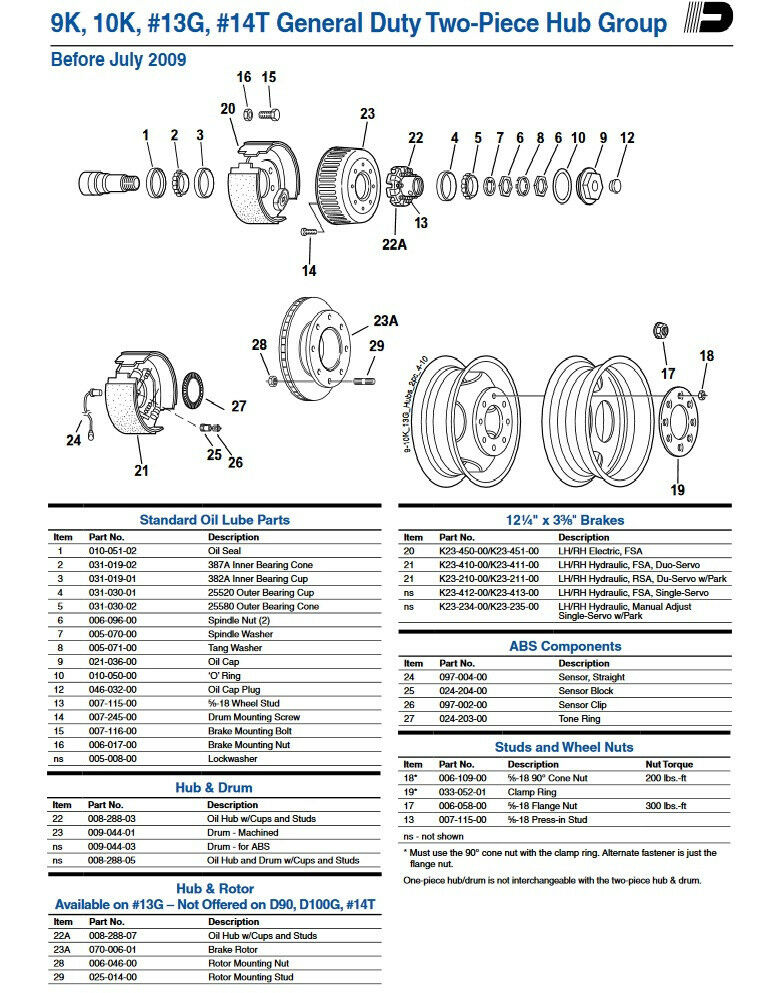

HUBOil Hub w/ Cups and Studs: 008-288-03
Backing Plates
12-1/4" x 3-3/8" Brakes
Electric Forward Self Adjusting, Left Hand: K23-450-00
Electric Forward Self Adjusting, Right Hand: K23-451-00
OR
Hydraulic Forward Self Adusting, Duo-Servo, Left Hand: K23-410-00
Hydraulic Forward Self Adusting, Duo-Servo, Right Hand: K23-411-00
OR
Hydraulic Forward Self Adusting, Duo-Servo with Park Brake, Left Hand: K23-210-00
Hydraulic Forward Self Adusting, Duo-Servo with Park Brake, Right Hand: K23-211-00
NOTE:
In 2009 Dexter made a significant change to 9,000 and 10,000# GD axles. Hubs and drums made for 2009 and older axles WILL NOT interchange with 2009 and later axles! (brake shoes, seals & bearings usually remain the same for all years)
- Dexter's "old style" two piece hub drum 288 (8-288, 8-232, 8-256) series (Feb. 1990 to July 2009) is not interchangeable with "2009 & later" hub drum 8-415 and 8-430 series (after May 2013)
- The 9-123 drum fits 008-430-03 hub, it will not fit the 2009 and older 288 series hub. The older 288 hubs take the 9-44 drum
- Dexter's two piece hub drum 430 series (after May 2013) is interchangeable with Dexter's one piece hub drum 8-415 series (Aug. 2009 to May 2013)

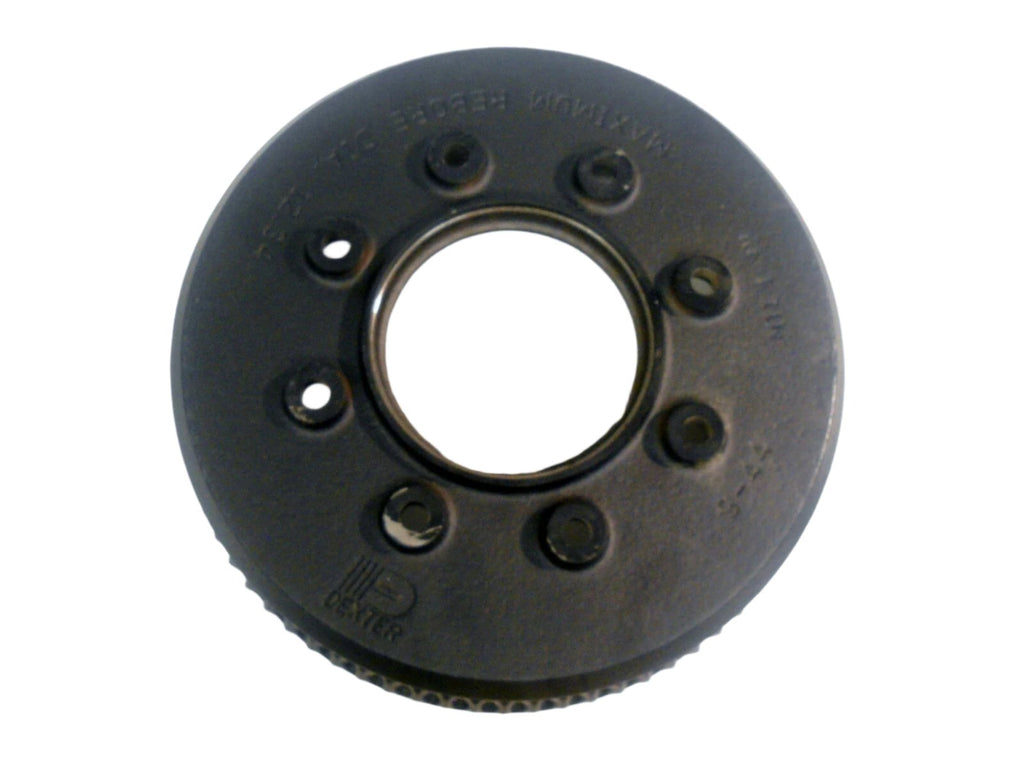

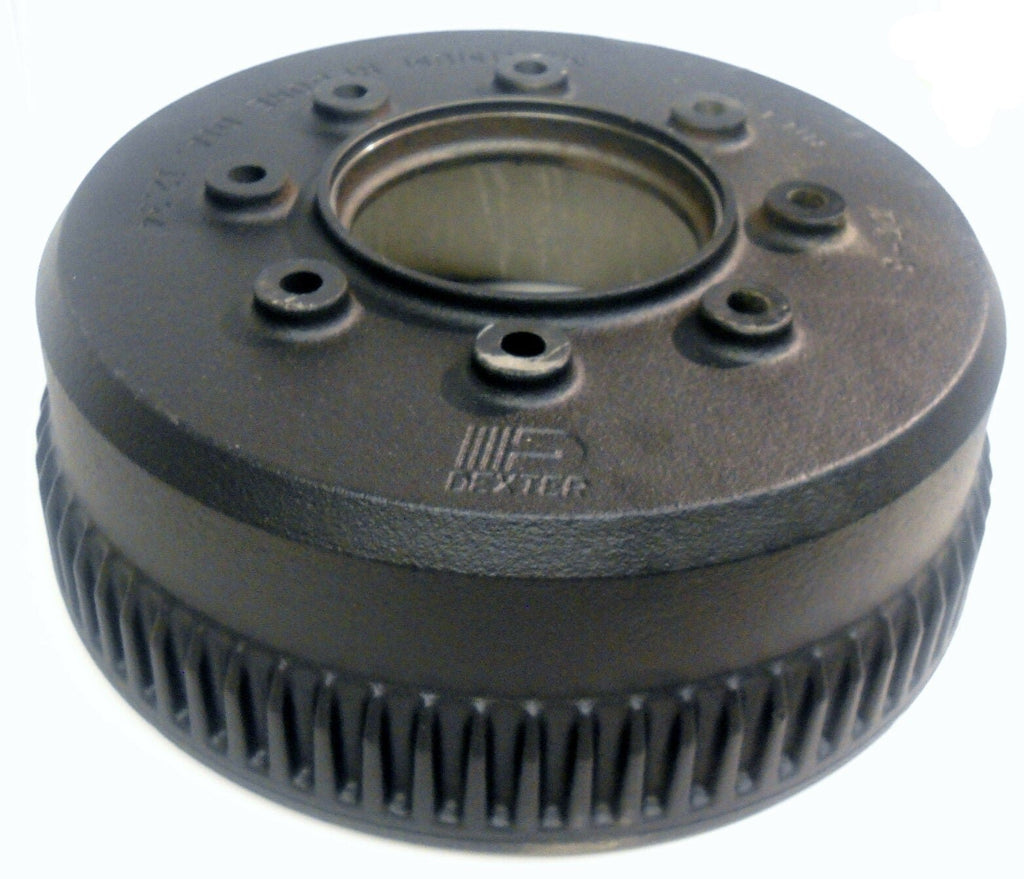

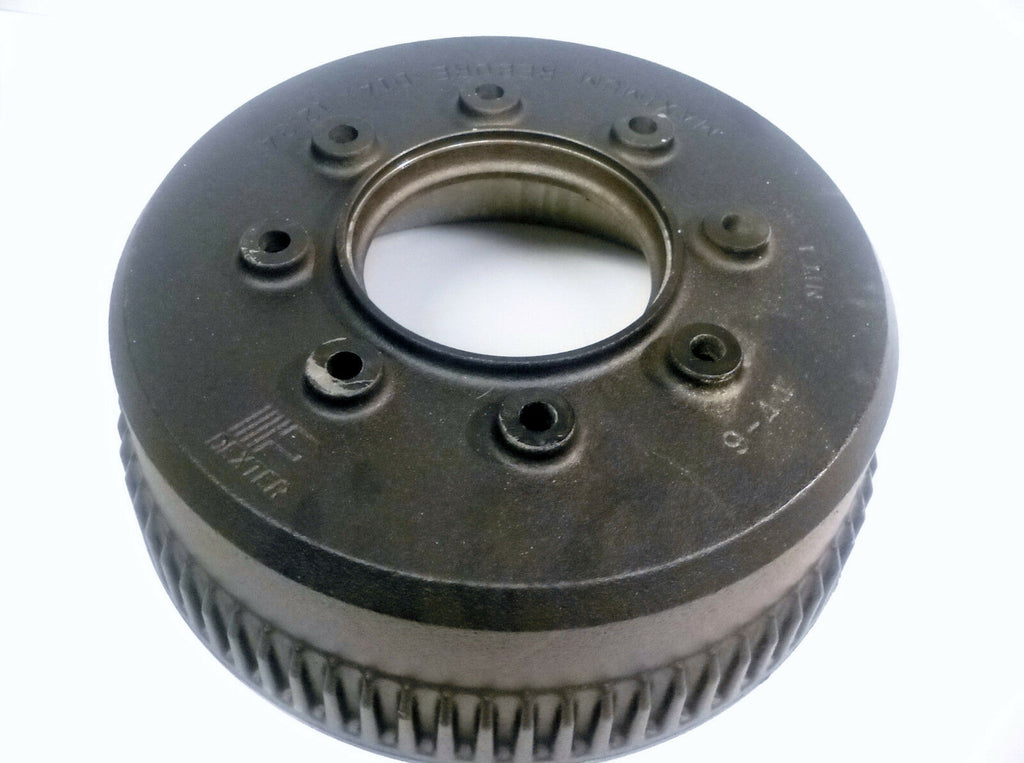

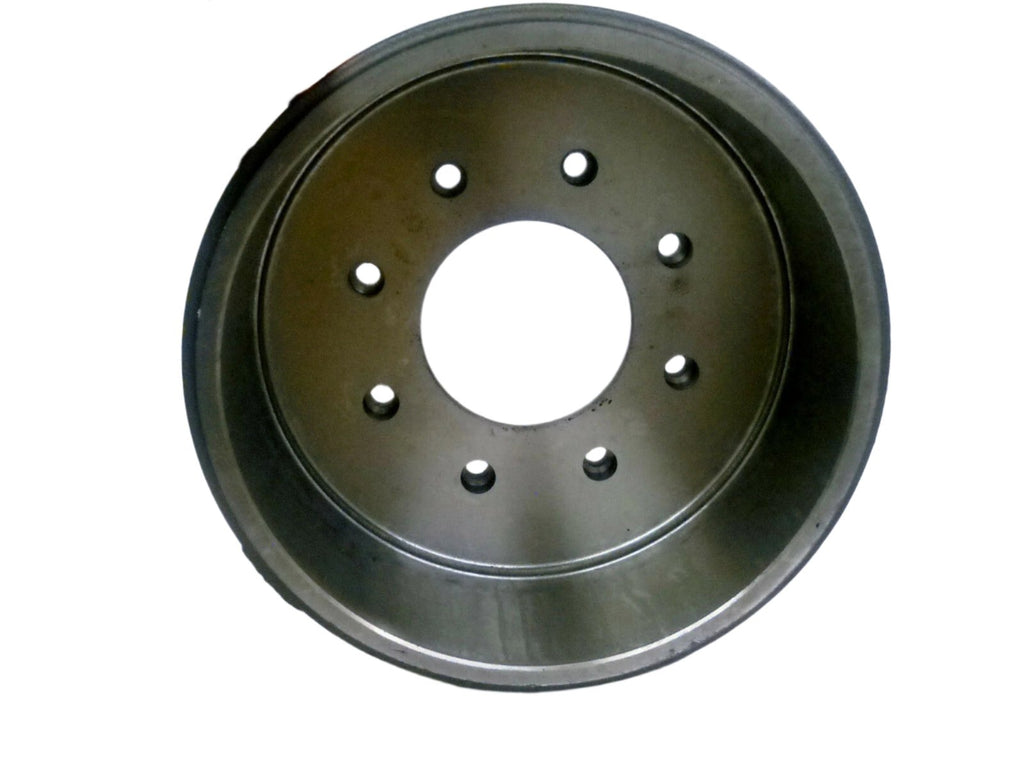

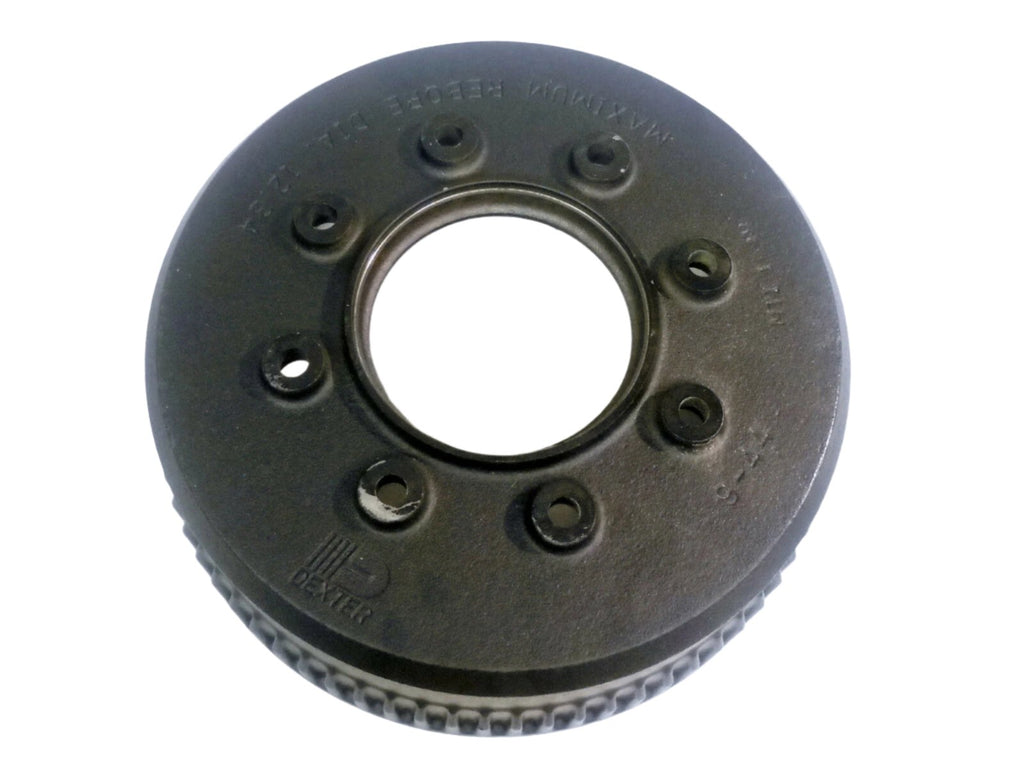

Dexter 12-1/4" x 3-3/8" Brake Drum
9K to 10K General Duty Trailer Axles before 2009
Part Number: 009-044-01
This drum is part of a two piece drum/hub assembly (hub not included) and it is used on 9,000-10,000 made in before July 2009 by Dexter Axle.
ONE PIECE DRUMS/HUBS ARE NOT COMPATIBLE WITH TWO PIECE DRUMS & HUBS
TWO PIECE DRUMS AFTER 2009 ARE ALSO NOT COMPATIBLE

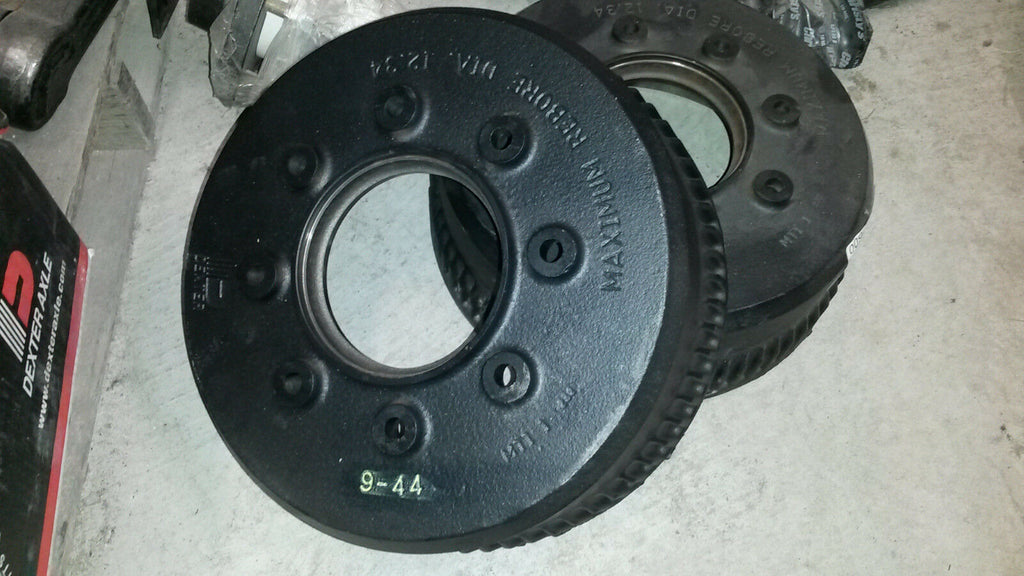

Look at the Pictures, if your old drum has 9-44 on it, this is your drum.
