Left hand Kodiak E-coated trailer disc brake caliper assembly with stainless steel 2-1/2" piston, ceramic brake pads, bleed screws, and mounting hardware for compatible heavy-duty 8K to 14K trailer brake applications.

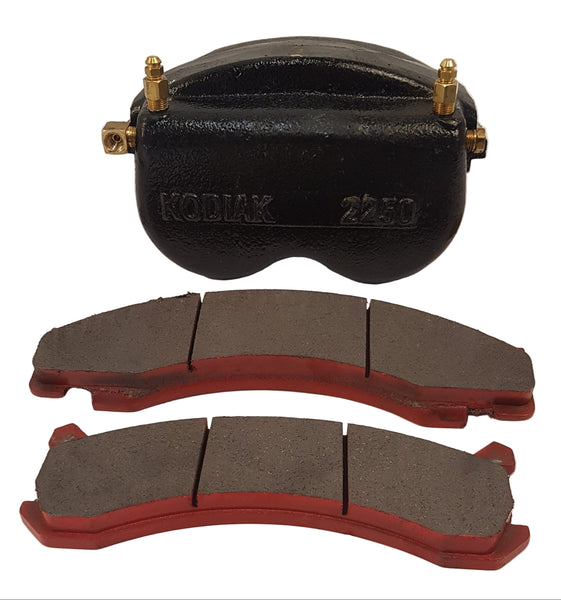

This listing is for one left hand Kodiak DBC-2250-E-L disc brake caliper assembly. The caliper is E-coated for corrosion resistance and is supplied loaded with non-asbestos ceramic friction pads for one rotor. Designed for heavy-duty trailer disc brake systems, this caliper features a 2-1/2" stainless steel piston and low-drag caliper design to help reduce brake heat during operation.
Brake caliper fitment should always be verified before ordering, especially on heavy-duty trailer axle systems where rotor size, caliper side, and piston size matter.
Compatibility: Fits heavy-duty Kodiak disc brake applications in the 8,000 lb to 14,000 lb axle range when the brake system, rotor, piston size, and caliper side match.
Vehicle / System Fit: Commonly used with heavy-duty trailer disc brake systems using 13" to 15" rotors.

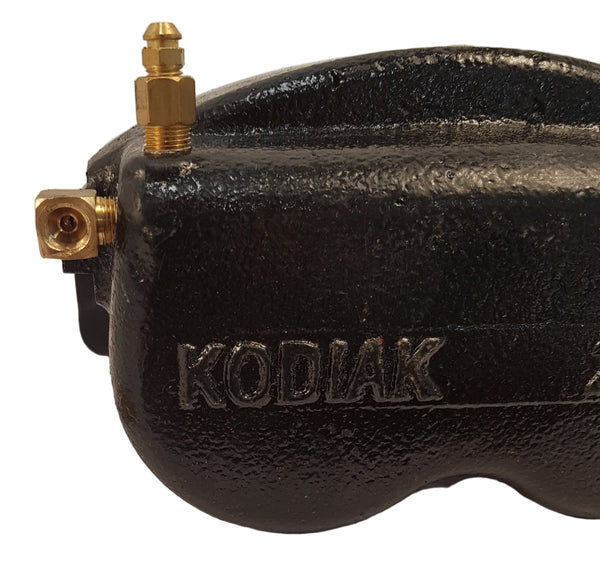

Installation Notes: Bleed screws are included. Always bleed the hydraulic brake system properly after caliper replacement.
Performance Insight: Kodiak low-drag calipers retract the piston farther than many standard designs, helping the brake run cooler under proper operating conditions.
Selling Brand: Kodiak
Application Reference: Left hand E-coated disc brake caliper with 2-1/2" stainless steel piston for compatible heavy-duty trailer axle disc brake systems.
Known Assembly References: Kodiak 11" disc brake assemblies 071-2H-11-8D-5HD-REER and 071-2H-11-8D-9HD-REER.
Before Ordering: Verify left hand orientation, axle rating, rotor diameter, piston size, and brake assembly compatibility before purchase.
Replacing a trailer disc brake caliper is not just a part swap. Inspect the rotor, pads, hydraulic lines, actuator performance, and brake fluid condition while the system is apart.
Protective E-coat finish helps improve longevity and corrosion resistance in trailer brake service environments.
Built with a 2-1/2" stainless steel piston for heavy-duty hydraulic disc brake applications.
Includes non-asbestos ceramic friction pads for one rotor, covering compatible 13" to 15" rotor diameter applications.
Kodiak low-drag design helps retract the piston farther than many other designs, supporting cooler brake operation.
| Specification | Detail |
|---|---|
| Part Number | DBC-2250-E-L |
| Listing SKU | DBC-2250-E-L |
| Brand | Kodiak |
| Product Type | Left Hand Disc Brake Caliper Assembly |
| Quantity Included | 1 caliper assembly with pads and hardware |
| Axle Rating Range | 8,000 lb to 14,000 lb trailer axle applications, where compatible |
| Finish | E-Coated |
| Piston Diameter | 2-1/2" stainless steel piston |
| Brake Pads | Non-asbestos ceramic friction pads |
| Category | Details |
|---|---|
| Vehicle / System | Trailer hydraulic disc brake system |
| Primary Fit | 8KHD, 10K, and 12K axle disc brake applications where DBC-2250-E-L is specified |
| Rotor Diameter | Fits 13" to 15" rotor diameter applications |
| Notes | Verify left hand orientation, rotor size, piston size, and Kodiak assembly compatibility before ordering. |
| Key Detail | Specification |
|---|---|
| Caliper Side | Left Hand |
| Piston Diameter | 2-1/2" |
| Piston Material | Stainless Steel |
| Brake Pads | Non-asbestos ceramic friction pads |
| Rotor Diameter Range | 13" to 15" |
| Testing / Design | Kodiak calipers are 100% high and low pressure tested and built with a low-drag design. |

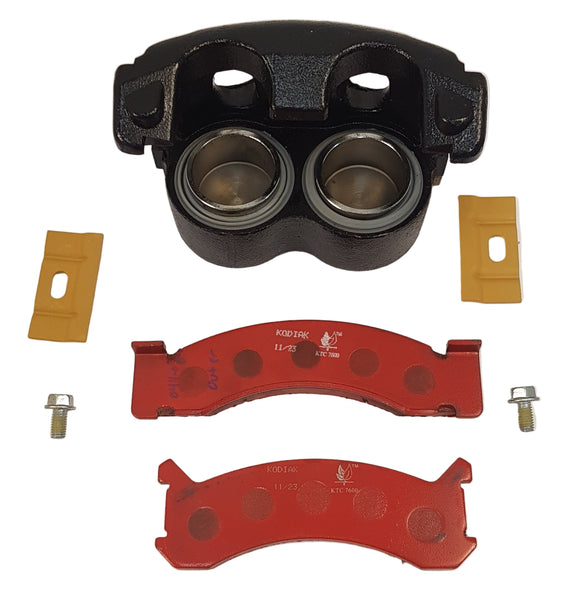

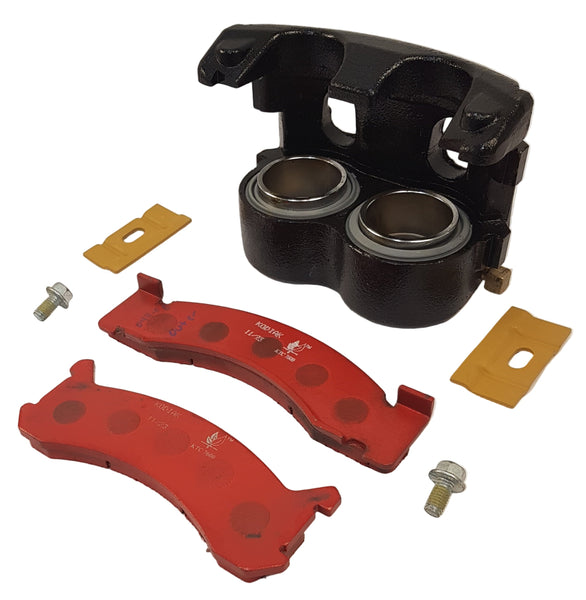

| Quantity | Item |
|---|---|
| 1 | Left hand E-coated Kodiak disc brake caliper with bleed screws included |
| 1 Set | Ceramic brake pads for one 13" to 15" rotor |
| 2 | Steel bolts and plates |
| Included | Mounting hardware for compatible Kodiak disc brake applications |
