Dexter #12 Torflex 7,000 lb Axle – 94" Hub Face, 80" Brackets, Electric Brakes (7000-94-80OB-HPIB-0Arm-9/16-Complete)
Product Info
Dexter #12 Torflex 7,000 lb Torsion Axle – 94" Hub Face / 80" Bracket Width
Product Identification: Dexter #12 Torflex

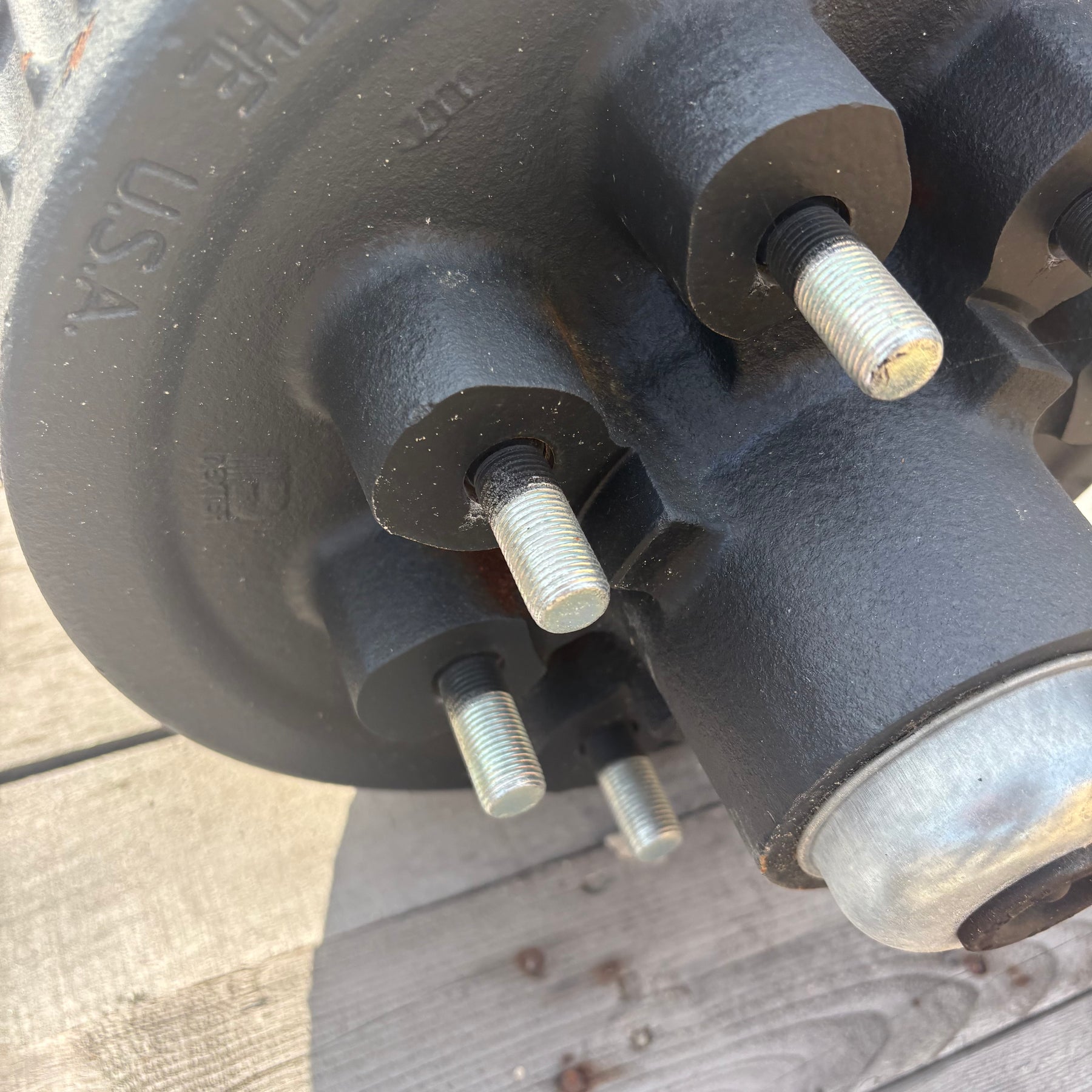

The Dexter #12 Torflex is a 7,000 lb-rated torsion trailer axle featuring built-in rubber suspension and 12" × 2" electric drum brakes. This configuration has a 94" hub-face measurement, 80" outside mounting-bracket width, E-Z Lube short spindles, and 8 on 6.5" hubs with heavy-duty 9/16"-18 wheel studs.
Matching a Torflex Axle
Torsion axles must match more than the weight rating. Hub-face width, outside bracket width, mounting arrangement, starting arm angle, and spindle configuration all affect how the axle fits beneath the trailer.
This axle is specified with a 0° starting arm angle and zero trail. Do not substitute a different arm-angle or mounting configuration without confirming compatibility with the trailer manufacturer or a qualified axle specialist.
Key Features
|
7,000 lb Capacity
Dexter #12 Torflex torsion axle configuration.
|
Rubber Torsion Suspension
Integrated rubber suspension within the axle assembly.
|
|
Electric Drum Brakes
12" × 2" electric drum brake specification.
|
E-Z Lube Spindles
Short-spindle configuration with 8 on 6.5" hubs.
|
Specifications & Fitment
| Specification | Details |
|---|---|
| Manufacturer / Series | Dexter #12 Torflex |
| Rated Capacity | 7,000 lb |
| Hub-Face Width | 94" |
| Outside Bracket Width | 80" |
| Suspension Type | Integrated rubber torsion |
| Brake Type / Size | Electric drum / 12" × 2" |
| Spindles | E-Z Lube, short |
| Hub Bolt Pattern | 8 on 6.5" |
| Wheel Studs | 9/16"-18 |
| Starting Arm Angle | 0° |
| Trail | Zero trail |
| Torsion Arm | 6" |
| Mounting Brackets | High-profile, standard |
| Seal Specification | 2.250" |
Measure Before You Order
Confirm the 94" hub-face measurement and 80" outside mounting-bracket width against the existing installation. Check bracket height and position, frame clearance, wheel bolt pattern, and brake compatibility.
A matching 7,000 lb rating alone does not establish fitment. Verify the axle configuration before purchasing or installing.
Axle Configuration
The supplied description identifies a Dexter Torflex axle configuration equipped with the following:
| Rubber torsion suspension axle assembly |
| 12" × 2" electric drum brakes |
| E-Z Lube short spindles |
| 8 on 6.5" hubs with 9/16"-18 studs |
| High-profile standard mounting brackets |
Exact packaged contents, hardware quantities, and manufacturer part number were not provided. Confirm those details before publication.
This axle is not a universal-fit replacement. Before ordering, verify all mounting dimensions, bracket configuration, spindle specifications, brake configuration, suspension arm geometry, and intended trailer application.
