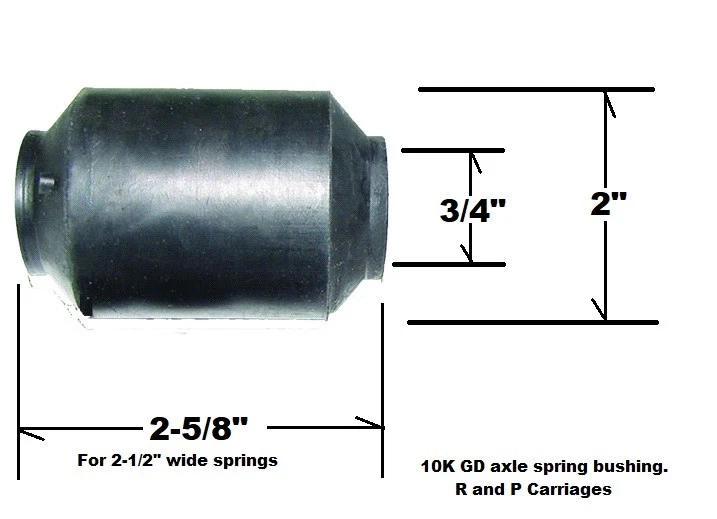

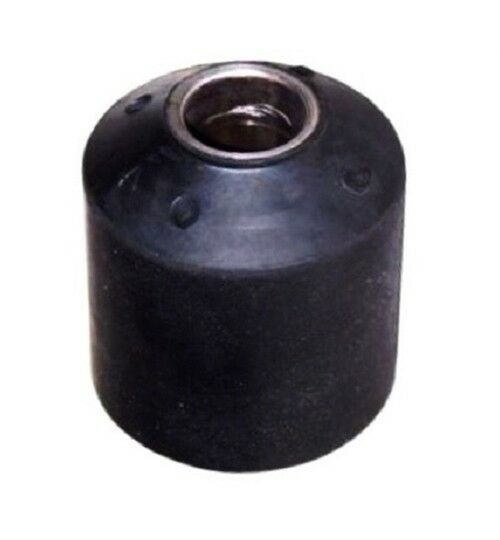

Dexter 10K GD Rubber Spring Eye Bushing – 3/4" ID x 2" OD x 2-5/8" Long
Part Number: 014-112-00 | 14-112
Heavy-duty rubber spring eye bushing designed for Dexter 10,000 lb General Duty (GD) leaf spring suspension systems. Commonly used on 2-1/2" wide 10K GD leaf springs requiring a 3/4" diameter spring bolt.
This listing is for one (1) bushing.
R&P Knowledge Hub
Spring eye bushings isolate the pivot point between the trailer hanger and leaf spring. In 10K General Duty systems, rubber bushings absorb shock while maintaining proper spring alignment under heavy load conditions.
Worn bushings can cause suspension movement, uneven tire wear, and noise. Always verify inside diameter (bolt size), outside diameter (spring eye bore), overall length, and spring width before installation.
Features
- Designed for Dexter 10K General Duty (GD) suspension systems
- Fits 2-1/2" wide leaf springs
- Compatible with 3/4" diameter spring bolts
- Rubber construction for vibration isolation
- Direct replacement spring eye bushing
- Quantity: One (1) Bushing
Specifications
| Specification | Detail |
| Part Number | 014-112-00 |
| Alternate Number | 14-112 |
| Application | Dexter 10K General Duty (GD) Leaf Springs |
| Spring Width Compatibility | 2-1/2" |
| Inside Diameter (ID) | 3/4" |
| Outside Diameter (OD) | 2" |
| Overall Length | 2-5/8" |
| Material | Rubber |
| Quantity | One (1) Bushing |
Verify specifications before installation.
