At a Glance
- SKU: T14-RW00-1
PRODUCT INFORMATION
Product Details
Trailer Lighting / LED ID Bar / Load Lamp Combo

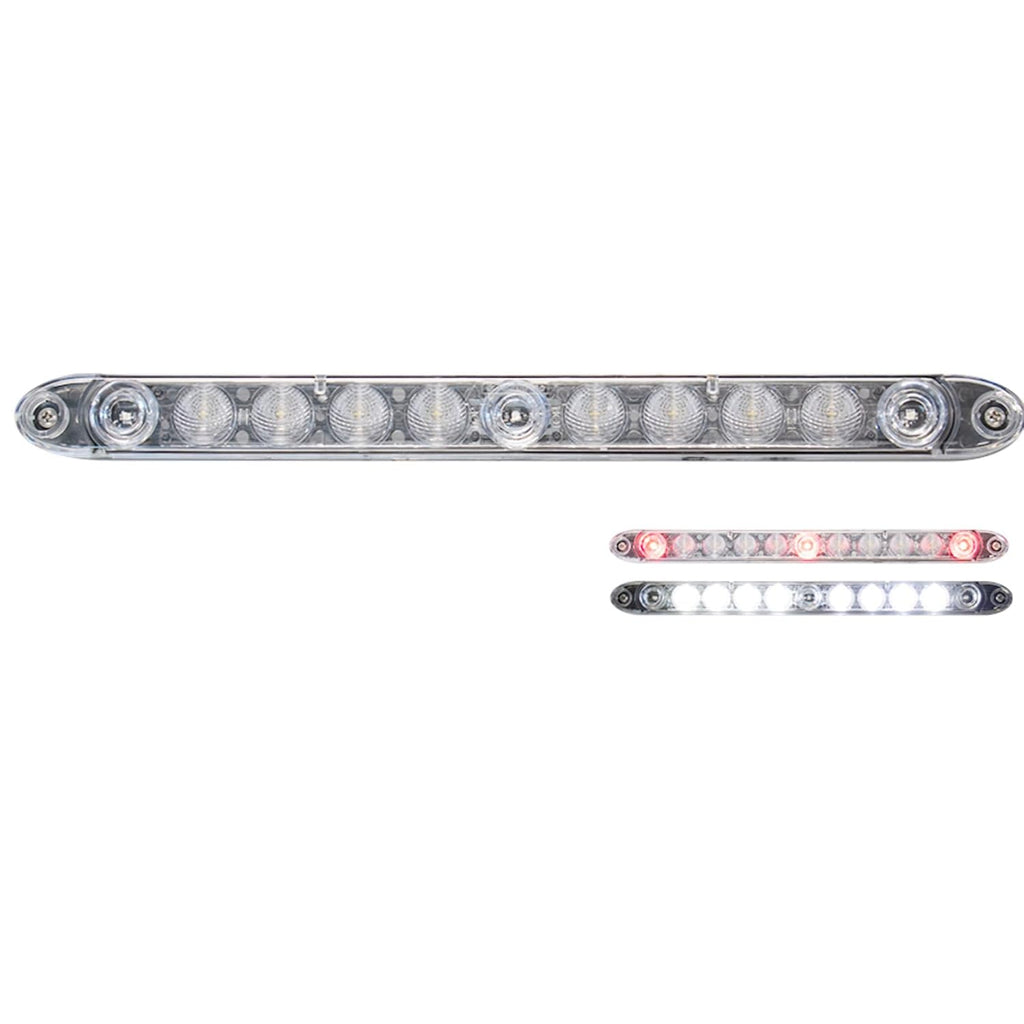

TecNiq 15" LED - T14 - Red ID Bar & White Load Lamp Combo Trailer Light
Low-profile TecNiq LED combination lamp with red over-80" identification lighting and a high-output white load lamp. Built for RV toy haulers, utility trailers, work trucks, enclosed trailers, and other properly wired trailer lighting applications.
Part Number: T14-RW00-1 15.52" x 1.28" x 0.48" Red / White LED Combo
Key Measurements & Specs
| Specification | Detail |
|---|---|
| Part Number / SKU | T14-RW00-1 |
| Brand | TecNiq |
| Product Type | LED identification bar and white load lamp combination |
| Overall Dimensions | 15.52" long x 1.28" high x 0.48" deep |
| Hole Spacing | 13.25" hole spacing |
| LED Count | 11 LEDs |
| Light Output | 500 lumens white load lamp |
| Voltage | 9–14V DC |
| Current Draw | 0.04–0.07A red / 0.325–0.395A red-white combo |
| Lens / Color | Clear lens with red and white LED output |
| Quantity Included | One lamp assembly |
Fitment / Application
| Category | Details |
|---|---|
| Vehicle / Trailer / System | Trailer and vehicle LED lighting systems |
| Common Applications | RV toy haulers, utility trailers, work trucks, enclosed trailers, and over-80" rear ID light applications |
| Mounting Style | Surface mount using two screws; screw covers included |
| Connection Style | 9" wire pigtail |
| Wire Colors | White = ground, black = load lamp, red = tail / ID light |
| Important Note | Confirm hole spacing, wiring function, mounting surface, and lamp orientation before ordering or installation. |
Top Features
| Feature | Buyer Benefit |
|---|---|
| Combo Function | Combines red rear ID lighting with a white load lamp in one low-profile assembly. |
| 500-Lumen Load Light | Helps illuminate cargo, ramps, trailer interiors, and work areas at night. |
| IP68 Rated | Designed for wet, dirty, and demanding trailer environments. |
| Surface Mount Design | Simplifies replacement or installation on compatible flat mounting locations. |
| 9–14V DC Range | Suitable for standard 12V trailer and vehicle lighting systems. |
Overview
The TecNiq T14-RW00-1 is a low-profile LED identification bar and load lamp combination. It provides red ID lighting for over-80" trailer applications and a white 500-lumen load lamp for added visibility around cargo areas, rear ramps, work truck beds, and trailer loading zones. This listing includes one TecNiq T14-RW00-1 lamp assembly.
R&P Service Insight
This lamp is a good fit when a trailer or truck needs a clean rear ID light with usable work-area lighting in the same housing. Before installation, compare the existing light’s wiring and mounting footprint to the TecNiq T14 dimensions.
- Mounting Check: Confirm the 13.25" hole spacing and flat surface mount location before drilling or replacing an existing lamp.
- Wiring Check: Match white to ground, black to load lamp power, and red to tail / ID light power.
- Orientation Check: TecNiq notes that the lamp must be mounted in the proper orientation using the molded marking on the lens.
R&P Knowledge Hub
Compatibility: Best matched by part number, overall size, hole spacing, wire function, voltage, and mounting style.
Vehicle / System Fit: Designed for 12V-style trailer and vehicle lighting systems operating in the 9–14V DC range.
Installation Notes: Surface mount with two screws. Route wiring so the pigtail is protected from sharp edges, pinch points, water intrusion paths, and moving trailer components.
Performance Insight: The red ID lighting supports rear identification visibility, while the white load lamp adds practical illumination for dark loading, unloading, and work-area use.
Brand & Fitment Note
Selling Brand: TecNiq
Application Reference: Trailer, RV toy hauler, utility trailer, enclosed trailer, and work truck references describe common usage only.
What This Means: This listing is for one TecNiq T14-RW00-1 LED ID bar and load lamp combination, not a guaranteed direct replacement for every trailer using a similar style lamp.
Before Ordering: Verify the part number, dimensions, hole spacing, wiring colors, mounting surface, and required lighting function before installation.
R&P Repair Insight
When replacing trailer lighting, the part number and wiring function matter more than appearance alone. Two lamps can look similar but use different hole spacing, connector style, lens color, or wiring layout.
- Check Existing Wiring: Identify ground, tail / ID light, and load lamp power before removing the old lamp.
- Check Mounting Footprint: Compare the existing mounting holes to the 13.25" hole spacing listed for this lamp.
- Check Light Function: This is an ID bar / load lamp combo, not a brake / reverse combo lamp.
Features
Red ID Bar & White Load Lamp
Combines rear red identification lighting with a high-output white load lamp in one compact LED housing.
500-Lumen White Output
Provides useful illumination for trailer ramps, cargo areas, truck beds, and night work around the rear of the vehicle.
IP68 Rated Construction
Built for demanding trailer and vehicle environments where moisture and road exposure are common.
Surface Mount Installation
Mounts with two screws and uses a 9" wire pigtail for connection into compatible trailer or vehicle wiring.
Included Components
| Quantity | Item |
|---|---|
| 1 | TecNiq T14-RW00-1 red ID bar and white load lamp combo |
| 1 | 9" wire pigtail attached to lamp |
| Included | Screw covers for surface mount installation |
| Not Included | Additional wiring, butt connectors, mounting screws, sealant, or installation tools unless otherwise shown or stated |
Important Fitment Note: Verify all measurements, hole spacing, wiring function, mounting orientation, voltage, and included components before installation. Application references describe common trailer and vehicle lighting uses only and do not guarantee fitment on every trailer, RV, or work truck.
TecNiq T14-RW00-1, TecNiq T14 ID load lamp combo, red ID bar white load lamp, 15 inch LED trailer ID bar, over 80 inch trailer ID light, 500 lumen load lamp, RV toy hauler light, utility trailer LED light, work truck load lamp, enclosed trailer rear light, IP68 TecNiq trailer light, T14-RW00-1 red white LED combo lamp
